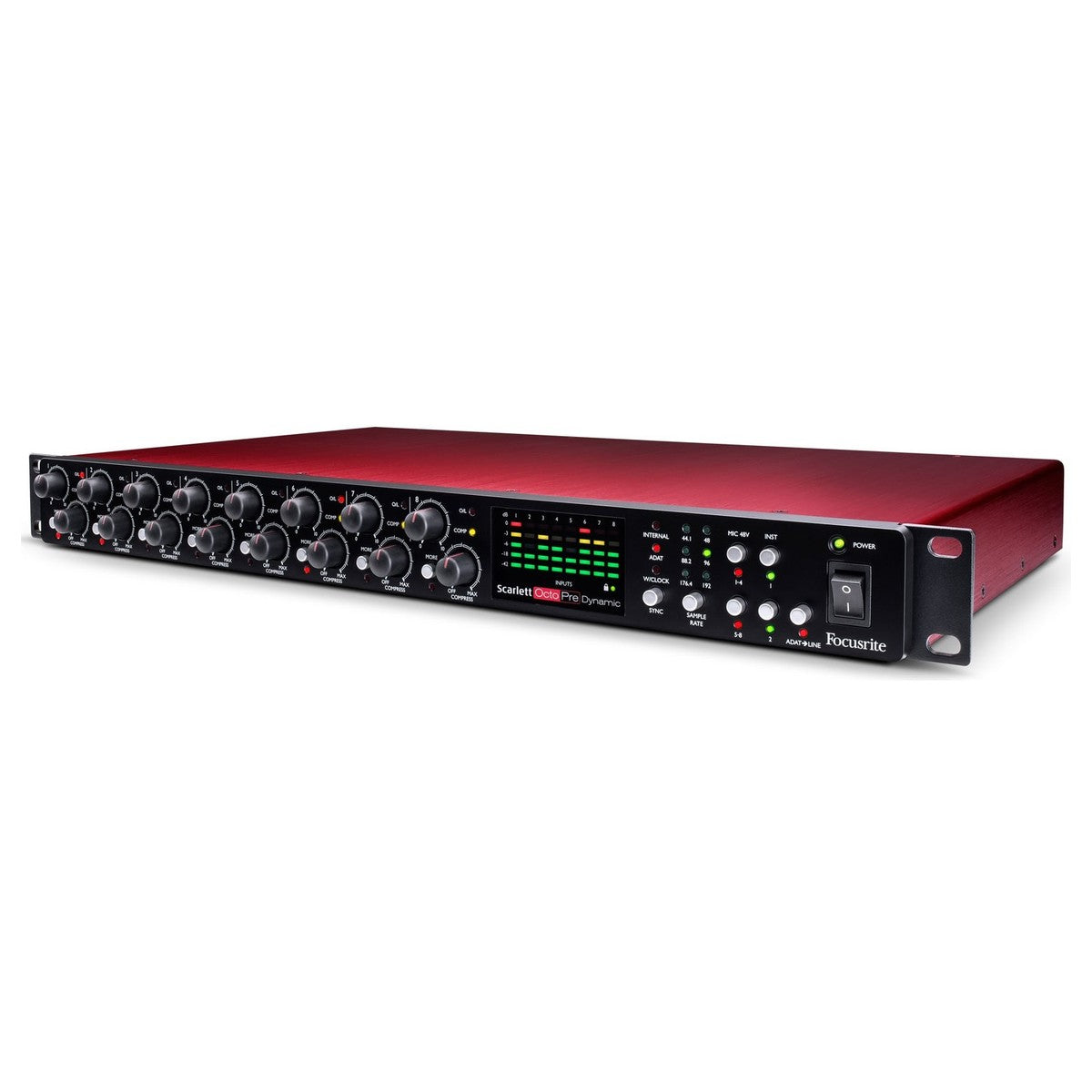

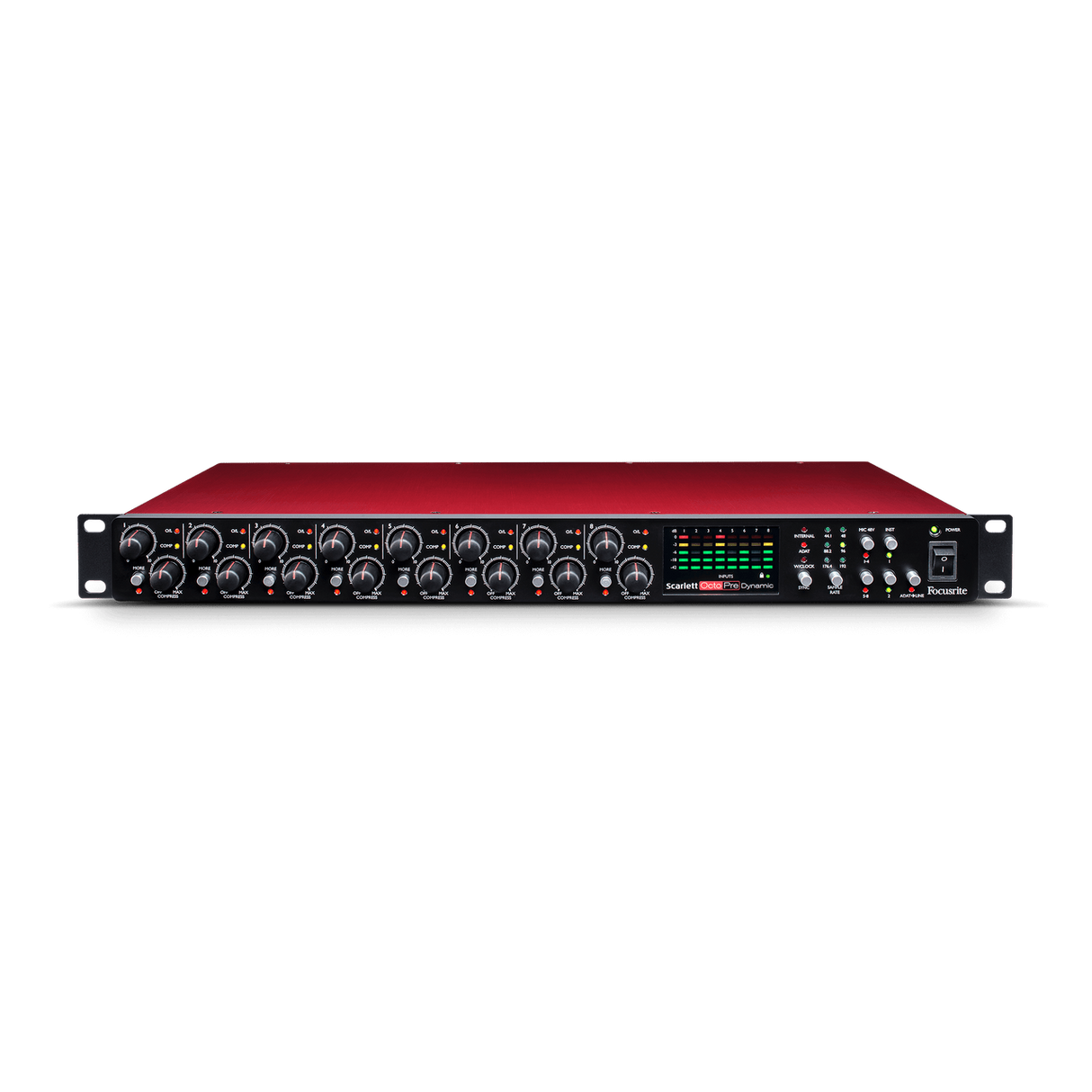

Focusrite Scarlett Octopre Dynamic

• 8 microphone preamps from the Scarlett series including 2 with HI-Z input for guitar and bass.
• Each preamp has built-in compressor with 'more' function, which doubles the ration.
• Easy way to expand sound cards with ADAT input.
• Handy digital VU meter so you can easily keep track of the inputs.
• 8 line outputs.
• Digital input and output via ADAT/toslink (48-192khz).
• Wordclock in/out.
• Digital connection card:
• When connecting a sound card and a preamp with digital output, it can be done in two ways. One of the devices should be master clock and the other 'slave'. If your soundcard has wordclock out (such as Focusrite 18i20), the soundcard must be master clock and Octopre set to 'slave' (set to wordclock on the front panel). Connect with an ADAT/toslink cable and a BNC cable from wordclock out (soundcard) to wordclock in (octopre).
• If your soundcard does not have wordclock (such as Focusrite 18i8), set the soundcard to 'slave' and set octopre to 'Internal' on the front panel. The two devices are connected with a single ADAT/toslink cable. The sound card settings are made in the Focusrite Control app for the computer. Download from Focusrite.
• If your sound card has ADAT out, you can also sync via ADAT. Connect adat out on soundcard to adat in on octopre and select ADAT as sync source on the front page.
• Also available without compressor, as standard octopre.
