Ortofon 2M Black Stylus

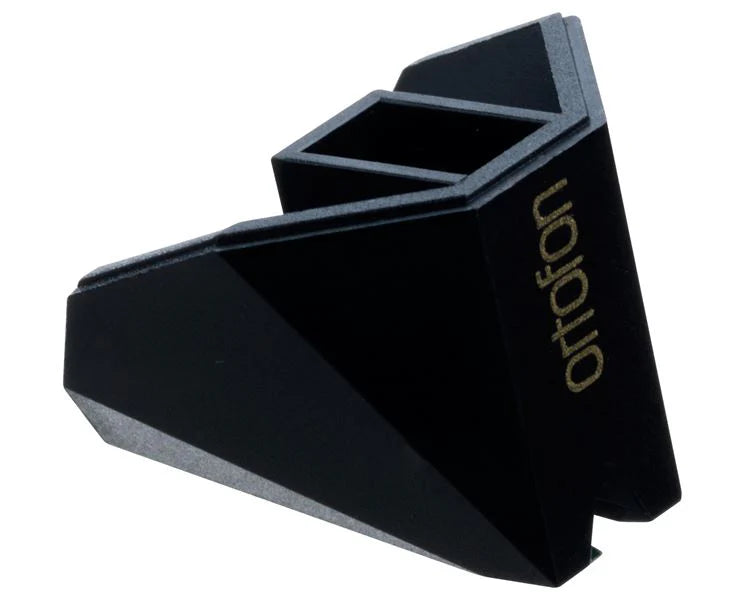

The 2M Black Replacement Stylus is a genuine replacement part for Ortofon 2M Black and 2M Black Verso Cartridges
Features:
? Nude Shibata diamond
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- Output voltage at 1000 Hz, 5cm/sec.: 5 mV
- Channel balance at 1 kHz: 1 dB
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at - 3dB: 20-31.000 Hz
- Frequency response: 20-20.000 Hz + 2 / - 0 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 22 µm/mN

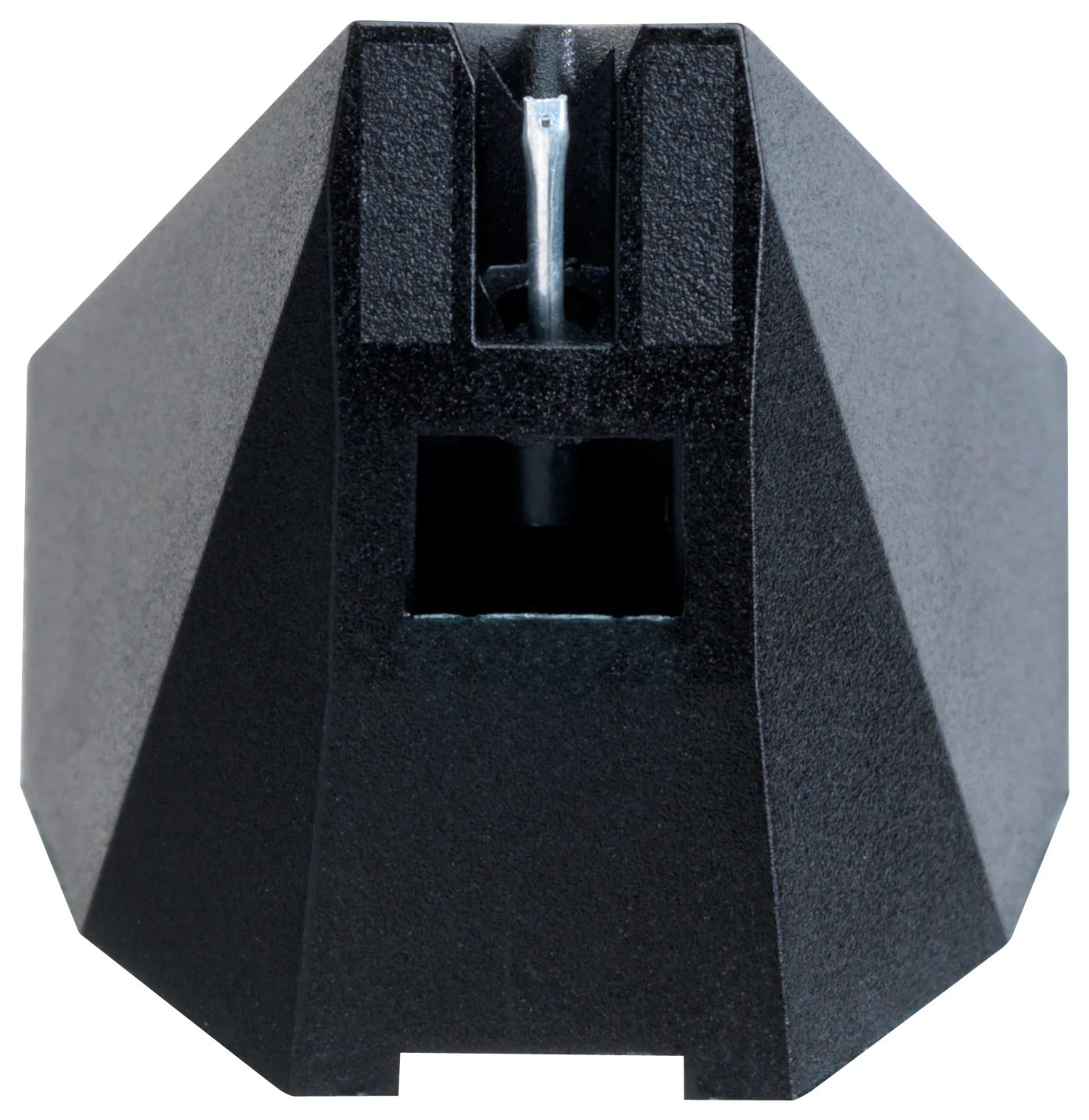

- Stylus type: Nude Shibata
- Stylus tip radius: r/R 8/50 µm
- Tracking force range: 1.4-1.7g (14-17 mN)
- Tracking force, recommended: 1.5 g (15 mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 1.2 kOhm
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
