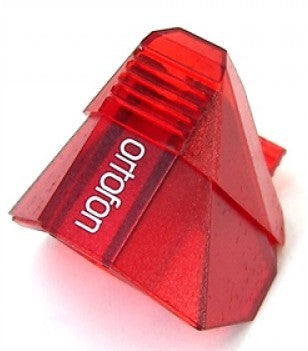

Ortofon 2M Red Stylus
Description
Description
- This Stylus is an interchangeable 2M Red Stylus that fits Ortofon 2m Red Pick-up and 2M Red Verso
- It features a tipped elliptical diamond and copper wire

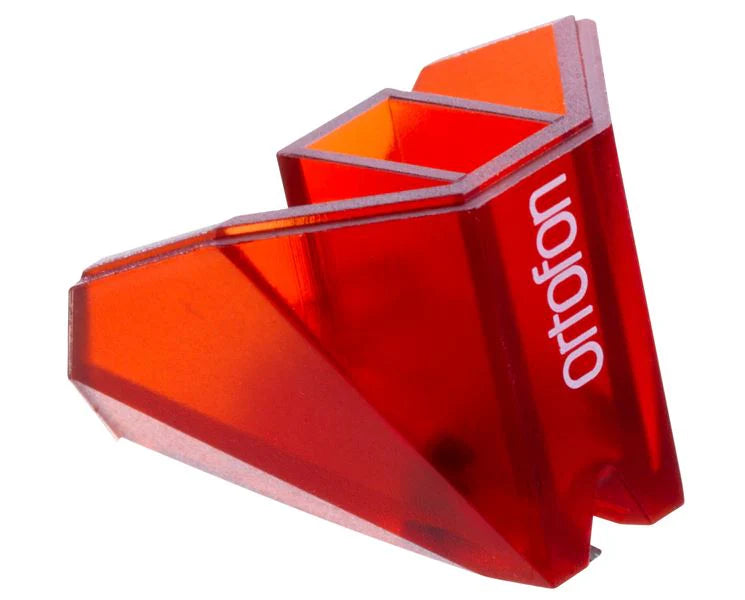

Ortofon 2M Red Stylus
The 2M Red Replacement Stylus is a genuine replacement part for Ortofon 2M Red and 2M Red Verso Cartridges
FEATURES:
? Tipped Elliptical diamond
? Copper wire
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at - 3dB: 20-22.000 Hz
- Frequency response: 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force: 70 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.6-2.0g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 1.3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
