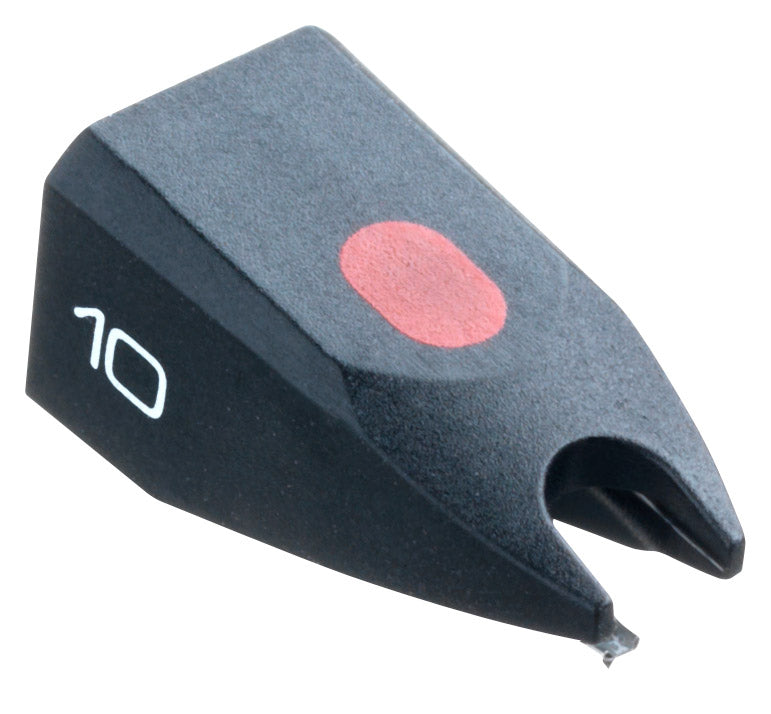

Ortofon 10 Stylus
€54,00
€60,00
Unit price
/
Not available
Description
Description
- This spare Stylus fits Ortofon OD1, Super OM 10, OM 10, OMP 10, TM 10
- Elliptical Styli like this have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli
- Not suitable for scratching
Ortofon 10 Stylus
- This spare Stylus fits Ortofon OD1, Super OM 10, OM 10, OMP 10, TM 10
- Elliptical Styli like this have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli
- Not suitable for scratching
If your pickup Stylus is getting worn, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Frequency range | 20-24.000 Hz |
| Frequency response | 20-20.000 Hz + 3 / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.25-1.75 g (12.5-17.5 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12 |
Brand: Ortofon
SKU: ORT-0021031
