Ortofon 30 Stylus
€237,16
Unit price
/
Not available
Description
Description
- This spare Stylus fits Ortofon Super OM 30, OM 30, OMP 30, TM 30

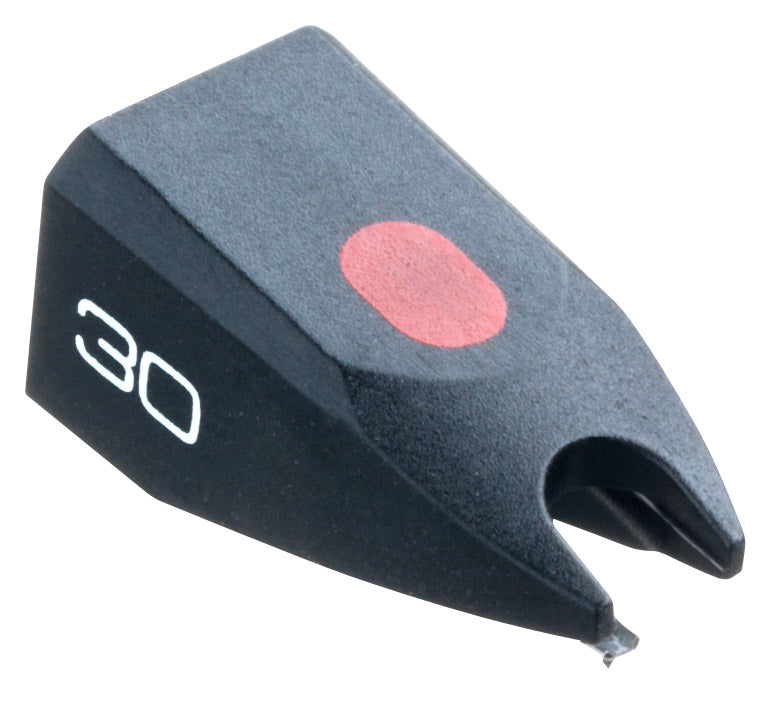

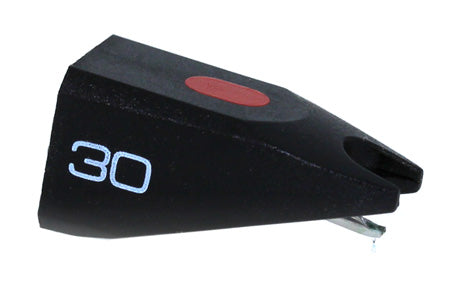

Ortofon 30 Stylus
For Ortofon Super OM 30,OM 30, OMP 30, TM 30 Cartridges
If your pickup Stylus is getting worn, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Frequency range | 20-29.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 3 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 90 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Nude Fine LIne |
| Stylus tip radius | r/R 8/40 µm |
| Equivalent stylus tip mass | 0,3 mg |
| Tracking force range | 1.25-1.75 g (12.5-17.5 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 20, SME 30H, LM 30H,TM 30H |
Brand: Ortofon
SKU: ORT-0023031
