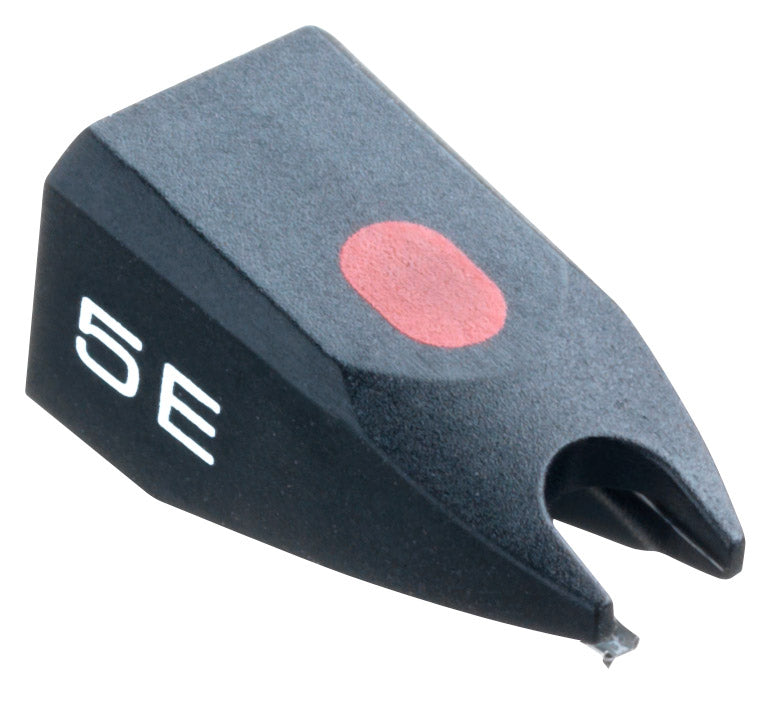

Ortofon 5E Stylus
€40,00
€49,00
Unit price
/
Not available
Description
Description
- Spare Stylus from Ortofon suitable for OM 5 E and OMP 5E
- Elliptical Styli like this are more expensive than spherical ones. They have a larger contact area, which creates less ?pressure? on the plates, which do not wear in the same way as with spherical Styli
- Are not suitable for scratching
Ortofon 5E Stylus
For Ortofon OM 5E and OMP 5E Cartridge
If your pickup Stylus is getting worn, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Frequency range | 20-25.000 Hz |
| Frequency response | 20-25.000 Hz |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | OM 5E, OMP 5E, OMB 5E, OMT 5E |
Brand: Ortofon
SKU: ORT-0020521
