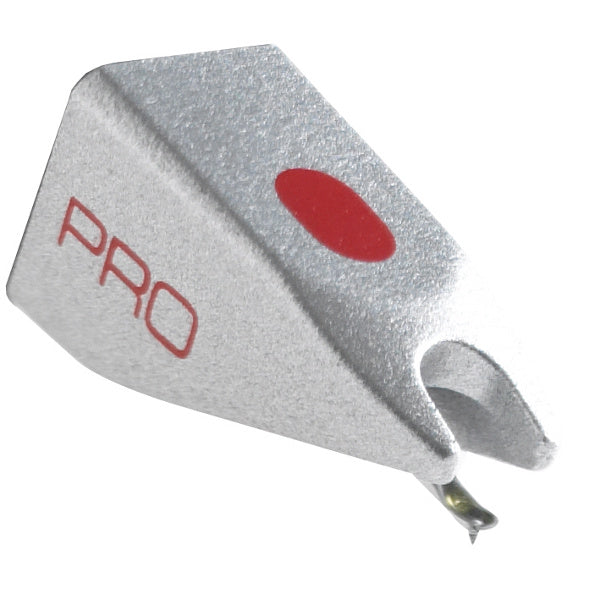

Ortofon PRO Stylus Stylus
€39,00
€40,00
Unit price
/
Not available
Description
Description
- PRO is known for its great performance and durability for basic scratching and back-cueing
- It has a good quality spherical diamond
Ortofon PRO Stylus Stylus
- PRO is known for its great performance and durability for basic scratch and back-cueing
- It has a good quality spherical diamond
- Good all-round pickup
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Output voltage at 1000Hz, 5cm/sec. | 5 mV |
| Channel balance at 1kHz | 1.5 dB |
| Channel separation at 1kHz | 20 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at -3dB | 20-20.000 Hz |
| Frequency response | 20-20.000 Hz 3dB/-2dB |
| Tracking ability at 315 Hz at recommended tracking force | 70 m |
| Compliance, dynamic lateral | 7 m/m N |
| Stylus type | Spherical |
| Stylus tip radius | R 18 m |
| Tracking force range | 3.0-5.0 g (30-50 mN) |
| Tracking force recommended | 4.0 g (40 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
Brand: Ortofon
SKU: ORT-0021081
