Yamaha MG20 Mixer
Description
Description
- 20-channel live mixer
- 16 mic/20 line inputs
- PAD switch + phantom power
- D-PRE mic preamps
- compressors, EQ, high pass filter etc.

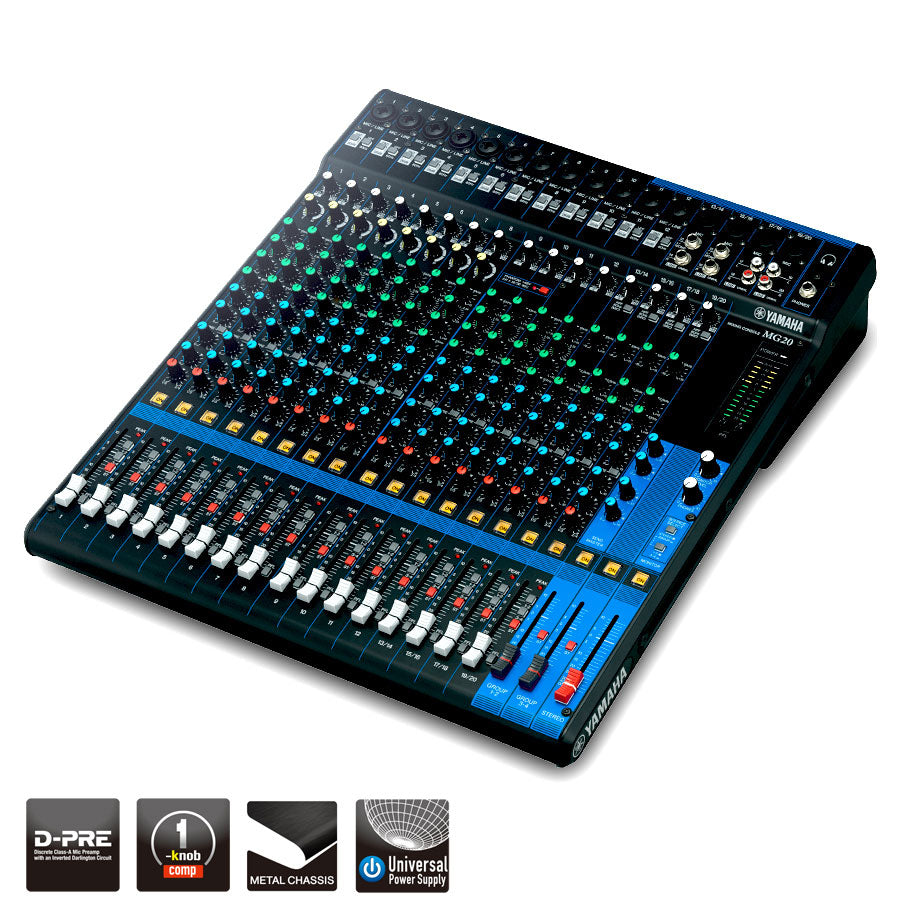

Yamaha MG20 Live Mixer
Yamaha The MG20 is a 20-channel live mixer with 16 mic/20 line inputs (12 mono + stereo), 4 GROUP busses, 4 AUX, PAD switch on mono inputs, 48 V phantom power, 3-band EQ and high pass filter for elimination of low frequency sounds.
Yamaha The MG20 is constructed in powder-coated metal chassis that provides optimal durability while ensuring passive cooling of components.
D-PRE mic preamps
The MG series features built-in D-PRE mic preamps with operational amplifiers that help improve power and reduce impedance. Yamaha The MG20 features a two-cascade inverted Darlington circuit for low distortion. The frequency response is wide, making the mixer capable of handling signals from all audio sources.
1-button compressors
Yamaha The MG20's 1-button compressors are simple and quick to use. You can change the dynamics of your signals for optimised sound of, for example, guitars, basses or drums etc.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Features | |
| 20-Channel Mixing Console | |
| Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) | |
| 4 GROUP Buses + 1 Stereo Bus | |
| 4 AUX (incl. FX) | |
| "D-PRE" mic preamps with an inverted Darlington circuit | |
| 1-Knob compressors | |
| PAD switch on mono inputs | |
| +48V phantom power | |
| XLR balanced outputs | |
| Internal universal power supply for world-wide use | |
| Rack Mount Kit Included | |
| Metal chassis | |
Outline | |
| I/O | |
| Phantom power: | +48V |
| Input Channels: | |
| Mono [MIC/LINE] | 12 |
| Mono/Stereo [MIC/LINE]: | 4 |
| Output Channels | |
| STEREO OUT: | 2 |
| MONITOR OUT: | 1 |
| PHONES: | 1 |
| AUX SEND: | 4 |
| GROUP OUT: | 4 |
| Bus: | Stereo: 1, GROUP: 4, AUX: 4 |
| Input Channel Function | |
| PAD: | 26 dB(Mono) |
| HPF: | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP: | 1-knob compressor (Gain/Threshold/Ratio) |
| Threshold: +22 dBu to -8 dBu, | |
| Ratio: 1:1 to 4:1, | |
| Output level: 0 dB to 7 dB | |
| Attack time: approx. 25 msec | |
| Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, |
| EQ MID | |
| Gain: | +15 dB/-15 dB |
| Frequency: | Mono 250 Hz - 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 100 Hz shelving |
| PEAK LED: | LED turns on when post EQ signal reaches 3 dB below clipping(Mono) |
| Level Meter: | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications | |
| Total harmonic distortion: | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response: | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz |
| GAIN knob: | Min |
| Hum & noise level | |
| Equivalent input noise: | -128 dBu (Mono Input Channel, Rs: 150, GAIN knob: Max) |
| Residual output noise: | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk: | -78 dB |
| Power requirements: | AC 100 - 240 V, 50 / 60 Hz |
| Power consumption: | 36 W |
| Dimensions (WxHxD): | 444 mm (17.5") x 130 mm (5.1") x 500 mm (19.7") |
| Net weight: | 6.9kg (15.2 lbs.) |
| Included Accessory: | Owner's Manual, Technical Specifications, AC power cord, Rack-mount kit |
| Others: | Operating Temperature: 0 to +40C |
