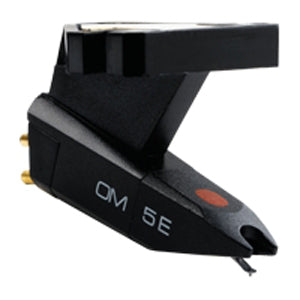

Ortofon OM 5E Pick-Up

€50,00 €56,00
Incl. VAT

Shipping € 10

Ortofon OM 5E Pick-Up is ordered from the supplier and will be shipped as soon as it arrives at our warehouse.

Description

  • OM 5E is a moving magnet pickup
  • It has an elliptical shaped diamond
  • Suitable for "ordinary" vinyl records
  • Provides balanced and undistorted reproduction


Ortofon OM 5E Pick-Up

If your pick-up Stylus is wearing out, you don't need to buy a whole new pick-up.

You can simply replace the Stylus tip itself by purchasing this replacement Stylus.

It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.

Specifications

  • Weight (kg)
    1

More specifications

Output voltage at 1000 Hz, 5cm/sec. 4 mV
Channel balance at 1 kHz 2 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) 65 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.5-2.0 g (15-20 mN)
Tracking force, recommended 1.75 g (17.5 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pF
Cartridge colour, body/stylus Black/Black
Cartridge weight 5 g
Replacement stylus unit Stylus 5 E

Brand: Ortofon
SKU: ORT-0130521
Barcode: 5705796010022
