Yamaha CBR10
Description
Description
- 2-way passive speaker
- Bass reflex cabinet
- Small and compact in design
- HF protection and 2" compression unit
- Maximum sound level of 123 dB

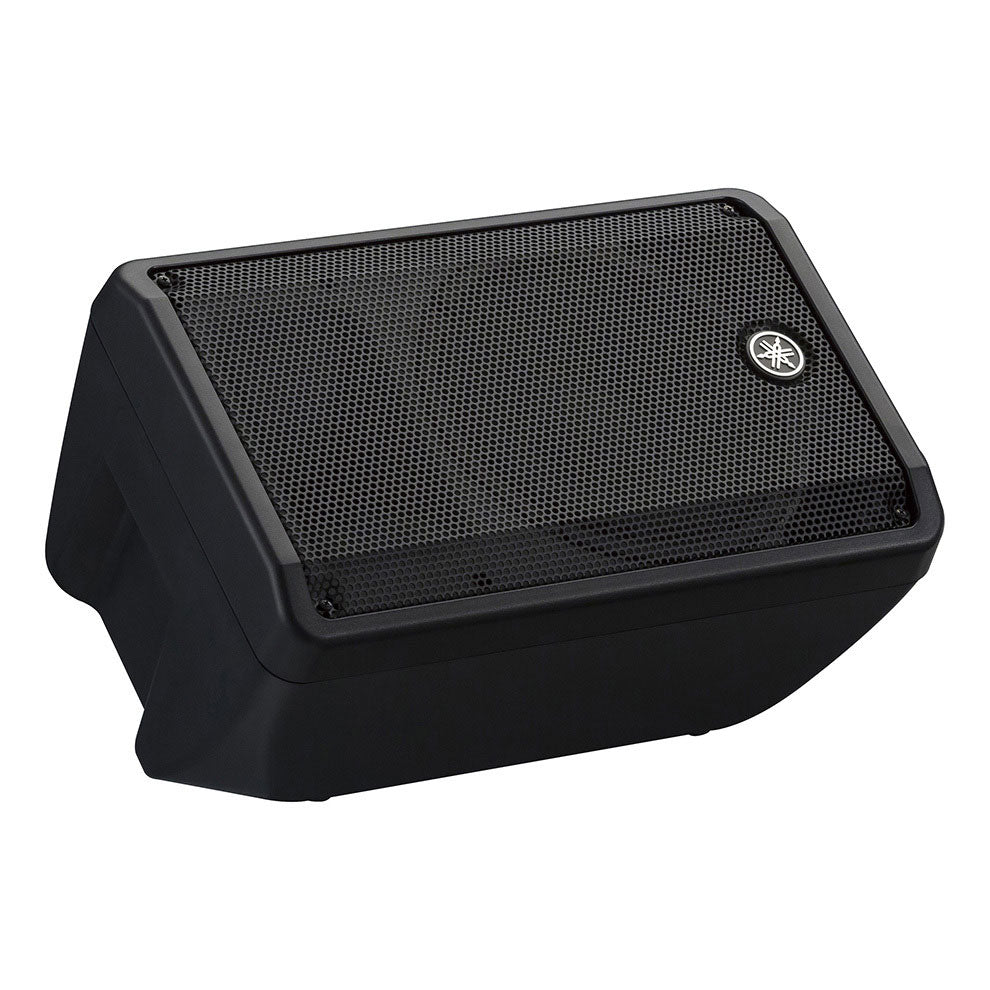

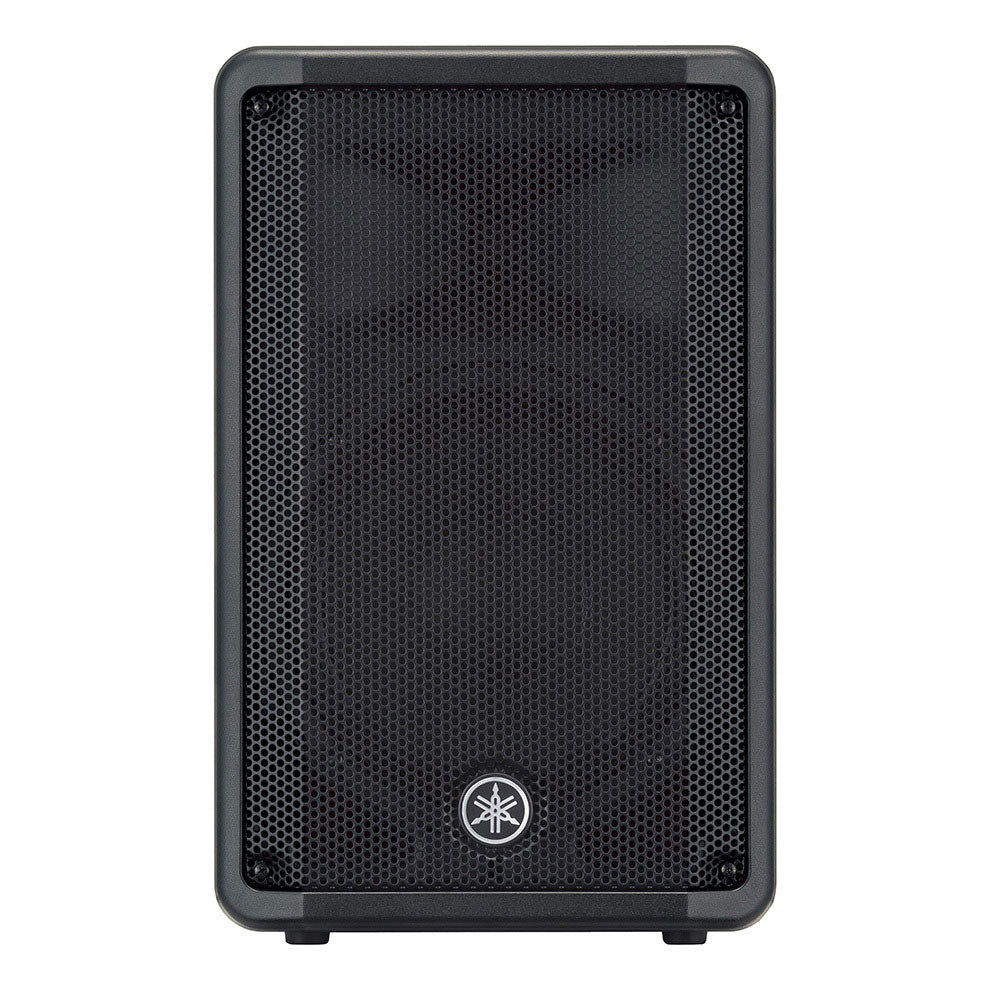

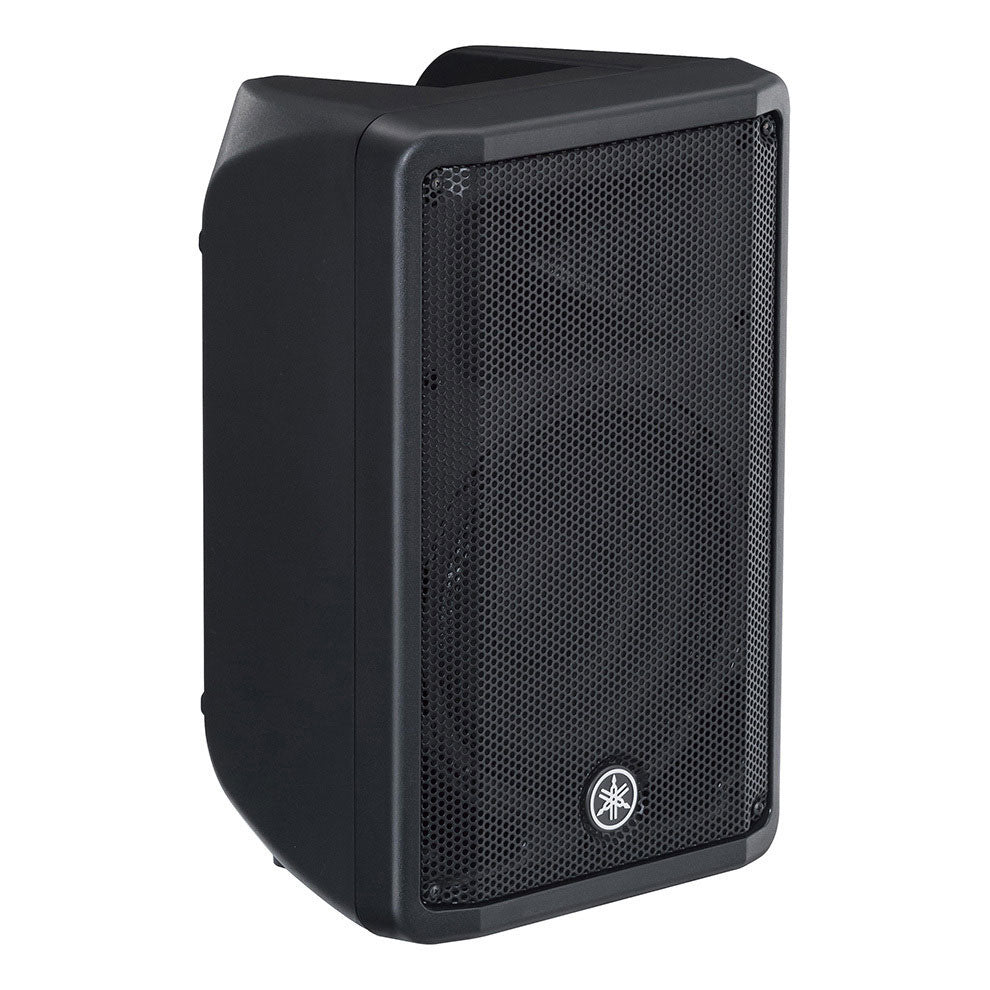

Yamaha CBR10 Passive Speaker
Yamaha CBR10 is a passive 2-way speaker with bass reflex cabinet and a power rating of 700 W peak and 350 W PGM. The speaker produces sound in the frequency range 50 Hz - 20 kHz with a maximum sound level of 123 dB.
Small and compact
Yamaha The CBR10 is the smallest in the CBR series, and weighing only 9.4 kg, it is ideal for transport and mounting on various surfaces. The speaker is designed with tough plastic enclosures, ergonomic handles, and can also be used as a floor monitor.
HF protection
With HF protection of the tweeter unit, you can play Yamaha CBR10 without the risk of burning the speaker. Combined with 2? compression unit and responsive bass unit, you are assured of a speaker with clear sound and minimal risk of sound distortion.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Specifications
| Speaker type: | 2-way speaker, bass reflex cabinet |
| Frequency range (-10dB): | 50 Hz - 20 kHz |
| Nominal coverage: | H: 90 degrees |
| Components: | LF: 10" diaphragm, 2" voice coil (ferrite magnet) |
| Crossover: | 2.8 kHz |
| Power rating: | NOISE: 175W |
| Nominal impedance: | 8 |
| SPL: | Sensitivity (1W; 1m on axis): 94dB SPL |

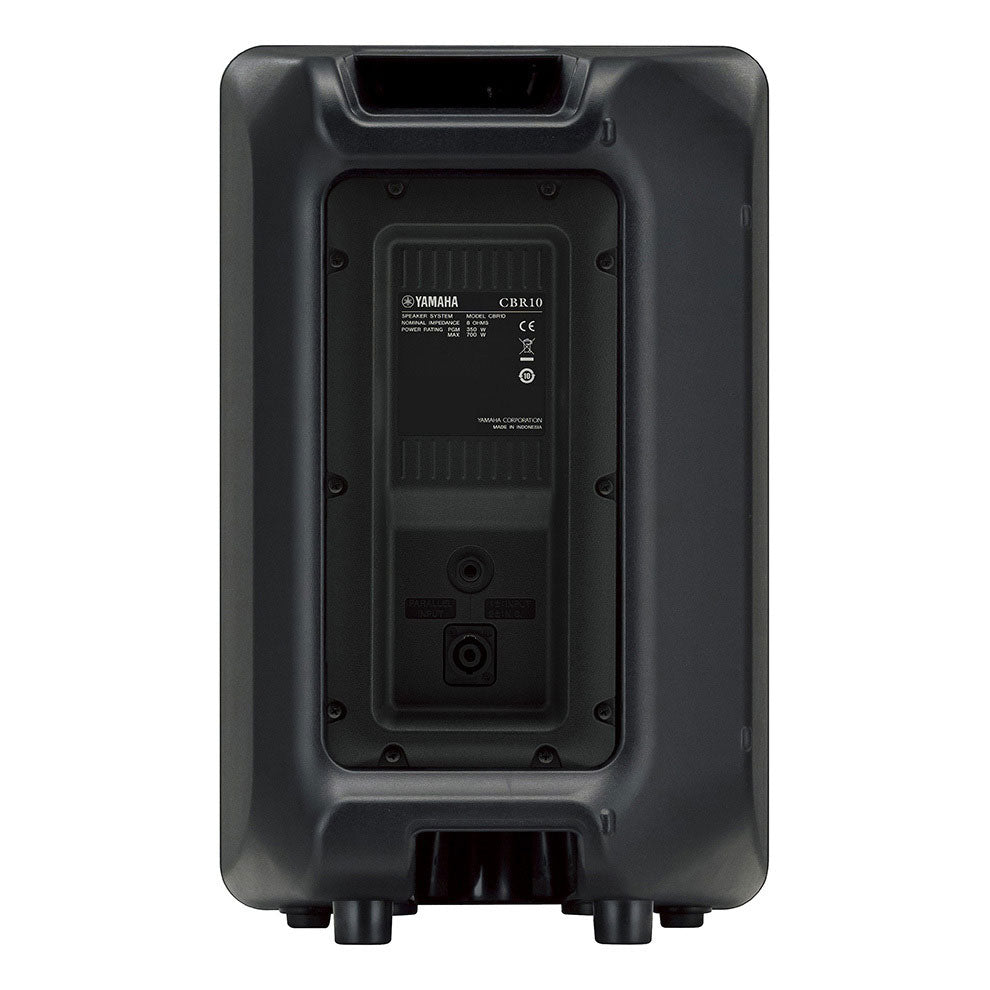

| I/O connectors: | 1/4" jack x 1, speakON NL4MP x 1 |
| Cabinet material: | Plastic |
| Finish: | Black |
| Handle: | Top x 1 |
| Flying and mounting hardware: | Underside x 2, backside x 1 (fits M8 x 15 mm eyebolts) |
| Pole socket: | 35 mm underside x 1 |
| Dimensions: | W: 308mm (12.1") |
| Net weight: | 9.4 kg (20.7 lbs) |
| Accessories: | Speaker bracket (optional): BBS251, BCS251, BWS251-300, BWS251-400 |
