Cameo PixBar 650C PRO

€617,00
Incl. VAT

Shipping € 10

Description

  • 8 ultra bright 30W COB LEDs
  • Absolutely silent drift
  • Diffusion lens
  • Robust die-cast aluminium

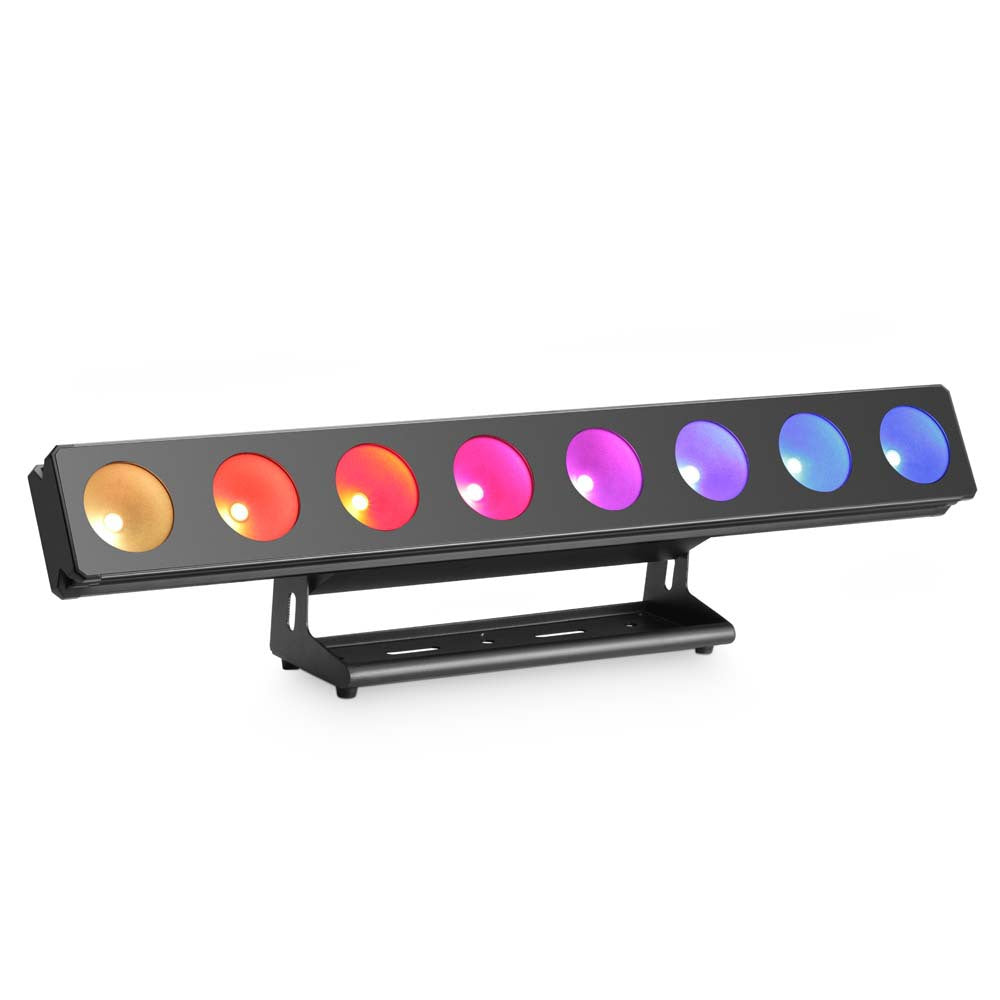

Cameo PIXBAR 650 CPRO

Professional 8 x 30 W COB LED bar

The Cameo PixBar 650C PRO is a 53° beam width professional LED bar with 8 ultra bright 30 watt COB-LEDs for solid colour mixing with seamless transition. Highly efficient convection cooling and a 3,600 Hz refresh rate ensure absolutely noiseless operation and flicker free performance.

The PixBar 650C PRO is fully RDM compatible for bi-directional communication with a dedicated controller providing addressing, configuration and status reporting of the fixture. It is capable of standard DMX control in 5 modes and standalone, master or slave operation. The PixBar 450C PRO also features autorun software, a built-in microphone for sound control and a backlit display with Mode, Enter, Up and Down keys for manual control.

In addition to rich RGB colours and macros calibrated to the LEE filters standard the PixBar 650C PRO provides colour temperature correction, 4 selectable dimming curves and single pixel control for impressive chase effects.

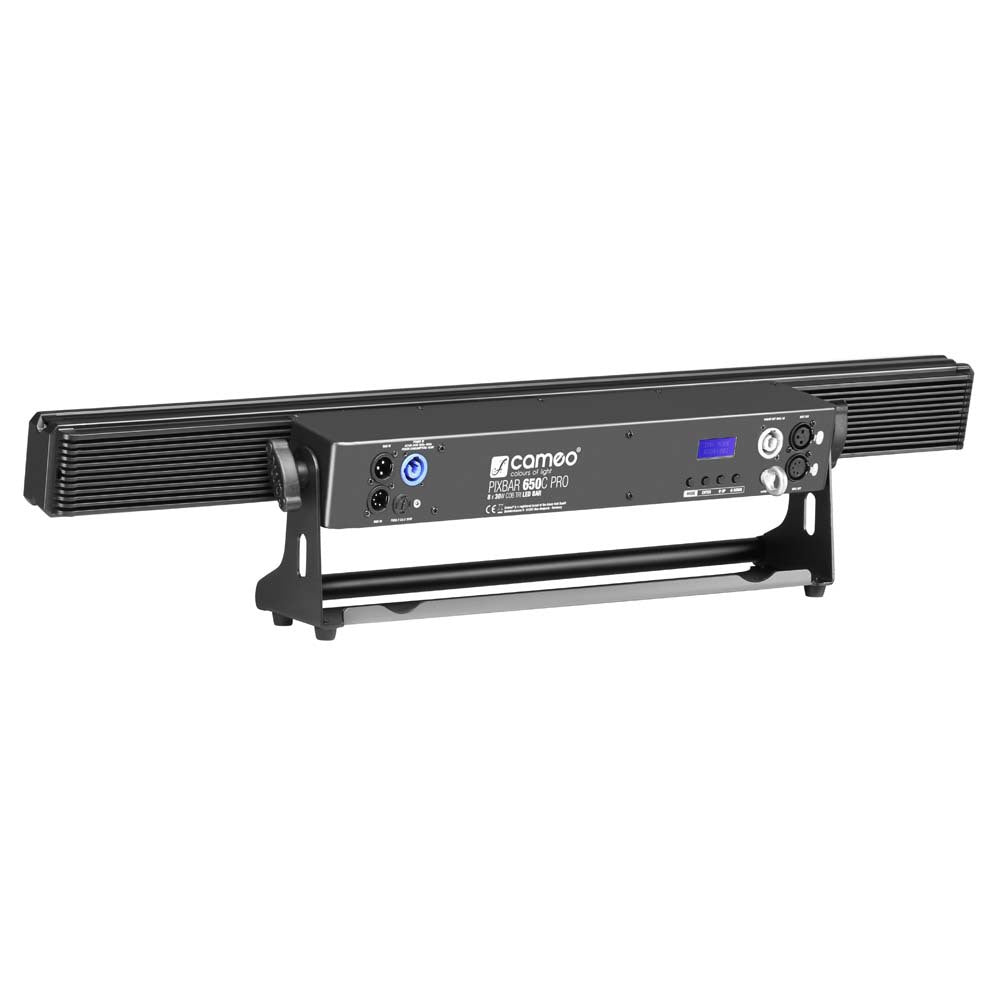

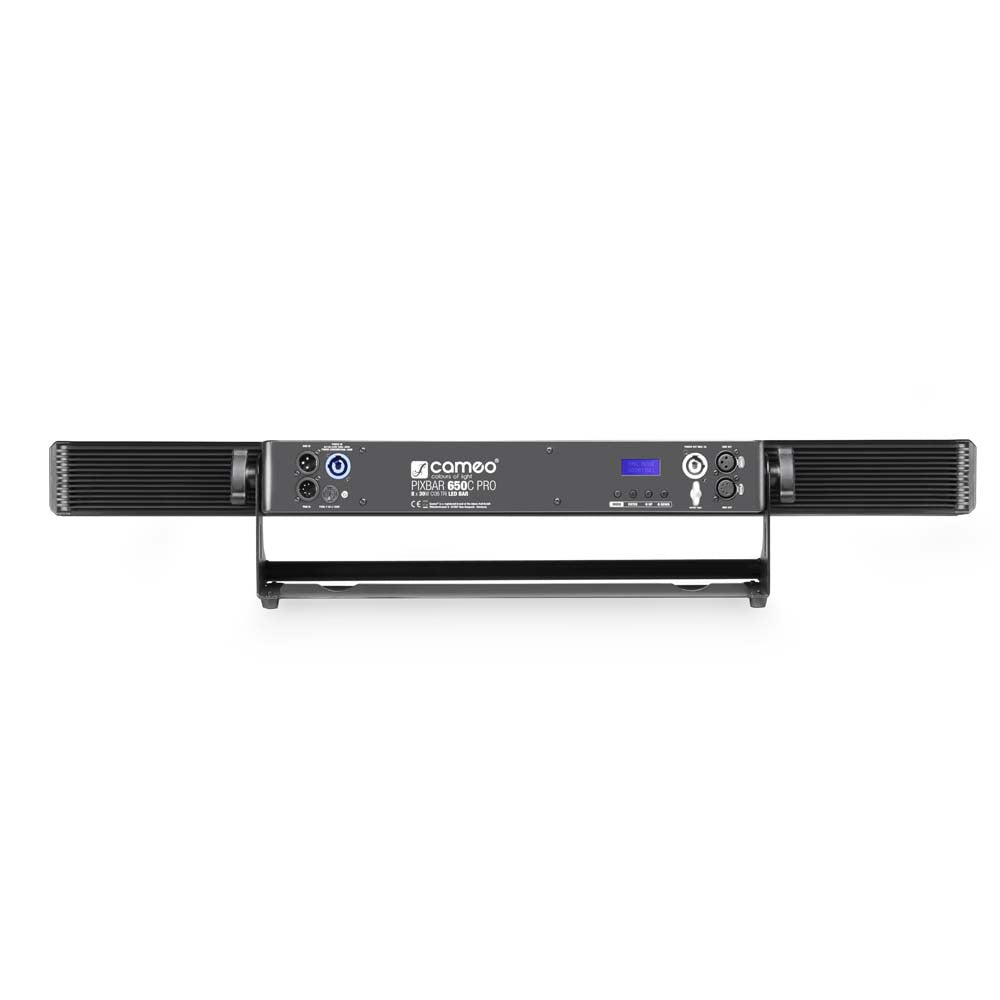

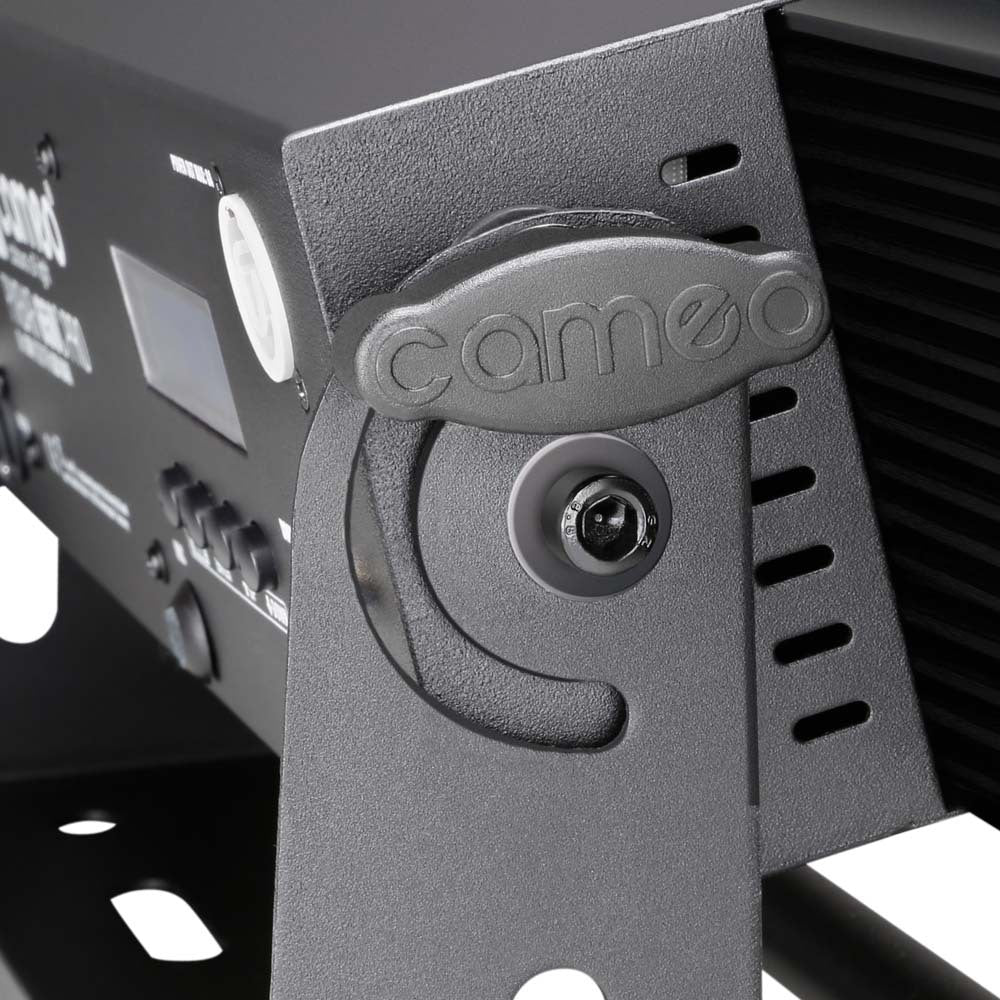

The fixture's rugged aluminium enclosure features 3 and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and an adjustable stand that doubles as mounting bracket.

Features

  • 8 ultra bright 30W COB LEDs
  • LED single pixel control for stunning chase and pixel mapping effects
  • Absolutely silent operation due to efficient convection cooling
  • Flicker free
  • Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O
  • RDM enabled
  • 5-mode DMX control plus standalone operation with master and slave modes
  • Diffusion lens included for a smooth wash with minimum dazzle
  • 4 selectable dimming curves
  • Colour temperature correction
  • 3 temperatures of white: warm white, white, cool white
  • Rugged die-cast aluminium housing

Specifications

  • Weight (kg)
    7.6

More specifications

Specifications



Product number: CLPIXBAR650CPRO
Product type: Light bar
Type: Washer
Colour spectrum: RGB
Number of LEDs: 8
LED type: 30 W COB
Dispersion: 53°
Refresh rate: 3600Hz
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 2-channel, 3-channel 2, 30-channel, 9-channel, 3-channel 1
DMX Functions: auto programs, colour macro, Colour temperature correction, Dimmer, Single Pixel Control, strobe, sound programs
Standalone modes: strobe, static colour, Auto run, sound programs, auto programs
Controls: Value Up, Value Down, Enter, mode
Indicators: LC display
Operating voltage: 110 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 250W
Power connector: Neutrik PowerCon
Housing material: die-cast aluminum
Cooling: Convection
Cabinet colour: black
Illuminance: 700lx @ 1m
Dimensions without mounting bracket
Width: 880mm
Height: 110mm
Depth: 130mm
Weight: 7.6kg

Brand: Cameo
SKU: CAM-CLPIXBAR650CPRO
Barcode: 4049521185960
