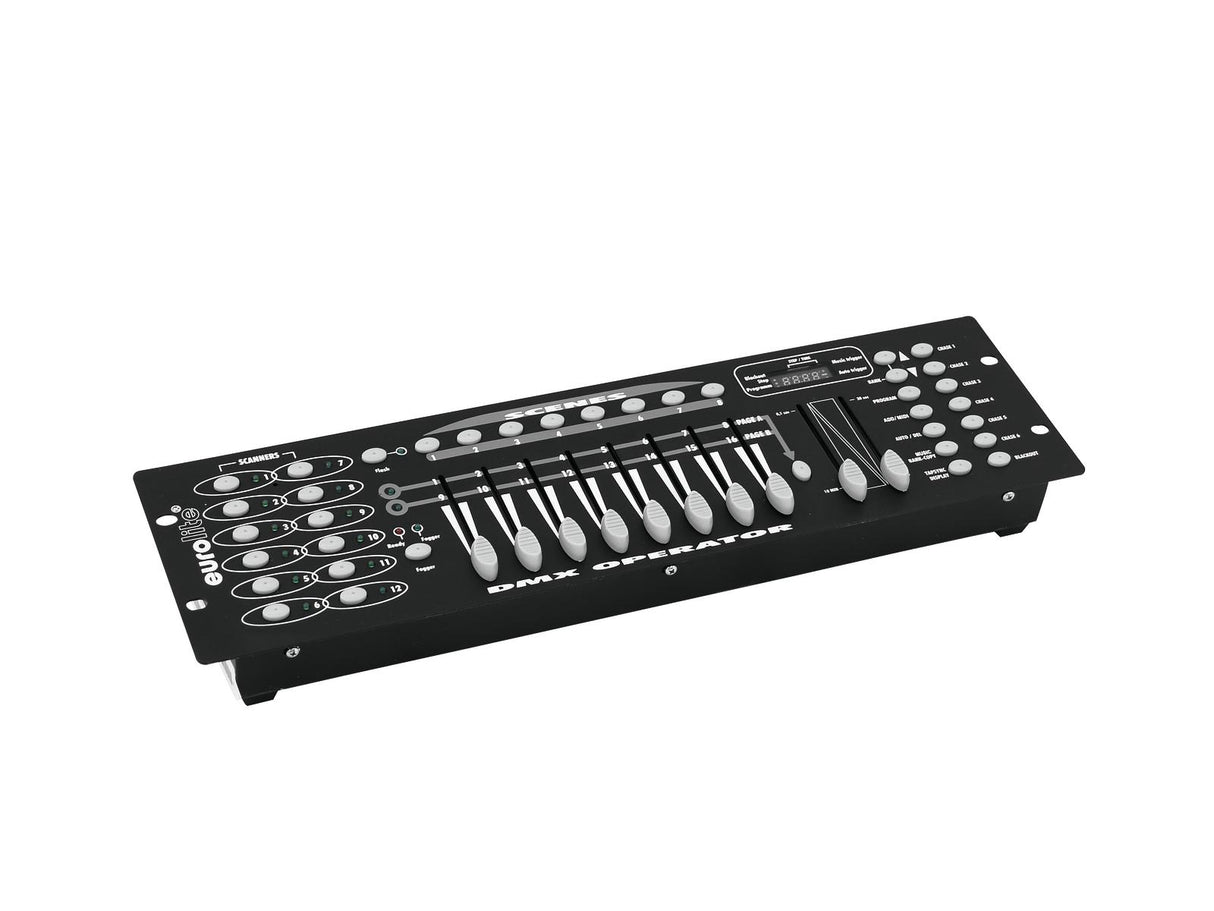

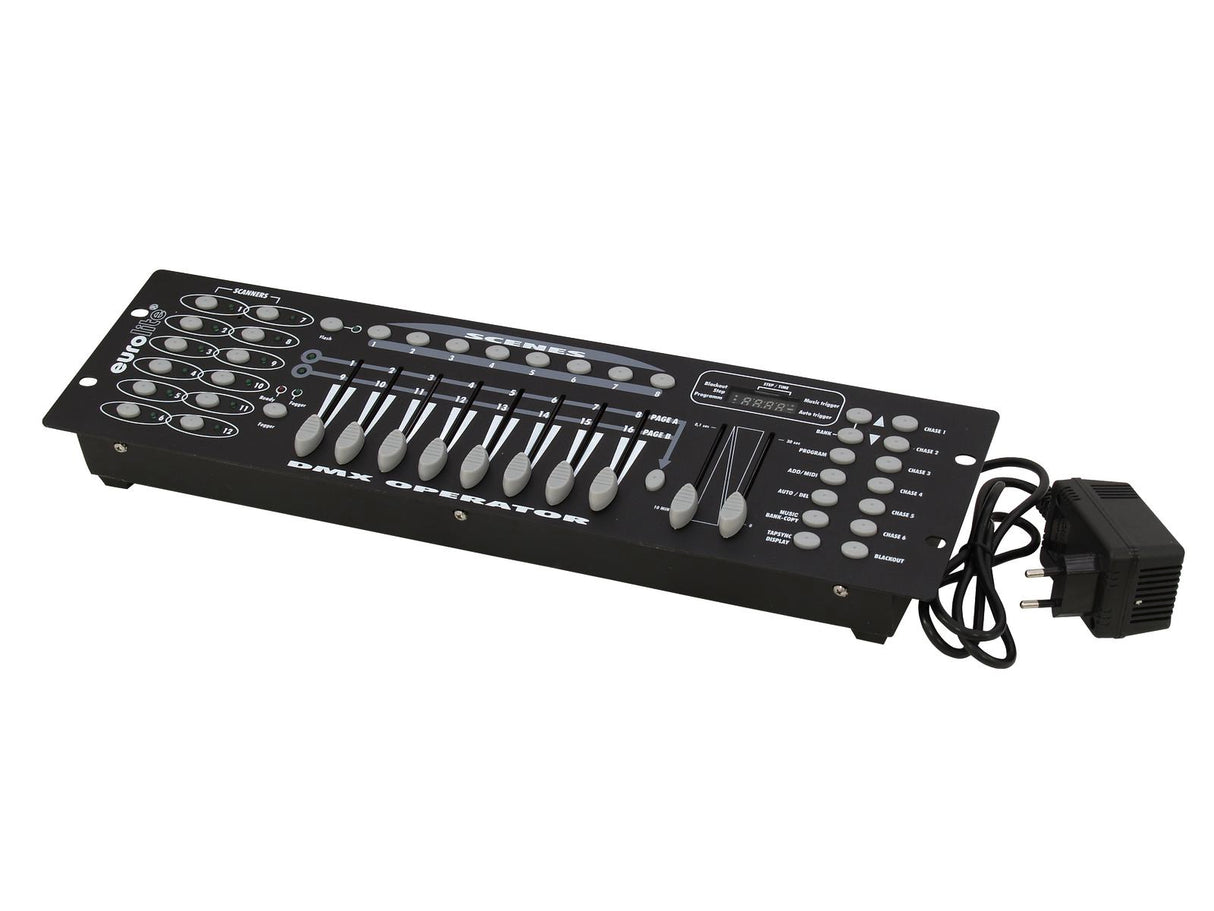

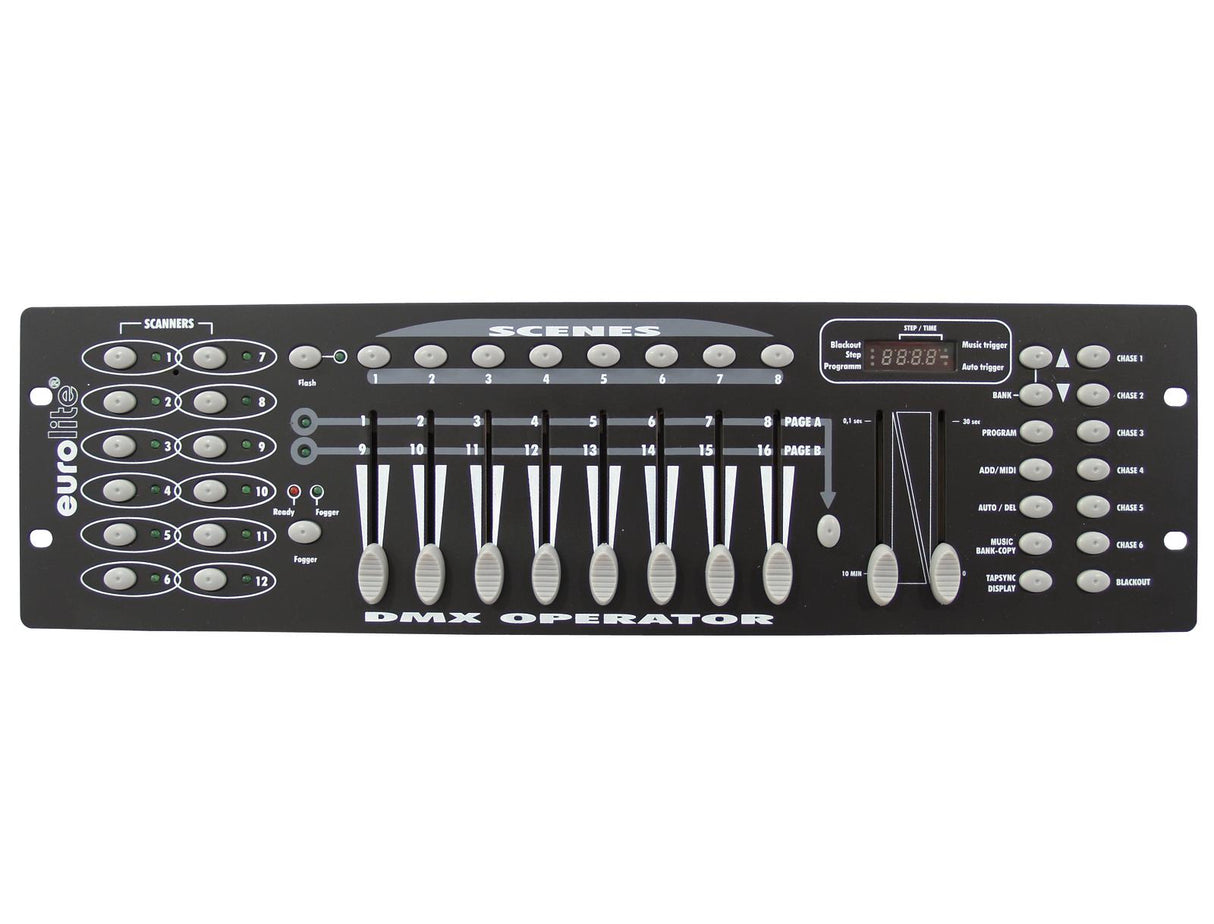

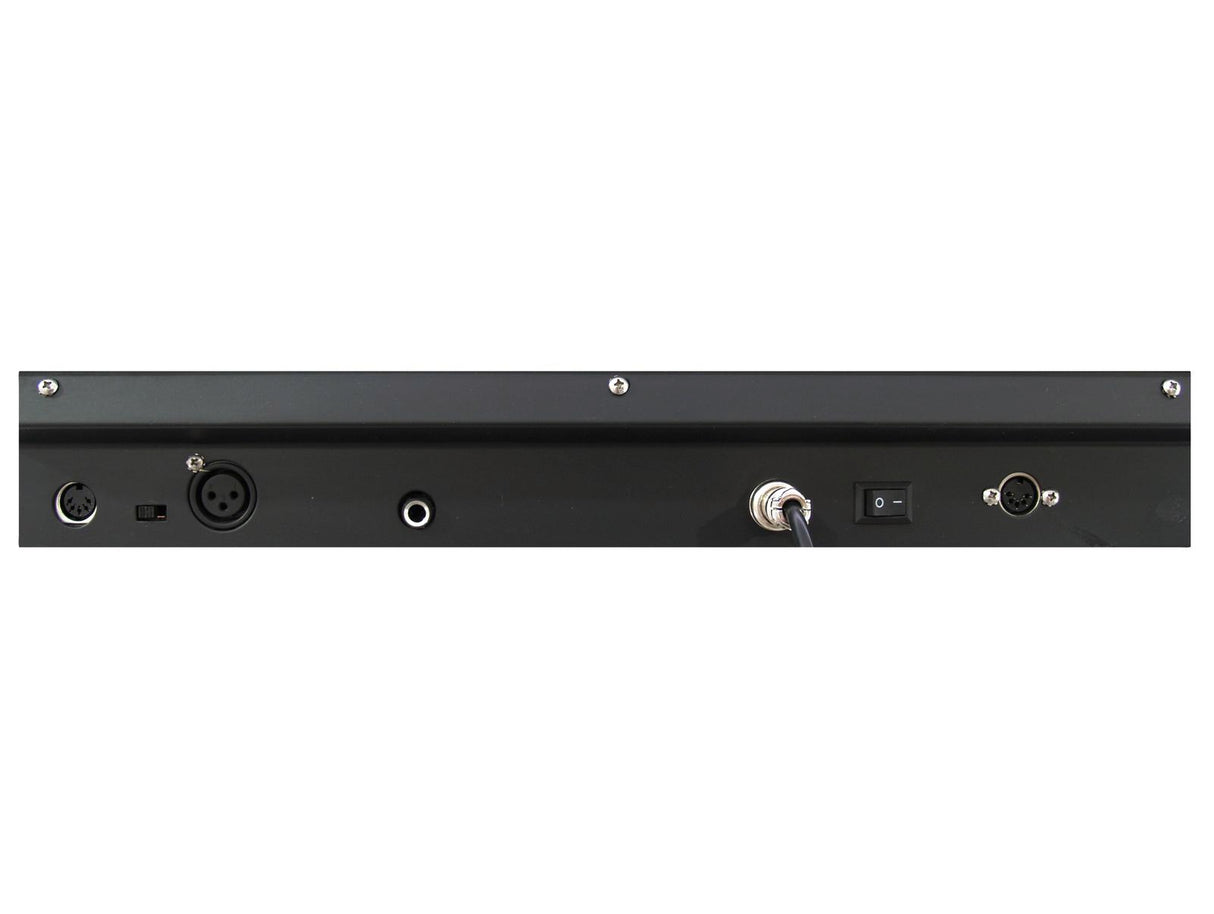

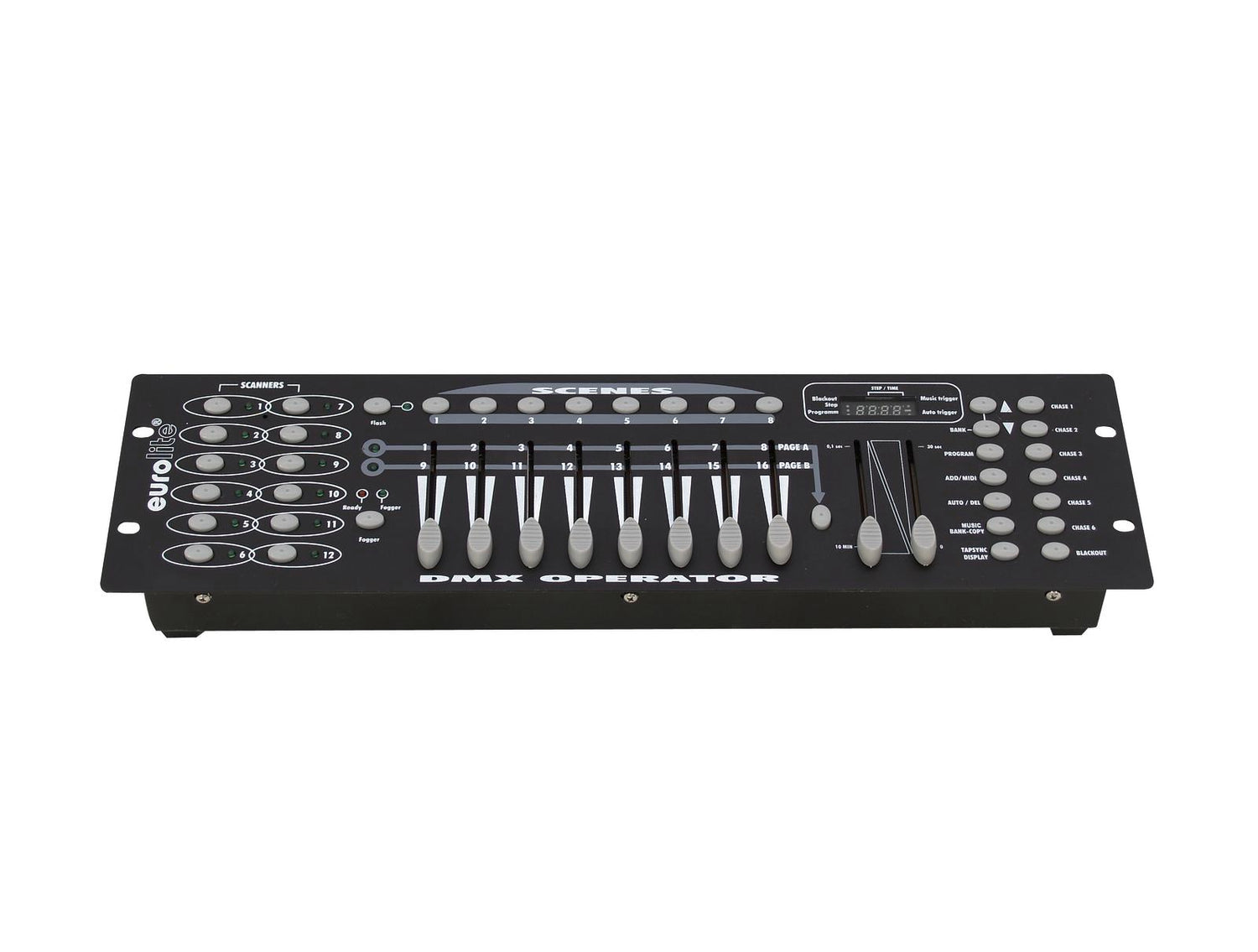

Eurolite Operator 192 DMX Controller

• Control 192 channels and up to 12 lamps
• Simple design
• Many functionalities and effects

Eurolite DMX Operator 192

• 192 control channels for 12 lighting effect devices with up to 16 channels
• 6 chasers with up to 240 scenes can be programmed
• 8 preset scenes
• Copy function for the scenes, programs and records
• Blackout function
• Sound control via built-in microphone
• Rack installation with 3 units

Product Specifications

Power Supply:

• Voltage: 230 V AC
• Frequency: 50 Hz

Power Consumption:

• 4.00 W

IP Classification:

• IP20

Protection Class:

• Protection class III

Power Connection:

• Mains input via 3-pin screw plug connector (M) mounting version, power supply cord with AC adapter (provided)

Programs:

• Programmable 6 scenes/chases each with 240 cues

DMX Channels:

• Output 192

DMX Output:

• 1 x 3-pin XLR (F) mounting version

Control:

• DMX
• Sound to light via Microphone

Housing Color:

• Black

Display Type:

• 4 digit 7-segment LED display

Housing Design:

• (19") 48.3 cm rack installation 3 U

Dimensions:

• Width: 48.3 cm
• Depth: 13.2 cm
• Height: 8.9 cm

Weight:

• 2.35 kg

Noise Classification:

• Class 0 (no noise at all)

Downloads

• 70064520-Manual-93259-3.100-de_en.pdf (458 KB)
