Cameo WOOKIE 400 RGB
Description
Description
- High speed animation laser 5 Kpps stepper motor
- 60° angle
- 32 pattern presets
- Robust aluminium housing
- Includes handheld infrared remote control

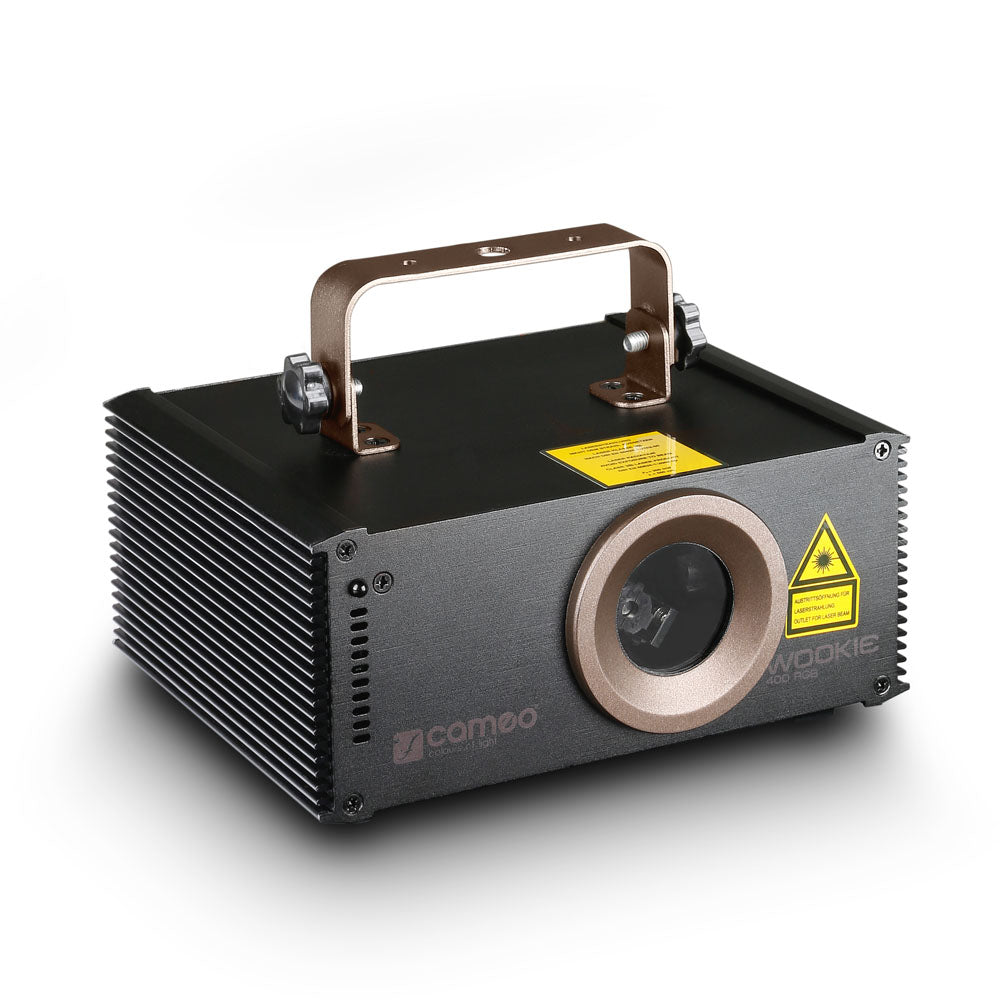

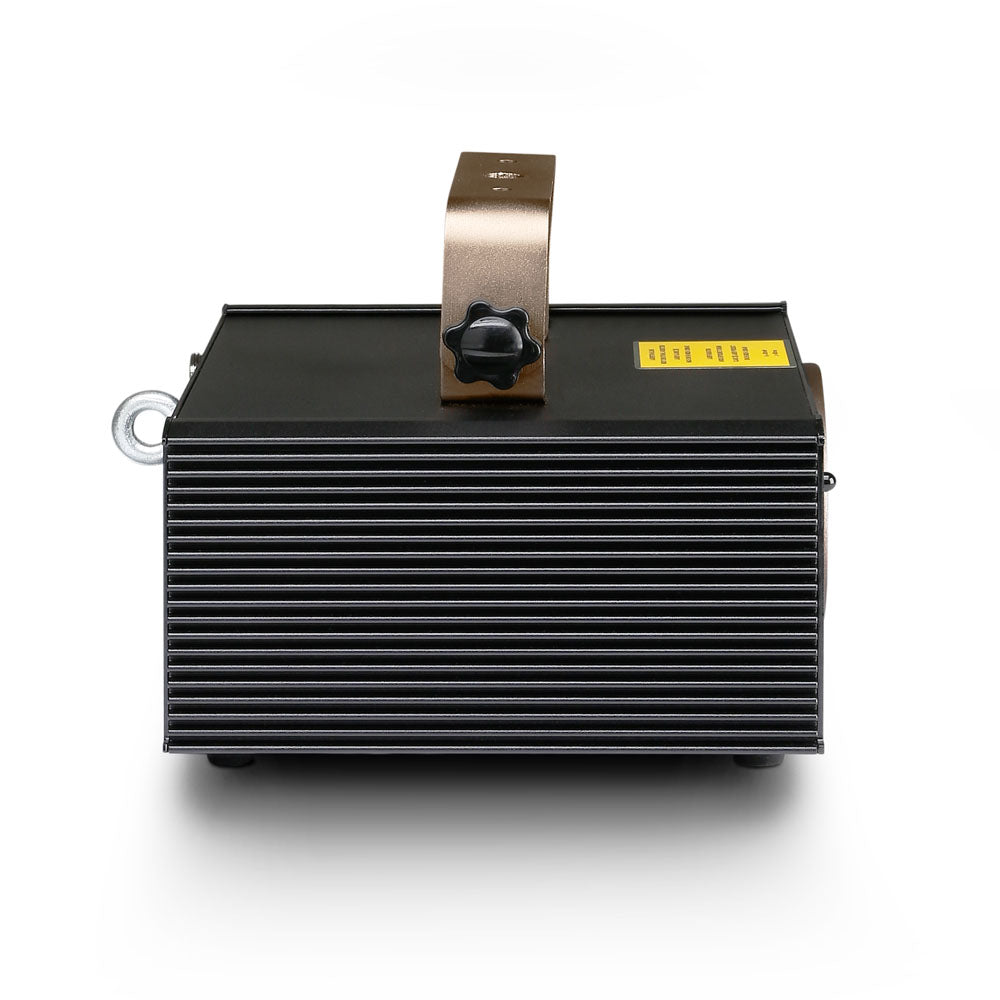

Cameo WOOKIE 400 RGB
Laser Animation 400mW RGB
Projecting animations with red, green and blue color mixes the WOOKIE 400 RGB delivers an output of 400 mW from 3 mm beam diameter diode and DPSS lasers with no more than 2 mrad divergence.

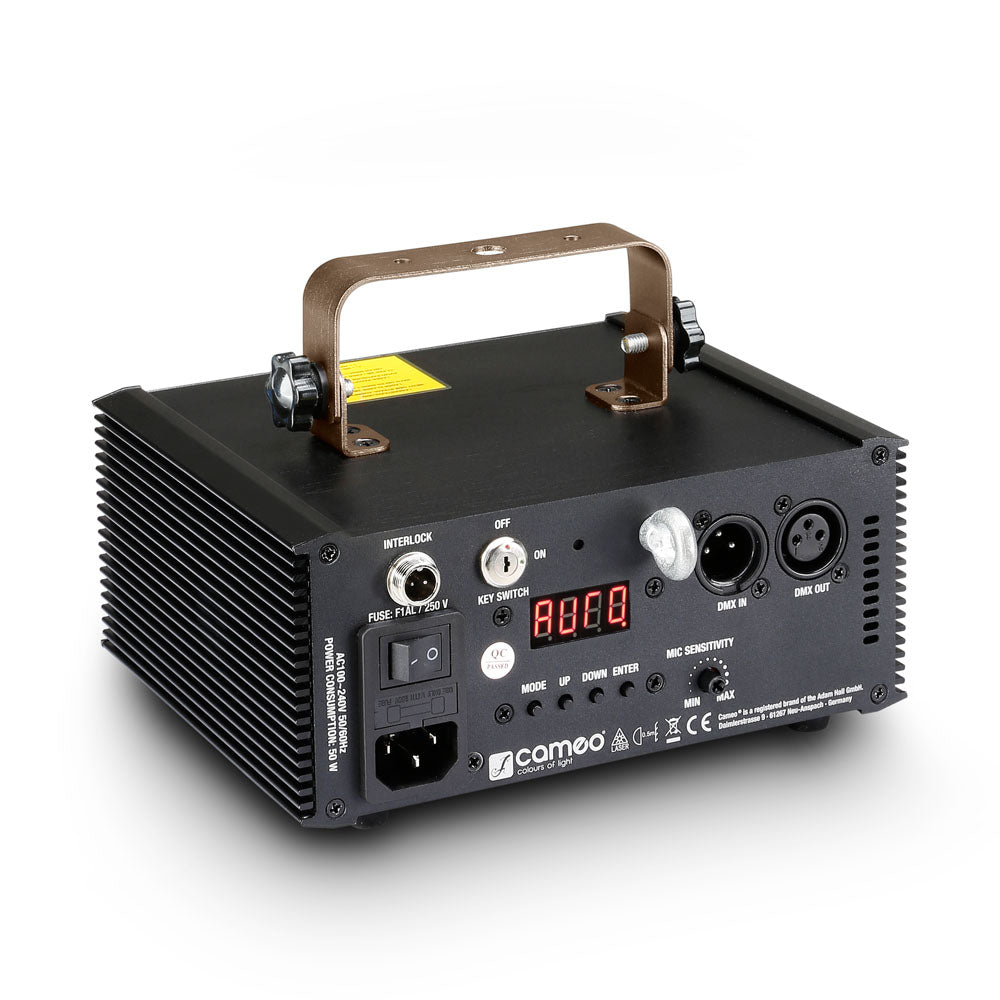

The Wookie Series animation laser lights provide vibrant, highly visible animations with precision beams, 32 lively pattern presets and high speed 5 Kpps stepper motors with a 60° scan angle. They are controllable via DMX in 3-channel and 9-channel modes, the integrated microphone with adjustable sensitivity and capable of master, slave and standalone operation. Each Wookie laser light sports a compact, high quality aluminium enclosure with 3-pin DMX connectors, IEC mains inlet and adjustable mounting bracket. A key switch prevents unauthorized use, and the bright display with four function keys allows easy manual operation. The Wookie Series laser lights come with a convenient infrared remote control.
Features
- Animation laser with high speed 5 Kpps stepper motor
- 60° scan angle
- Precision beams with minimum divergence
- 32 pattern presets
- DMX, sound and infrared control plus auto function
- Master, slave and standalone modes
- Display with 4 function keys for easy manual operation
- Rugged aluminium enclosure with key switch
- Includes handheld infrared remote
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Product type: Laser
Total power: 400 mW
Colour spectrum: RGB
Wavelength: 447 nm, 532 nm, 650 nm
Beam Data: approx. 3 mm / 2 mrad divergence
Laser sources: DPSS, Laser diode
Laser Class: 3B
Scanner: High speed stepper motors, 5 kpps
Max. scan angle: 60°
Operating modes: Auto programs, DMX 512 protocol, sound control
DMX input: XLR 3-pin male
DMX output: XLR 3-pin female
DMX mode: 3-channel, 9-channel
Controls: Enter, Mode, Value Down, Value Up
Power supply: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 50 W
Power supply connector: IEC power connector male
Housing material: Metal
Cabinet colour: Black
Width: 180 mm
Height: 90 mm
Depth: 192 mm
Weight: 2 kg
