Cameo AURO SPOT 200

• RDM enabled moving head
• 130,000 lx @ 1 m
• High speed 3-phase motors
• 16-bit resolution
• Motor Focus
• Automated positioning correction
• Battery powered display for offline operation
• 8 intense colours, white and split colours
• 6 gobos + open
• All gobos replaceable with metal or glass gobos
• Rotating 3-facet prism
• Smooth dimming from 100 - 0% with 4 selectable curves
• 0 - 20 Hz strobe
• Temperature controlled low noise fan
• Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O

Cameo AURO SPOT 200

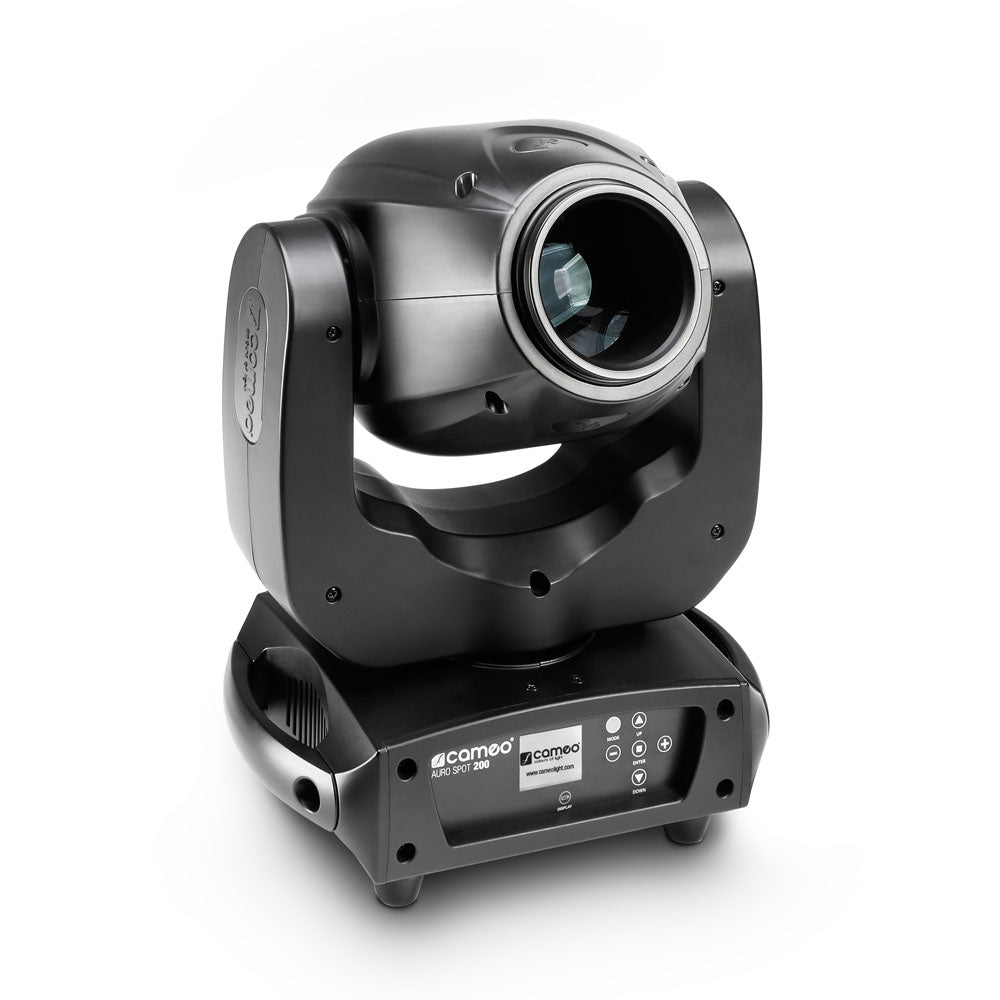

• The Cameo AURO SPOT 200 is an RDM enabled ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors.
• It is powered by a single 100 watt LED and sports 8 intense colours plus white and split colours , 6 replaceable gobos and a rotating 3-facet prism for awesome effects.
• The AURO SPOT 200 features 5-channel, 13-channel, 22-channel DMX control modes, auto run programs and sound activation as well as master, slave and standalone capabilities.
• Functions include a choice of 4 smooth dimming curves, shake effects and a 0 - 20 Hz cycle strobe.

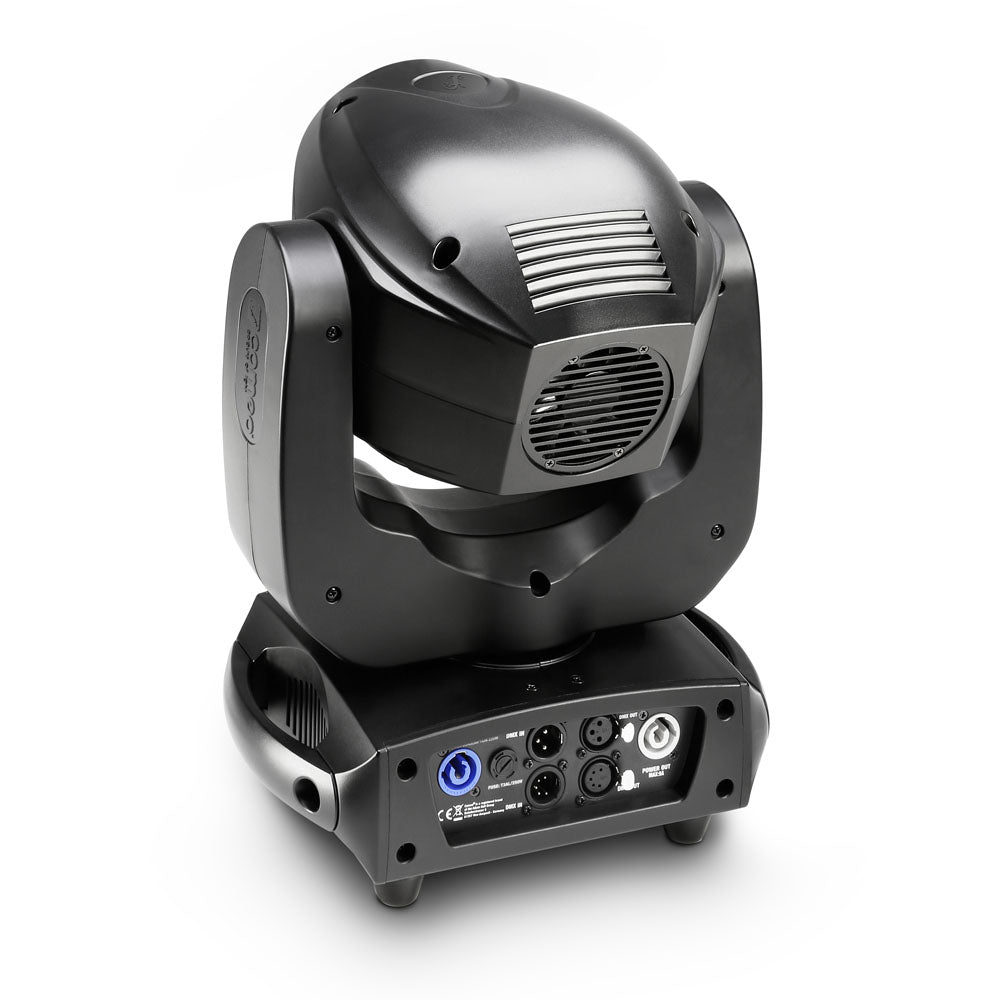

• The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a 4-button LCD control display.
• The multi-voltage Auro Spot 200 operates on 100 - 240 V AC.

• Product number: CLAS200
• Product type: LED Moving Light
• Type: Moving Head
• Colour spectrum: Split colours, 8-channel multi colour, white
• Number of LEDs: 1
• Colour temperature: 10000K
• LED type: 100 W
• Dispersion: (manually adjustable) 12° - 16°
• Number of gobos: 6 + open
• Gobo Size: Outer diameter 22.90 mm, Image diameter: 19.50 mmmm
• DMX input: XLR 5-pin male, XLR 3-pin male
• DMX output: XLR 3-pin female, XLR 5-pin female
• DMX mode: 13-channel, 22-channel, 5-channel
• DMX Functions: TILT, PAN, Gobo wheel, Dimmer Curve, Dimmer, auto programs, Gobo Shake
• PAN movement: 630°
• TILT movement: 235°
• High Speed Strobe: 1 - 20Hz
• Standalone modes: Auto run, sound control, Show
• Controls: +, Enter, mode, Value Down, Value Up, -
• Indicators: colour LC display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 220W
• Power connector: Neutrik powerCON IN / OUT
• Housing material: metal, ABS plastic
• Cabinet color: black
• Cooling: silent, temperature controlled fan
• Illuminance: 130000lx @ 1m
• Luminous flux: 3250lm
• Width: 285mm
• Height: 480mm
• Depth: 180mm
• Weight: 8.8kg

Downloads

• User's manual
• Fixture Library grandMA2
• DMX Control Table
• Eco label
• Photometric measurements
• Technical Drawing
• Technical drawing
• Compatbility Chart
• Daslight V3 fixtures
• Tender documents
