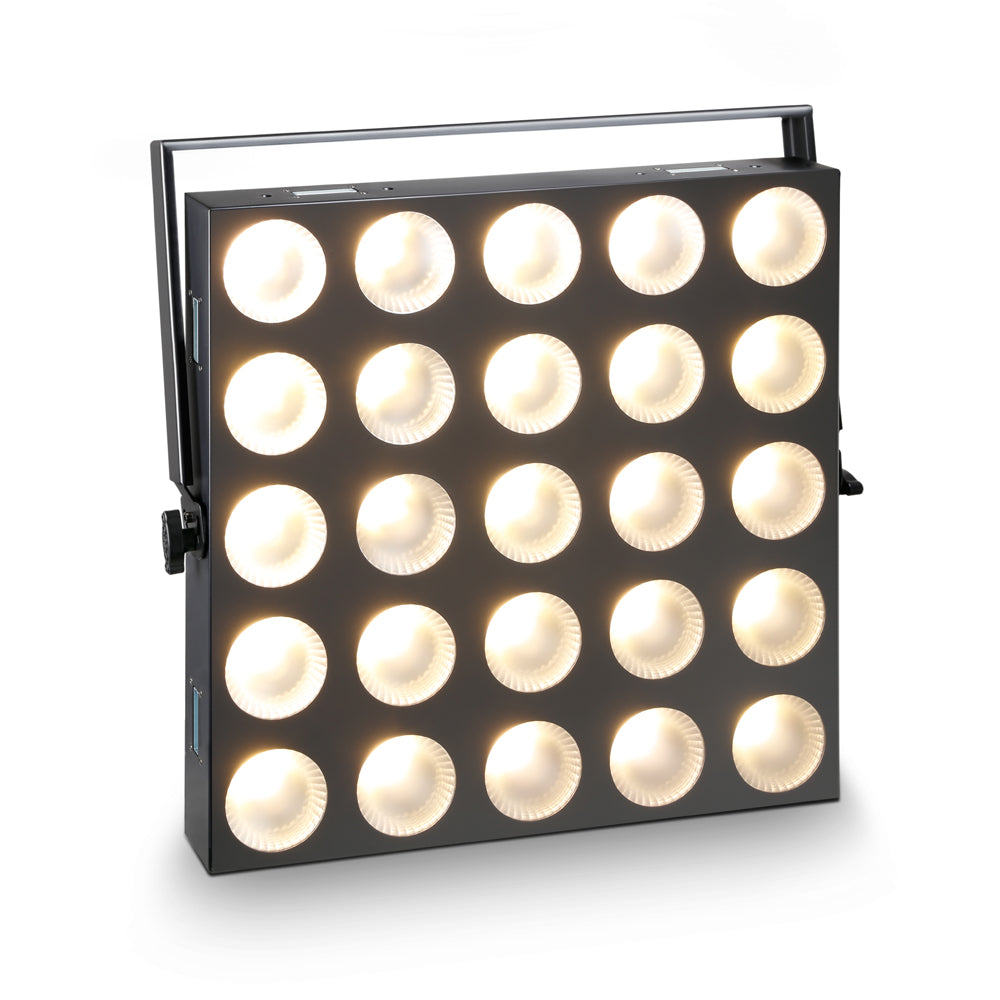

Cameo Matrix Panel - 5 x 5 LED Matrix Panel

• 5 x 5 LED Matrix Panel with single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes + soundaktiv
• Master, slave and standalone
• Blinder + Strobe effect
• Compact and easy to install

5 x 5 LED Matrix Panel

With a 5 x 5 array of warm white 3 watt LEDs and flicker free performance creates Cameo Matrix Panel exciting blinds, chase and strobe effects.

With powerful single pixel control is the perfect choice for mapping letters, numbers and complete texts.

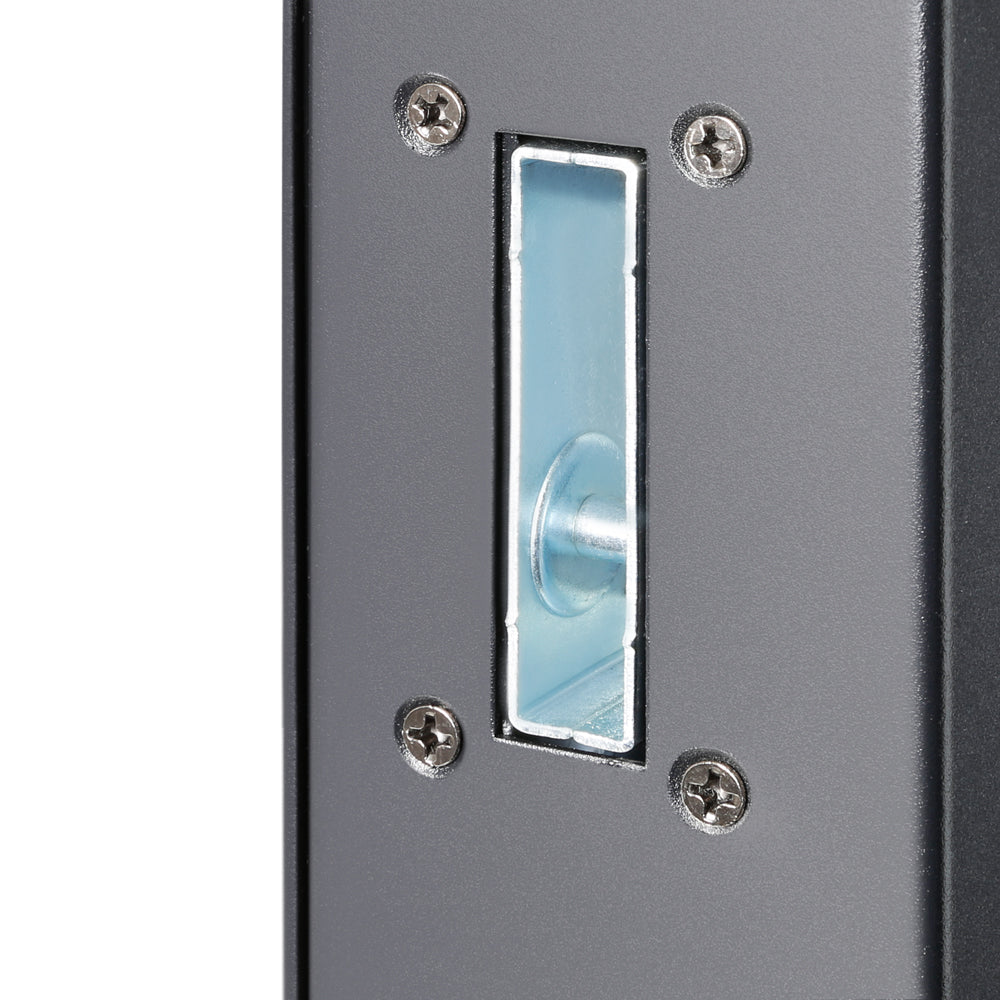

Recessed latches on all sides enable connection of multiple panels.

Matrix Panel includes fire forms of DMX control, sound activation and 4 selectable dimming curves. Master, slave and standalone.

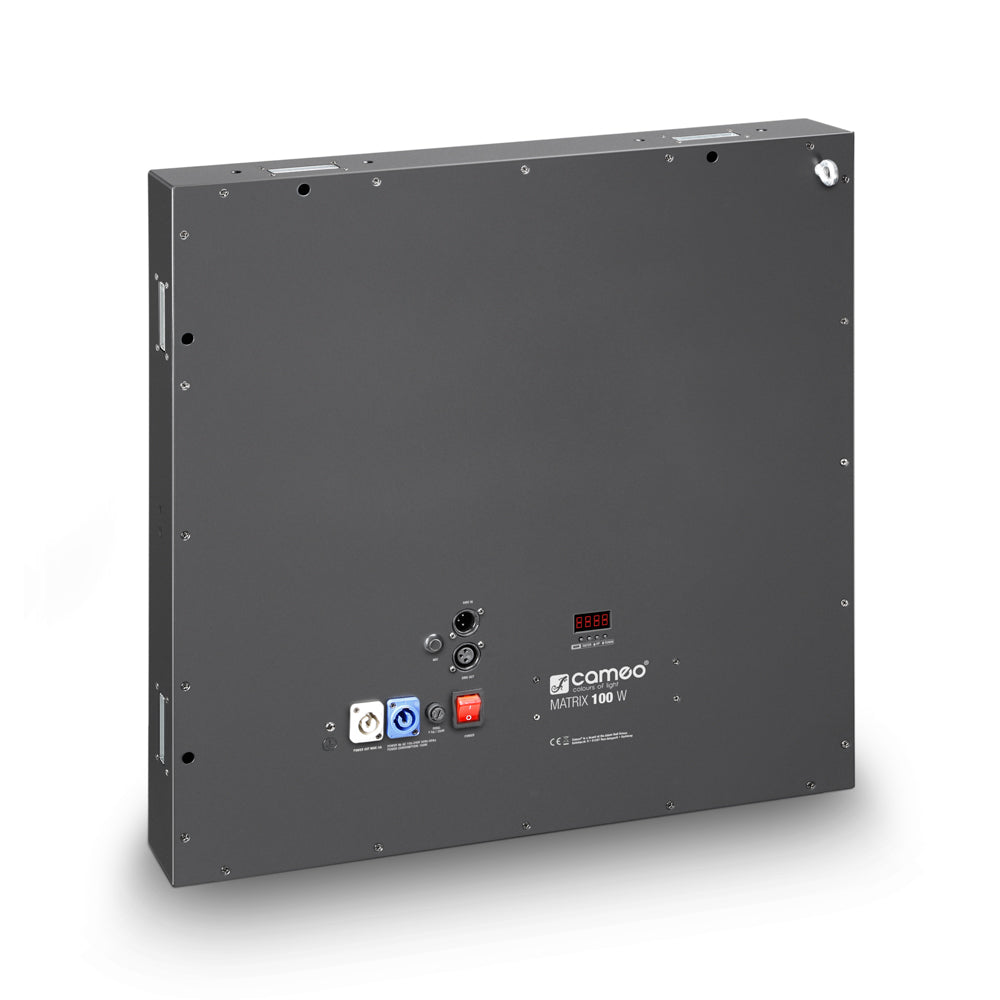

3-pole DMX input + output, powercon in + out power connector, display menu and safety eye.

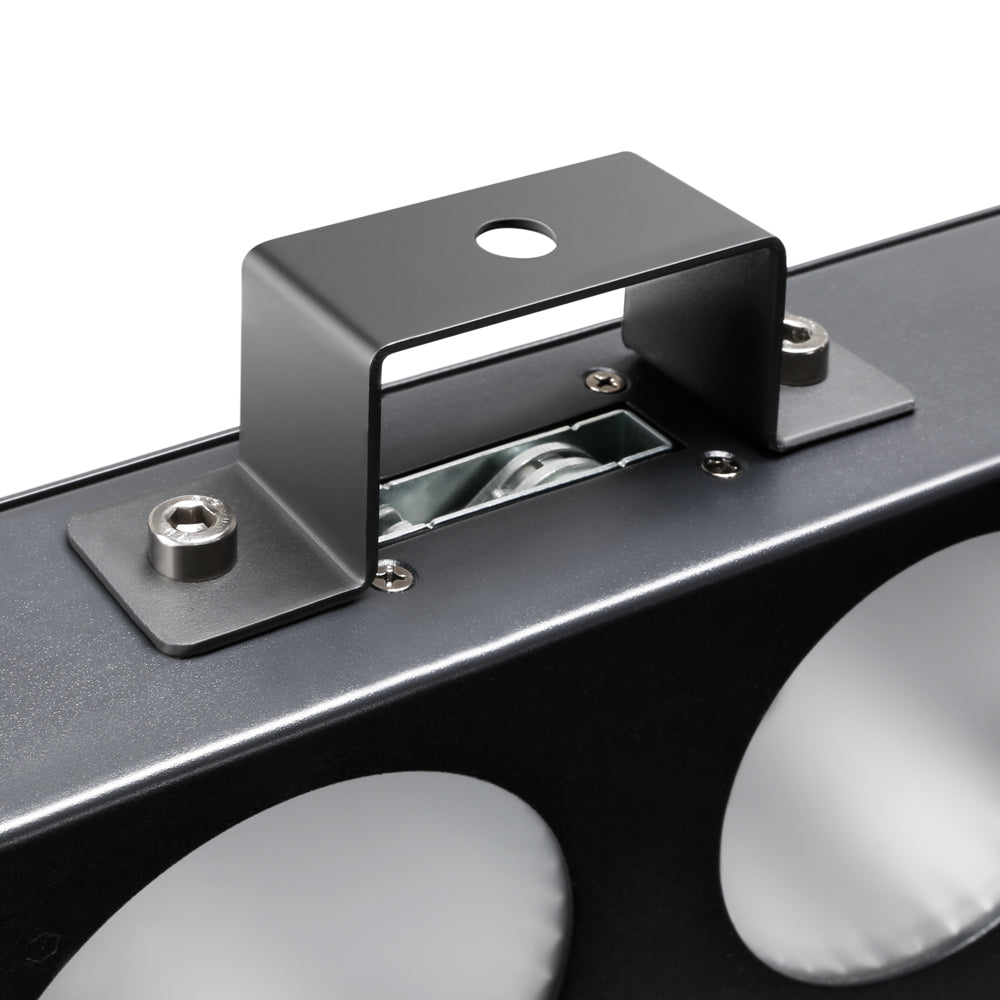

Matrix Panel comes with a mounting bracket.

• 5 x 5 LED Matrix Panel with single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes, sound activation
• Master, slave and standalone capability
• Blinder, chase and strobe effects
• Alphabetic character and numeral mapping
• 4 selectable dimming curves
• Noiseless and flicker-free operation
• Ultra flat enclosure
• Even more impressive in multiples

• Product Type: LED MATRIX PANEL
• Type: 5 X 5 Matrix
• Colour Spectrum: warm white
• Colour temperature: 3300 K
• Number of LEDs: 25
• LED Type: 3 W Single LED
• Refresh Rate: 3400 Hz
• Beam Angle: 40°
• DMX Input: 3-pin XLR male
• DMX Output: 3-pin XLR female
• DMX Mode: 2-channel, 5-channel, 10-channel, 28-channel
• DMX Functions: Master Dimmer, Dimmer Fine, Auto programs, Sound programs, Stroboscope
• Standalone Functions: Music Control, Master/Slave
• Control: DMX512
• Controls: Mode, Enter, Up, Down
• Display Elements: 4-digit LED display
• Power Connector: blue power input socket, white power output socket
• Operating Voltage: 100 V - 240 V AC, 50 - 60 Hz
• Power Consumption: 100 W
• Illuminance (  1 m): 6100 lx
• Fuse: F5A / 250 V
• Operating Temperature: 10°C - 40°C
• Relative Humidity: <85% non-condensing
• Housing Material: metal
• Housing Colour: black
• Housing Cooling: convection
• Dimensions (W x H x D, excluding bracket): 580 x 580 x 67 mm
• Weight (excluding bracket): 8 kg
• Other Features: swivel bracket included, 2 omega brackets, safety eyeletintegrated connection system for the installation of an unlimited numberof units in the horizontal plane and vertical installation of up to 5 units.
