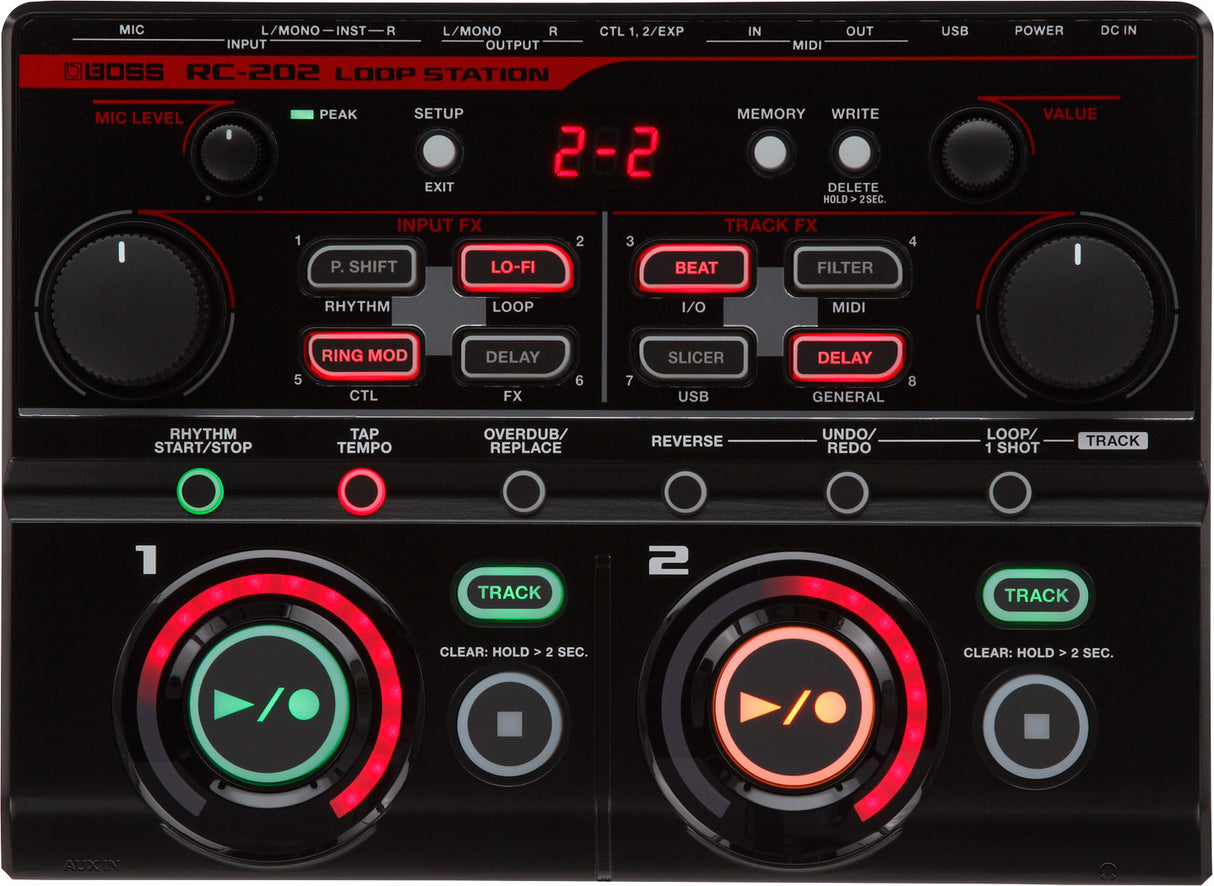

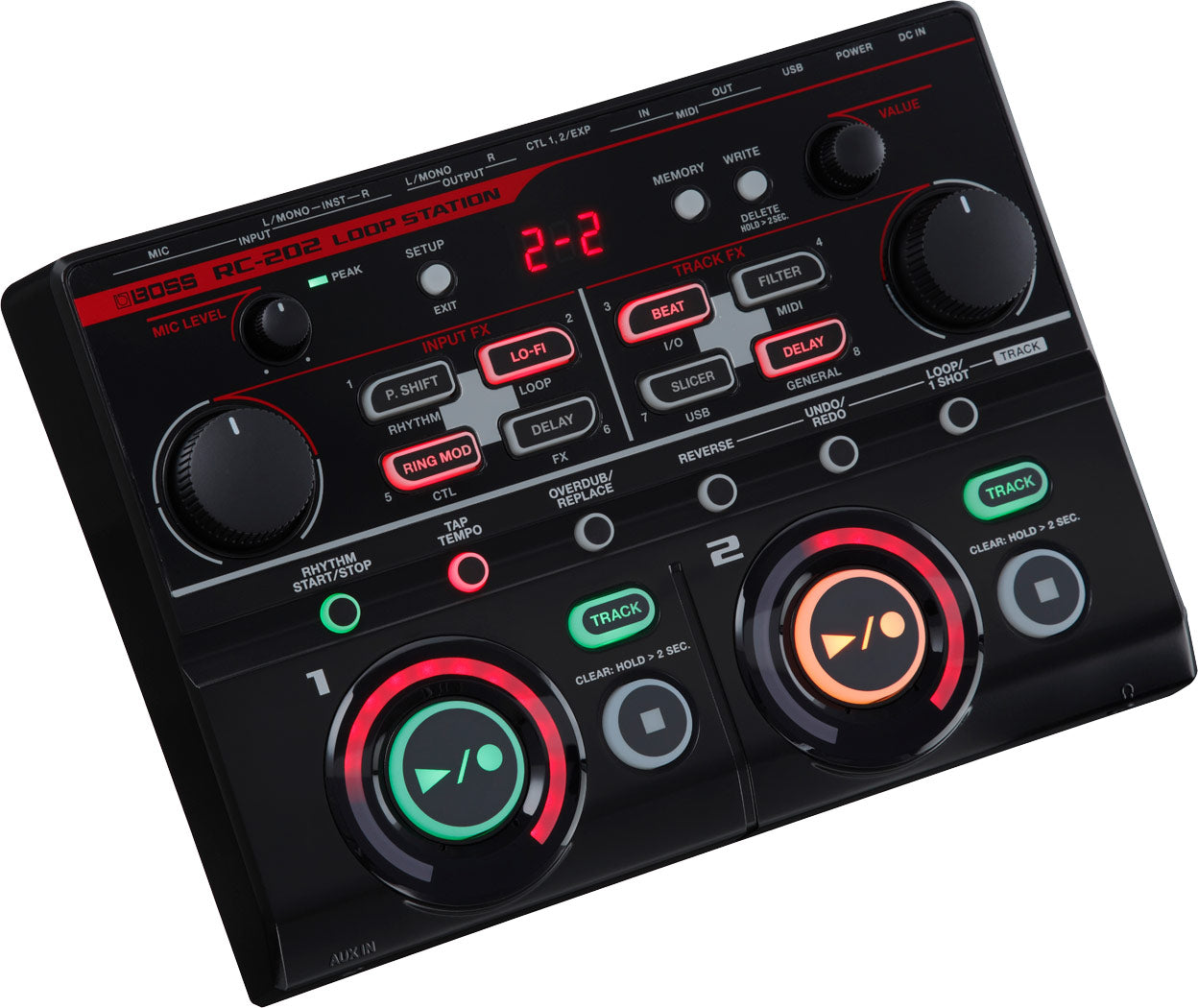

Boss RC-202 Loop Station Guitar Pedal

• Tabletop looper with advanced technology from Boss
• User-friendly layout for fingertip operation
• Two stereo tracks at the same time
• Fire input FX and fire track FX simultaneously
• DAW integration
• 64 phrase memories (8 memories x 8 banks), 17 rhythm patterns

Boss RC-202 Loop Station Guitar Pedal

• Tabletop looper with advanced technology from Boss.
• User-friendly layout for fingertip operation.
• Two stereo tracks at the same time with separate controls and loop status indicators.
• Fire Input FX and fire track FX simultaneously - create loops with DJ and samplestyle effects.
• DAW integration with computer via USB.
• 64 phrase memories (8 memories x 8 banks), 17 rhythm patterns.
• External footswitches, expression pedal and MIDI can be connected for extended control.
• XLR microphone input with phantom power, instrument inputs, stereo AUX input.
• Import/export via USB.

• Nominal Input Level INPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
• INPUT INST: -10 dBu
• AUX IN: -20 dBu
• Input Impedance INPUT MIC: 4 k ohms
• INPUT INST: 1 M ohm
• AUX IN: 22 k ohms
• Nominal Output Level OUTPUT: -10 dBu
• Output Impedance OUTPUT: 1 k ohm
• Recommended Load Impedance OUTPUT: 10 k ohms or greater
• Recording/Playback
• Maximum Recording Time: Approx. 3 hours (stereo)
• Maximum Phrase Memory: 8 Memory x 8 Bank
• Number of Tracks: 2
• Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
• Effect Type(INPUT FX/TRACK FX)
• LPF
• BPF
• HPF
• PHASER
• FLANGER
• SYNTH
• LO-FI
• RING MODULATOR
• GUITAR TO BASS
• SLOW GEAR
• TRANSPOSE
• PITCH SHIFT
• ROBOT
• VOCAL DIST
• VOCODER
• NATURAL COMP
• HARD COMP
• NATURAL LIM
• HARD LIM
• PHONE VOX
• EQ
• LOW ISOLATOR
• MID ISOLATOR
• HIGH ISOLATOR
• OCTAVE
• AUTO PAN
• MANUAL PAN
• TREMOLO
• SLICER
• DELAY
• PANNING DELAY
• TAPE ECHO
• GRANULAR DELAY
• ROLL
• CHORUS
• REVERB
• BEAT REPEAT *1
• BEAT SHIFT *1
• BEAT SCATTER *1
• VINYL FLICK *1
• *1 TRACK FX only
• Effect Type (MASTER FX)
• COMP
• REVERB
• Rhythm Type 17
• Display 7 segments, 3 characters (LED)
• USB
• Mass Storage Class
• Audio/MIDI

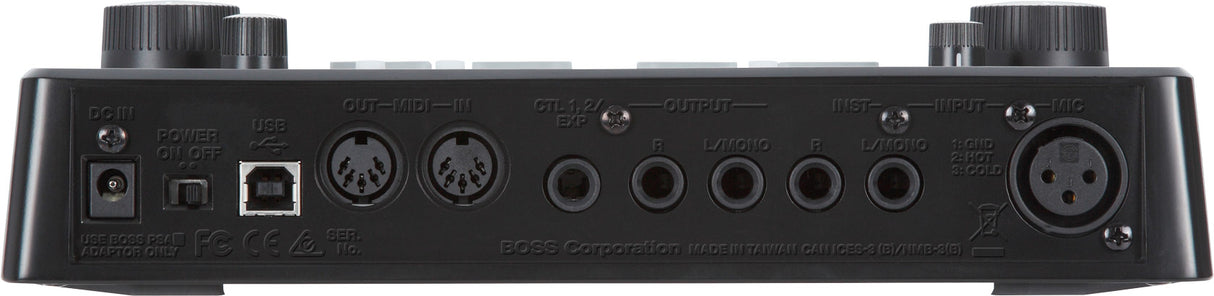

• Connectors
• INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max) INPUT INST (L/MONO, R) jacks: 1/4-inch phone type
• AUX IN jack: Stereo miniature phone type
• Phones jack: Stereo miniature phone type
• OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type
• USB port: USB B Type
• MIDI (IN, OUT) connectors
• DC IN jack
• Power Supply AC adaptor
• Current Draw 440 mA
• Accessories
• AC adaptor
• Owner's manual
• Leaflet "USING THE UNIT SAFELY"
• Options (sold separately)
• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: Roland EV-5, FV-500L, FV-500H
• Width 239 mm
• Depth 175 mm
• Height 55 mm
• Weight 0.95 kg
