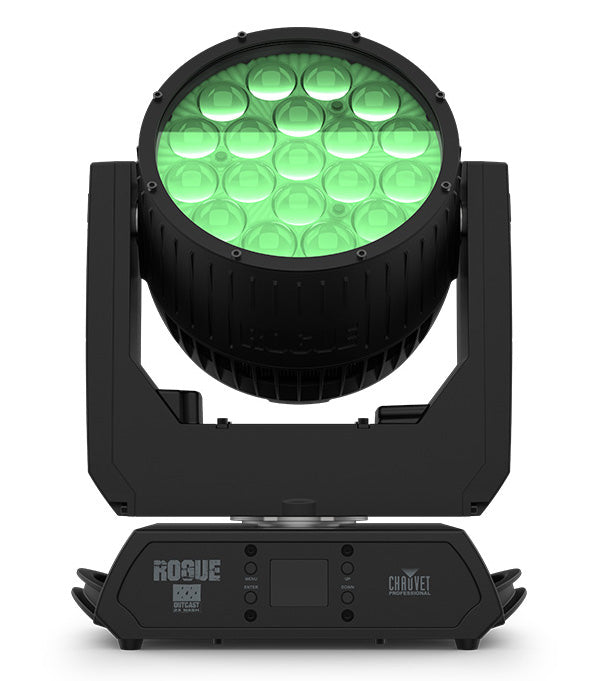

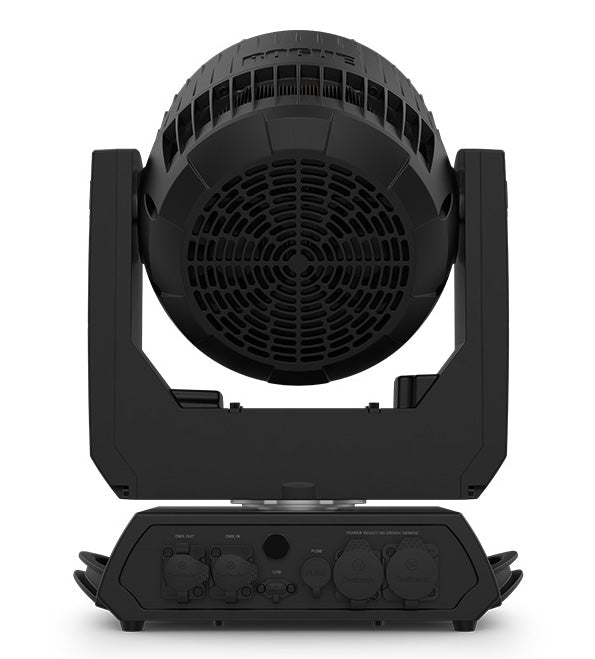

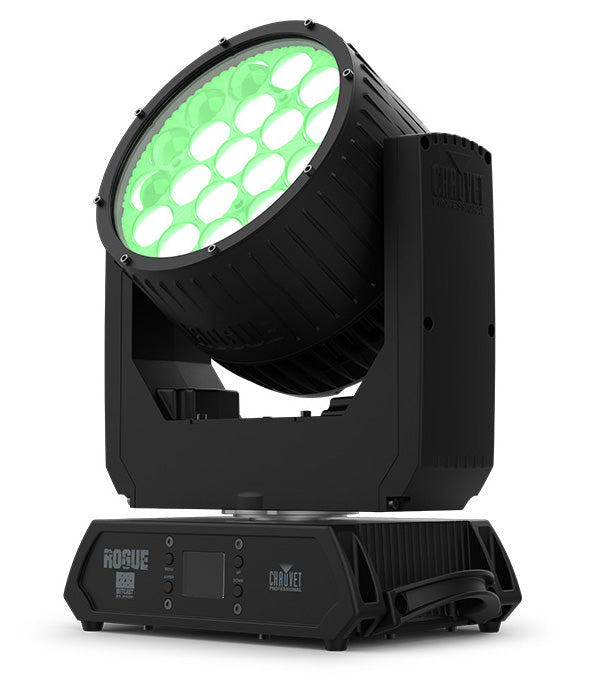

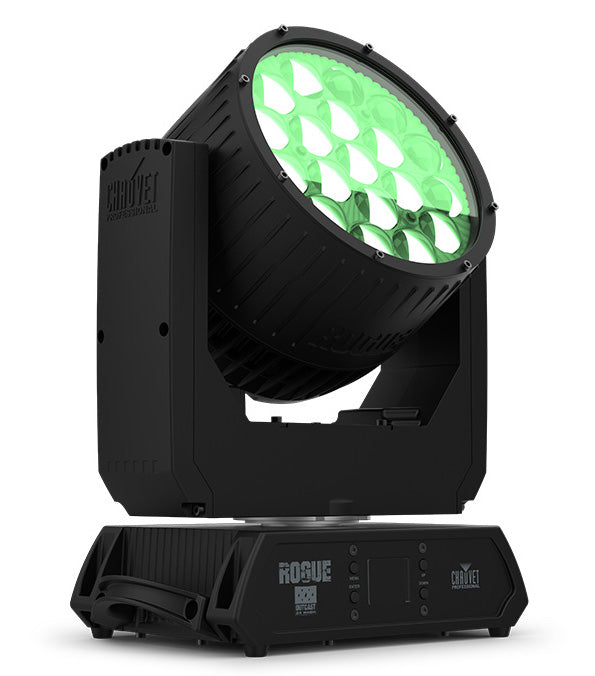

Chauvet Rogue Outcast 2X Wash

Name: Chauvet Rogue Outcast 2X Wash
Brand: Chauvet
SKU: MAT-500018342
Price: 1839.00 EUR
Availability: InStock

€1.839,00

Incl. VAT

Shipping € 10

Chauvet Rogue Outcast 2X Wash is ordered from the supplier and will be shipped as soon as it arrives at our warehouse.

View our +1000 reviews on ★Trustpilot

Description

Fully featured IP65 rated RGBW LED yoke wash fixture
Durable and lightweight aluminum/magnesium alloy body
Smooth fades with 16-bit individual color and master dimming
8° to 66° zoom
19 RGBW LEDs, 25W each
5-pin DMX input/output connections
5 zones of LED control for pixel mapping control
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM options for camera operation
User selectable calibrated white, 7500K default calibration
6 distinct dimming modes for advanced control
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software

Rogue Outcast 2X Wash

Rogue Outcast 2X Wash is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Specifications

Weight (kg)

14

More specifications

OPTICAL

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 8° to 36.1°
Field Angle: 11.8° to 53°
Cutoff Range: 17.5° to 66.1°
Zoom Range: 8° to 66.1°
Lumens – Source: n/a
Lumens – Output: 6,258
Illuminance (11.8°): 8,713 lux @ 5 m
Illuminance (53°): 694 lux @ 5 m
Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 6
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

Dimensions: 11.92x8.58x14.1" (303x218x361mm)
Weight: 23.4 lb (10.6 kg)
Exterior Color: Black
Housing Material: Aluminum/magnesium alloy, High-impact flame-retardant polymer

CONNECTIONS

Power Connection: Bare ended to Seetronic IP65 PowerKon
Power Input: Seetronic IP65 PowerKon
Power Output: Seetronic IP65 PowerKon
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 33, 54, or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC, UKCA
IP Rating: IP65 (temporary wet location)

WHAT'S INCLUDED

Rogue Outcast R2X Wash IP
Seetronic® powerCON® power cord

DOWNLOADS

Brand: Chauvet

SKU: MAT-500018342

Barcode: 781462222833
