Description
Description
- Compact 500-watt bass amplifier top
- Newly developed Class D power amplifier
- Lots of settings options
- Save/Load settings
- BOSS Tone Studio for Windows/macOS
- Download and share Livesets at BOSS Tone Exchange

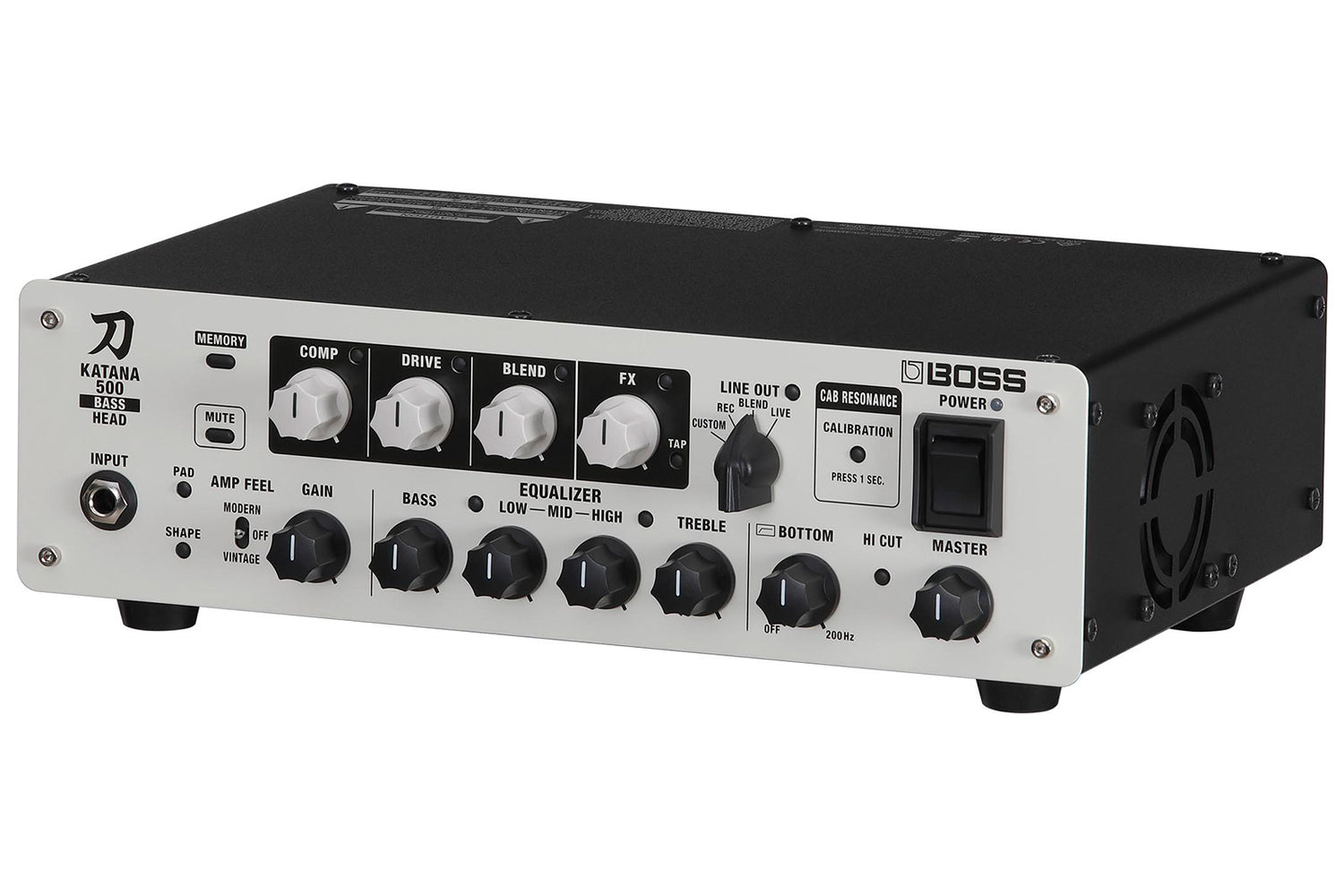

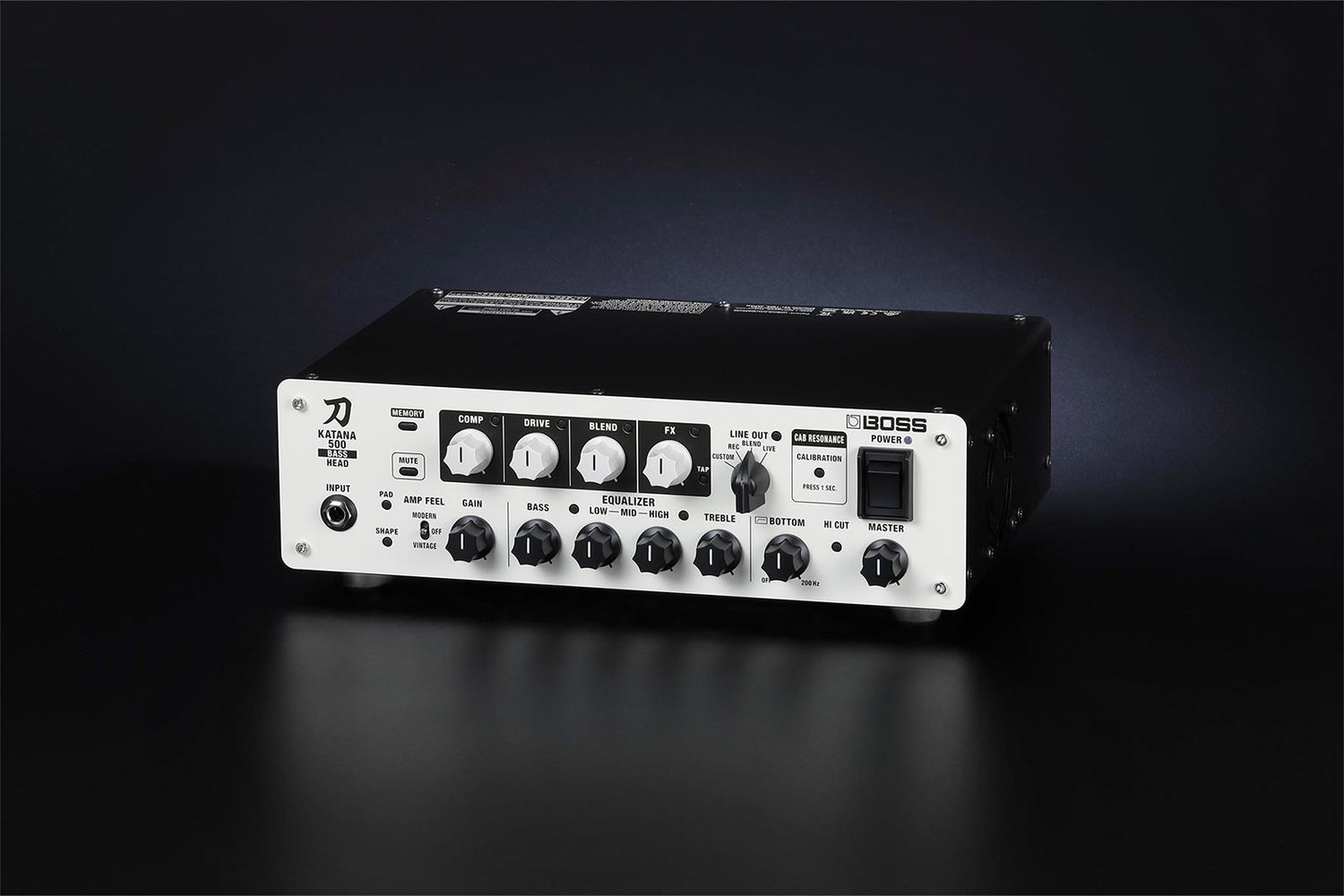

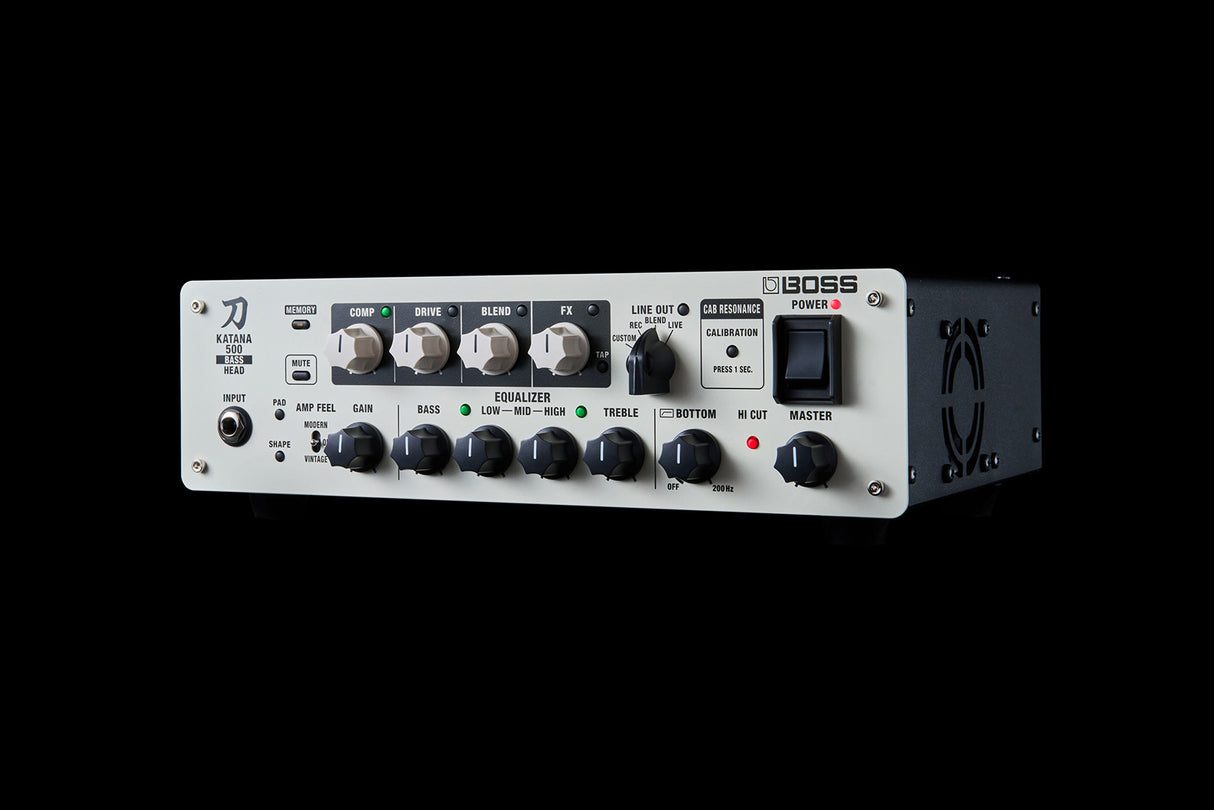

Katana KTN500B-HD Bass Amplifier Top
- Compact 500-watt bass amplifier top with tons of features, in addition to great sound.
- Newly developed Class D power amplifier and innovative cabinet resonance calibration.

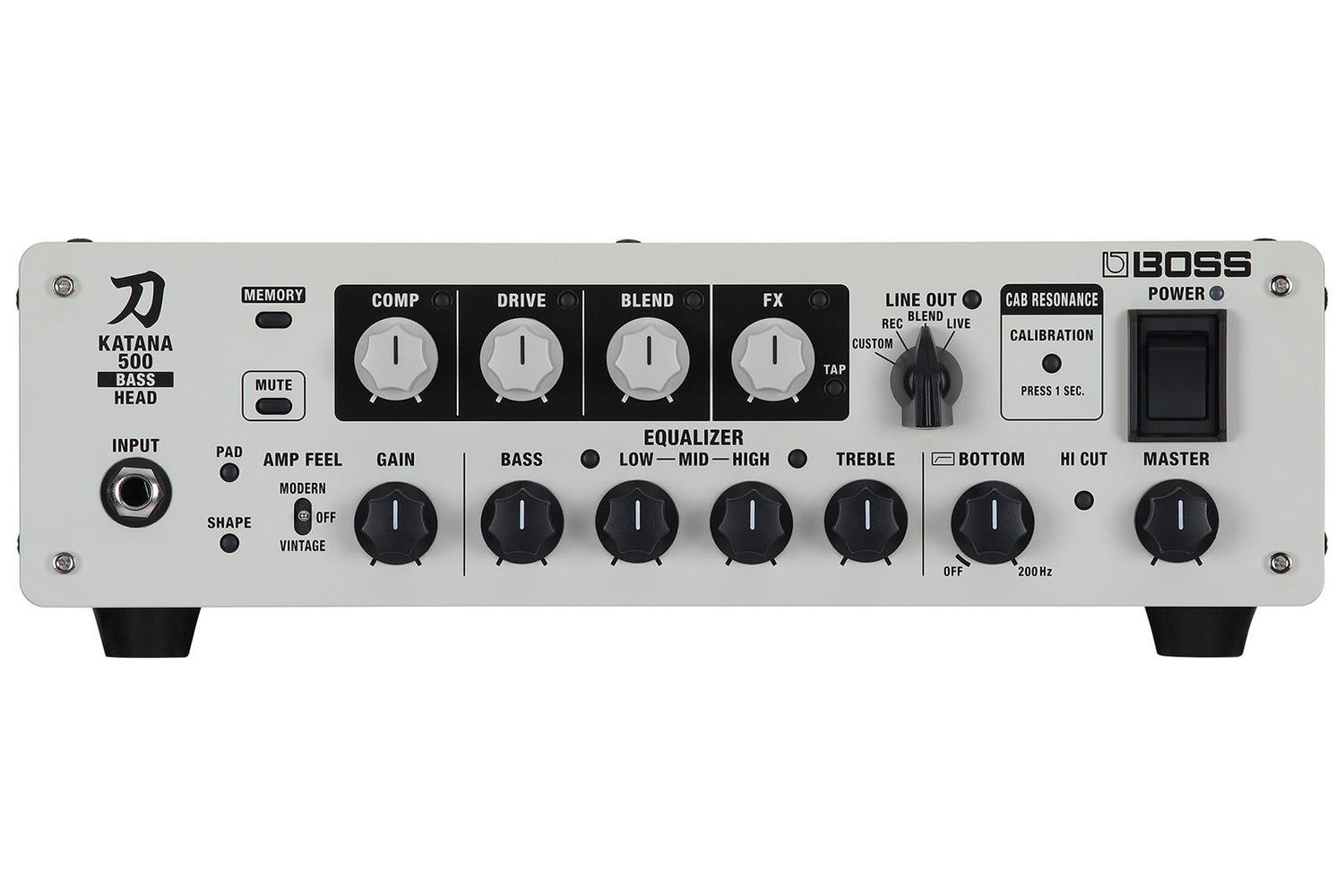

- "Amp Feel" settings, "Shape" setting, "Blend" button
- Fire-Band EQ, compressor (3 types) and drive control (3 types).
- "Bottom" button to tighten the sound and eliminate sub-bass rumble.
- "Hi Cut button with three selectable frequencies.
- Built-in memory to store and recall settings.
- XLR line out and headphone/recording out.
- Edit sounds and access over 60 effects with BOSS Tone Studio for Windows/macOS.
- Connect via USB to your computer and BOSS Tone Studio and use it as audio interface.
- Download and share Livesets on BOSS Tone Exchange.
- BluetoothAudio MIDI Dual Adapter allows you to edit sounds and stream audio from an iOS or Android mobile device (must be purchased).
- GA-FC and GA-FC EX foot controls for remote control on stage (must be purchased)

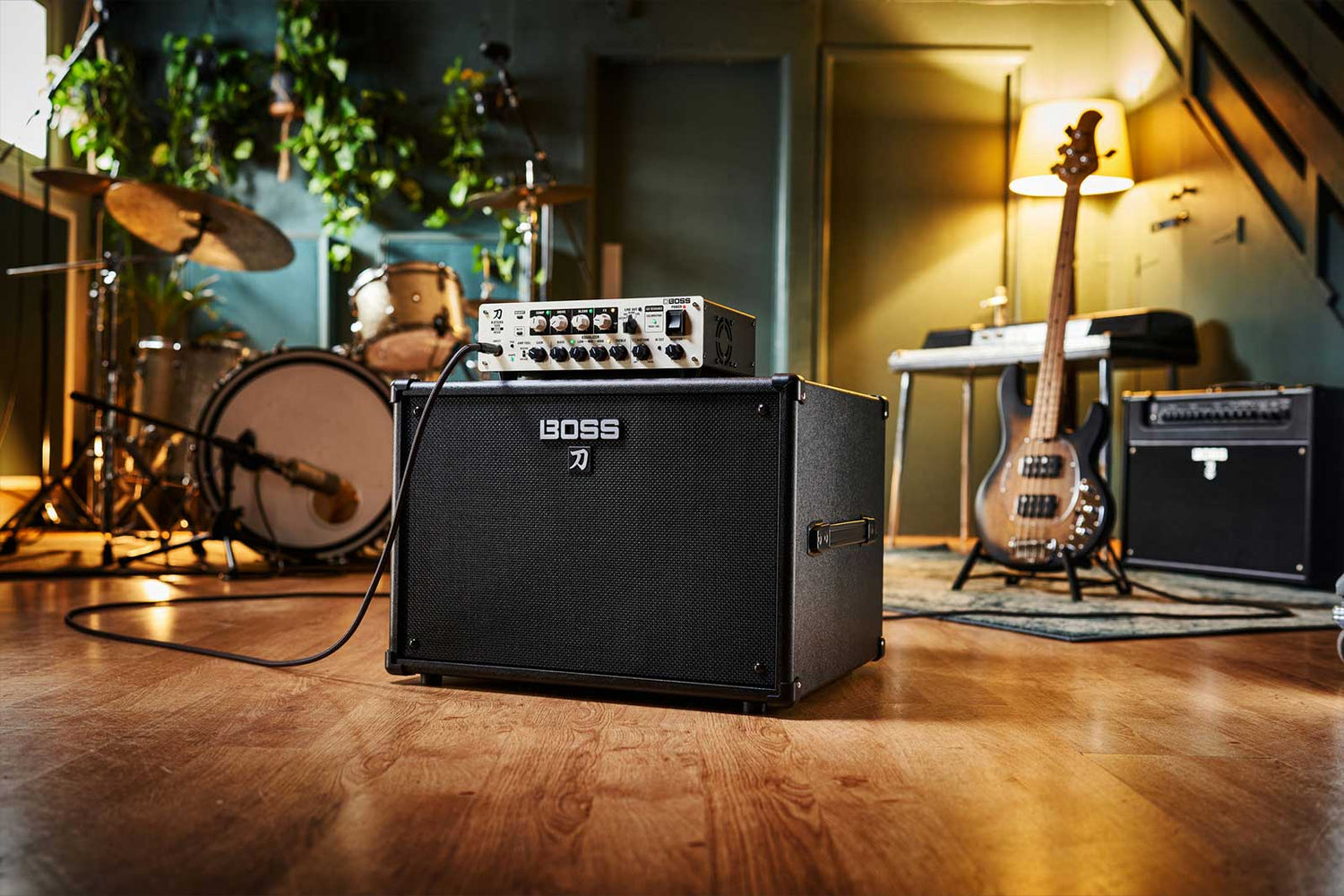

- Fits perfectly with Boss Katana Cabinet 112 Bass.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Output Power 500 W (4 ohms) Peak
250 W (8 ohms) Peak
Nominal Input Level
INPUT: -10 dBu (1 M ohms)
RETURN IN: -10 dBu (100 k ohms)

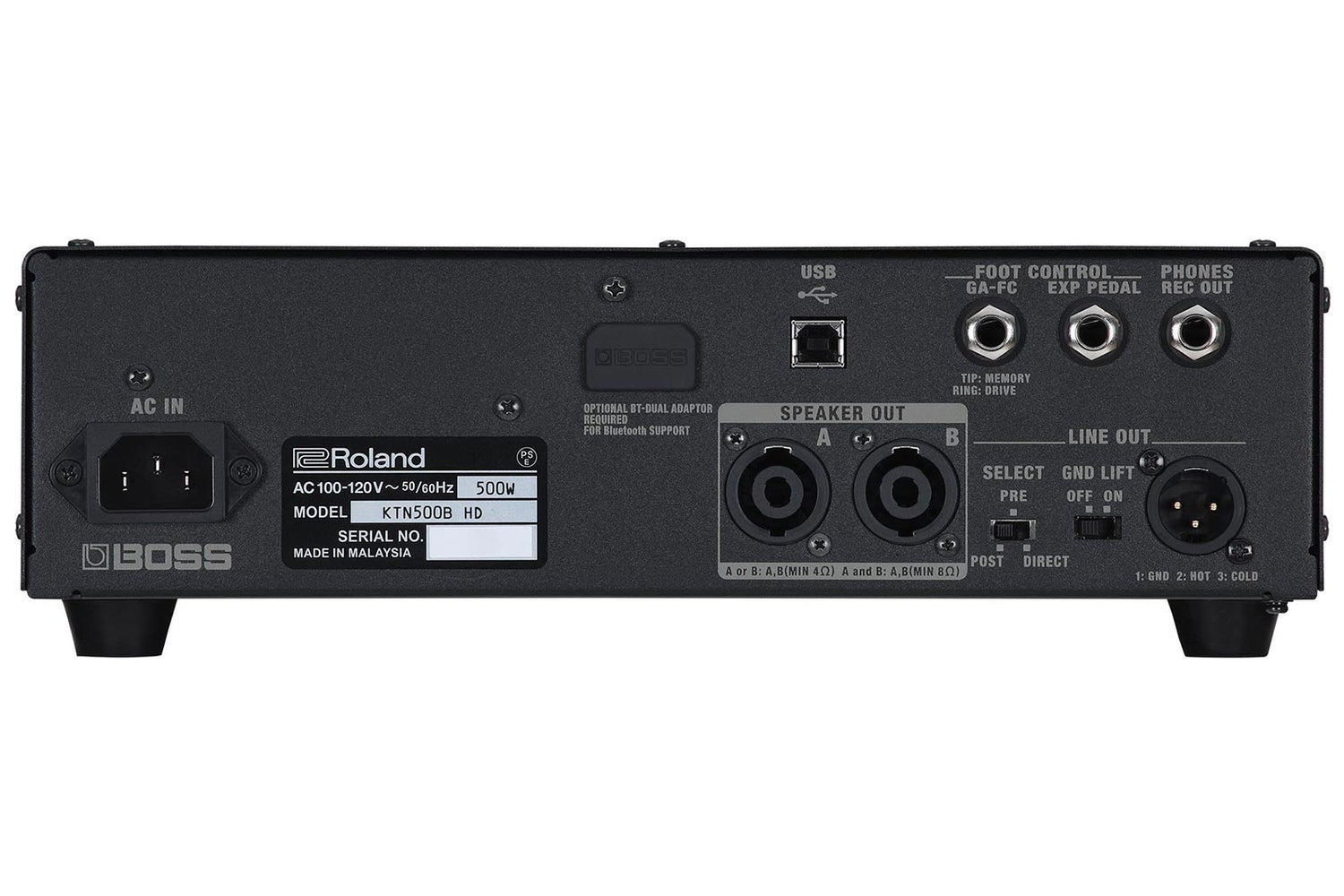

Connectors
INPUT jack: 1/4-inch phone type
LINE OUT jack:XLR type
SPEAKER OUT (MIN 4 ohms) connector: speakON type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
EXP PEDAL jack: 1/4-inch TRS phone type
GA-FC/CTL CH1/CH2 jack jack jack: 1/4-inch TRS phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor
AC IN jack
Power Consumption 500 W
Accessories
Owner's Manual
Power cord
GA-FC sticker
Options (sold separately)
Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth ® Audio MIDI Dual Adaptor (Model BT-DUAL)
Width 298 mm
Depth 212 mm
Height 96 mm
Weight 2.8 kg
