• LED beam effect with RGBW color mixing and 8 RGB hypno rings
• Equipped with 8 powerful 10 W SMD 4in1 QCL RGBW LEDs and 96 powerful 0.2 W SMD 5050 3in1 TCL RGB LEDs
• Electronic dimmer, color change, color fade, color mixing, rotation speed, and rotation direction
• Control via stand-alone, DMX, QuickDMX, W-DMX, CRMX, Master/slave, and Sound to light via microphone
• Flicker-free technology and fuzzy sound control for continuous programs

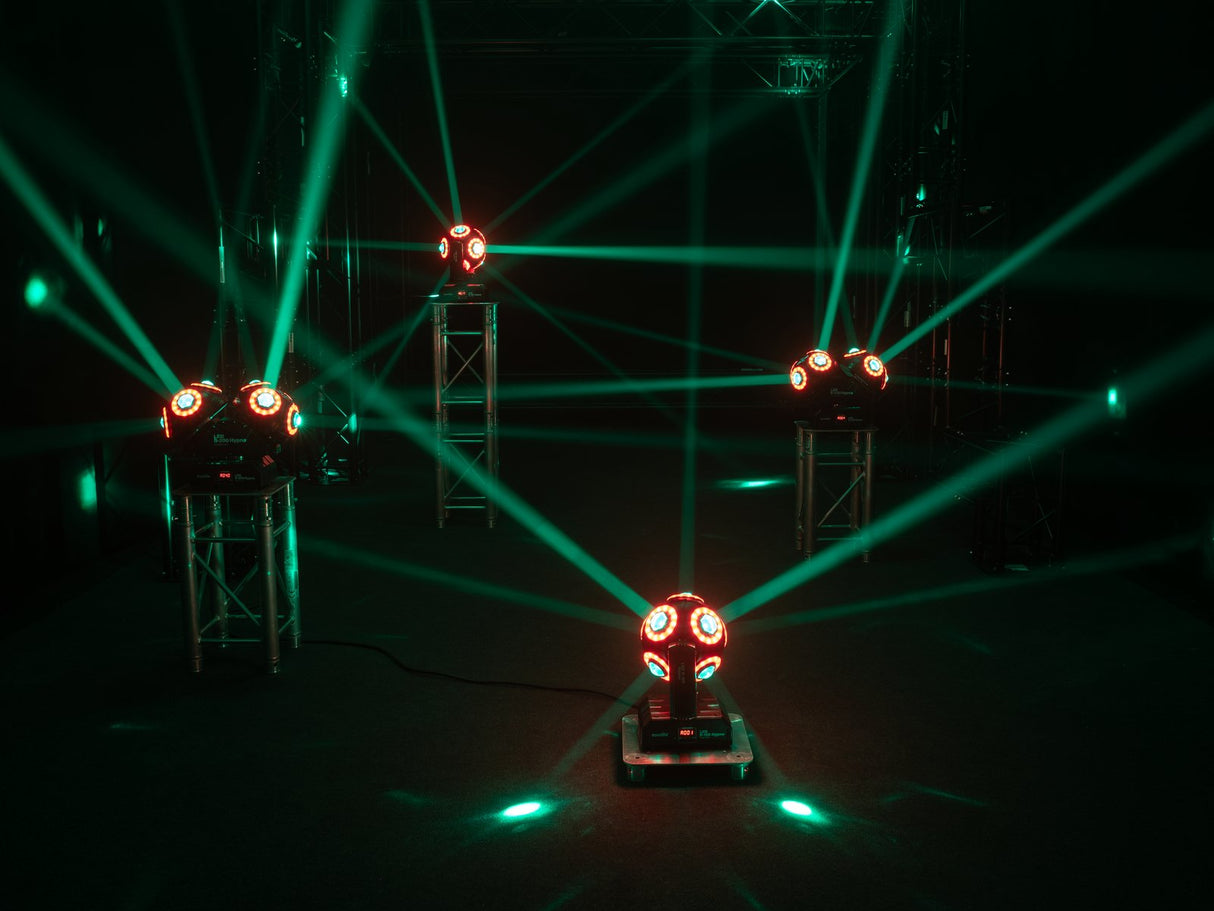

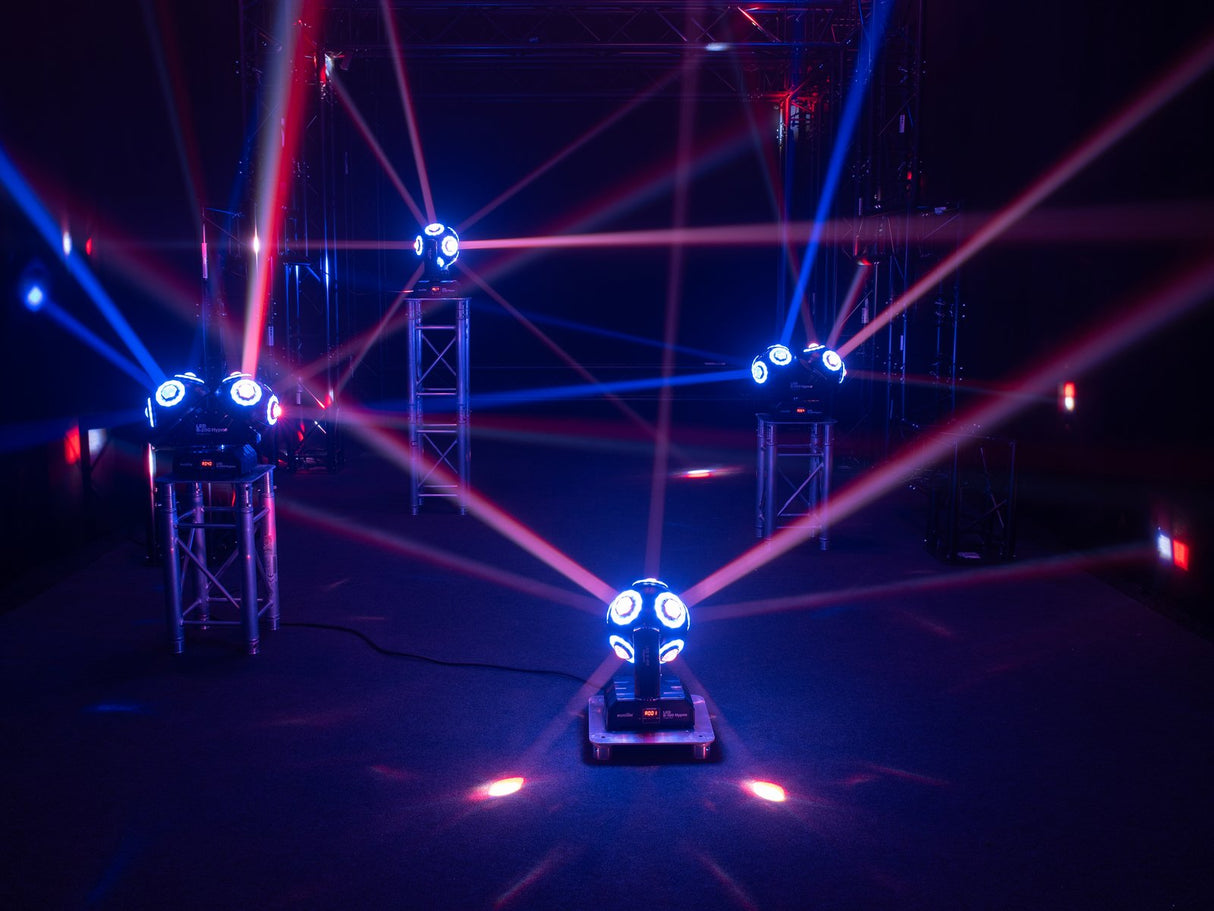

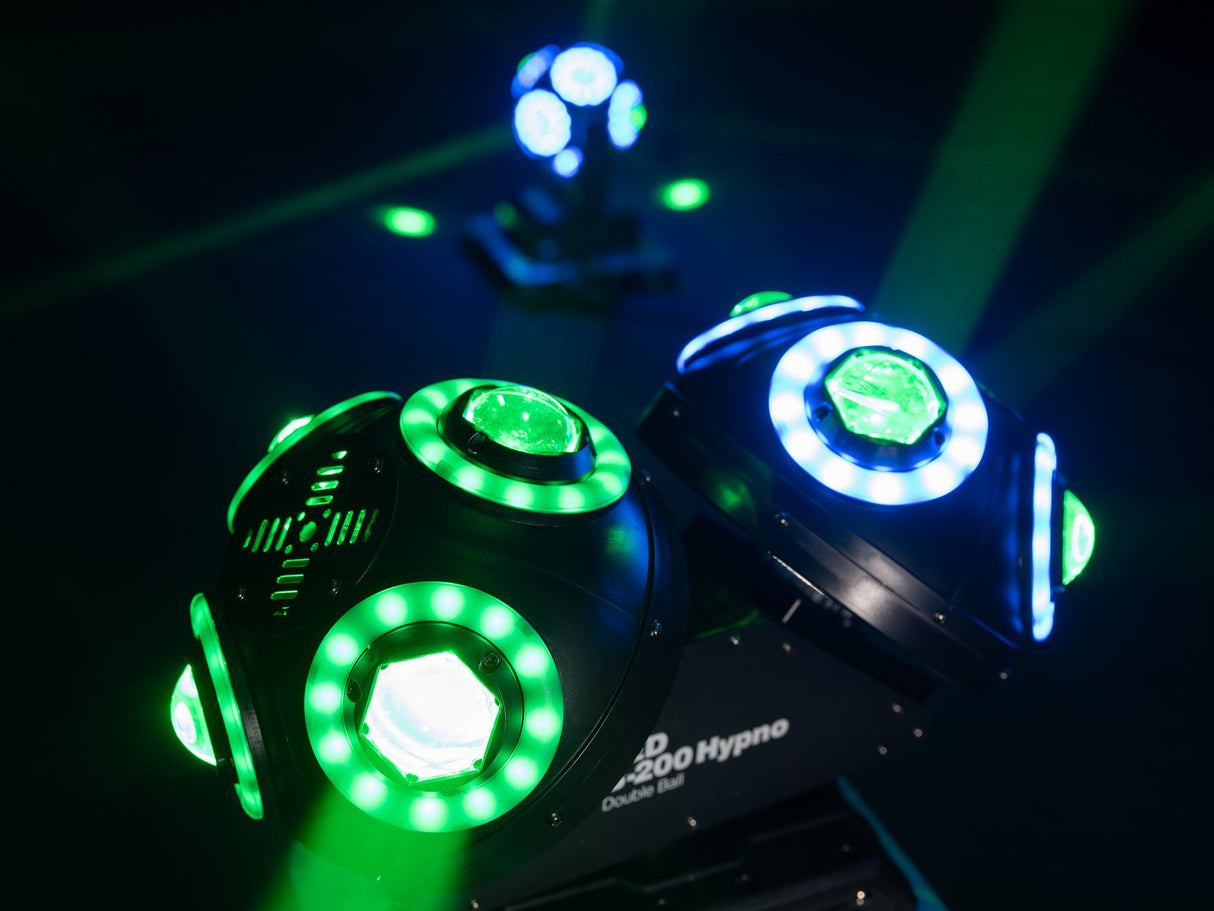

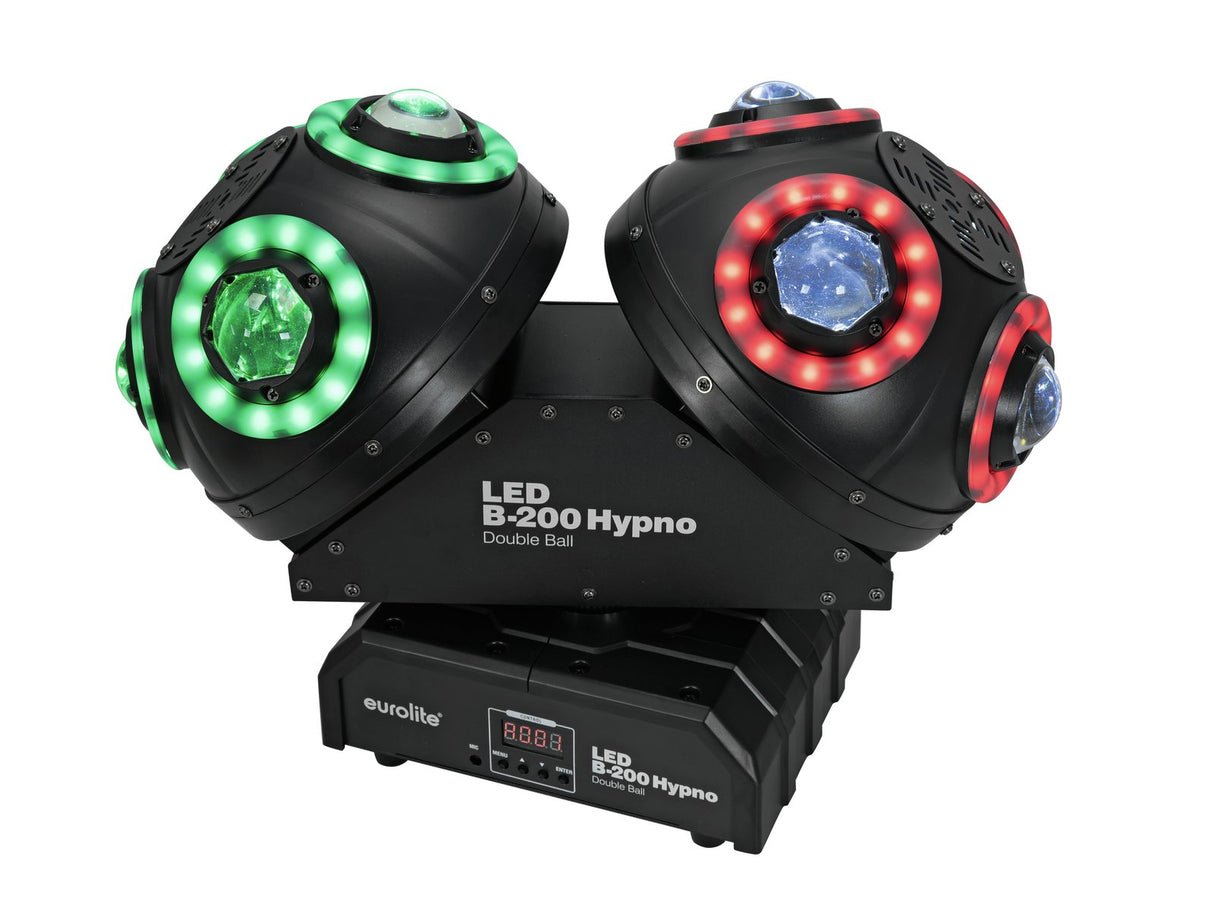

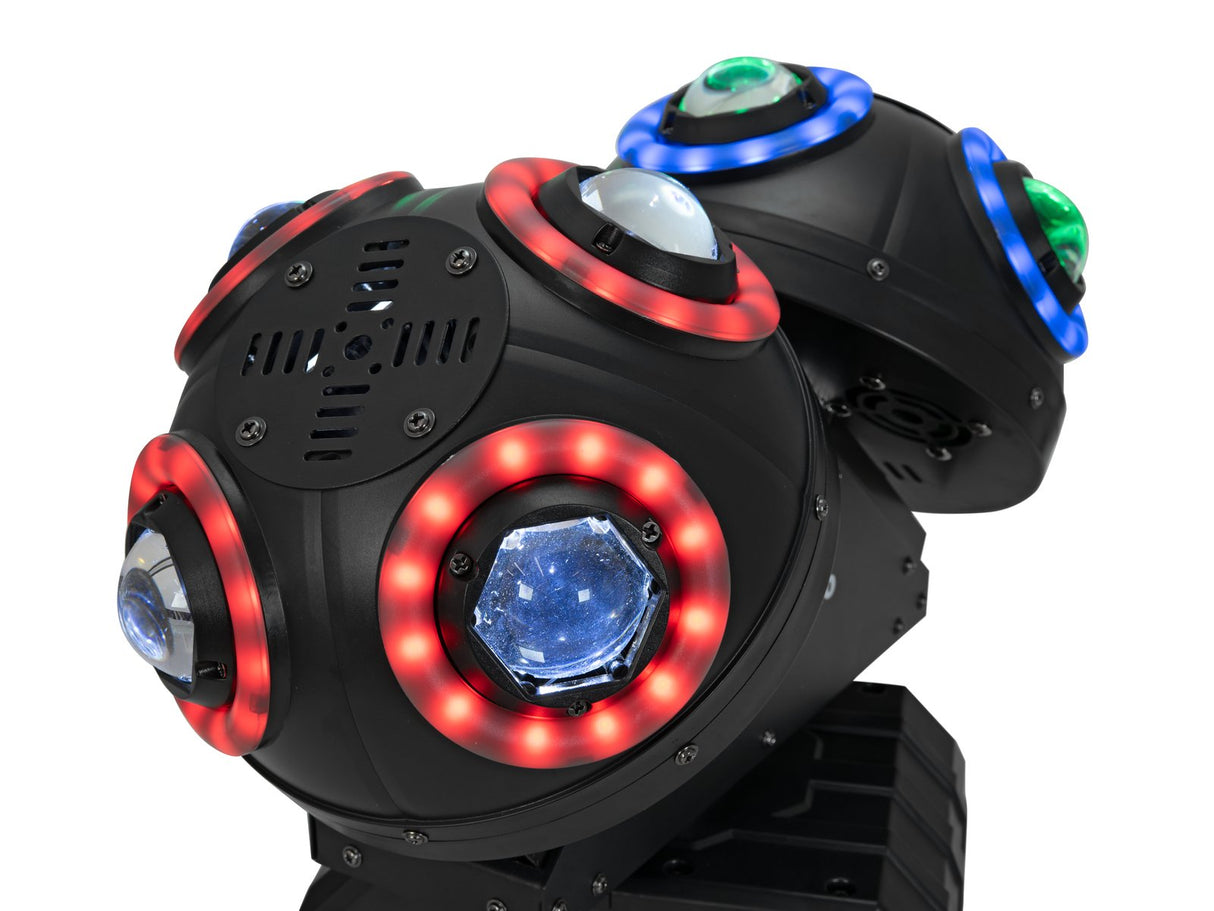

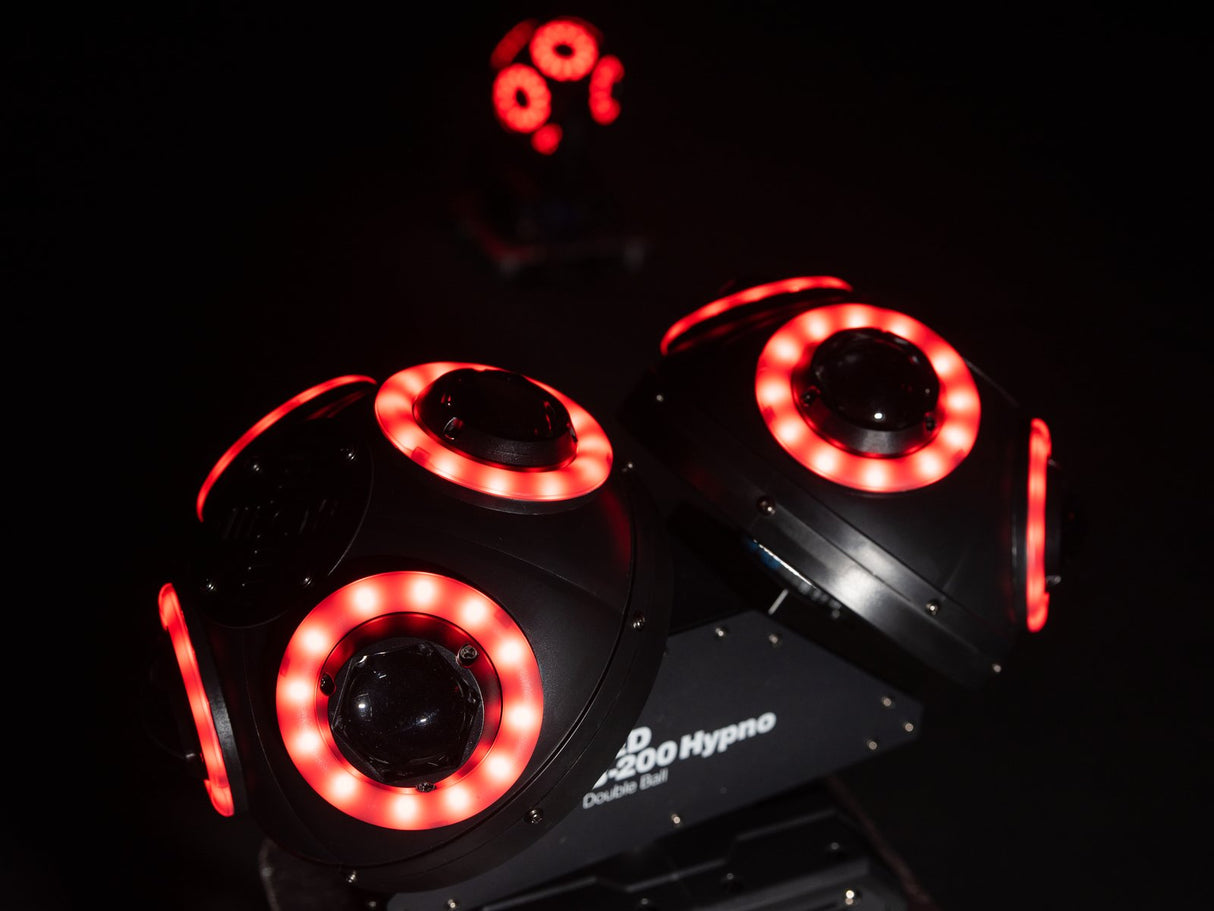

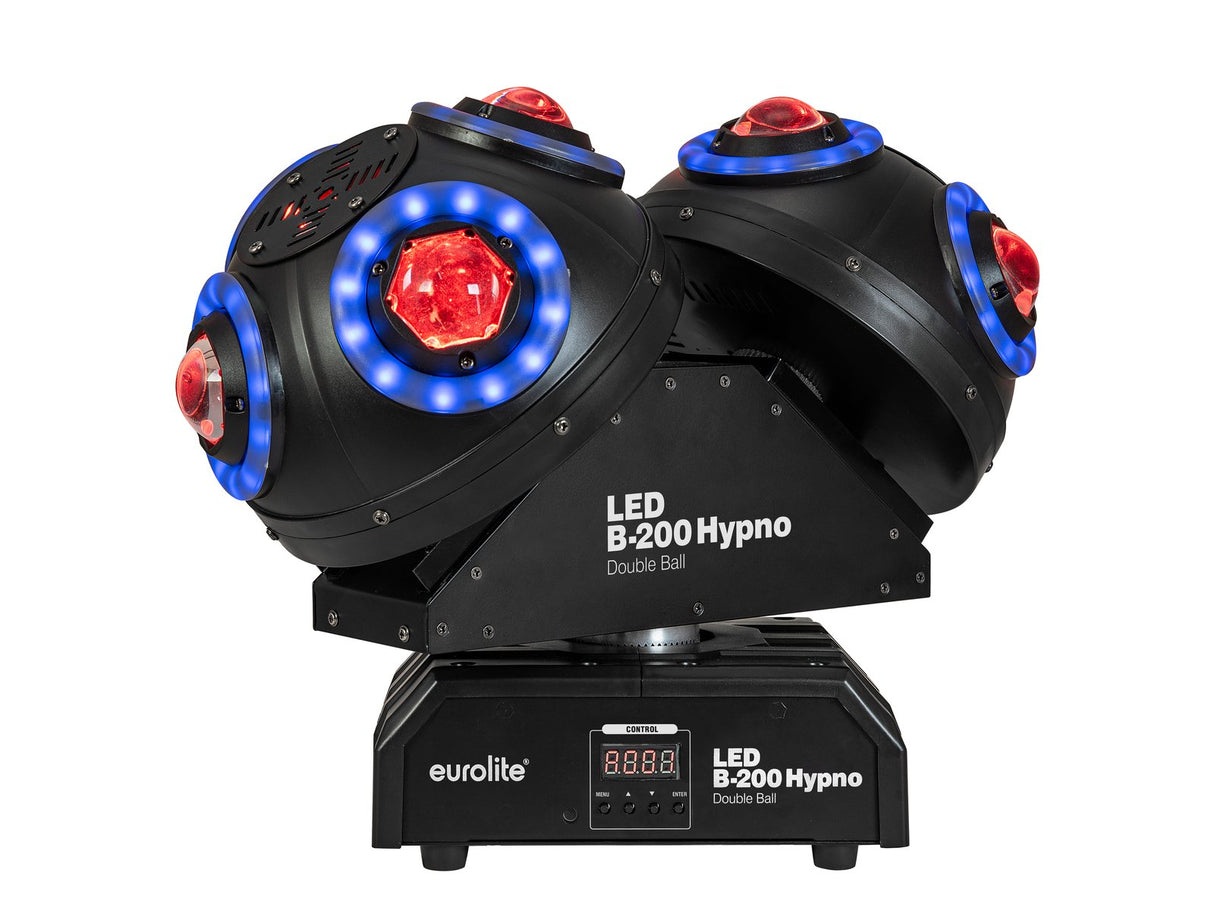

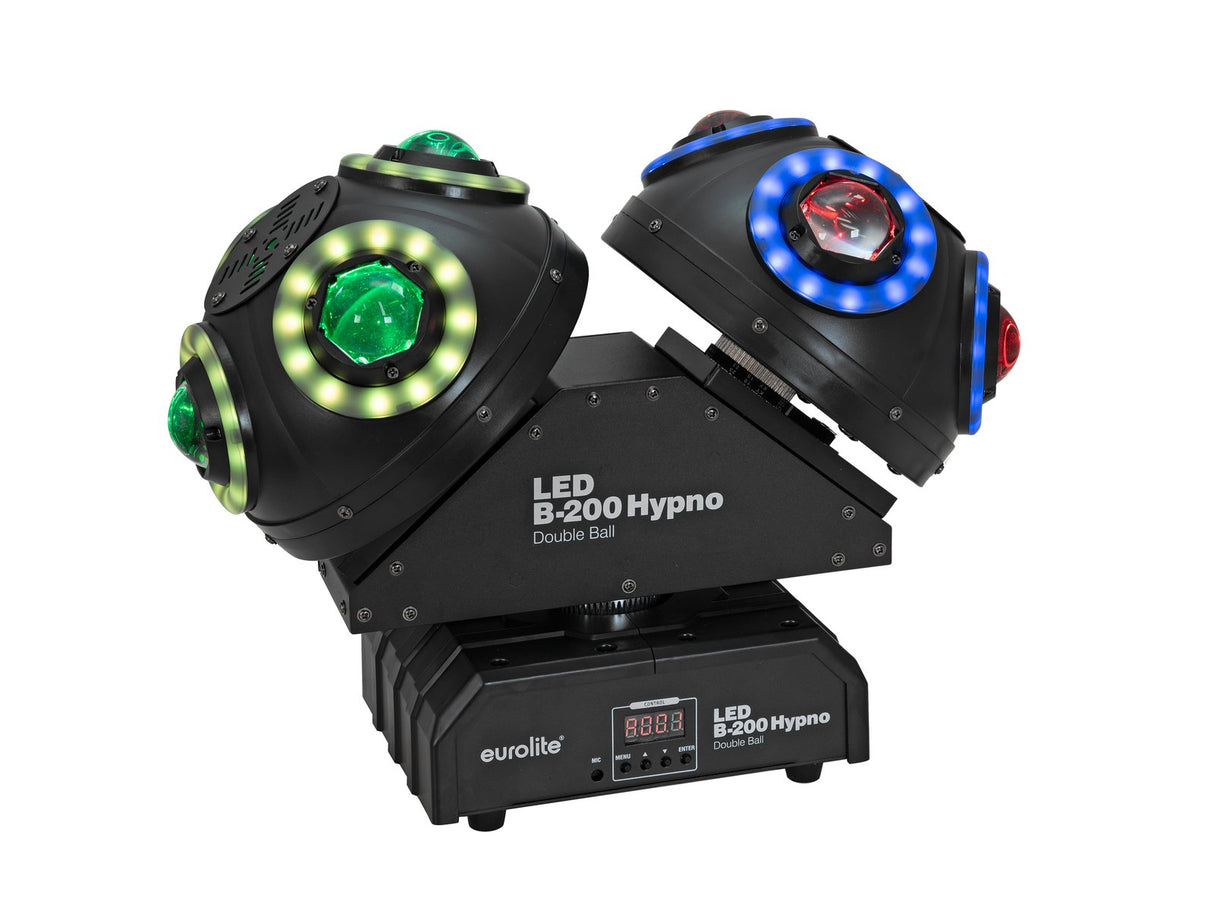

Eurolite LED B-200 Hypno Double Ball Beam Effect

• LED beam effect with RGBW color mixing and 8 RGB hypno rings.
• Equipped with 8 powerful 10 W SMD 4in1 QCL RGBW LEDs and 96 powerful 0.2 W SMD 5050 3in1 TCL RGB LEDs.
• Electronic dimmer; color change; color fade; color mixing; rotation speed; rotation direction.
• Multi-beam effect with 2 integrated show programs.
• The unit is cooled by a cooling fan.
• Control via stand-alone, DMX, QuickDMX (optional), W-DMX by wireless solution (optional), CRMX by LumenRadio (optional), Master/slave function, and Sound to light via microphone.
• Fuzzy sound control: the program continues automatically during periods without music or bass beat.
• Flicker-free technology.
• Includes Omega bracket and holder for wall mounting.
• 4-digit 7-segment LED display.
• Can be used standing or hanging.
• Pre-programmed in Light Captain.

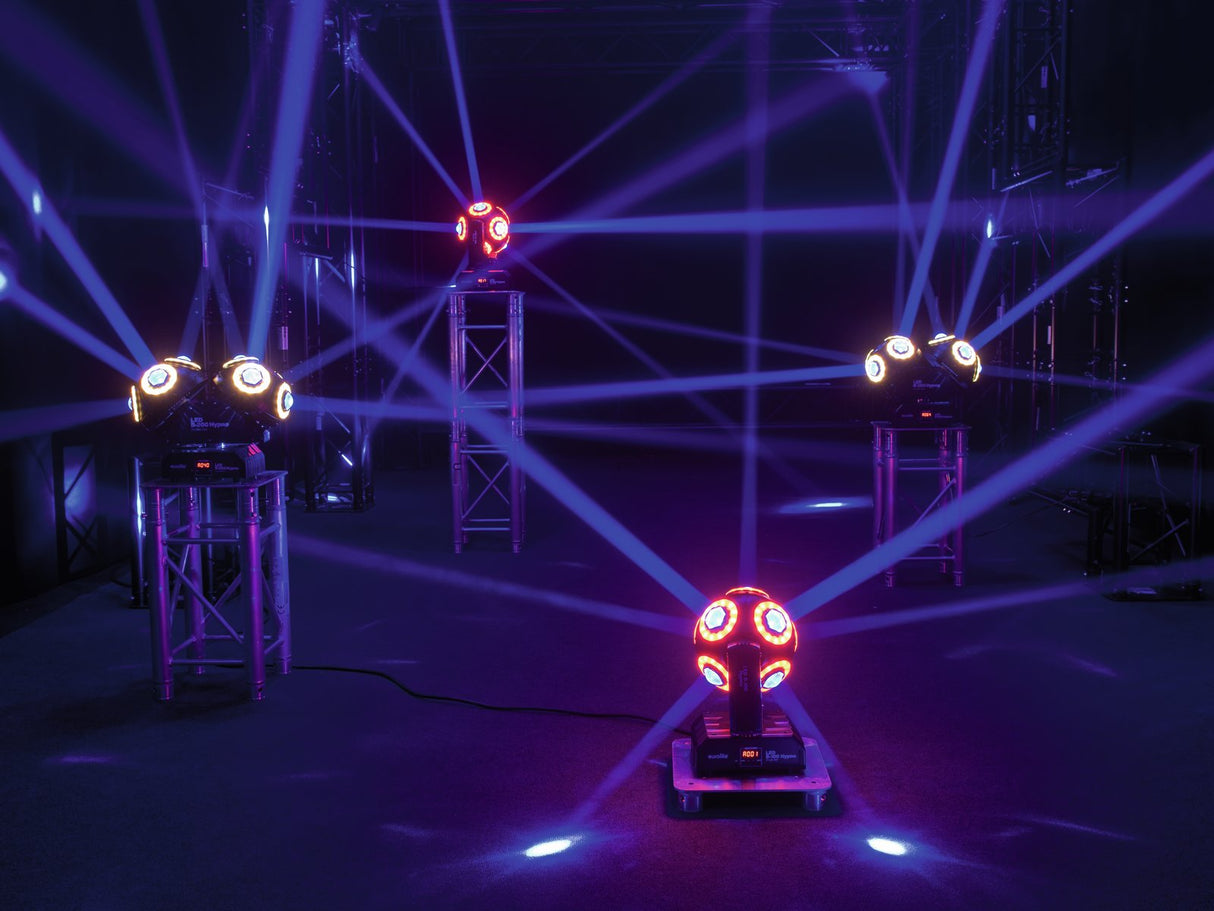

• Ideal for applications such as clubs, dance schools, weddings, galas, event venues, mobile DJs, entertainers, restaurants, bars, and hotels.

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 100 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug
• Fuse: 5 x 20 mm, T 3.15 A Fuse replaceable
• Lamp type: LED lamp
• LED: 8 x 10 W SMD 4in1 QCL RGBW, 96 x 0.2 W SMD 5050 3in1 TCL RGB
• Max. PAN movement: 540°
• Speed: Forward/backward
• Flash rate: 0 - 20 Hz
• DMX channels: 17; 24

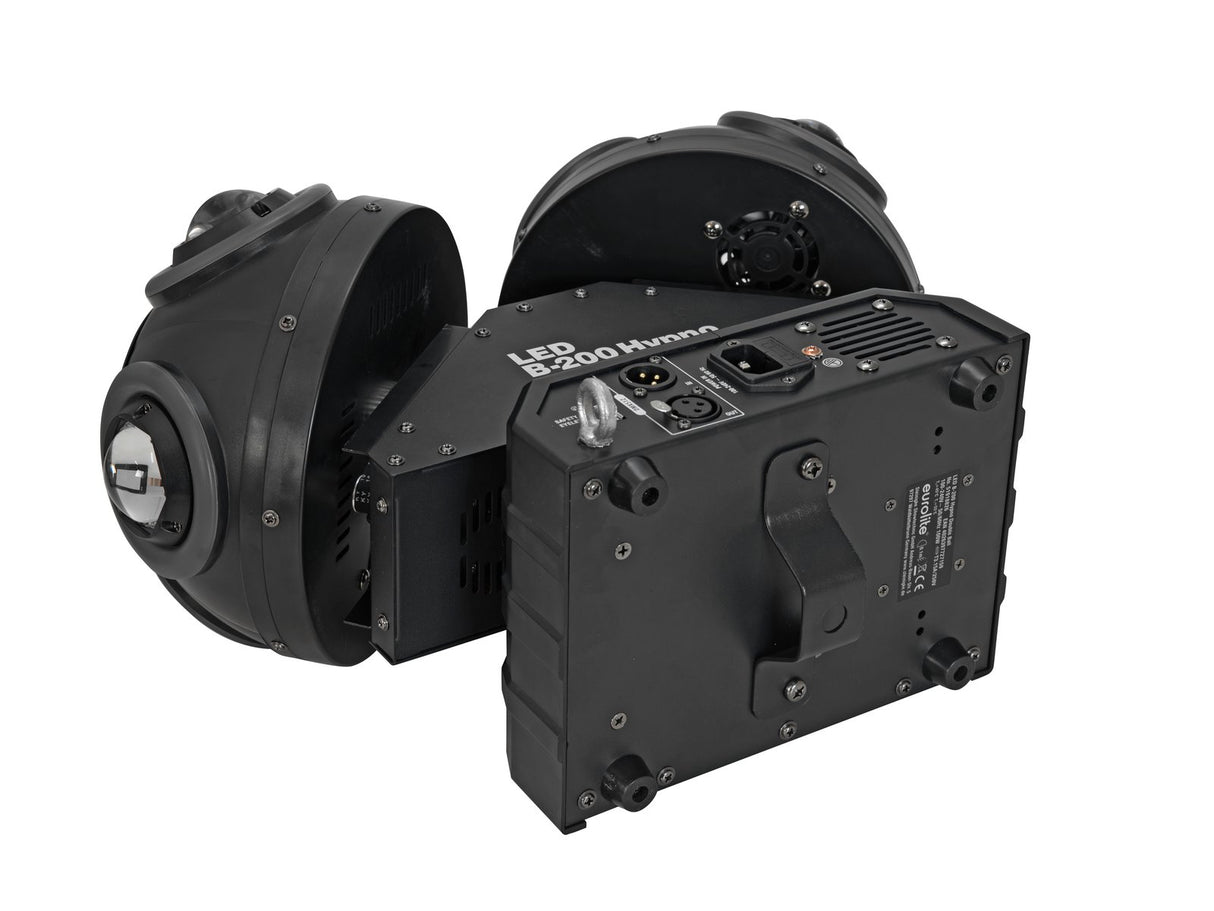

• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone
• Preprogrammed in: Light Captain
• Projection: Flicker-free
• Weight: 5.00 kg
• Noise classification: Class 2 (slight noise)
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• Housing color: Black
• Attachment system: Omega bracket, Holder for wall mounting
• Display type: 4 digit 7-segment LED display
• Diameter mounting holes: 4 x Ø5mm

Illuminance in Lux (lx):

• Red (R) 1m: 4812 lx, 3m: 1146 lx, 6m: 271 lx
• Green (G) 1m: 8250 lx, 3m: 2434 lx, 6m: 723 lx
• Blue (B) 1m: 3015 lx, 3m: 604 lx, 6m: 153 lx
• Cold white (CW) 1m: 14513 lx, 3m: 3918 lx, 6m: 817 lx

Dimensions:

• Width: 40.0 cm
• Depth: 21.0 cm
• Height: 32.0 cm

Downloads:

• Eurolite LED B-200 Hypno Double Ball Beam Effect manual
