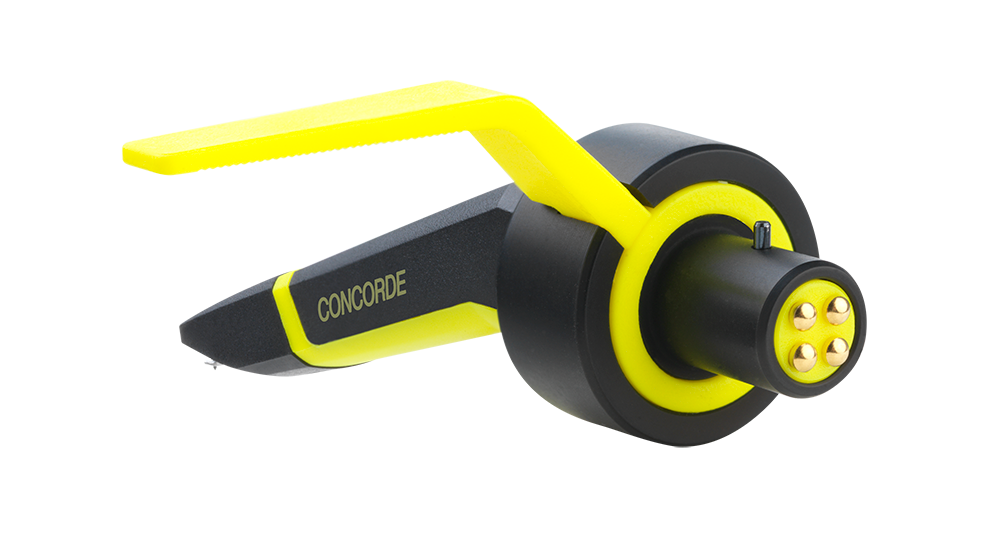

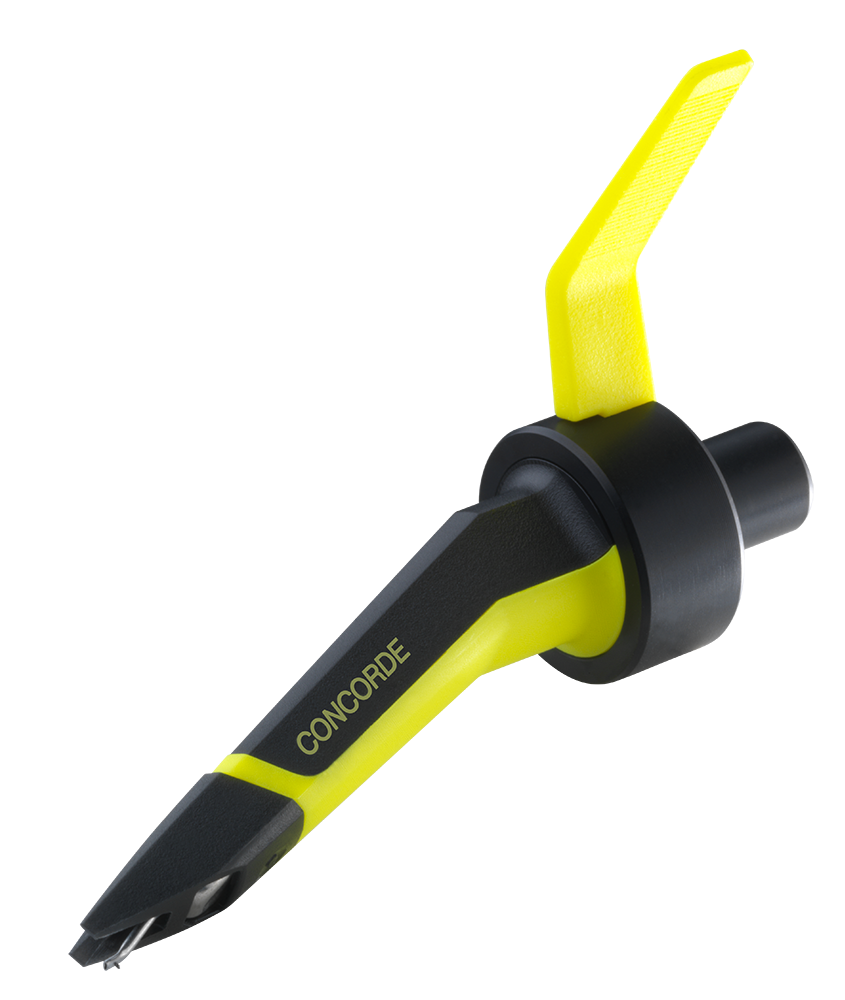

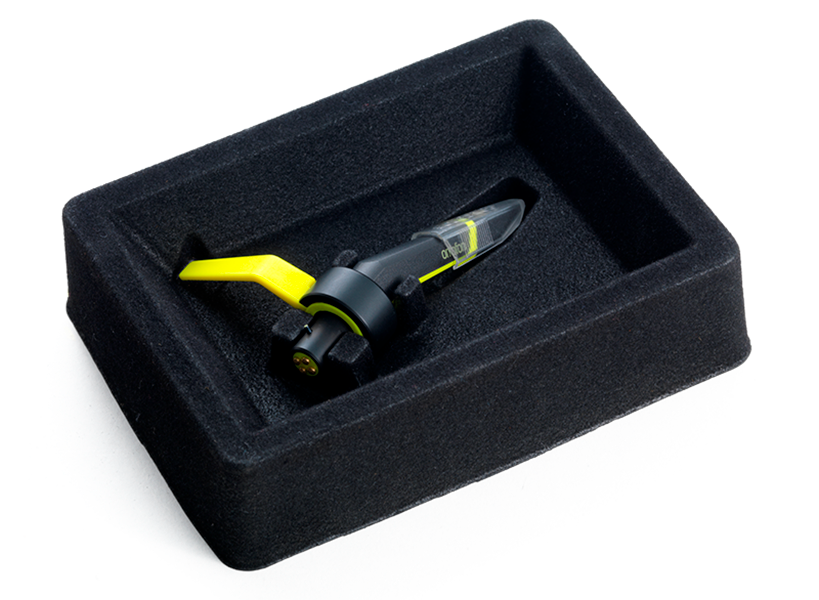

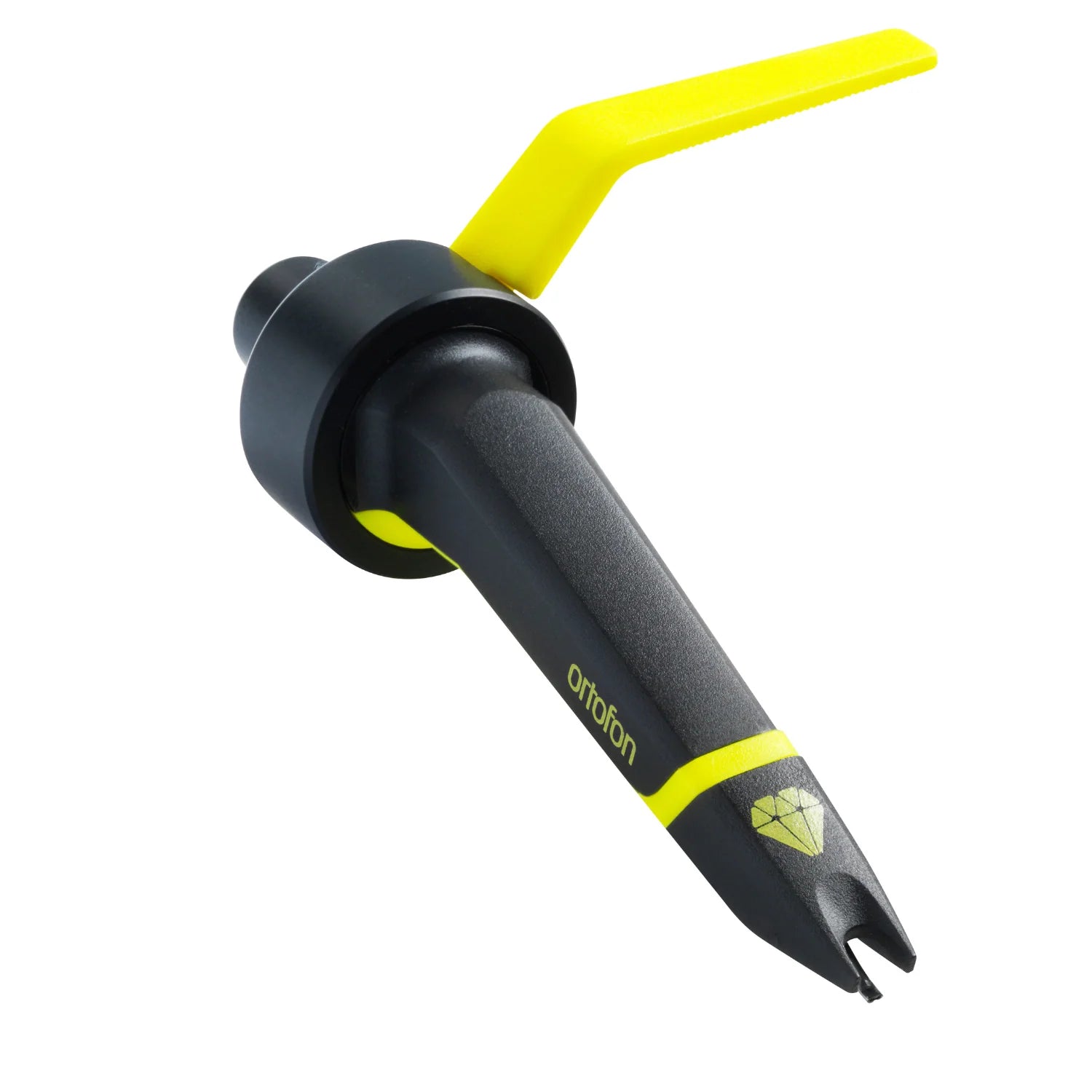

Ortofon Concorde Club MKII pick-up

• An ideal choice for Club DJ's in any environment: studio, broadcast or club.
• Provides the best achievable sound quality for traditional vinyl playback.
• Offers an excellent platform for archiving and sampling.

Ortofon Concorde Club MKII pick-up

• Provides the best possible sound quality for traditional vinyl playback.
• Offers an excellent platform for archiving and sampling.
• An ideal choice for Club DJ's in any environment: studio, broadcast or club.
• The special elliptical stylus, allows for detailed sound quality: special elliptical stylus fits better in the groove and therefore has more contact area with the groove, extracting more intricate details than is possible with a spherical diamond.
• 8 mV output voltage requires less amplification from the front speakers, providing cleaner sound reproduction and less proneness to feedback.

Specifications:

Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommended tracking force - 100 m
Compliance, dynamic lateral - 14 m/m N
Stylus type - Spherical Elliptical r/R 13/25 m
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g

Cartridge weight - 18,5 g
Replacement stylus unit - CLUB
