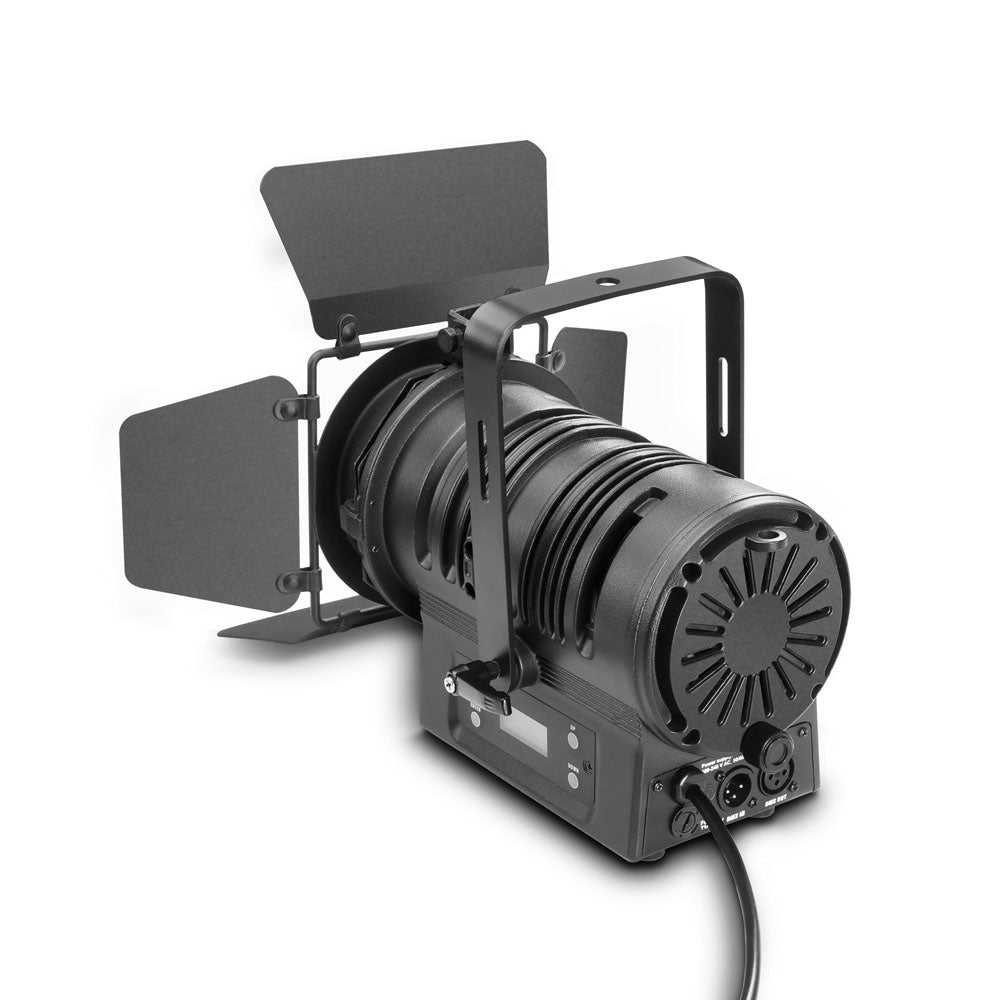

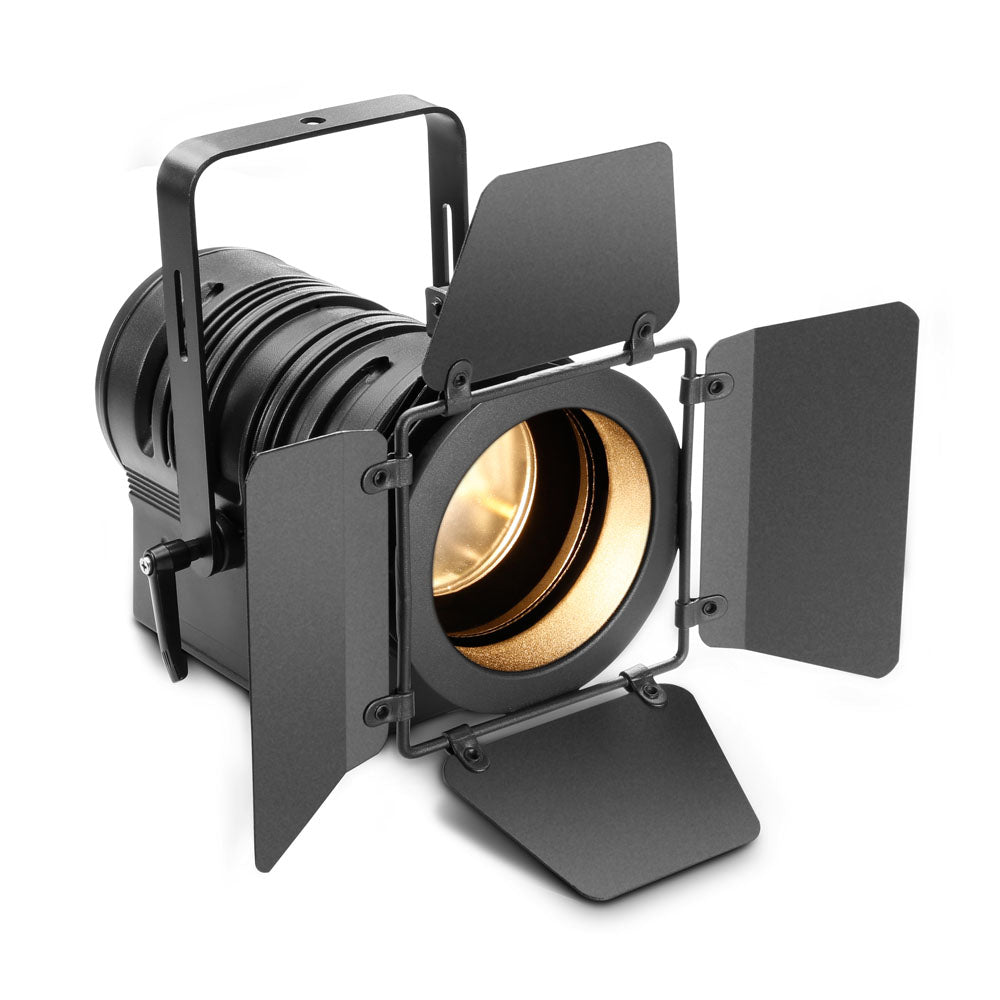

Cameo TS 40 WW Theatre Spot - Black

• Powerful 40 watt warm white LED
• Plano-convex lens
• Continuously variable manual zoom for 14° - 38° beam angle
• RDM stand
• 18.000 lux @ 1 m
• 3,200 K color temperature
• CRI> 90
• Flicker-free operation
• Robust metal housing with convection cooling
• Includes rotatable barndoors and filter frame
• DMX in/out

Cameo TS 40 WW Theatre spot

Cameo The TS 40 WW is a versatile theatre spot with plano-convex lens and manual zoom for easy spot-to-flood focus adjustment. Cameo TS 40 WW delivers of a soft beam with continuous variable 14° to 38° angle. The RDM-compatible luminaire is powered by a single 40 watt warm white LED. It has a color temperature of 3,200 K and 18,000 lux illuminance at 1 meters distance.

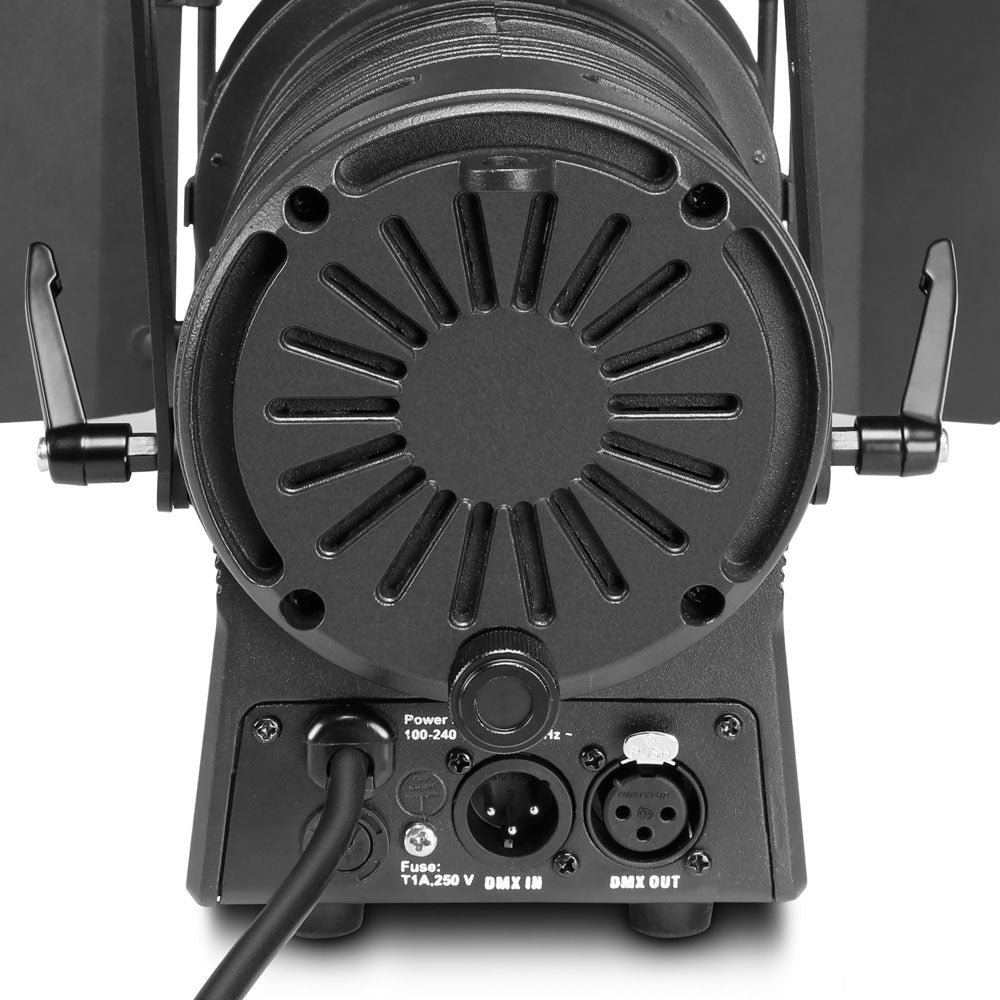

The spot's DMX features include a high-speed strobe with adjustable flash rate from 1 to 20 Hz and a choice of dimming curves. A refresh rate of 1,200 Hz ensures flicker-free performance. The TS 40 WW comes in a hard metal housing with efficient convection cooling. It provides a 4-button display for easy configuration, 3-pin DMX connector and an IEC power input. Included is a rotatable barndoor and color filter frame.

Specifications

Product type

LED PAR Lighting

Type

Indoor

Colour spectrum

warm white

Number of LEDs

1

Colour temperature

3200 K

CRI

>90

LED type

warm white 40 W

Refresh rate

1200M Hz

Dispersion

(Beam) 14° - 38° / (Field) 20° - 48 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

Protocols

USITT DMX 512 protocol

DMX mode

3-channel

DMX Functions

Dimmer , Dimmer Curve , strobe

Wireless DMX

no

Flash Strobe rate

1 - 20 Hz

Standalone modes

Static

Controls

down , Enter , mode , up

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Indicators

LC display

Power consumption

40 W

Power connector

Power cord with safety plug (Type E / CEE 7/7)

Housing material

die cast metal

Cabinet colour

Black

Cooling

Convection

Operating Temperature

0 - 40 °C

Illuminance

18000lx @ 1m

Luminous flux

1570 lm

Width

145 mm

Height

205 mm

Depth

240 mm

Weight

3,6 kg

Accessories (included)

barndoor
