Cameo TS 100 WW Theatre spot
Description
Description
- Theatre spot with Fresnel lens
- Warm white 100 W LED
- 14° - 38°, RDM, Flicker-free
- Robust metal housing
- Temperature controlled cooling
- Adjustable child doors

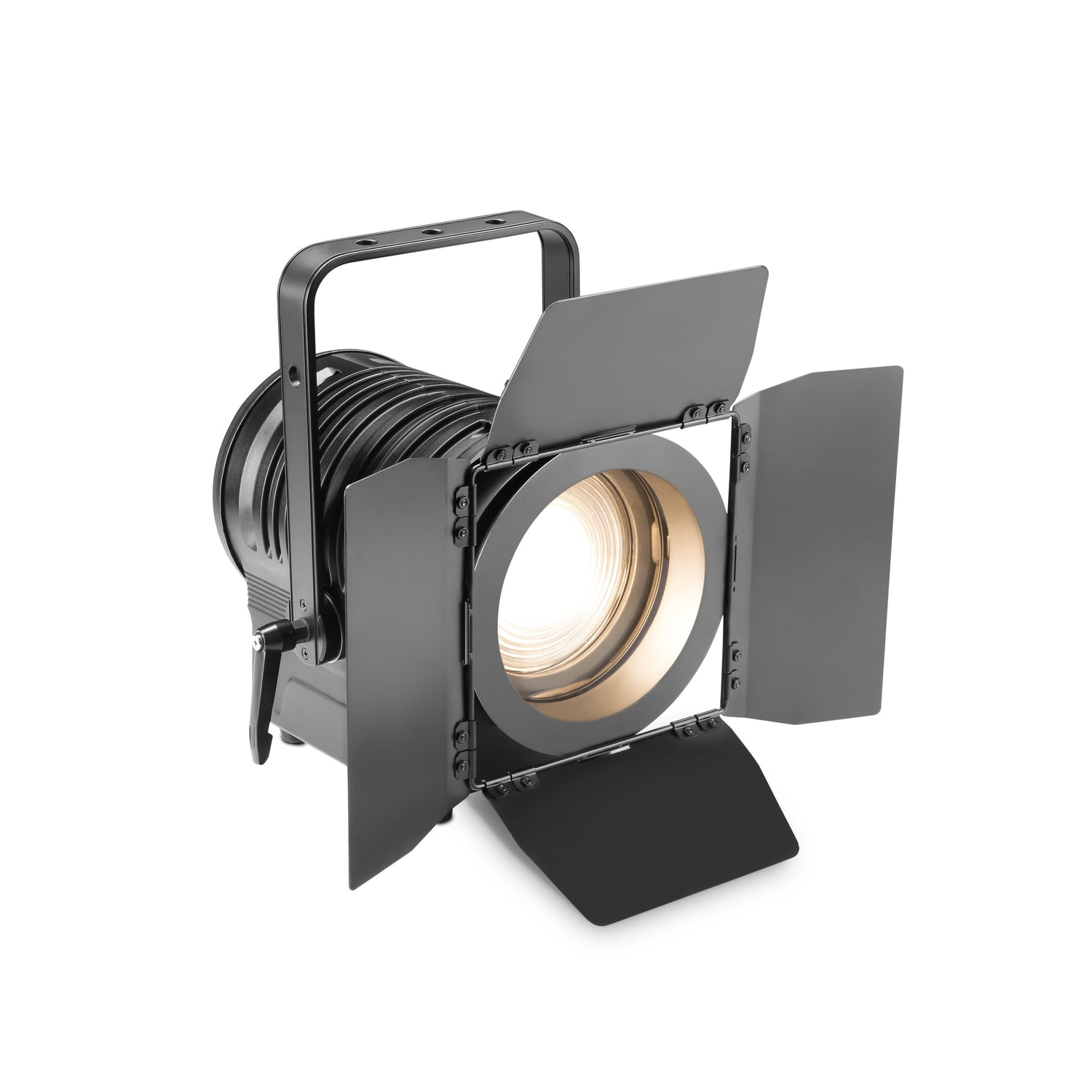

Cameo TS 100 WW LED Theatre spot with fresnel lens mounted in solid metal housing.
Specifications
Specifications
-
ColorBlack
-
Weight (kg)
More specifications
More specifications
Product type
LED PAR Lighting
Type
Theater Spot
Colour spectrum
warm white
Number of LEDs
1
Colour temperature
3100 K
CRI
97
LED type
warm white 100 W
Refresh rate
650 Hz; 1530 Hz; 3600 Hz; 25 k Hz
Dispersion
14 - 38 °
DMX input
XLR 3-pin male , XLR 5-pin male
DMX output
XLR 3-pin female , XLR 5-pin female
Modes of operation
DMX 512, Stand Alone, Master/Slave
DMX mode
1-channel , 3-channel , 5-channel
DMX Functions
16-Bit Dimmer , Device Settings , Dimmer Curve , strobe
Strobe flash rate
1 Hz - 20 Hz
Standalone modes
Dimmer
Controls
down , Enter , mode , up
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Indicators
LC display
Power consumption
120 W
Power connector
Blue and White Power Twist
Housing material
die cast metal
Cabinet colour
Black
Cooling
temperature-controlled fan
Operating Temperature
0 - 40 °C
Illuminance
52000 lx @ 1m
Luminous flux
4100 lm
Width
320 mm
Height
370 mm
Depth
310 mm
Weight
7,4 kg
Accessories (included)
barndoor , Color Filter Frame
