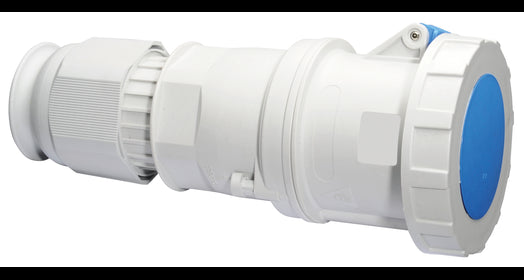

Bals 3198 TE-plus 5-pol. IP67 125A

BALS Electrical Engineering

Order number 3198

125A - 9h/ 144/250V 3P+ N + Ground

Only 1 pcs.

Bals coupling 3198 coupling TE with MULTI-GRIP screw connection 125A 5p (3P + N + PE) 230V (120/208 to 144 / 250V) 9 hours IP67 50 and 60Hz, colour code blue RAL 5015, contact carrier / contact carrier made of highly heat resistant material, contacts and box terminals are nickel plated brass, maximum conductor cross section 50,0 mm², housing material Polyamide, Other technical features With multi-grip TE cable entry, integrated strain relief, additional water drain holes and locking screw. For cables with a min. Diameter from 26 mm to max. Diameter 50 mm. Type 3198 EAN-No. 4024941031981
