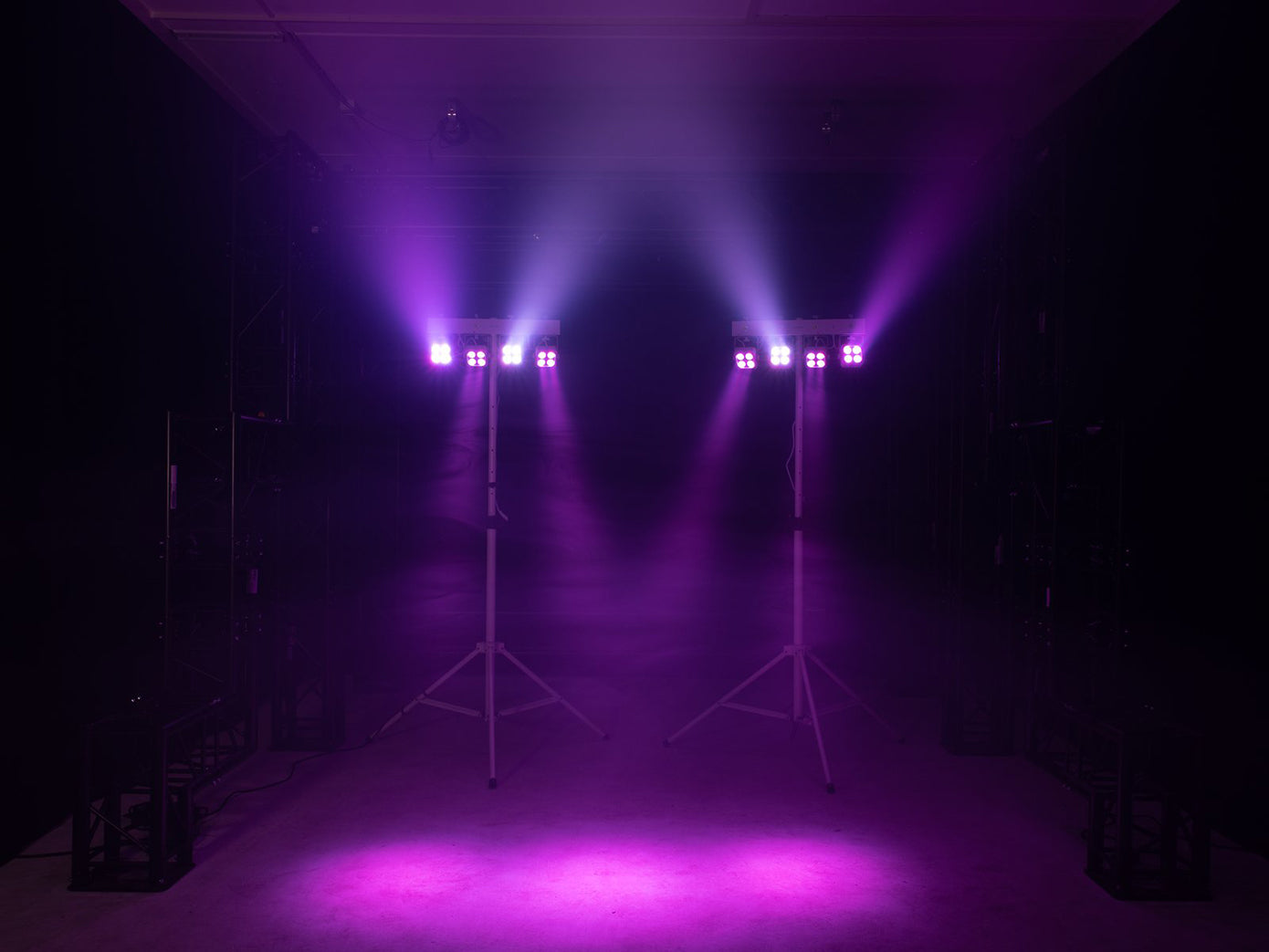

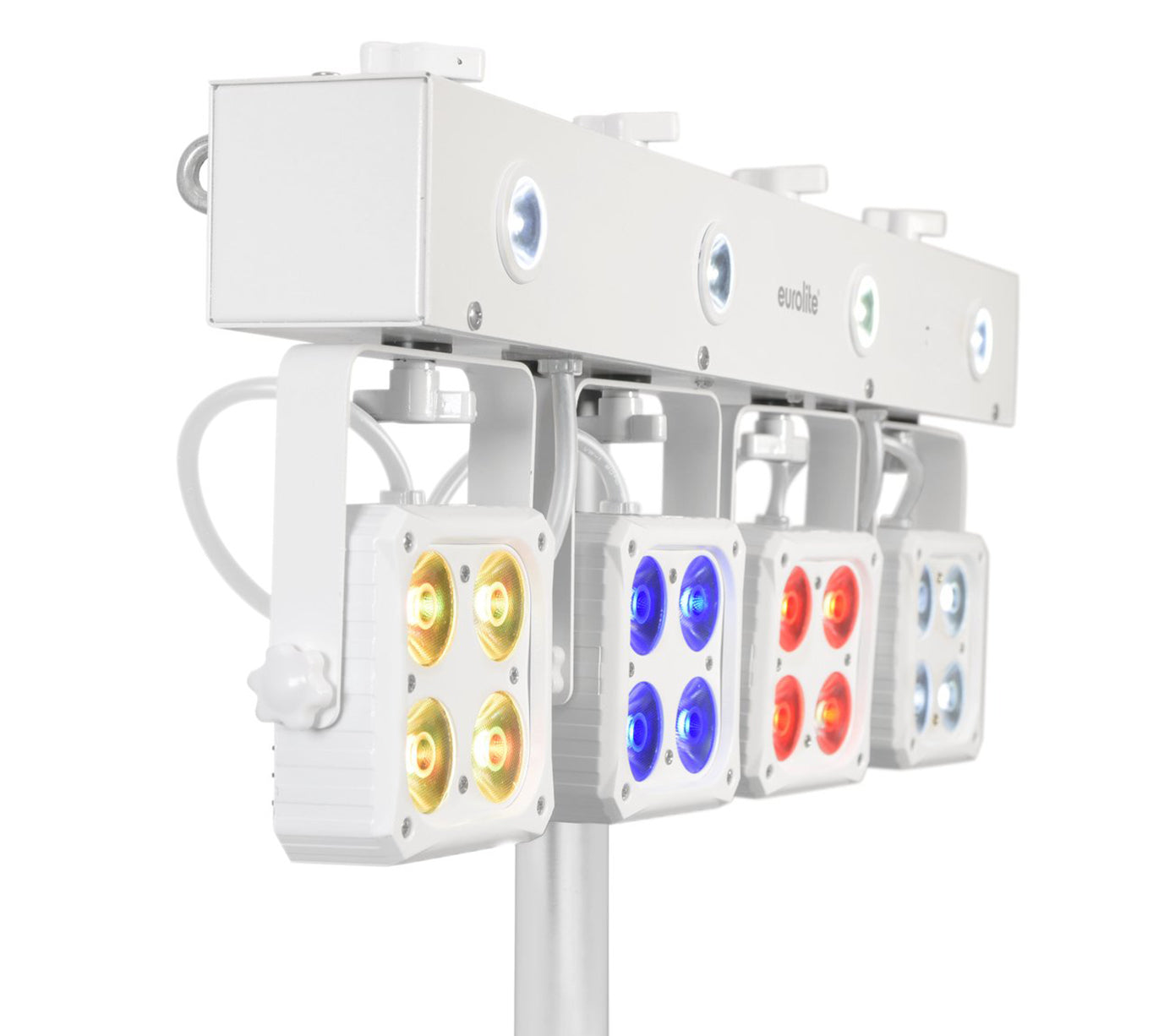

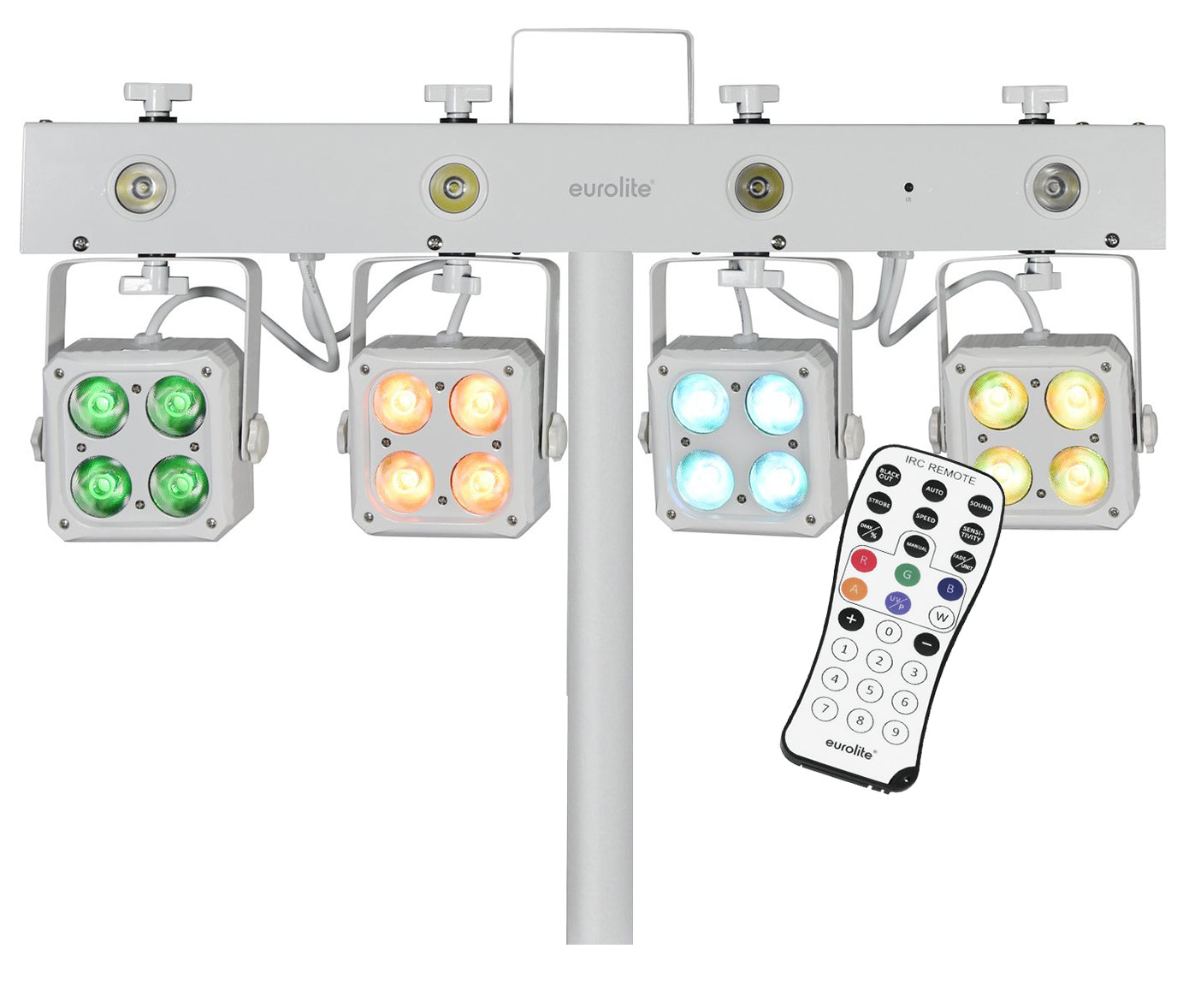

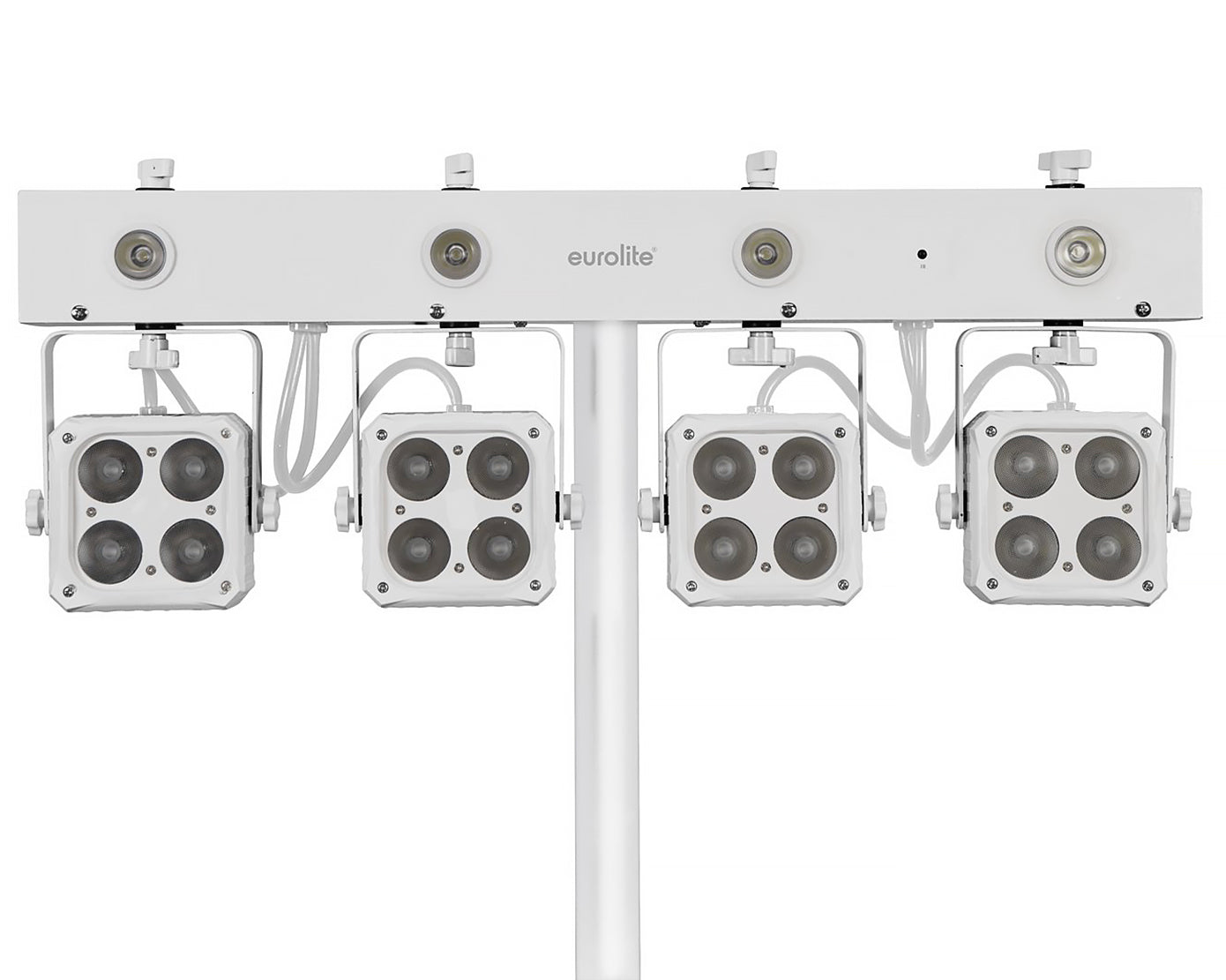

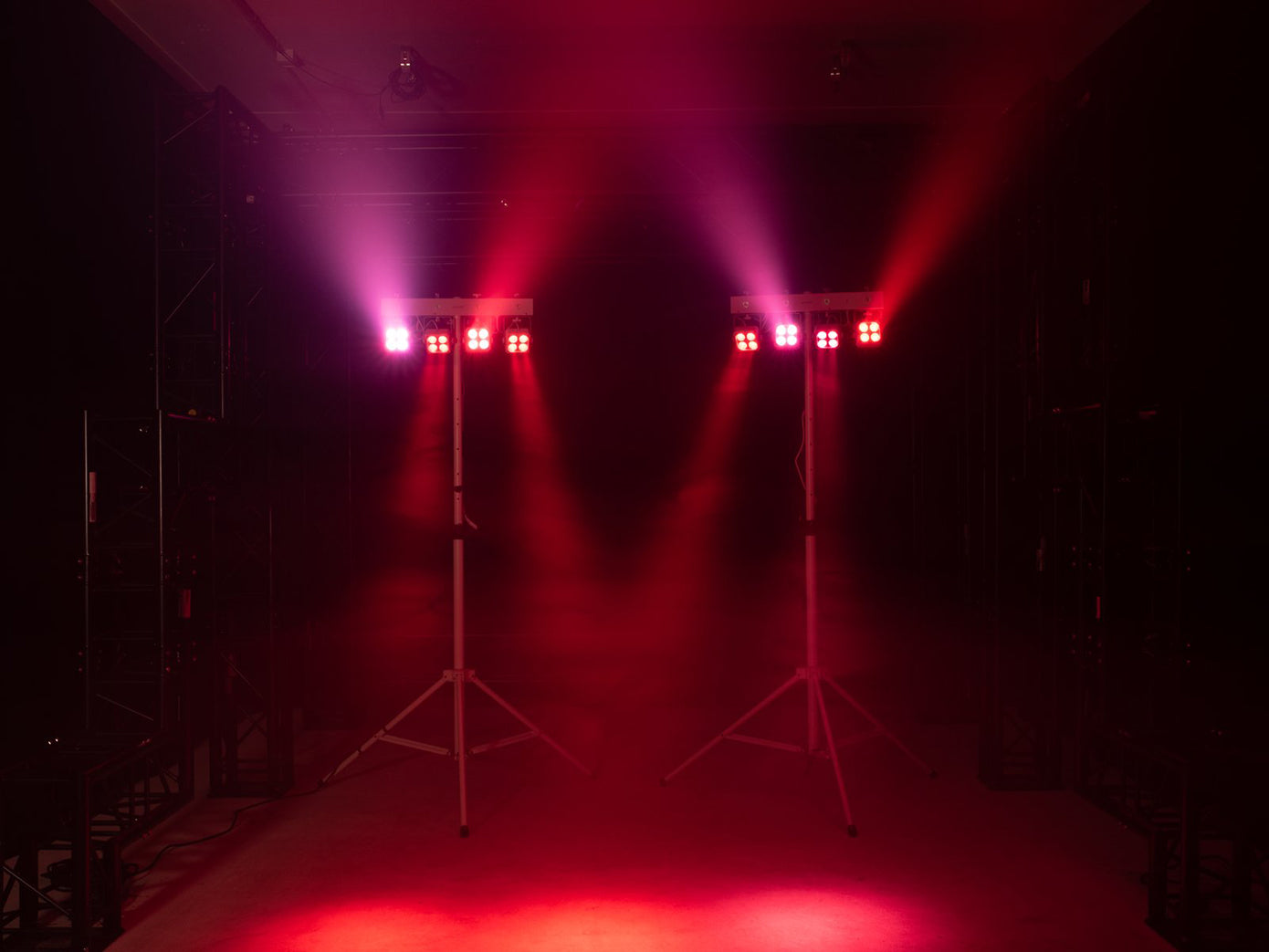

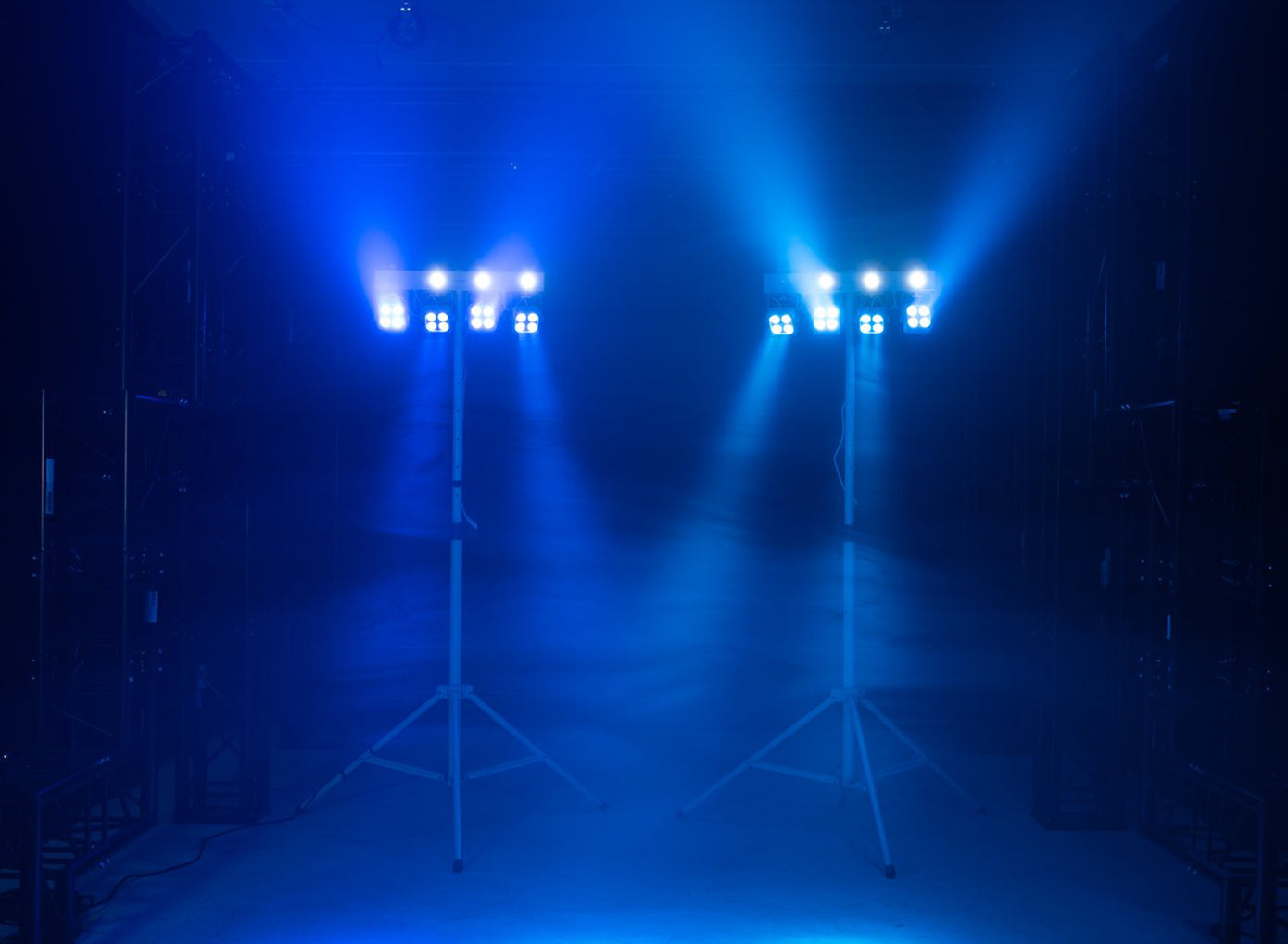

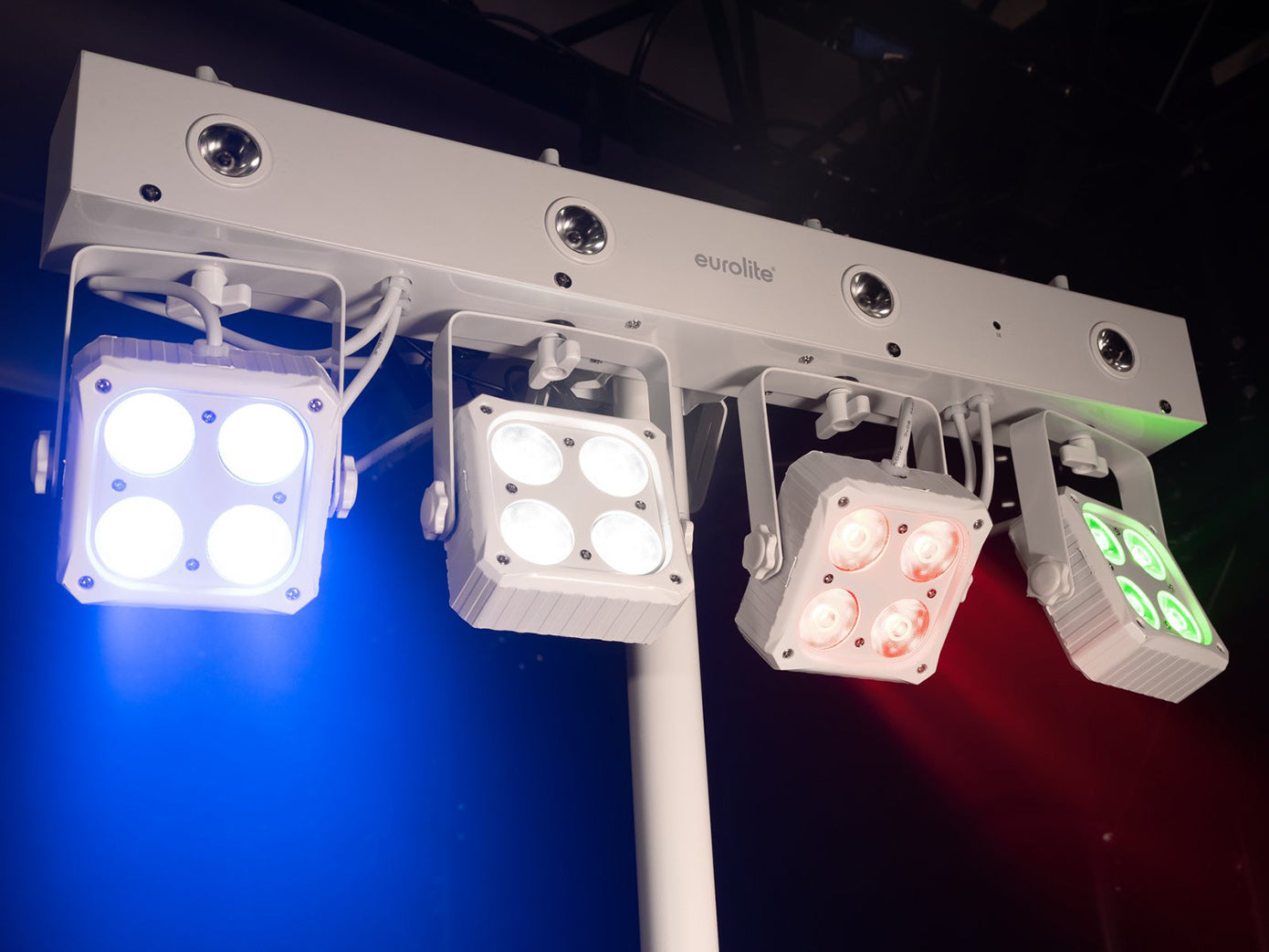

Eurolite LED KLS-180 illuminable

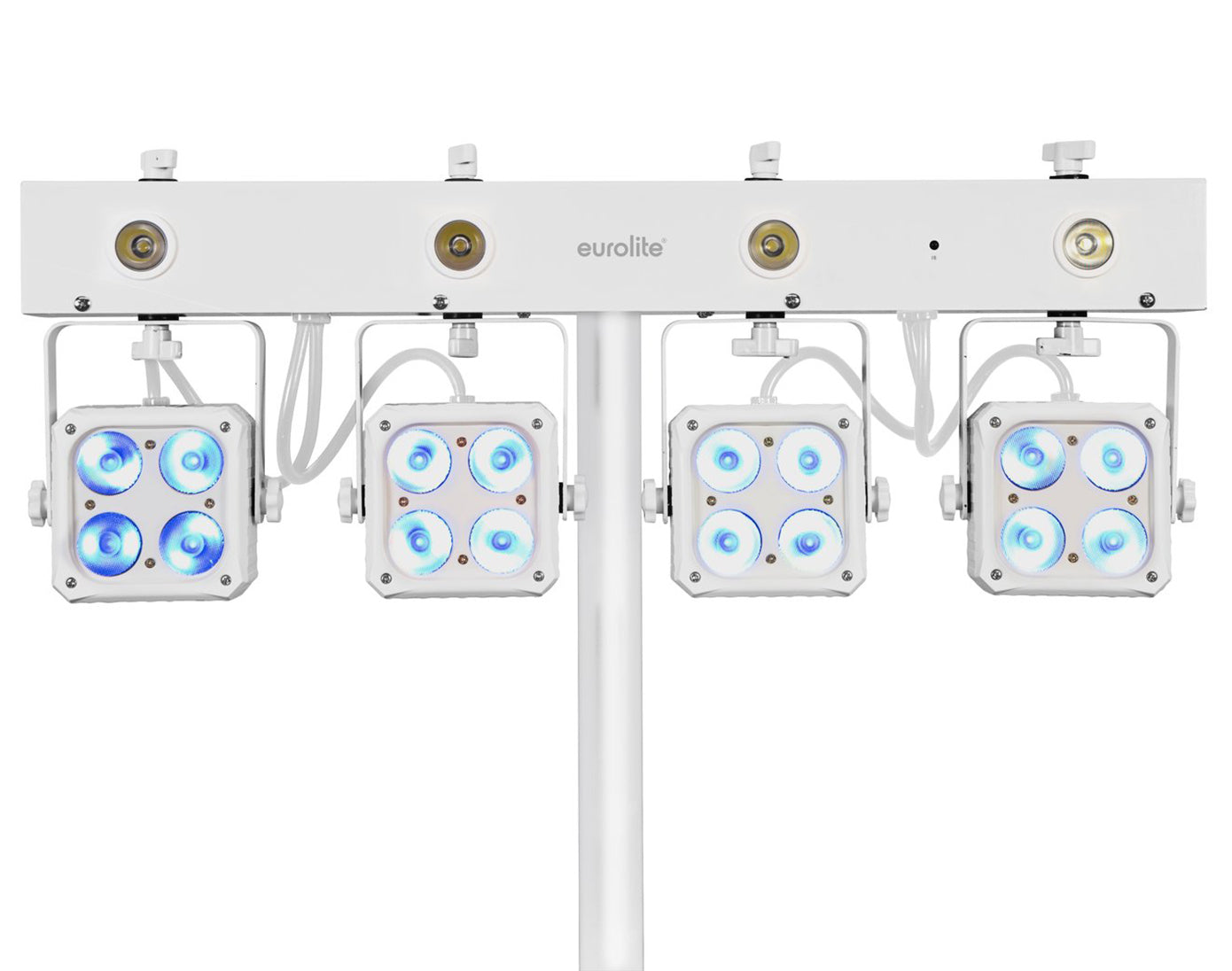

• Light bar with 4 RGBW spot and 4 white strobe LEDs
• Interconnectable with integrated DMX control
• Ideal for mobile use, weight only 5.10 kg
• For orchestras, stages or solo artists

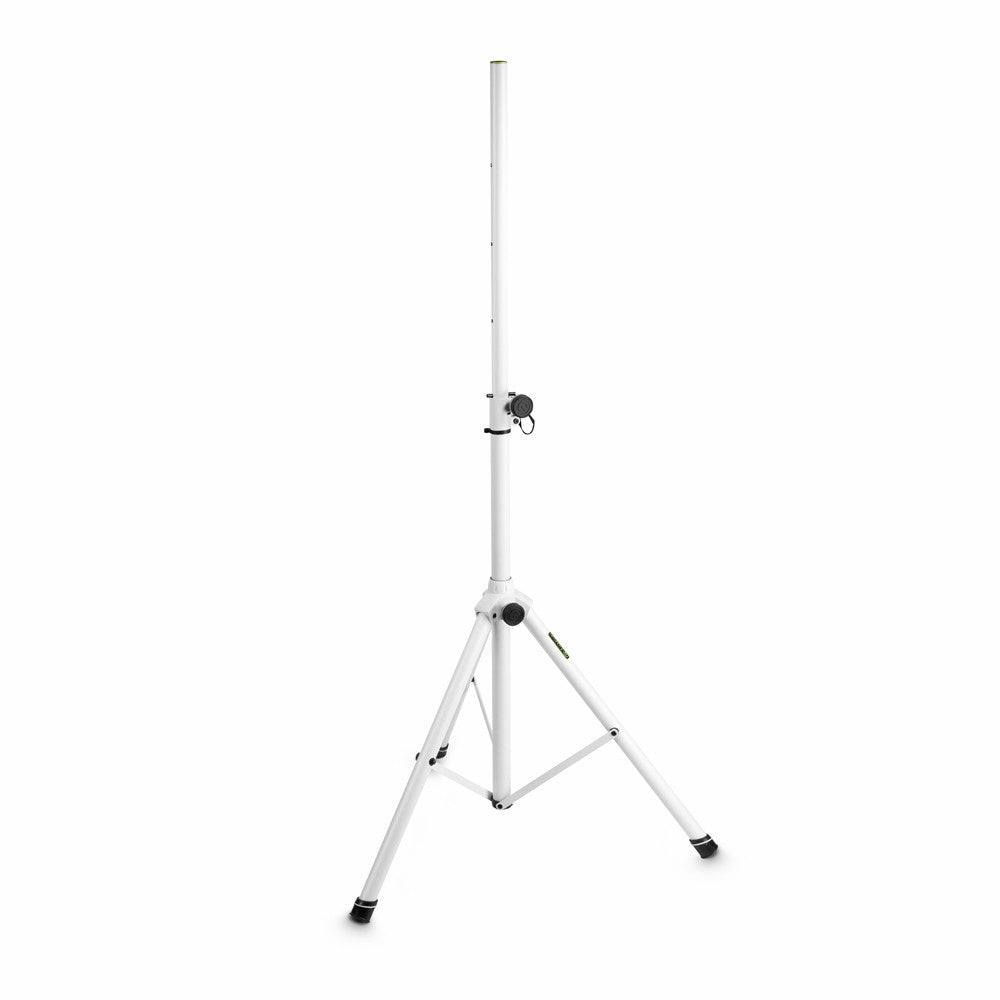

• Can be mounted on speaker stand or truss

• Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)
• Crossbar with integrated DMX control unit and stand holder
• Compact and lightweight design
• Movable and tiltable spotlights
• Beam angle of 9°
• Electronic dimmer; seamless color mixing; adjustable color change; preset colors
• Strobe effect
• Flicker-free
• With mounting brackets
• Control via IR remote control; stand-alone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX via LumenRadio via USB (optional)
• Applications: Party venue; mobile use; mobile DJs/entertainers; small rentals
• Preprogrammed in EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
• Power input and output for daisy-chaining up to 8 units
• Quiet operation
• Usage possibilities: Hanging; on stand
• Spotlight: 4 powerful LEDs 8 W high-performance 4in1 QCL RGBW (homogeneous color mix)
• 4 spots controlled separately
• Bar: 4 powerful LEDs 1 W high-performance cold white (CW)
• LEDs controlled separately

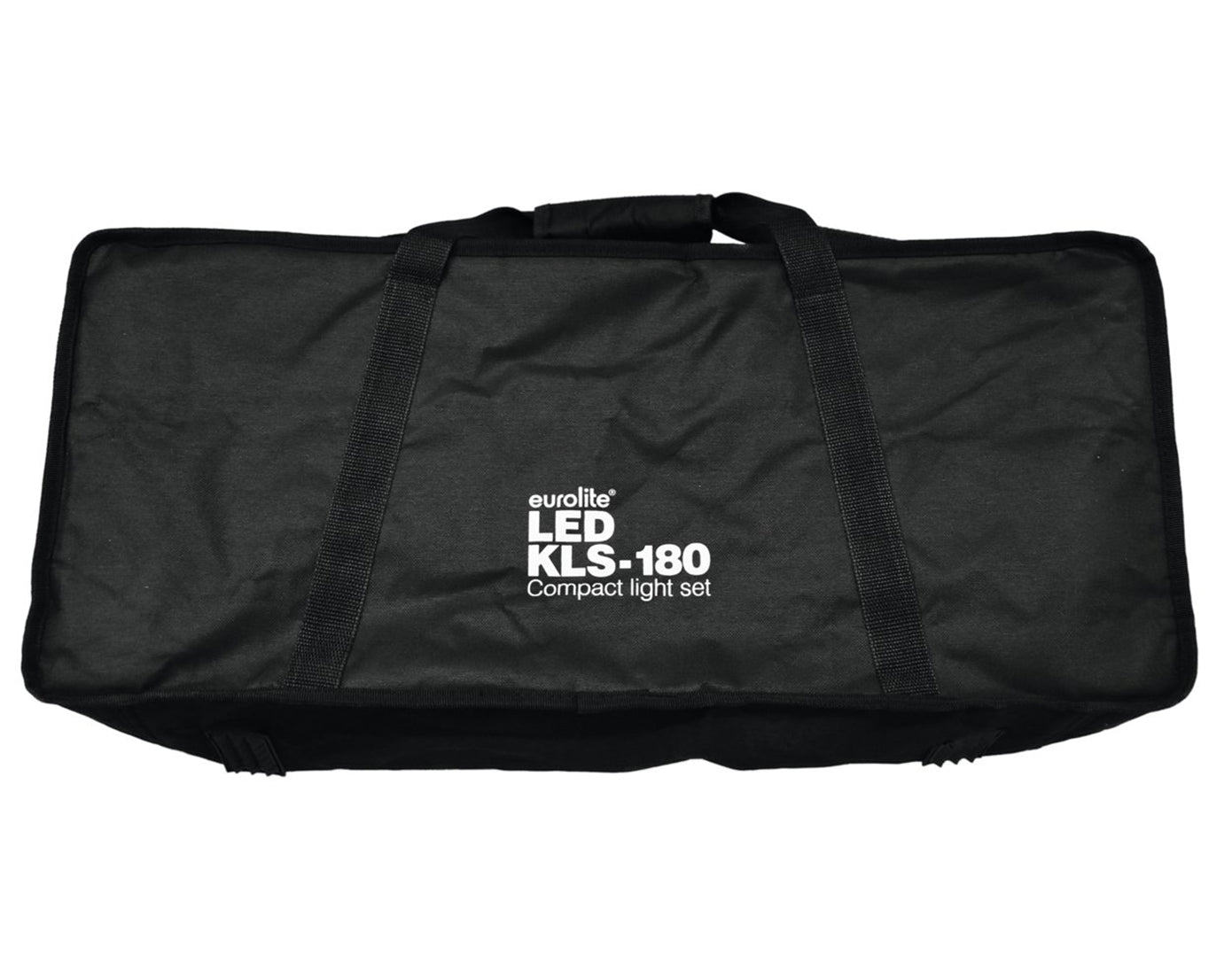

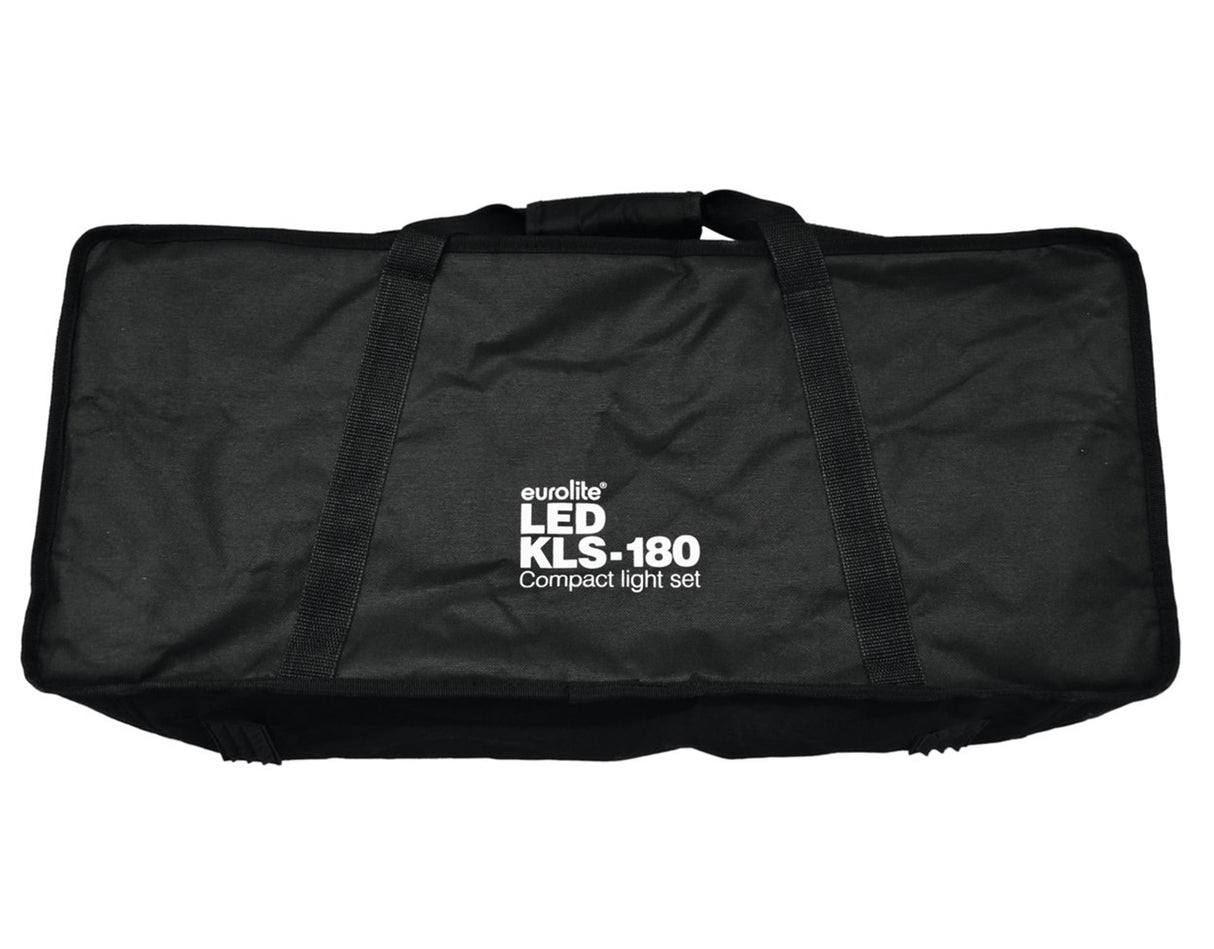

• Package contents: 1 x unit, 1 x bag, 1 x remote control, 1 x battery, 1 x power cable, 1 x user manual
• Also available in black

Power Supply:

• Voltage: 100-240 V AC
• Frequency: 50/60 Hz

Power Consumption:

• 80 W

IP Classification:

• IP20

Power Connection:

• Mains input via IEC connector (M) mounting version, power supply cord with safety plug (provided)

Power Output:

• IEC connector (F) mounting version

Fuse:

• T 1 A

Lamp Type:

• LED lamp

DMX Channels:

• 3, 4, 8, 21

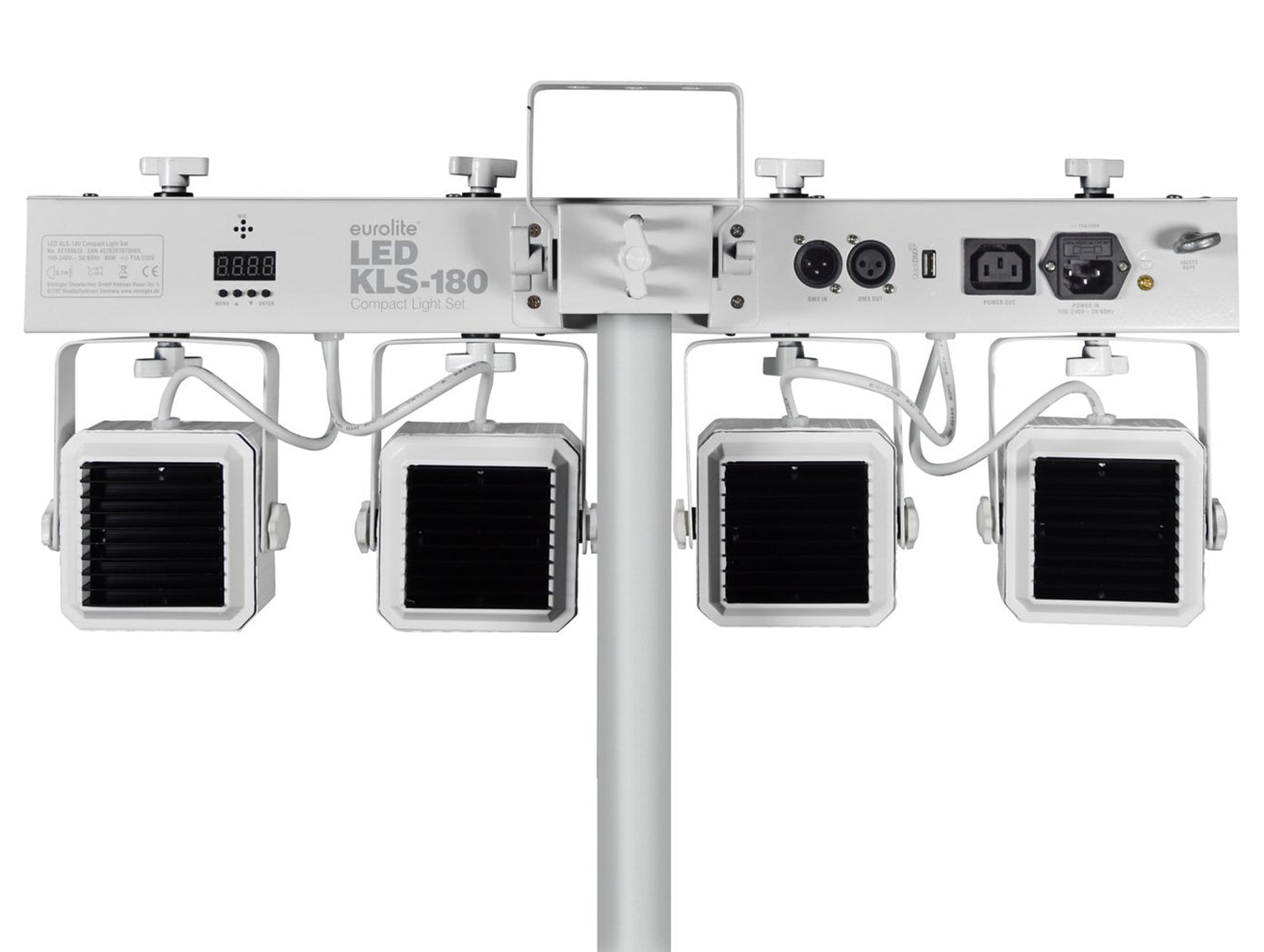

DMX Input:

• 1 x 3-pin XLR (M) mounting version

DMX Output:

• 1 x 3-pin XLR (F) mounting version

Cooling:

• Passive convection cooling

Control:

• IR remote control
• Stand-alone
• DMX
• Sound to light via Microphone
• Master/slave function
• QuickDMX via USB (optional)
• W-DMX by wireless solution via USB (optional)
• CRMX by LumenRadio via USB (optional)

Preprogrammed In:

• EASY SHOW 1
• LED PC-Control 512
• Light Captain
• EASY SHOW 2
• EASY SHOW 3
• Light´J

Projection:

• Flicker-free

Beam Angle:

• 9°

Beam Angle (1/2 Peak):

• 9°

Housing Color:

• White

Attachment System:

• Mounting bracket

Dimensions:

• Width: 60.5 cm
• Depth: 14 cm
• Height: 23 cm

Weight:

• 5.10 kg

Noise Classification:

• Class 0 (no noise at all)

Photobiological Safety:

• Risk Group 0

Spotlight LED:

• 4 x 8 W high-power 4in1 QCL RGBW (homogeneous color mix)

Bar LED:

• 4 x 1 W high-power cold white (CW)

Flash Rate:

• 1 - 20 Hz

Remote Control Battery:

• 1 x Button cell 3.0 V CR2025 lithium manganese built-in

Downloads

• 42109635-Manual-141382-1.100-de_en.pdf (11 MB)
