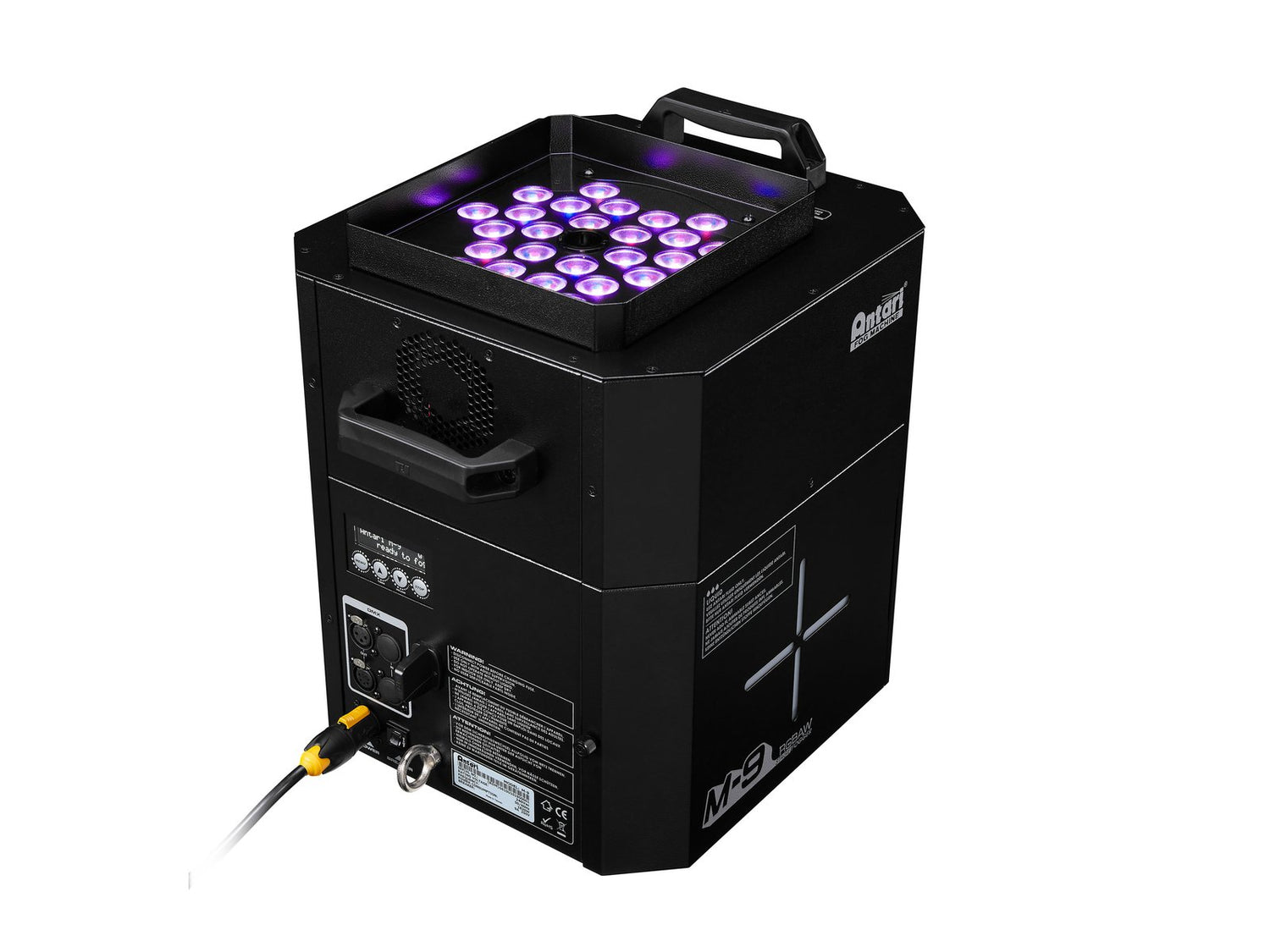

Antari M-9 (1820W)

• 1820 W fog machine with LED lighting and adjustable vertical/horizontal output.
• 27 powerful 8 W high-performance 5-in-1 RGBWA LEDs with an output distance of 10-12 meters.
• Control options include wireless remote control, W-DMX (optional), DMX, Master/Slave, and timer.
• Sturdy metal housing and removable tank with large capacity and level indicator.
• Suitable for clubs, dance schools, theaters, and rentals.

ANTARI M-9 (1820W)

• Powerful and 1820 W fogger for stage and touring applications
• Output nozzle with RGBAW LED illumination for impressive effect presentations
• 25 color macros and 8 chases selectable
• Vertical and horizontal fog output possible
• New housing design allows upward and downward fog output
• Intelligent wireless control system W-2 with 50 m range
• Wireless DMX receiver (WDMX) optionally available (item 51702168)
• Control via integrated DMX interface or control module with LCD screen
• Adjustable timer with interval, duration and output volume
• Continuous activation via handy transmitter
• Operates on standard water-based fluid
• Large fluid tank compartment, fluid level indication
• DMX interface with 3- and 5-pin connectors
• Sturdy metal housing with carrying handles
• PowerCon mains connector (cable included)
• Great fit for rental companies
• LED: 27 x high-power 8 W 5in1 PCL RGBWA (homogenous color mix)
• Output distance: approx. 10 m
• Can be operated in 10; 15; 25 CH mode
• Control: Wireless remote control (provided); W-DMX by wireless solution (optional); DMX; Master/slave function; Timer

Power Supply:
230 V AC, 50 Hz

Power Consumption:
1670 W

IP Classification:
IP20

Power Connection:
Mains input via PowerCON TRUE (M) mounting version, power supply cord with safety plug (provided)

LED:
27 x 8 W high-power 5in1 PCL RGBWA (homogeneous color mix)

Warm-up Time:
Approximately 14 minutes

Output Distance:

• Vertical: approximately 10 m
• Horizontal: approximately 12 m

Tank Capacity:
6 liters, water-based fluid, removable tank

Fluid Consumption:
Approximately 400 ml/min

DMX Channels:
10, 15, 25

DMX Input:

• 3-pin XLR (M) mounting version
• 5-pin XLR (M) mounting version

DMX Output:

• 3-pin XLR (F) mounting version
• 5-pin XLR (F) mounting version

Control:

• Wireless remote control
• W-DMX by wireless solution (optional)
• DMX
• Master/slave function
• Timer

Range:
Wireless remote control: range up to 50 m

Carrier Frequency:
433.92 MHz

Housing Color:
Black

Use of Brands:
Built with NEUTRIK connector

Color:
Black

Dimensions:

• Width: 32.1 cm
• Depth: 39.3 cm
• Height: 42 cm

Weight:
24.85 kg

Noise Classification:
Class 3 (clearly perceptible sounds)
