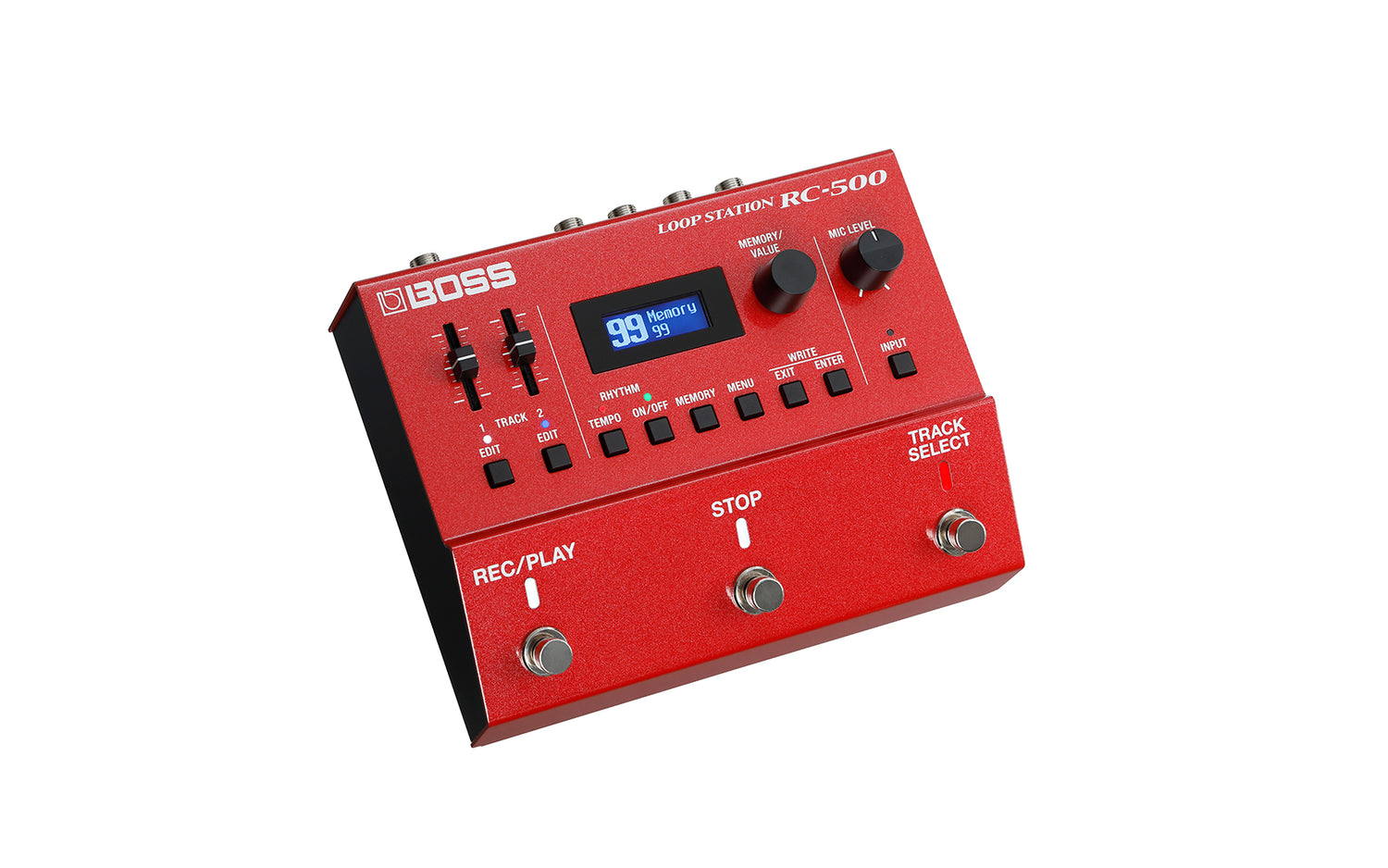

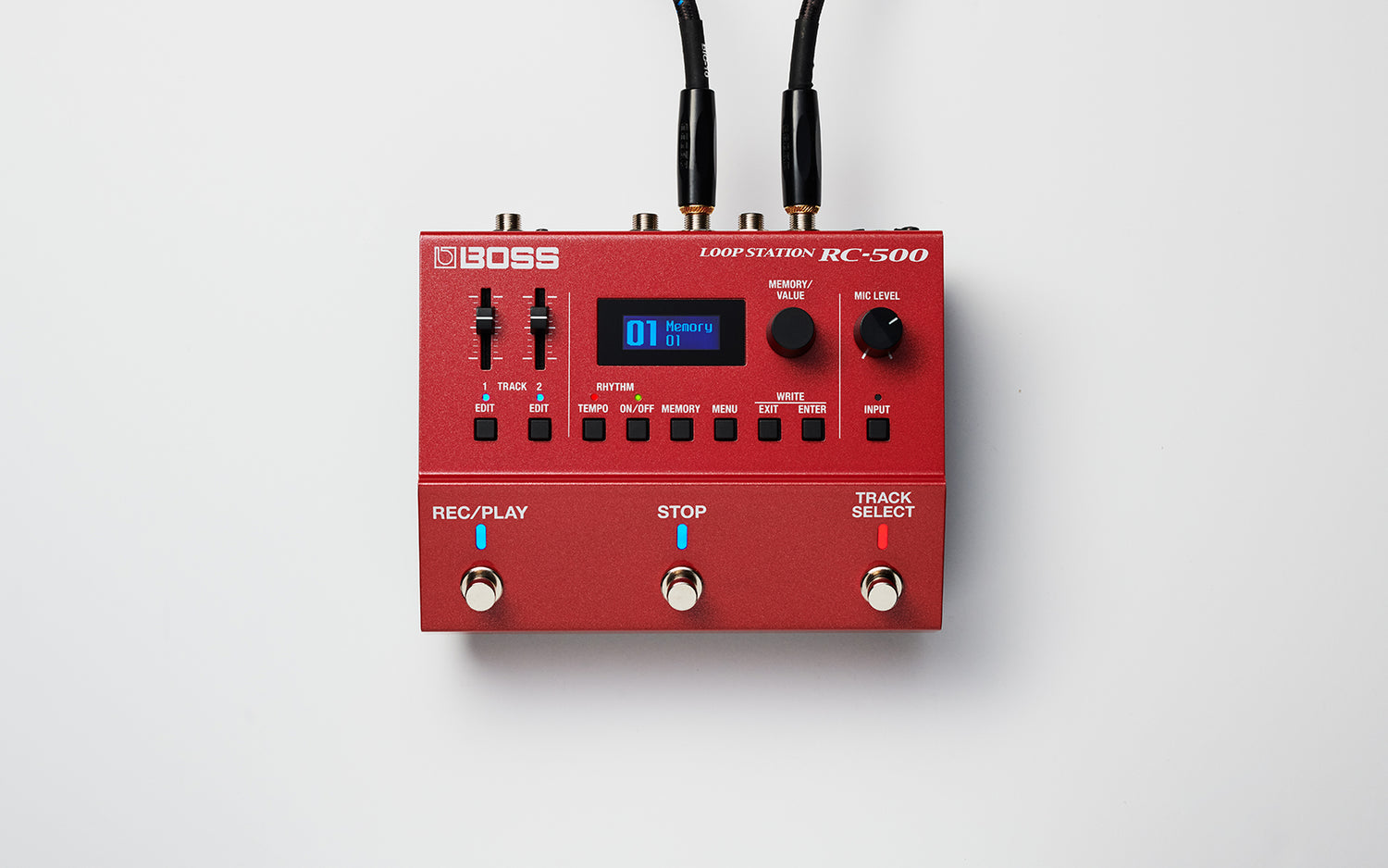

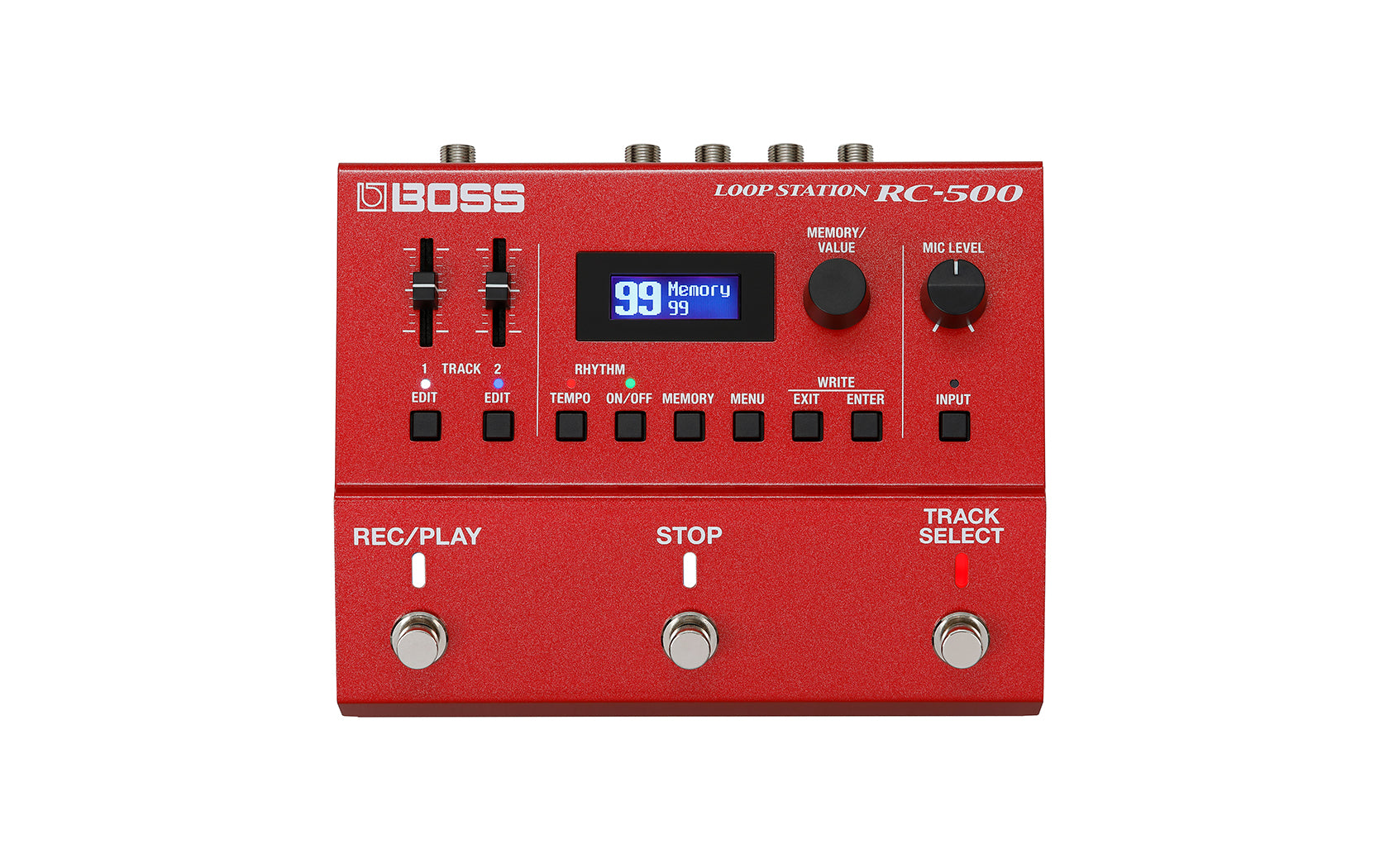

Boss RC-500 Loop Station Guitar Pedal

• Advanced two-track looper
• 13 hours of recording time
• Reverse, repeat, scatter, shift and vinyl flick
• 16 drum kits and built-in presets and rhythms

Boss RC-500 Loop Station Guitar Pedal

• Advanced two-track looper.
• 13 hours of recording time.
• Mono/stereo inputs.
• Cool effects machine with reverse, repeat, scatter, shift and vinyl flick.
• 16 drum kits and built-in presets and rhythms.
• Backup and load wav files via USB.

• Sampling Frequency 44.1 kHz
• AD/DA Conversion 32 bits
• Processing 32-bit floating point
• Recording/Playback:

Number of Track: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

• Rhythm Type 57 Patterns x 2 Variations
• Rhythm Kit 16 types
• Effect:

LOOP FX (only for loop tracks)
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
Reverb (only for rhythm part)

• Memory 99
• Nominal Input Level:

MIC IN:-40 dBu (variable)
INST IN A/MONOB: -10 dBu

• Maximum Input Level:

MIC IN:+8 dBu
INST IN A/MONO, B: +8 dBu

• Input Impedance

MIC IN: 4 k ohms
INST IN A/MONO, B: 1 M ohms

• Nominal Output Level

OUTPUT A/MONO, B: -10 dBu

• Maximum Output Level

OUTPUT A/MONO, B: +8 dBu

• Output Impedance

OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass

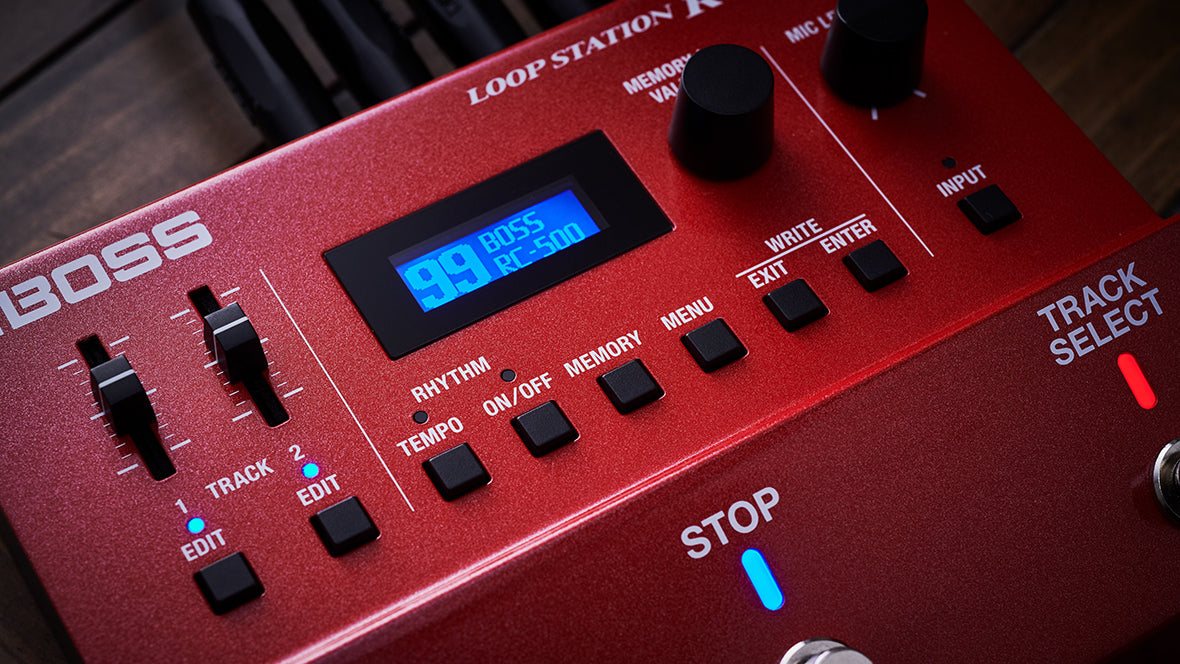

Controls
REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
Display
Graphic LCD (96 x 32 dots, RGB backlit LCD)

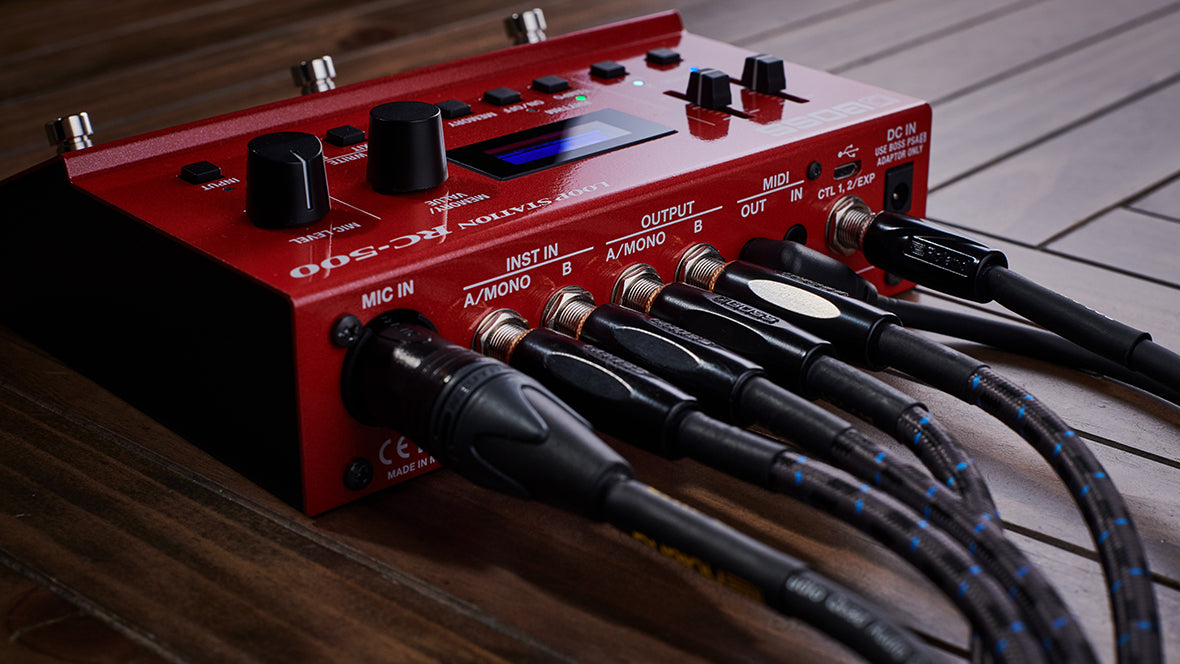

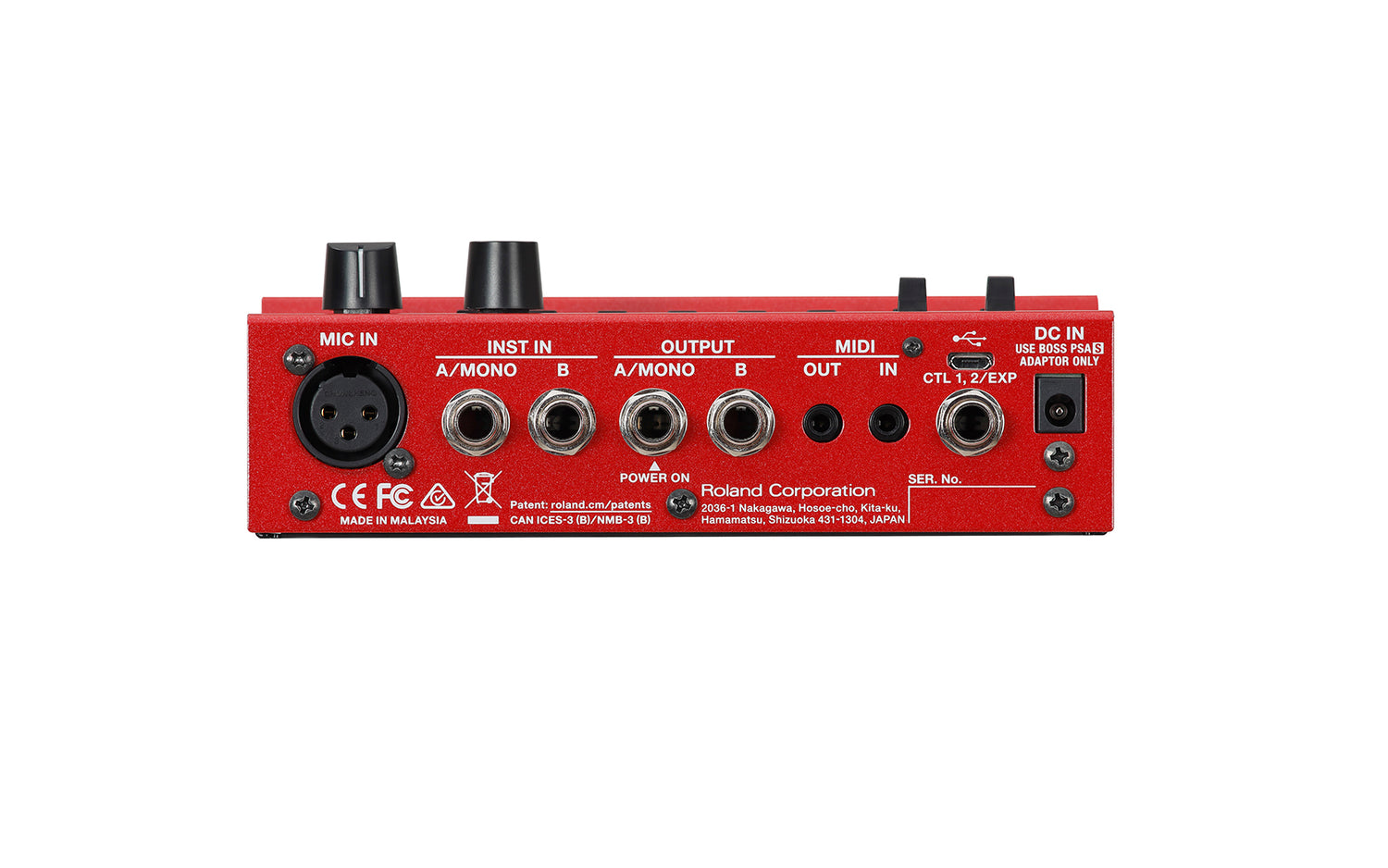

Connectors
INST IN A/MONO, B jacks: 1/4-inch phone type
MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB port: USB micro B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4
AC adaptor (PSA-S series: sold separately)
Current Draw
330 mA (with phantom power)
240 mA (without phantom power)
Expected battery life under continuous use
Alkaline: Approx. 3.5 hours (without phantom power)
Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.

• Accessories
• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Alkaline battery (AA, LR6) x 4
• Rubber foot x 4
• Options (sold separately)
• AC adaptor: PSA-S series
• Footswitch: FS-5U

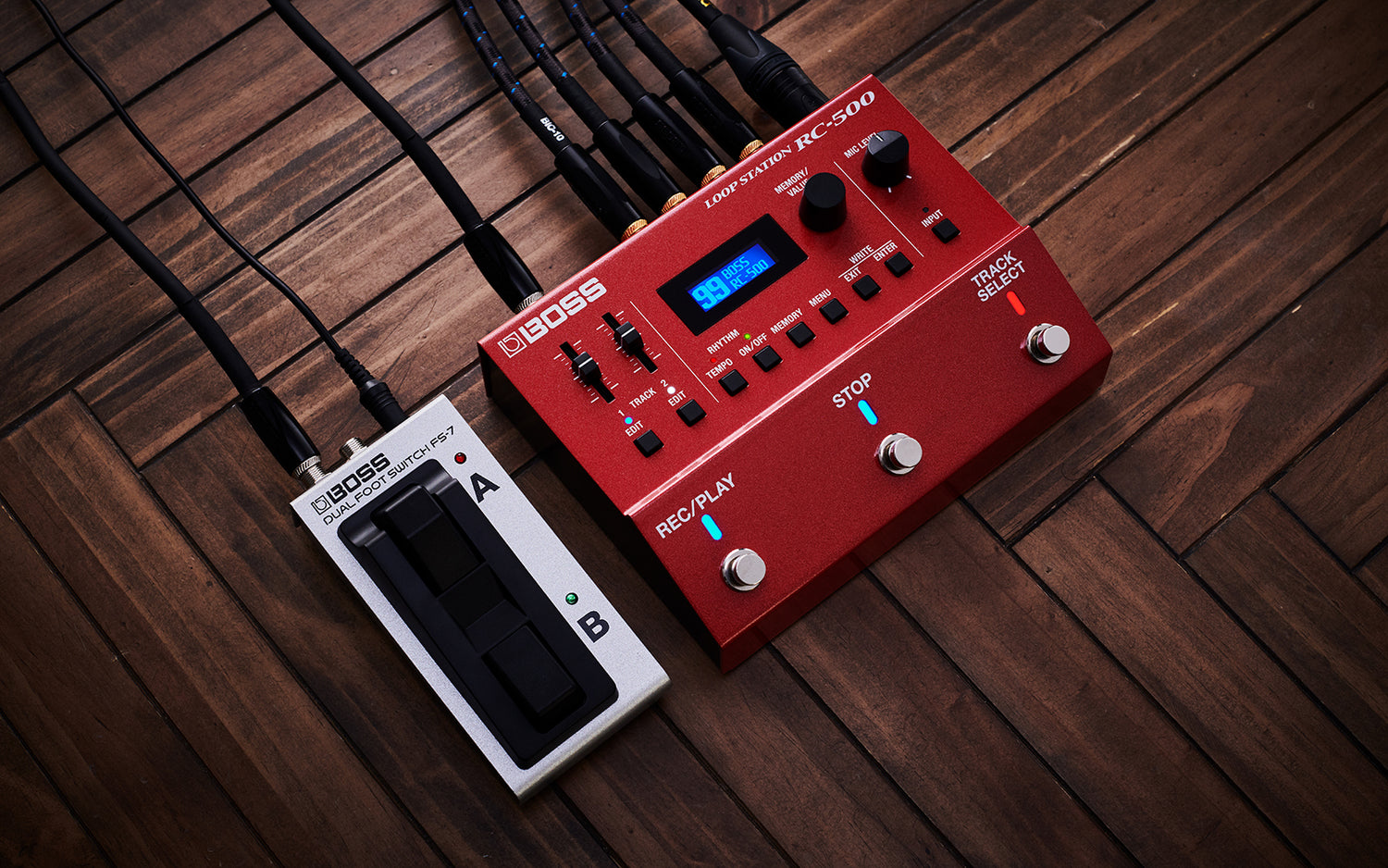

• Dual Footswitch: FS-6, FS-7
• Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• Width 170 mm
• Depth 138 mm
• Height (including rubber foot) 62 mm
• Weight (including battery) 950 g
