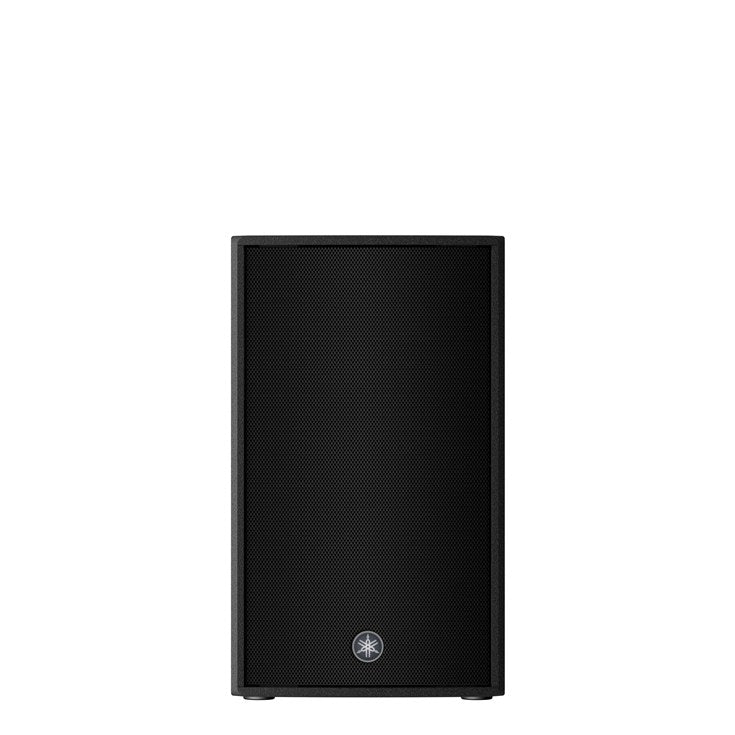

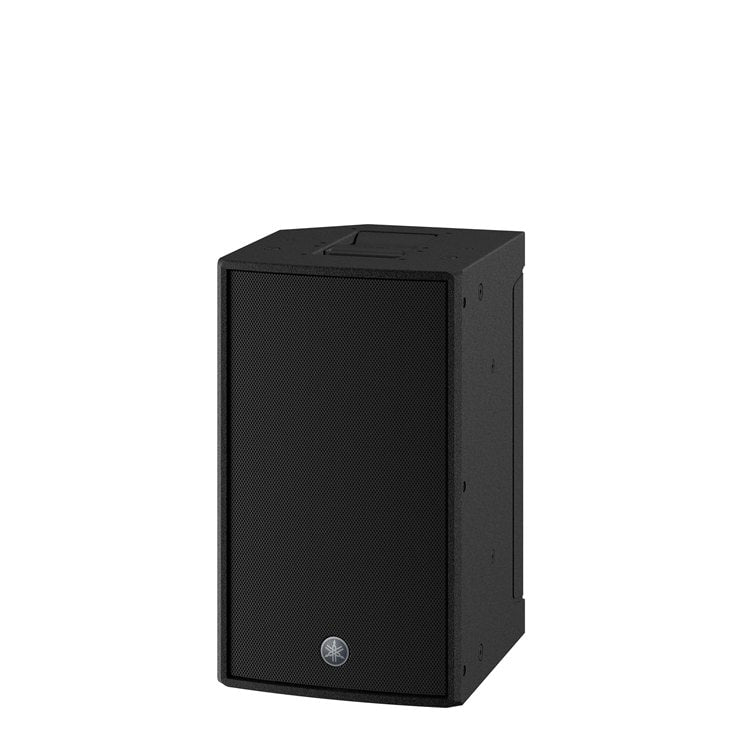

Yamaha DZR10
Description
Description
- Uncompromising PA speaker
- Intelligent DZR series DSP processor
Yamaha DZR10
- Powerful 2-way 2000W Class-D PA speaker.

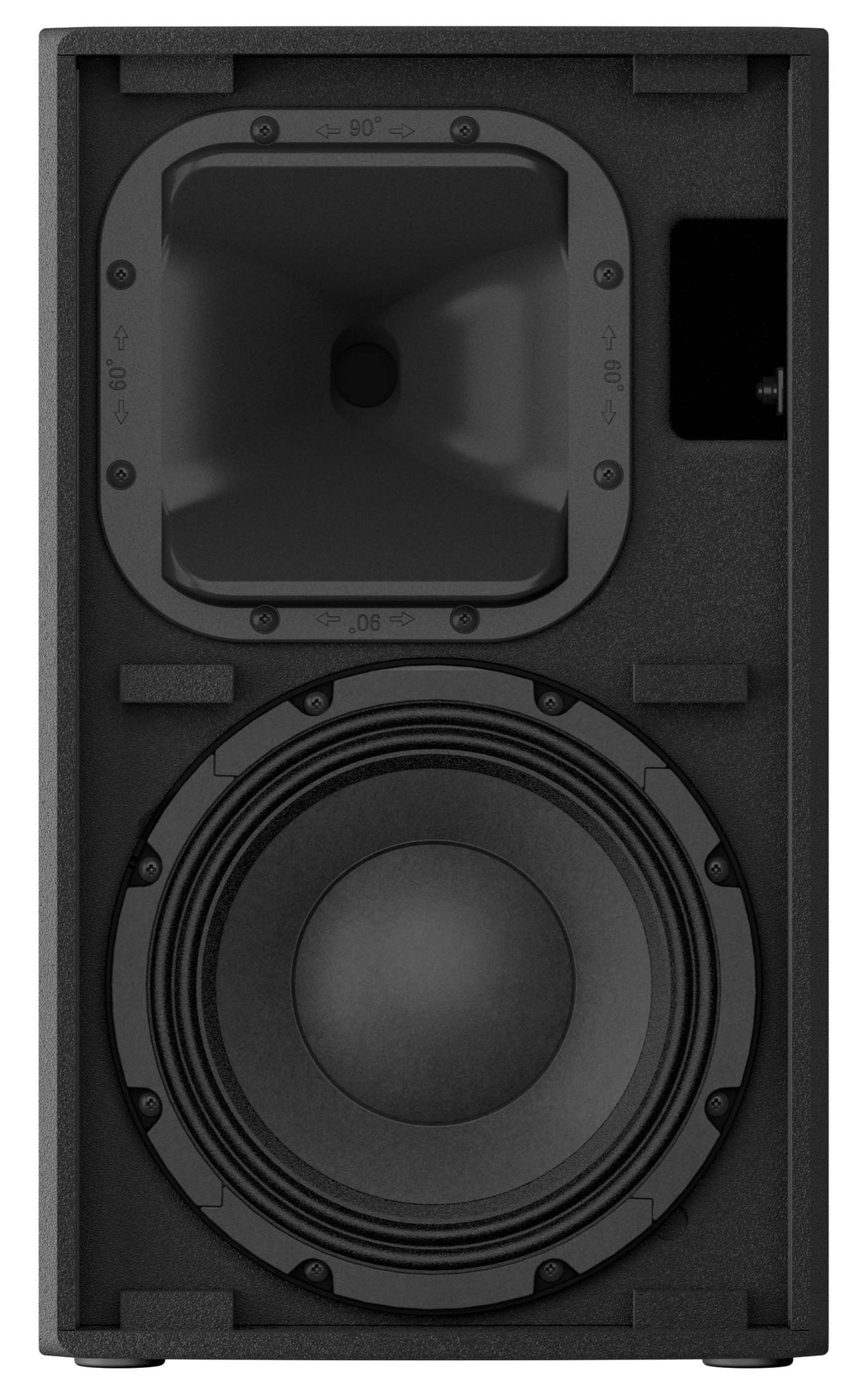

- 2" HF and 10" LF.
- World class SPL performance of 137dB.
- Wide frequency range between 44Hz-20kHz.
- Advanced FIR-X tuning system.
- Smart speaker with D-Contour multi-band processor.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Speaker type |
| 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) |
| 44Hz - 20kHz |
| Coverage area |
| H90 x V60(Rotatable) |
| Components | LF | 10" Cone, 3" Voice Coil, Neodymium magnet |
| MF | - | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover |
| 1.8kHz (FIR-X) |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters |
| 96kHz AD/DA |
| Maximum output level (1m; on axis) |
| 137dB SPL *1 |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |

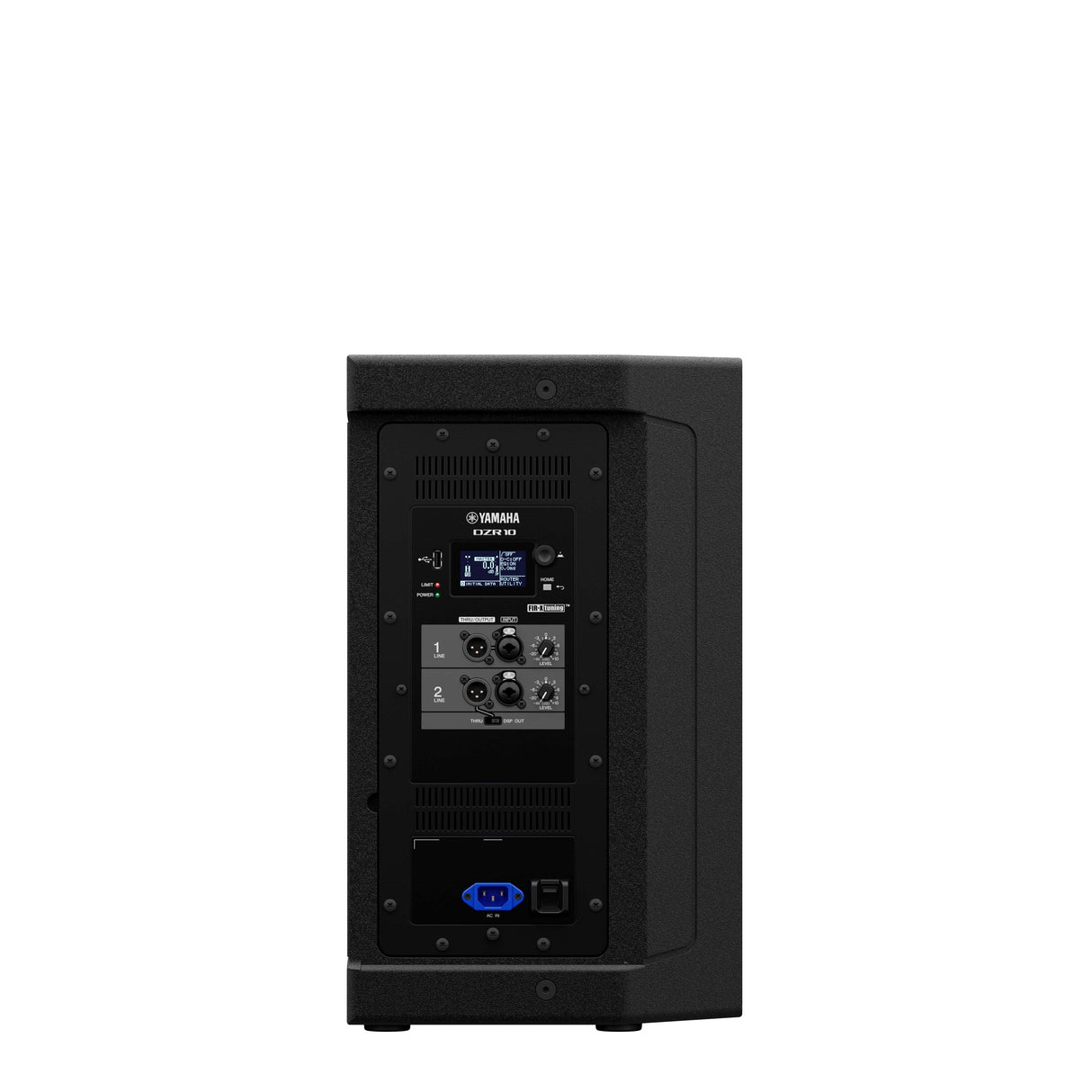

| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class |
| Class-D |
| Cooling |
| Fan cooling, Variable speeds |
| Power consumption |
|
|
