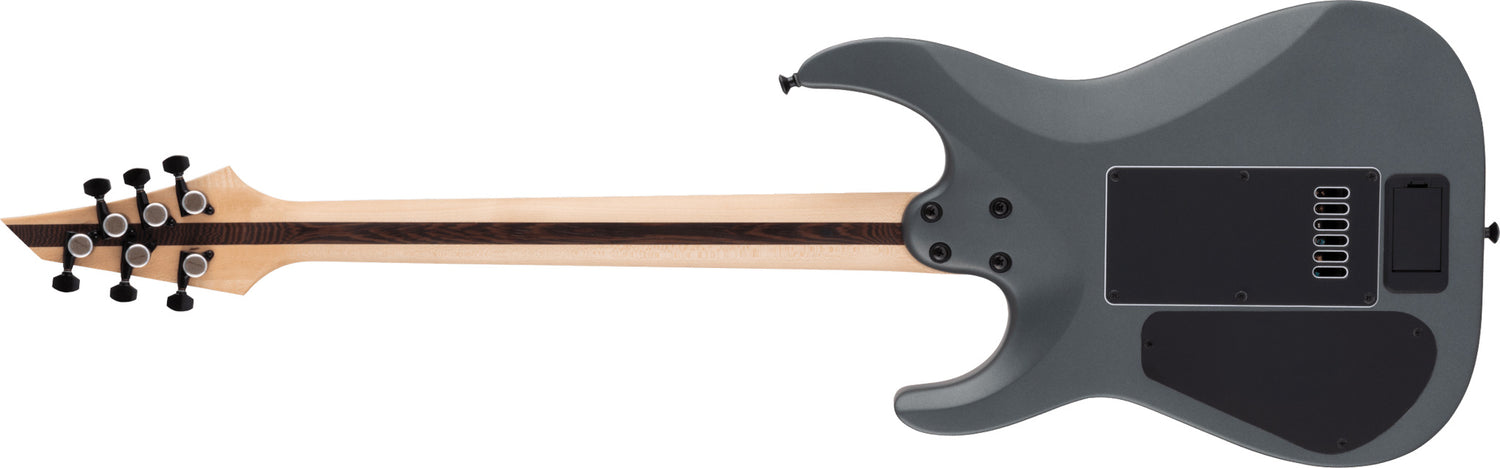

Jackson Pro Series Dinky DK Modern - Satin Graphite

• Stylish and raw electric guitar packed with modern features
• Versatile Fishman Fluence Open Core humbuckers
• Classic 12-16" compound radius fingerboard

Jackson Pro Series Dinky DK Modern - Satin Graphite

• Lightweight seven string guitar packed with a lot of modern features.
• Stylish design with matte black hardware.
• With a body made of solid Linden wood , the guitar produces a musical blend of resounding warmth and ear-catching midrange tones.
• Multi-voice Fishman Fluence Open Core humbuckers provide plenty of diverse tonality with a whopping three voices: vintage PAF, hot-rodded humbucker and overwound single-coil.
• Graphite-reinforced 3-piece neck with satin finish is effortless to play - even during long jamming sessions.
• Classy 12-16" compound radius designed neck provides maximum comfort and playing speed.
• Graph Tech TUSQ XL nut prevents strings from binding.
• EverTune F6 bridge and Gotoh tuning heads provide maximum stability.

Fingerboard Material

Ebony

Fingerboard Radius

12"-16" Compound Radius (304.8 mm to 406.4 mm)

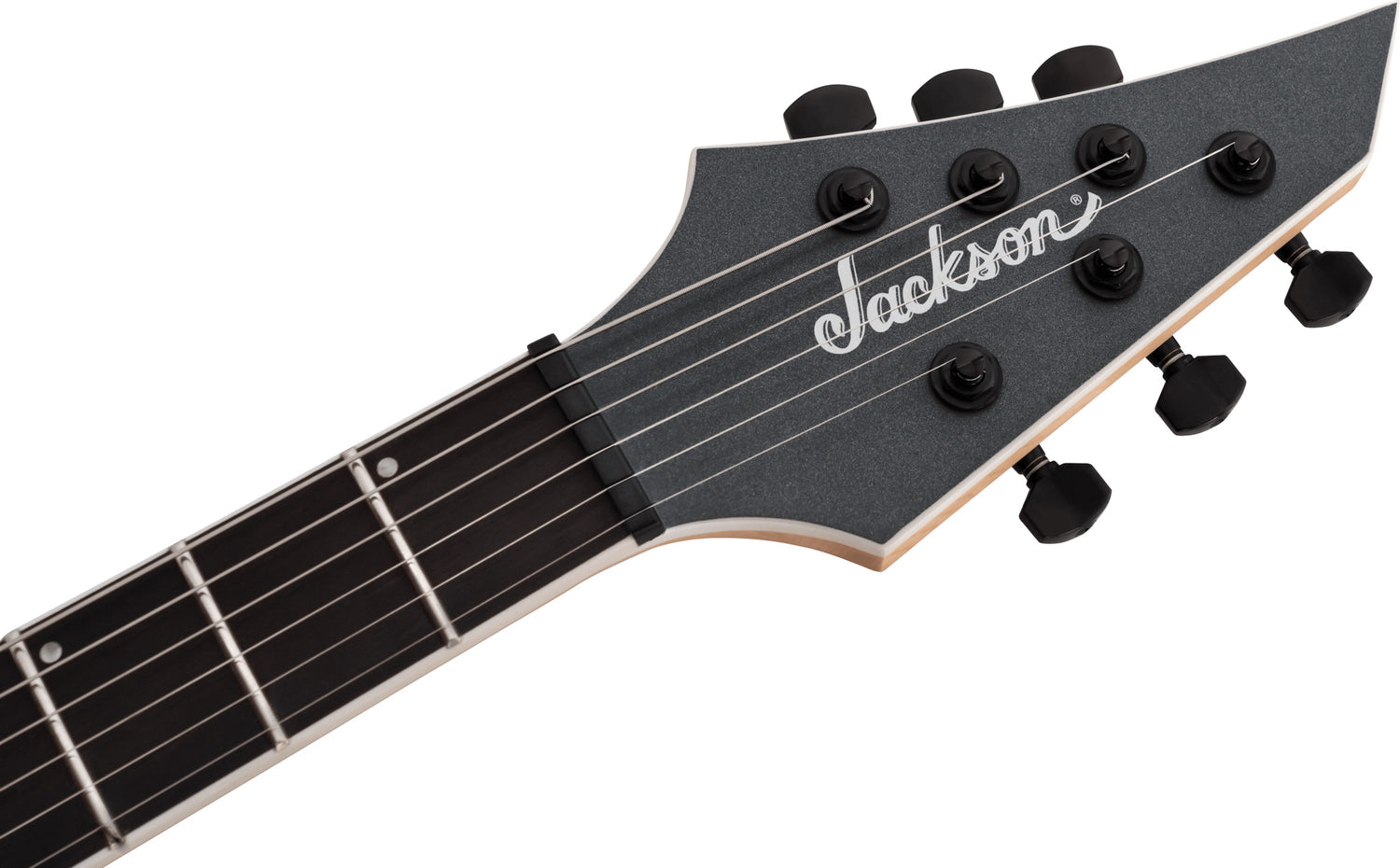

Headstock

Reverse Jackson® AT-1 3x3 (3 Over/3 Under)

Headstock Binding

White

Neck Construction

Bolt-On with Graphite Reinforcement

Neck Finish

Satin

Neck Material

3-Piece Maple/Wenge/Maple

Number of Frets

24

Nut Material

Graph Tech® TUSQ® XL

Slot Width

1.6875" (42.86 mm)

Position Inlays

Offset Pearloid Dot

Side Dots

Luminlay

String Groove

Graph Tech® TUSQ® XL

Truss Rod Nut

Heel-Mount Truss Rod Adjustment Wheel

Bridge

EverTune® F6 Model

Control Knobs

Dome-Style

Hardware Finish

Black

Neck Plate

4-Bolt (recessed screws)

Pickguard

None

Pickup Covers

White

Strap Buttons

Dunlop® Dual-Locking

Strings

Nickel Plated Steel (.009-.042 Gauges)

Switch Tip

Black

Tuning Machines

Gotoh® Locking

Body

Basswood

Body Finish

Satin

Body Material

Basswood

Body Shape

Dinky

Bridge Pickup

Fishman® Fluence® Open Core PRF-COC

Controls

Volume, Tone (with Push/Pull Activation to Switch Between Voice 1 and 2 in Pos 1 and 5)

Neck Pickup

Fishman® Fluence® Open Core PRF-COC

Pickup Configuration

HH

Special Electronics

Active Electronics

Switching

5-Position Blade: Pos 1. Bridge Full Humbucker, Pos 2. Bridge Inner Coil, Pos 3. Both Inner Coils, Pos 4. Neck Inner Coil Pos 5. Neck Full Humbucker (Voice 3 Single-Coil Tone in Pos 2, 3 and 4)

Dimensions

3.75x18.75x44.50 IN

Fret Size

Jumbo

Scale Length

25.5" (648 mm)
