Keyboard
- SV-2 /SV-2S (73key)
- 73 keys (E1 to E7), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)
- SV-2 /SV-2S (88key)
- 88 keys (A0 to C8), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)
- Keyboard
- Touch selection
- Eight curves
- Tuning
- Master Transpose, Master Tune, Tuning curves
Sounds
- Sound generation
- EDS-X (Enhanced Definition Synthesis - eXpanded)
- Maximum Polyphony
- 128 notes
- Multi Sound
- Layer, Split
- Factory Sounds
- 72 (6 Basic sounds x 2 sets, 6 variations)
- EP1 (Vintage)
- MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
- EP2 (Various)
- FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
- Piano 1 (Acoustic)
- German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano
- Piano 2 (Various)
- Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass
- Keyboard
- Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ
- Other
- Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead
- Favorite sounds
- 64 (8 banks x 8 variations) for saving of customized settings
Effects
- Structure
- 6 effects (5 effects + 1 total effect)
- Equalizer
- Bass, Mid, Treble
- Pre FX
- Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)
- Amplifier models
- Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology - 12AX7 (ECC83) valve
- Modulation
- Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)
- Ambient
- Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)
- Total FX (only editable with SV-2 Editor)
- Stereo Mastering Limiter, Stereo Limiter

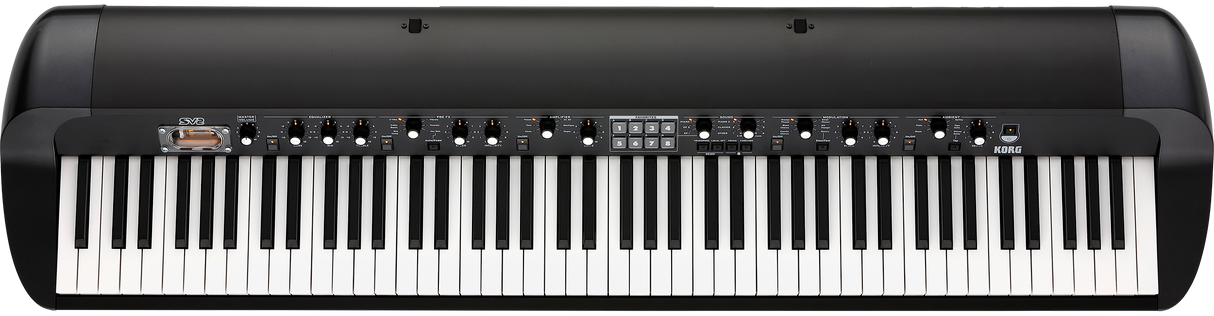

Panel controls
- Sound Select
- TYPE knob, VARIATION knob, FAVORITES 1-8 switches
- Favorite Sound select
- 1-8 switches, SOUND TYPE knob
- Effect Control
- Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob
- Pre FX
- On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when the TYPE = Vox Wah)
- Amplifier
- On/Off switch, TYPE knob, DRIVE knob
- Modulation
- On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when the TYPE = Rotary.)
- Ambient
- On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)
- Volume
- Master Volume
- Switches
- Transpose, Local Off, Touch, Function
- Demo Songs
- 72 songs (one song for each preset sound)

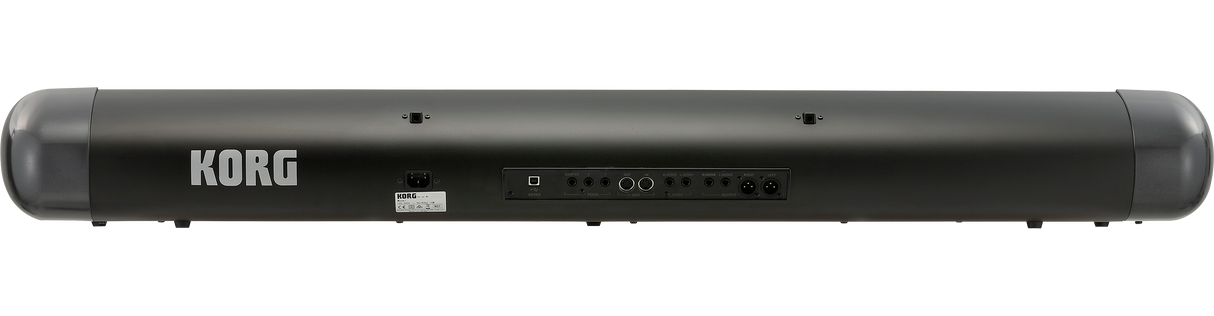

Input/Output connections
- Audio Output
- L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)
- Headphone
- Headphone jack6.3 mm [1/4"] stereo jack)
- Audio Input
- L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)
- MIDI
- IN, OUT
- USB
- USB: 2.0 Type B connector (doubles the MIDI Interface)
- Damper Pedal
- KORG DS-2H (included), DS-1H(sold separately)
- Pedal 1
- PS-1 foot switch, PS-3 foot switch (sold separately)
- Pedal 2
- Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, PS-3 foot switch (sold separately)
Amplification (SV-2S)
- Speakers
- 2 x 2.5" with 2 x 3" passive radiator
- Amplification power
- 2 x 15 W
Main specifications
- Power Supply
- Internal switching adapter, AC 100~240 V, 50/60 Hz
- SV-2
- 16 W
- SV-2S
- 25 W
- Power Consumption
- SV-2SV-2S (73key)
- 1143 mm x 347 mm x 157 mm/45.0" x 13.66" x 6.18"
- SV-22V-2S (88key)
- 1356 mm x 347 mm x 157 mm/53.39" x 13.66" x 6.18"
- Dimensions (W x D x H, excluding music stand):
- SV-2 73key
- 17.2 kg/37.92 lbs
- SV-2 88key
- 20.35 kg/44.86 lbs
- SV-2S 73key
- 18.3 kg/40.34 lbs
- SV-2S 88key
- 21.45 kg/47.29 lbs
- Weight (excluding music stand)
Others
- Included Items
- Power cable, Music stand, DS-2H damper pedal, Quick Guide.
- Stand
- ST-SV1 piano stand
- Carrying bag
- CB-SV1 73
CB-SV1 88
- Damper pedal
- DS-1H
- EXP/VOL pedal
- XVP-20
- Foot controller
- EXP-2
- Pedal switch
- PS-3
PS-1
- Accessories (sold separately)
