Shure UA844+SWB/LC-E Antenna Distribution
€819,00
€823,00
Unit price
/
Not available
Description
Description

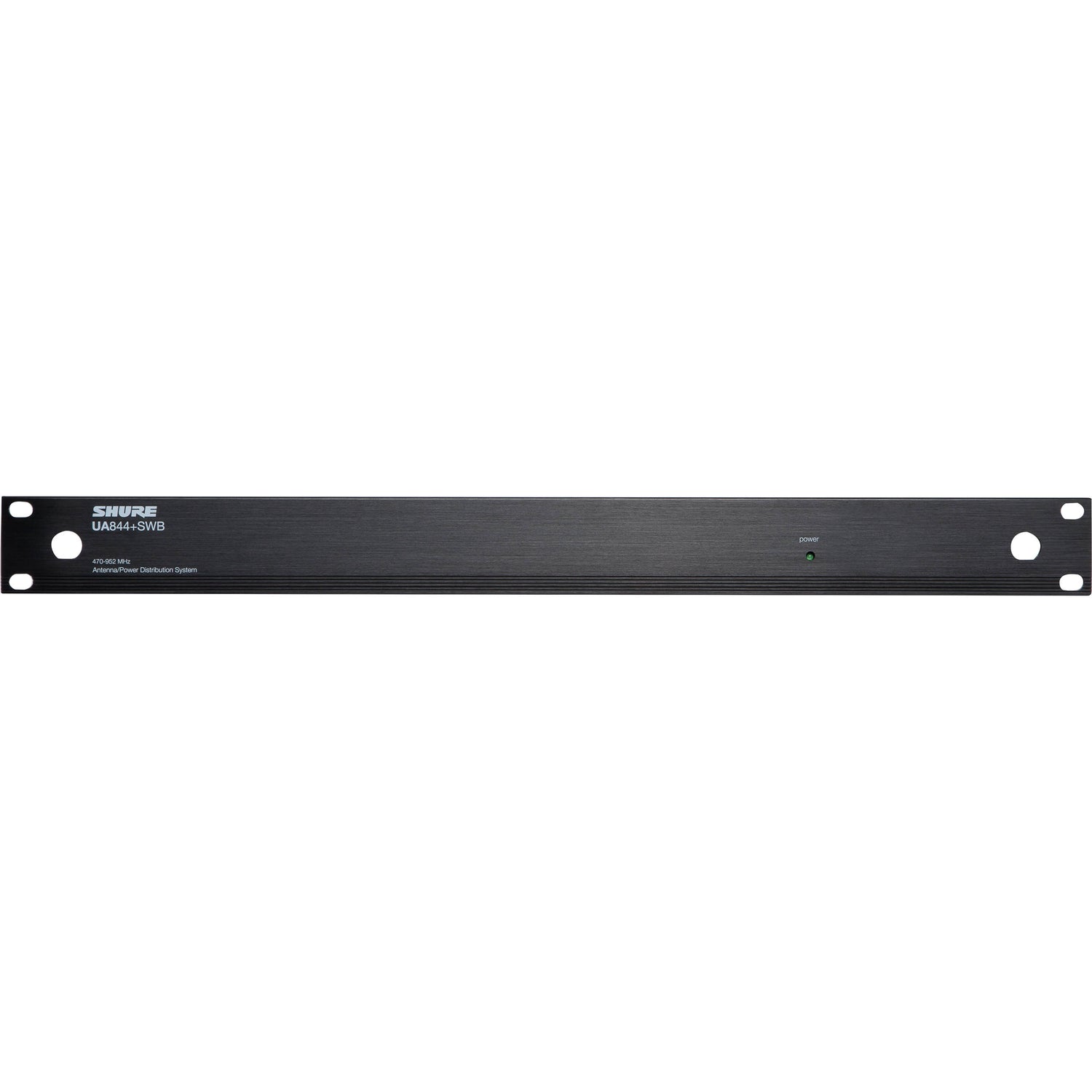

Shure UA844+SWB/LC-E Antenna Distribution
- The extension to the complete Shure microphone universe.
- Can split a pair of antennas to multiple recievers and amplify the RF signal.

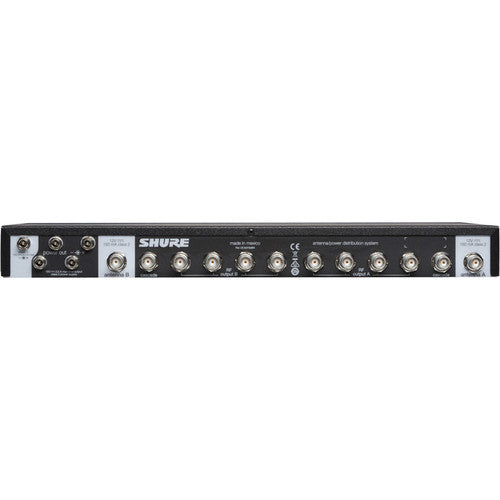

- Five-way RF signal output.
- Hardware for front mounting of Shure antennas.
- Compatible with QLX-D, SLXD and BLXR receiver series.
- 4 power feeds for 15 VDC receivers.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
| Power Requirements | 14 to 18 VDC |
| DC Output | 4x 14 to 18 VDC |
| Output Current | Combined Total from All DC Outputs 2.5 A, maximum |
| Operating Temperature Range | 0 to 145°F (-18 to 63°C) |
RF Input Specs
| Connector Type | BNC |
| RF Frequency Range | 470-960 MHz |
| Bias Voltage(s) | 2x 15 VDC (150 mA, maximum) |
| Impedance | 50 Ohms |
RF Output Specs
| RF Frequency Range | 470-960 MHz |
| Output Intercept Point | 21 dBm, typical |
| Connector Type | BNC |
| Impedance | 50 Ohms |
| Output Connector Isolation | 30 dB, typical |
| Gain | Input to Any Output Port (unused ports terminated in 50 Ohms) -1 to +1 dB |
| Dimensions | 1.8 x 19 x 6.8" (45 x 483 x 172 mm) |
| Weight | 3.6 lb (1.62 kg) |
Packaging Info
| Package Weight | 9.05 lb |
| Box Dimensions (LxWxH) | 23 x 16.2 x 3.9" |
Brand: Shure
SKU: 500012327
