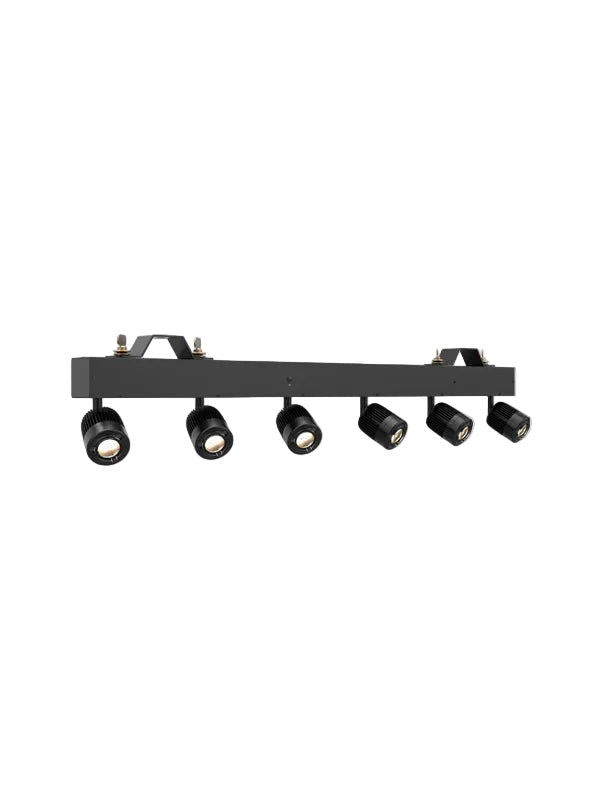

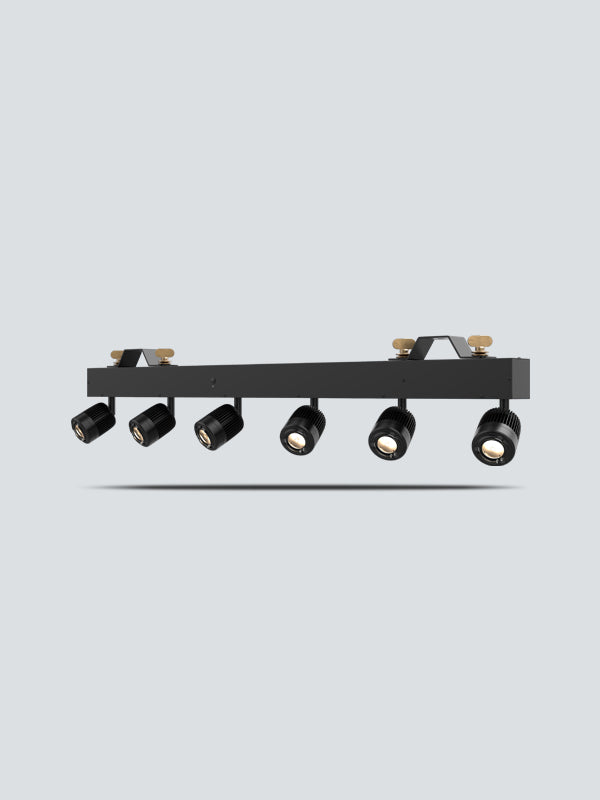

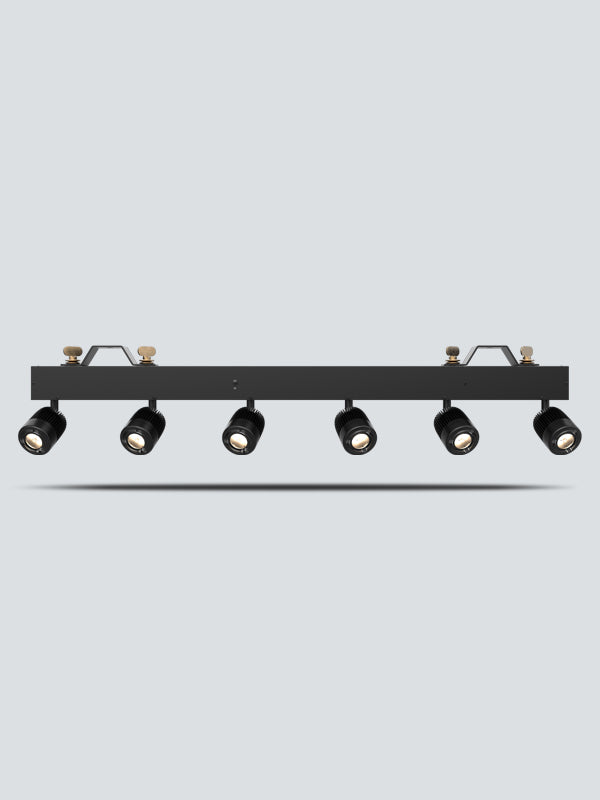

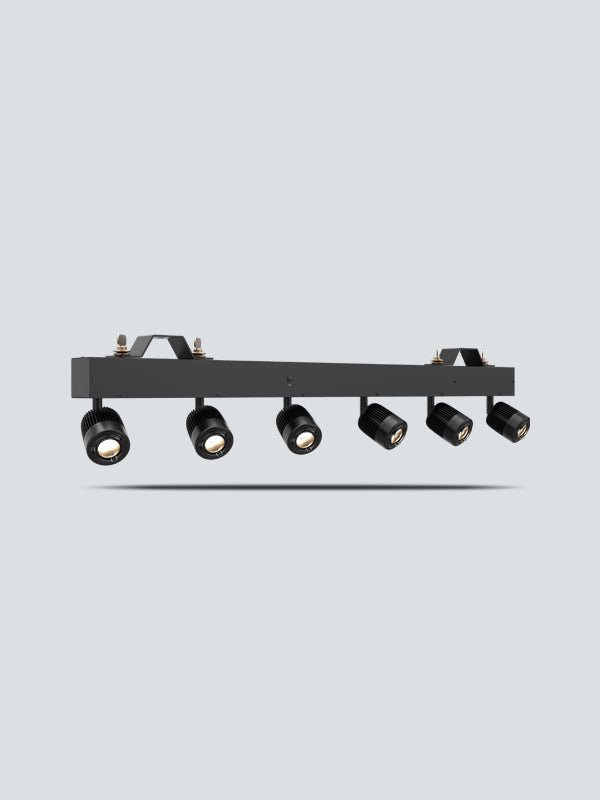

Chauvet Pinspot Bar

• High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
• No messy cables ensure a clean and elegant look for any upscale event
• Independent control of each head offers true flexibility and programming capabilities
• Includes various beam diffusers and 2700 K filters to help achieve the desired look
• Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle

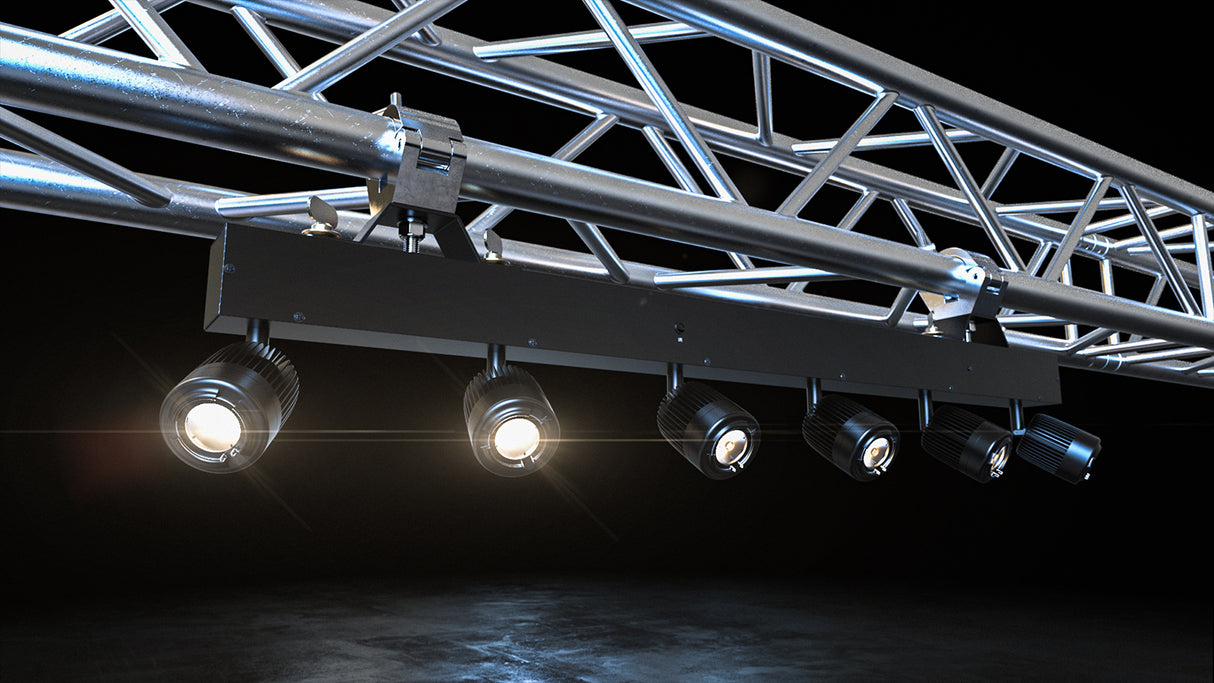

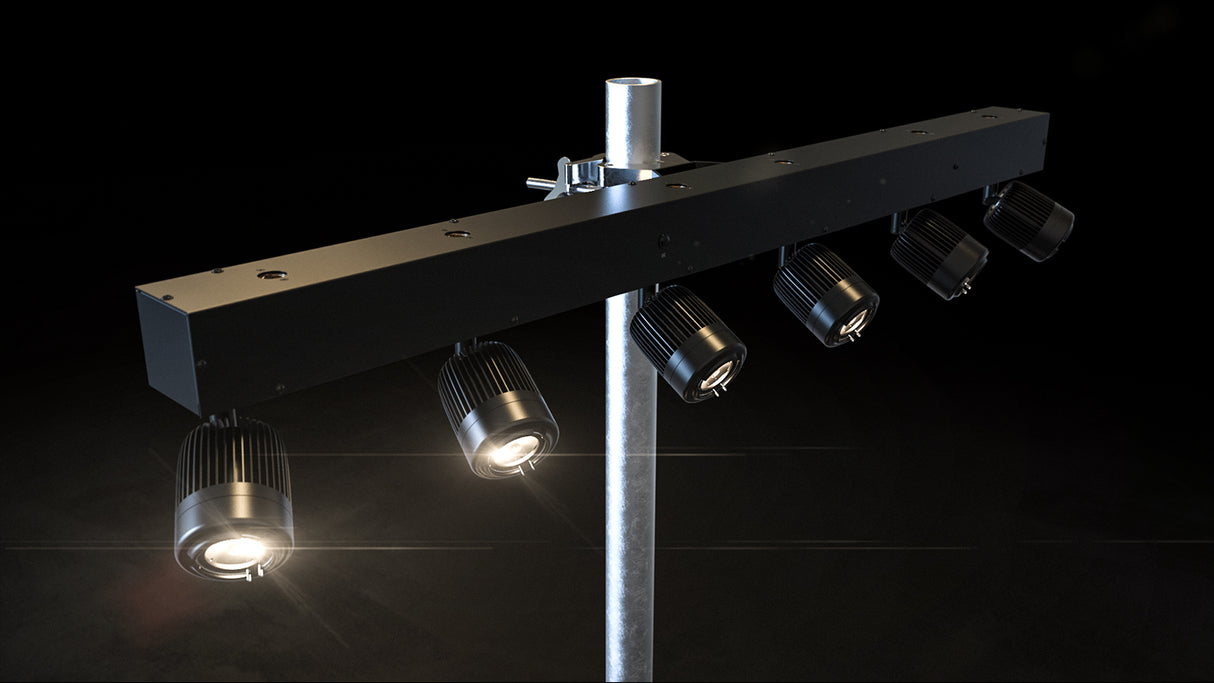

• A pair of included Omega brackets allow for multiple mounting options including pipe and drape

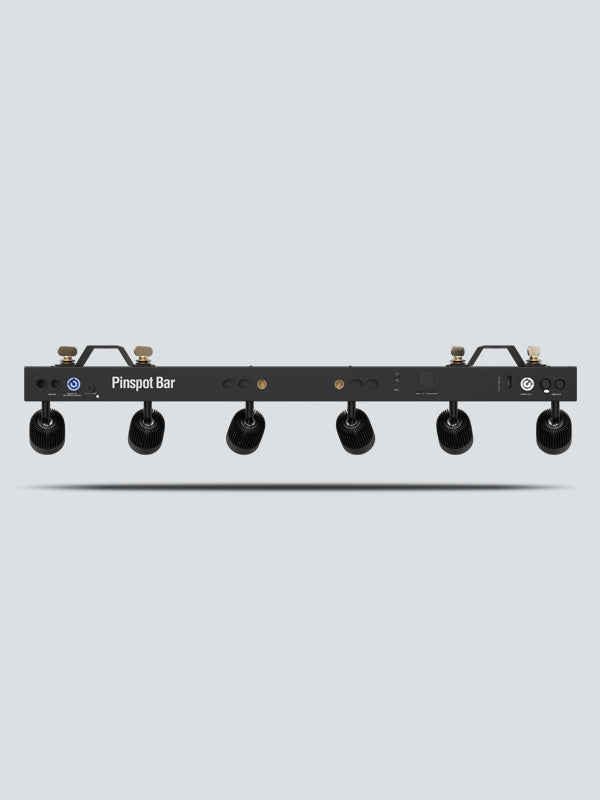

• PowerCon compatible power input and power linking saves time running cables
• Flicker-free operation suitable for on-camera use

Included:

• Pinspot Bar
• Power cable
• 2 Omega Brackets
• 6 pcs 10° diffusers
• 6 x 20° diffusers
• 6 pcs 2700 K CTO filters
• Quick Guide

• DMX Channels: 1, 6 and 11
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
• PWM Frequency: 1000 Hz
• Beam Angle: 5°
• Field Angle: 11°
• Illuminance: 7,707 lux @ 2 m (per pod)
• Power Linking: 8 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz
  191 W, 0.8 A @ 230 V, 50 Hz
• Weight: 9.4 lb (4.3 kg)
• Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
• Approvals: CE, RoHS
• Color Temperature: 4000 K
• CRI: 81
• Bracket Mounting Hole: 13 mm
• Optional Controllers: IRC-6, D-Fi USB
