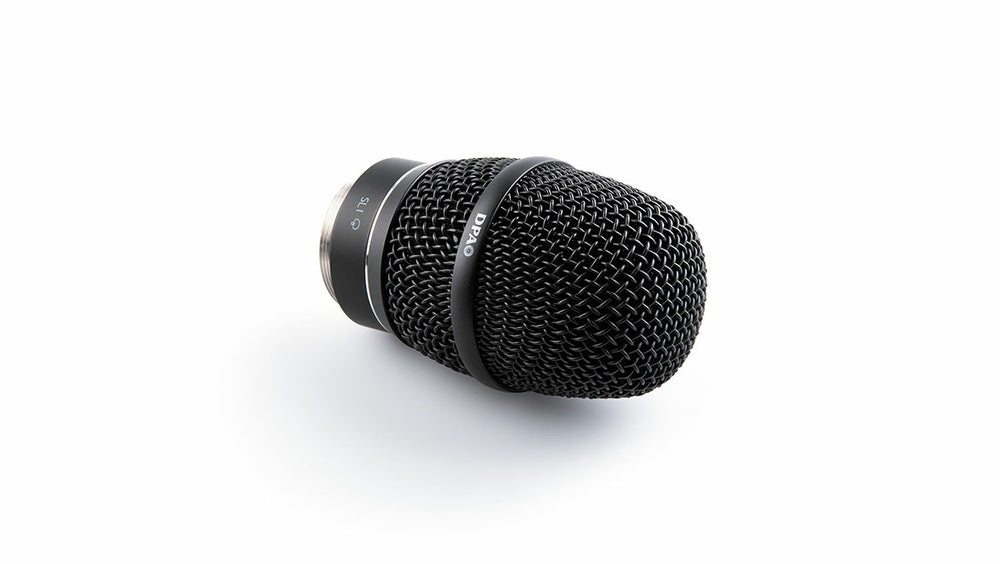

DPA 2028 SE-2 Capsule for wireless transmitter (Shure)

• Capsule for wireless transmitter - created by DPA
• The 2028 series is distinguished by its unique live sound
• Great ease of use - long lifetime

DPA 2028 SE-2 Capsule for wireless transmitter (Shure)

• The 2028 Vocal Microphone is designed for the crisp experience of live performance
• Flexible handheld vocal microphone that delivers great vocals to performers from a wide range of sound including live, HoW, broadcast etc.
• Adapter that fits Shure / Sony / Lectrosonics wireless systems
• The acclaimed DPA sound - from acute to metal
• Robust enough to handle a live stage
• Uniform supercardioid direction
• Clear SPL handling

• Directional pattern: supercardioid
• Operating principle: Pressure gradient
• Cartridge type: Prepolarized condenser
• Frequency response: 20 Hz - 20 kHz
• Dynamic range: Typ. 117 dB
• Effective frequency range ±2 dB, at 12 cm (4.7 in.): 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
• Sensitivity, nominal, ±3 dB at 1 kHz: 5 mV/Pa; -46 dB re 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 22 dB(A) at 20 µPa (max. 23 dB(A))
• Distortion, THD < 1 %: 136 dB SPL RMS, 139 dB SPL peak
• Max. SPL, THD 10%: 160 dB SPL peak
• Rated output impedance: 150
• Minimum load impedance: 1 k
• Cable pull capacity: 100 m (328 ft)
• Output balancing principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
• Power supply (for full performance): P48 (Phantom Power)
• Power consumption: Max 2.5 mA
• Maximum output voltage, RMS: 9 Vrms; 19 dBV; 28 dBu
• Polarity: +V at pin 2 for positive sound pressure
• Weight: 286 g (10.1 oz)
• Microphone diameter: 48 mm (1.9 in)
• Capsule diameter: 19 mm (0.75 inch)
• Microphone length: 188 mm (7.4 inches)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
