Description
Description
- Smart zone mixer with 2 inputs and 5 outputs
- Perfect for expanding your mixer with more outputs
- 2 stereo XLR inputs
- 5 stereo zone XLR outputs
- Each zone with volume control for both inputs, plus mono switch
- LED display shows signal input, distortion and mono/stereo mode
- 19" rack size - 1 unit

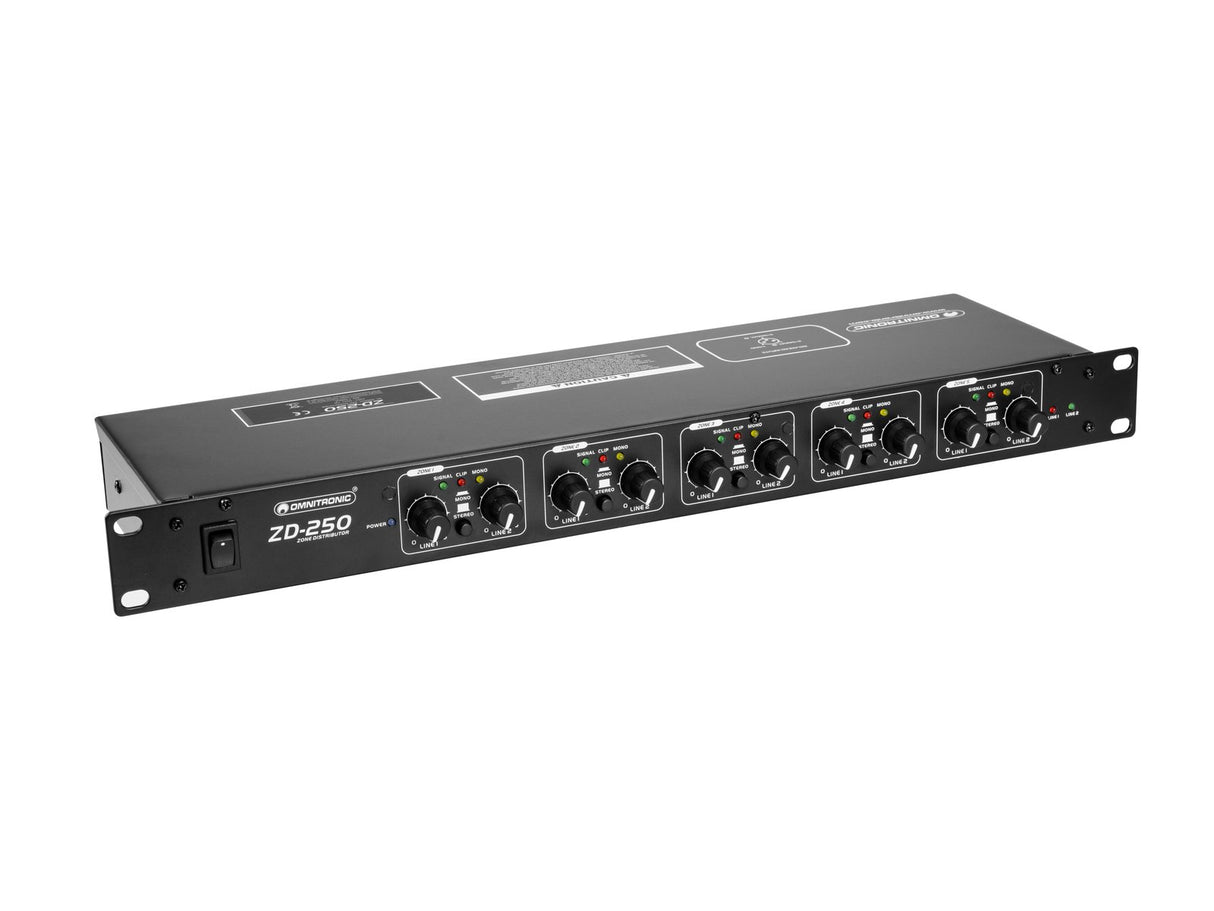

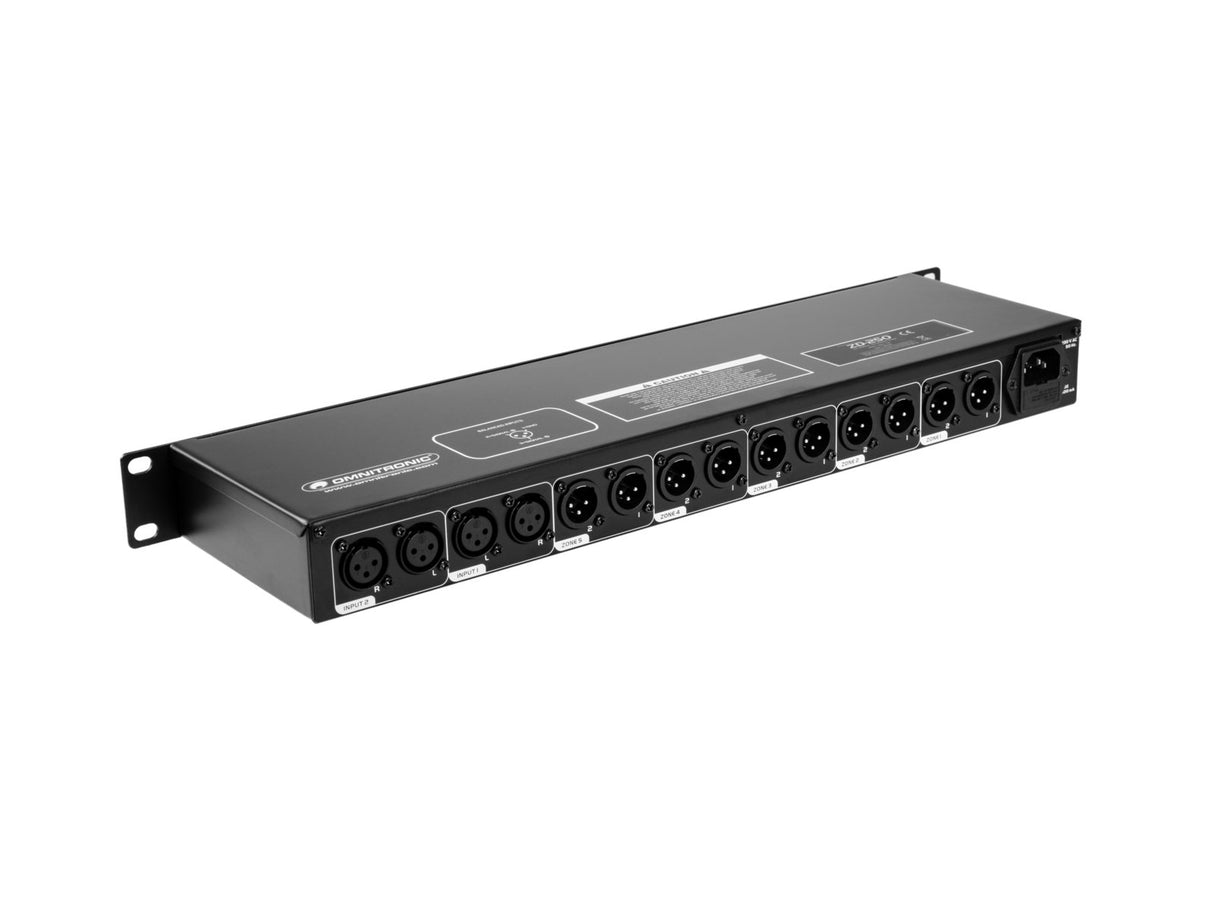

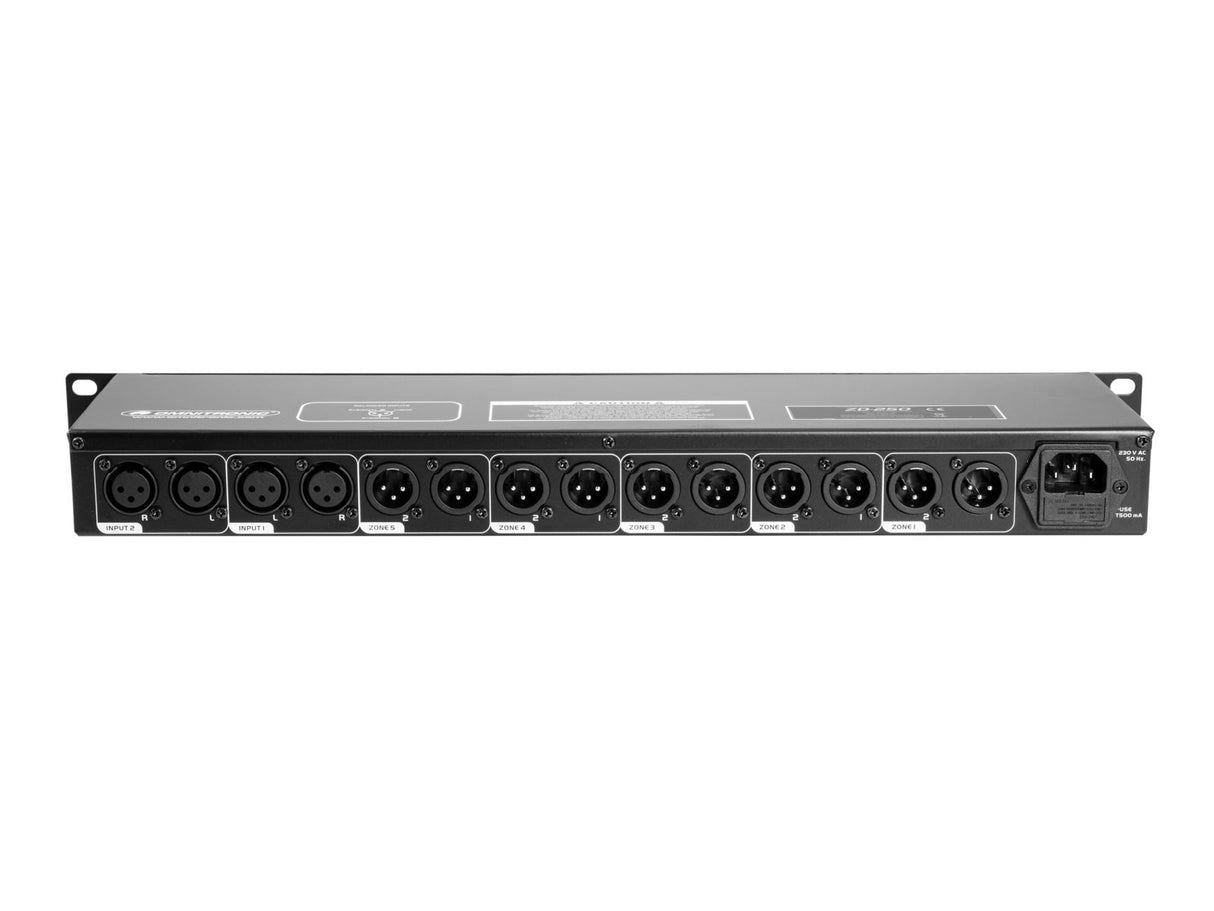

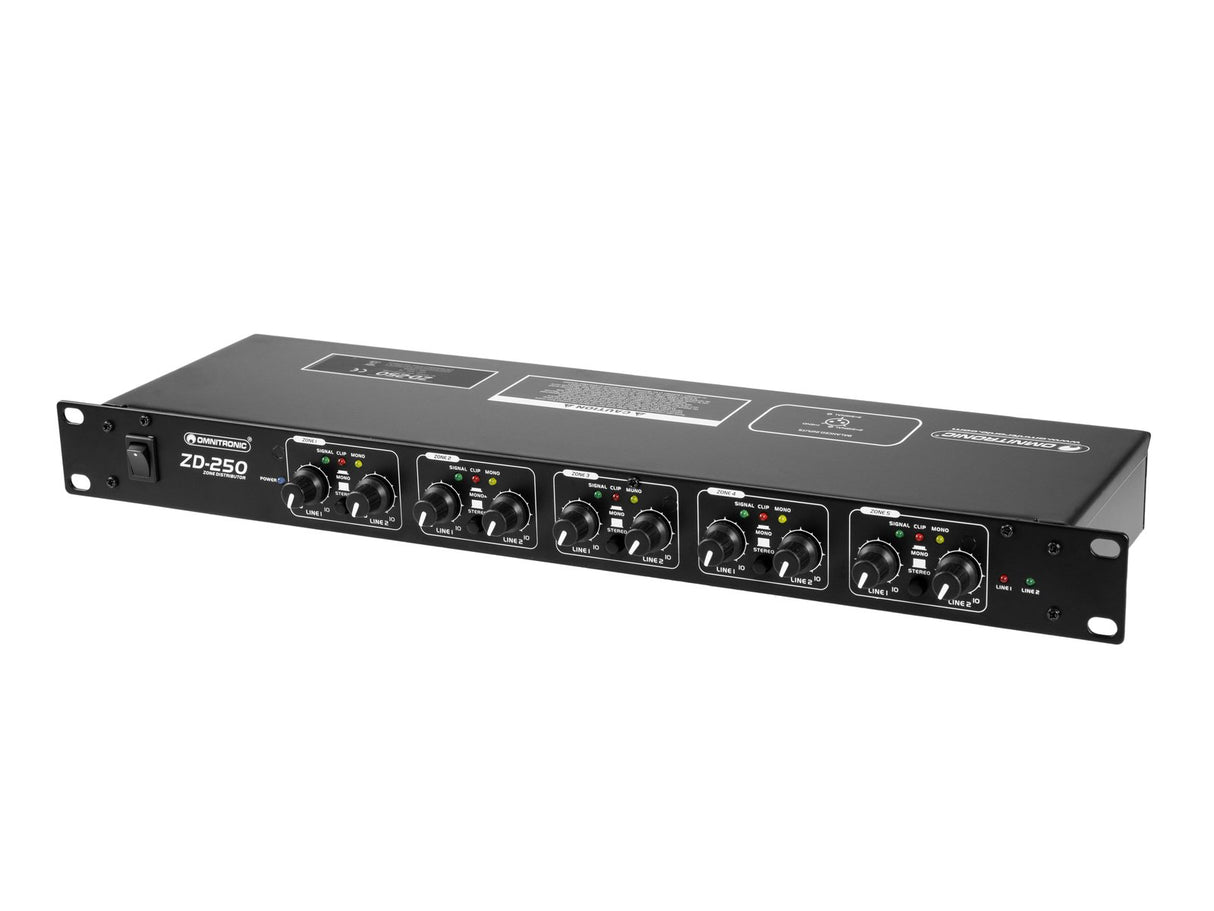

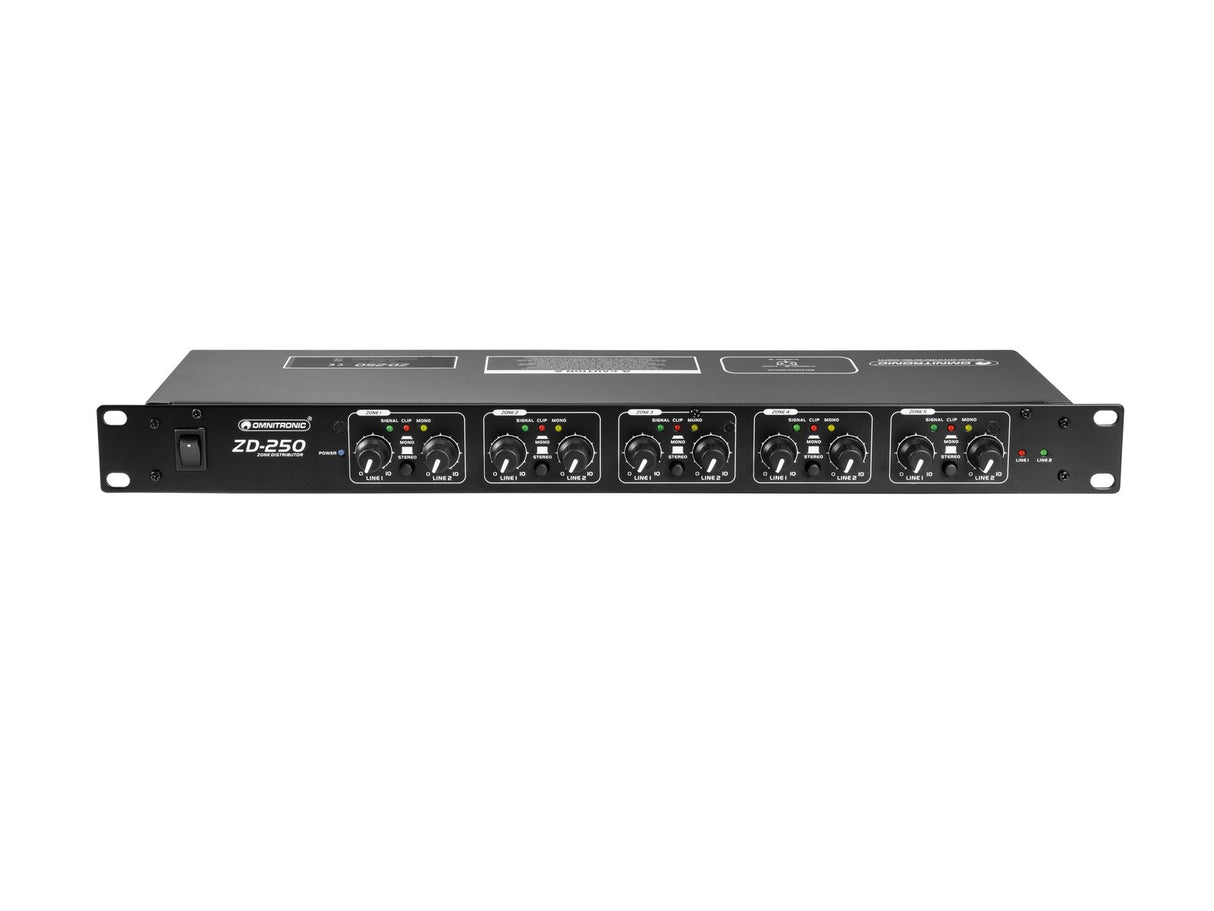

Omnitronic ZD-250B Zone Mixer
- Smart zone mixer with 2 inputs and 5 outputs.
- Perfect for expanding your mixer with more outputs.
- 2 stereo XLR inputs.
- 5 stereo zone XLR outputs.
- Each zone with volume control for both inputs, plus mono switch.
- LED display shows signal input, distortion and mono/stereo mode.
- 19" rack size - 1 unit.
- Power cable and manual included.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 7,00 W
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
S/N ratio: >69 dB
THD: <0.2 % at 1 kHz
Impedance: Input: 45.1 kOhm
Output: 125 Ohm
Gain: 15 dB
Max. level: Input: +9 dB
Output: +22 dB
Color: Black
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48.3 cm
Depth: 12.6 cm
Height: 4.45 cm
Weight: 2.34 kg
Brand: OMNITRONIC
SKU: STE-10304111
