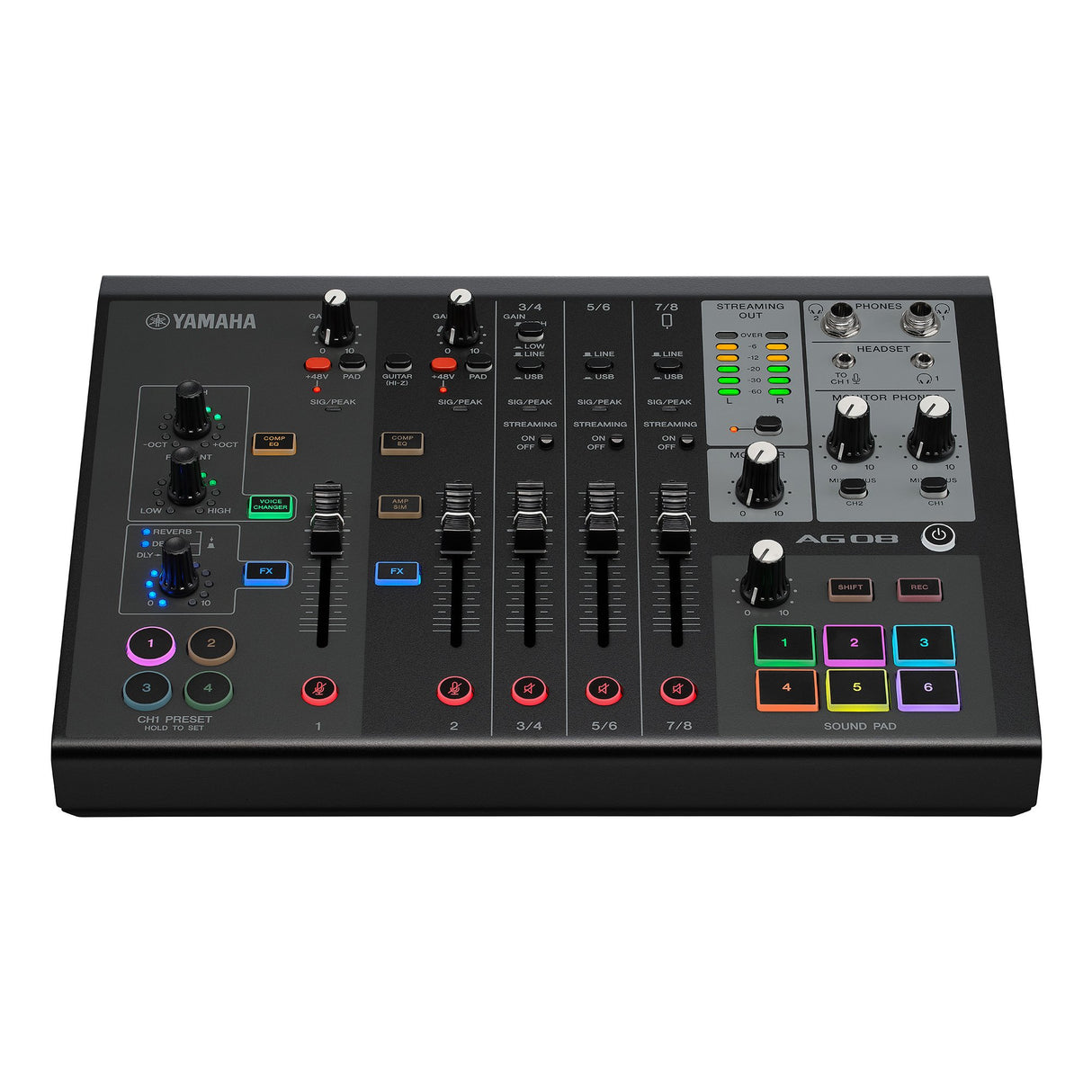

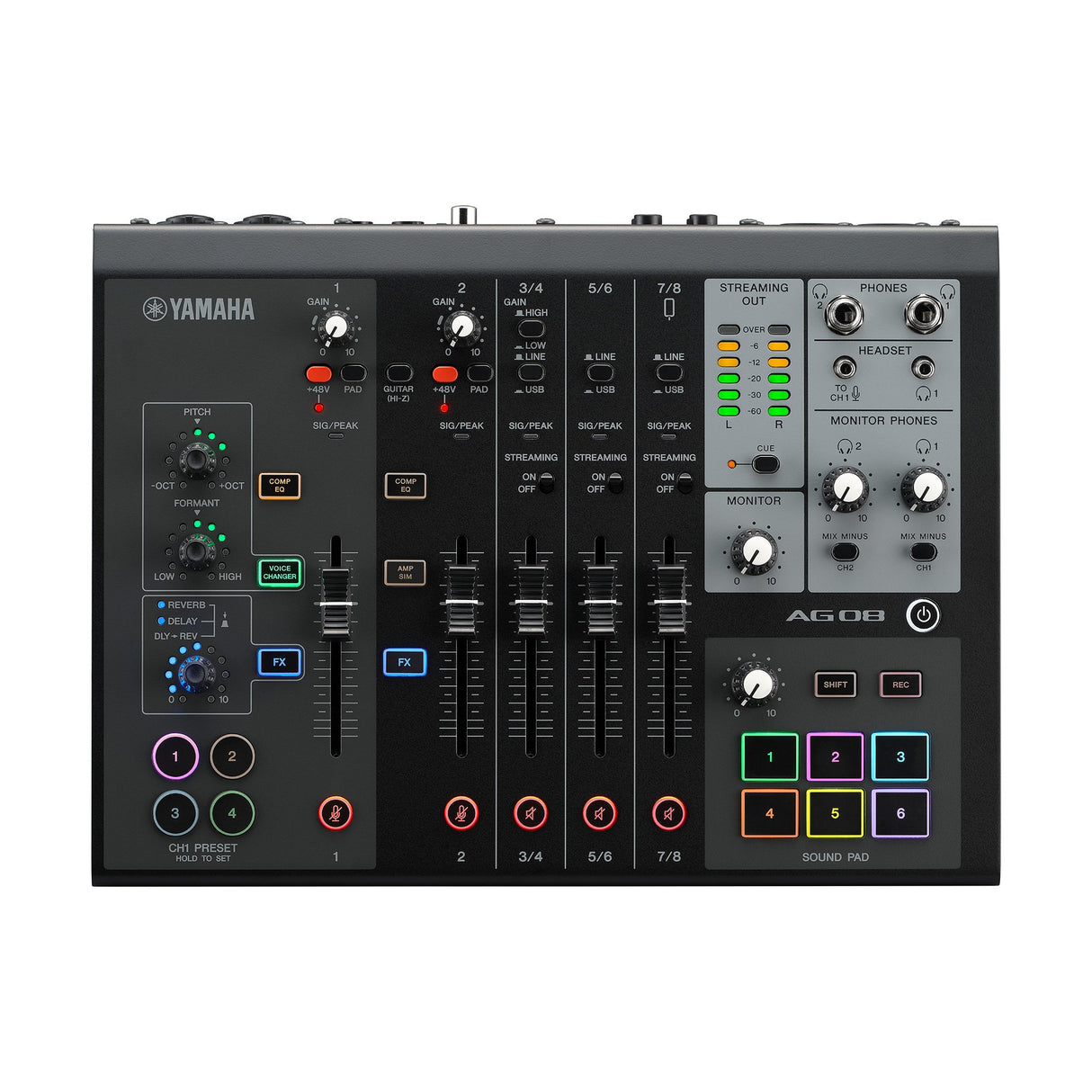

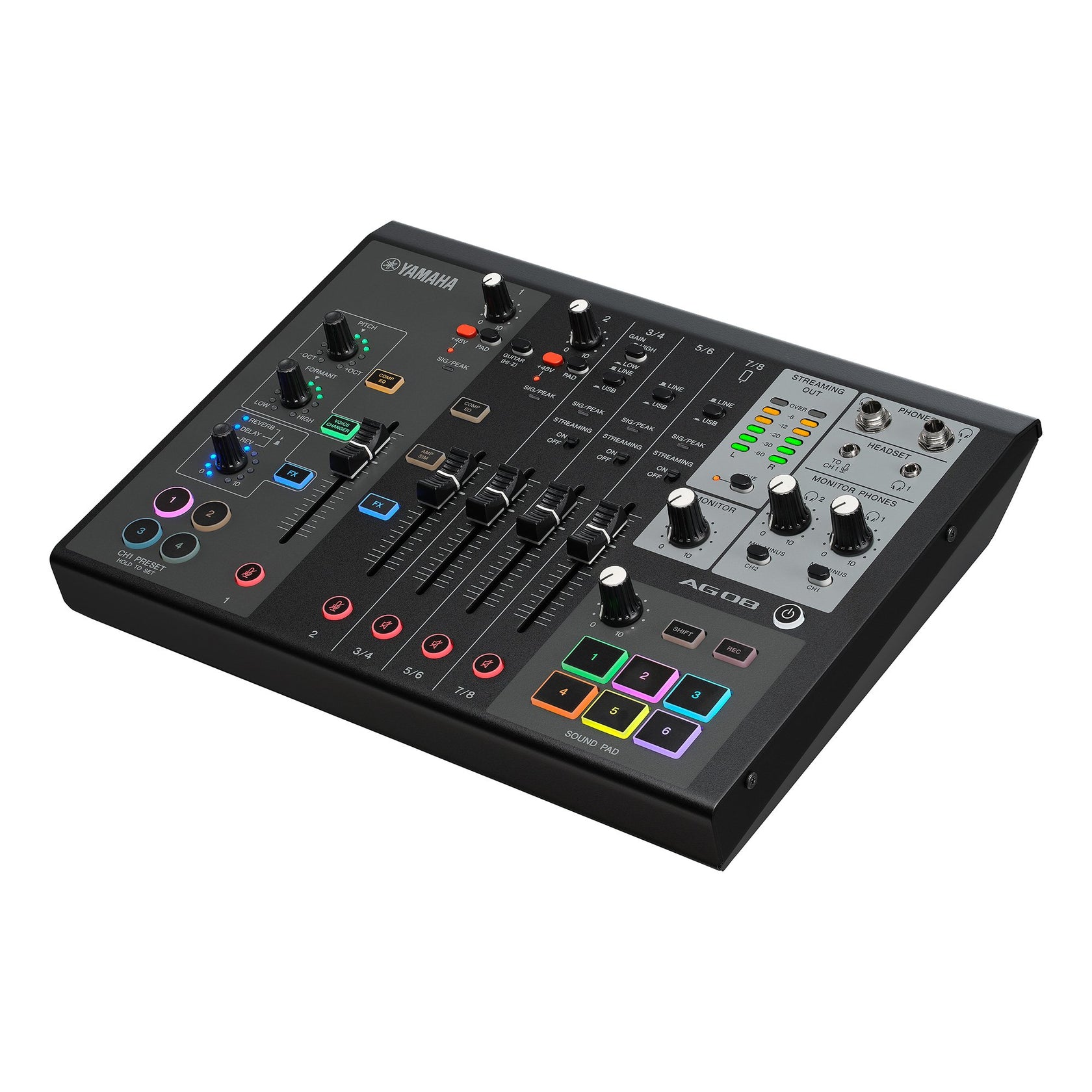

Yamaha AG08 Live Streaming Mixer (Black)

• 8 channel live streaming mixer
• Integrated USB audio interface, built-in effects and sampler
• Six sound pads that can trigger audio samples
• 24-bit, 48 kHz multi-channel audio recording and playback
• Flexible inputs and outputs
• DSP effects
• AG08 Controller (Windows/Mac/iOS)
• Foot control option (to be purchased separately)
• Windows/Mac support via USB-C
• iOS connection via Apple Camera Adapter (requires external USB power supply)
• Android supported via 4-pole mini input/output (TRRS)
• Cubase AI, WaveLab Cast and Cubasis LE included.

Yamaha CAG08BL Live Streaming Mixer (Black)

• 8 channel live streaming mixer with two phantom power inputs for condenser microphones.
• Integrated USB audio interface, built-in effects and sampler.
• Two mic/line inputs and two headphone outputs can be used simultaneously.
• +48 V phantom power on Channel 1 and 2 for condenser mics or DI boxes.
• 4 FX preset buttons for Channel 1, Hi-Z input for guitars on Channel 2.
• 3 stereo inputs with programmable faders, switchable input sources for Line/USB
• 4-pin mini input/output (TRRS) on channel 7/8.
• Monitor outputs (XLR + TRS) and MIX outputs (TRS).
• Six audio pads that can trigger audio samples in real time and contribute effectively to live streams.
• High audio quality - 24-bit, 48 kHz Multi-channel audio recording and playback (ASIO and WDM simultaneously)
• Flexible inputs and outputs - ideal for live streaming.
• DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer).
• AG08 Controller (Windows/Mac/iOS) for precise parameter control and detailed audio setting.
• 60 mm faders and Mute buttons for each input.
• Possibility of control via foot control (to be purchased separately).
• Windows/Mac support via USB-C.
• iOS connection via Apple Camera Adapter (requires external USB power supply).
• Android supported via 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 1.5 A) and supplied power supply.
• Cubase AI, WaveLab Cast and Cubasis LE included.
• Available in black or white. Here in black.

Input Channels

Mono[MIC/LINE] 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously

Stereo[LINE] 3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)

AUX 1 - Stereo mini

Smartphone 1 - 4-pole mini input/output (TRRS)

USB 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)

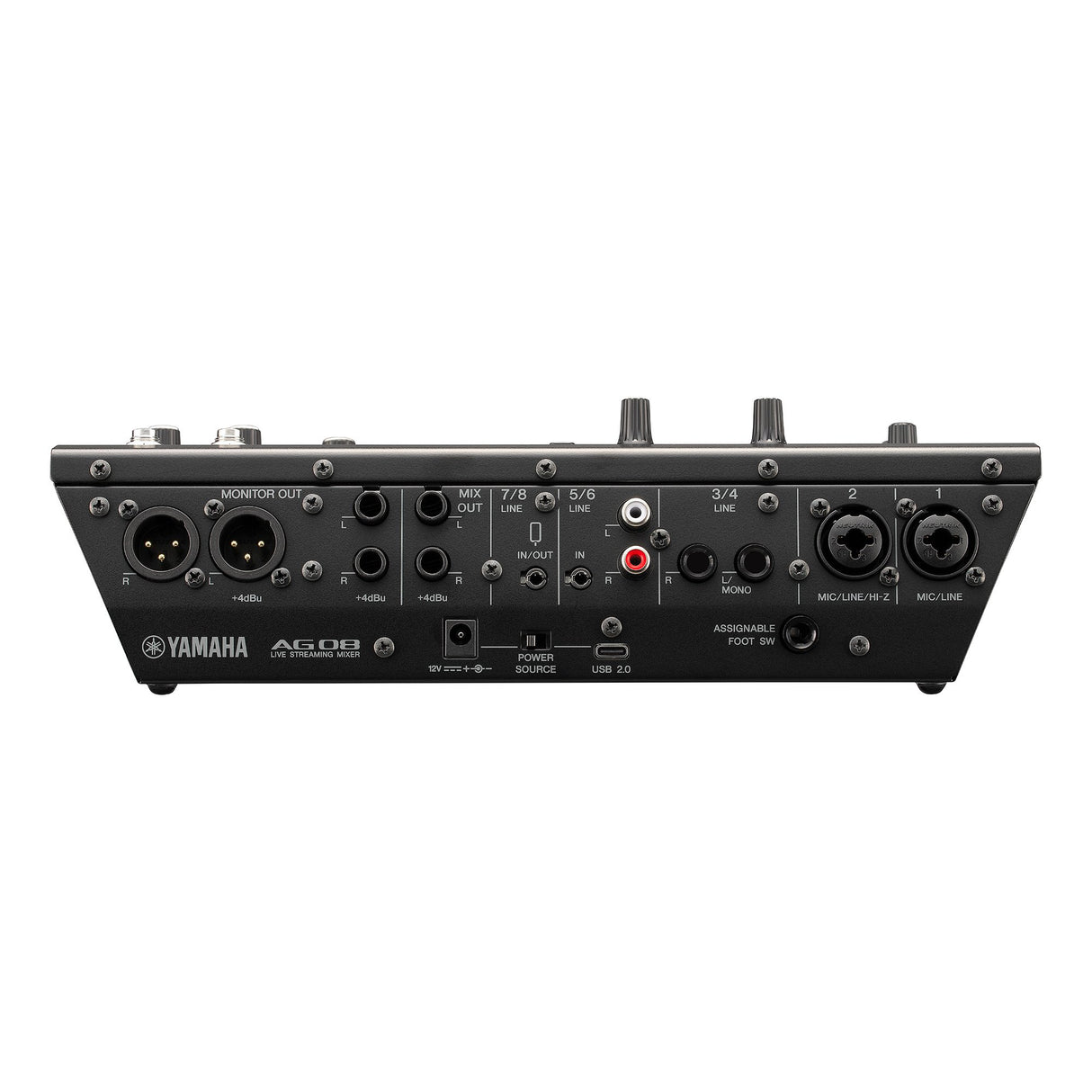

Output Channels

PHONES 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES

Smartphone 1 - 4-pole mini input/output (TRRS)

MONITOR OUT 2 - LR Stereo: XLR, 1/4 TRS Phone

STEREO OUT 1 - MIX: LR stereo TRS Phone

USB 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.

Bus 4 Stereo

Functions MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)

On-board processors DSP Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller

USB USB Audio 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C

USB DC Power input 1 - Type-C, 5 V DC, 1.5 A

Power requirements DC 12 V, 1.5 A / USB-C 5 V, 1.5 A

Power consumption Max. 7.5 W

Dimensions 290 mm (11.5") (W), 88 mm (3.5") (H), 222 mm (8.8") (D)

Net weight 2.2 kg (4.9 lbs)

Included Accessories AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information

Others Operating Temperature: 0 to + 40
