Description
Description
- The legendary drawbar organ sound recreated in detail in the new MTW2 sound engine
- User-friendly, intuitive interface with easy access to all functions

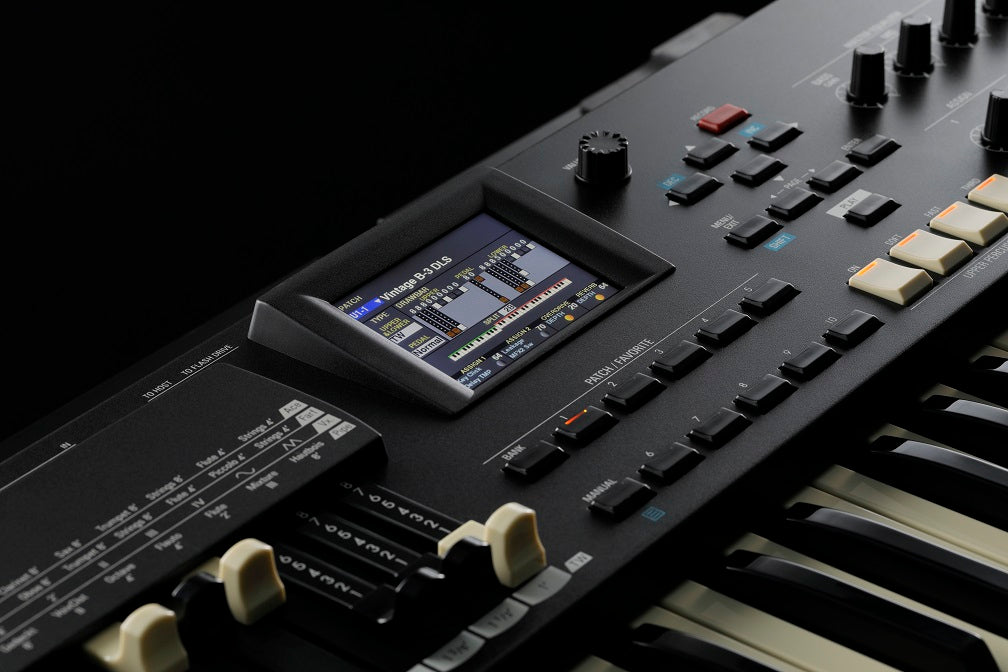

- Color display that ensures clear performance and programming
- User-assignable buttons and switches to control internal functions and external devices
- Master EQ, super precise drawbar sounds, pitch bend, modulation wheel
- 9-level virtual multi-contact system gives you the real feel of a vintage Hammond 's multi-contact keyboards
- Built-in digital Leslie models the air pressure from Leslie rotors - a lifelike reproduction
- New tube modeling system that reproduces "vaccum tube warmth"
- Packed with classical and Theater Pipe Organ sounds etc.
- Compact and easily transportable design

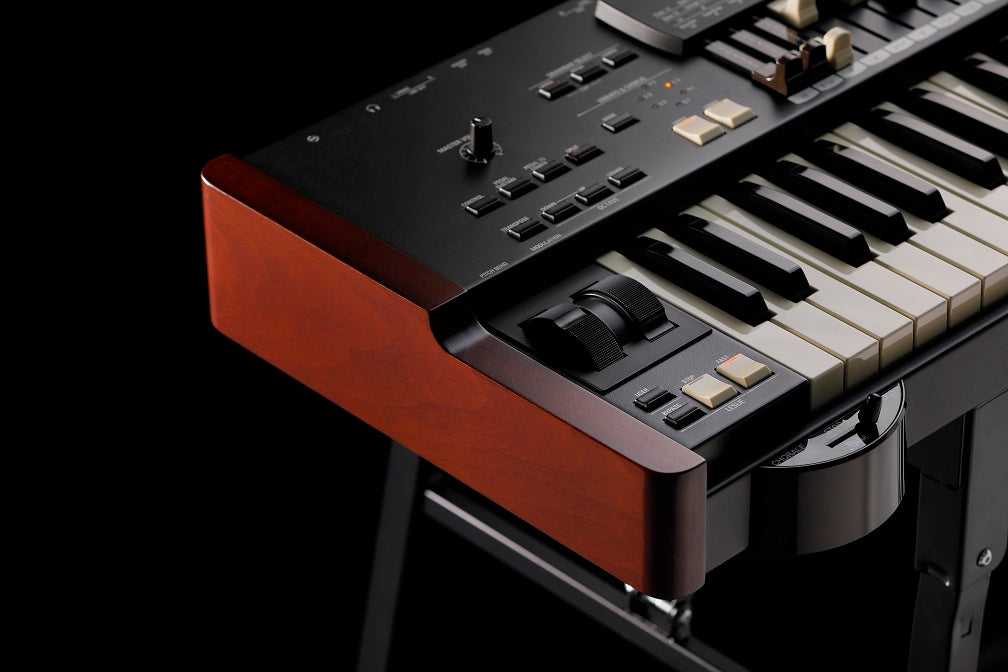

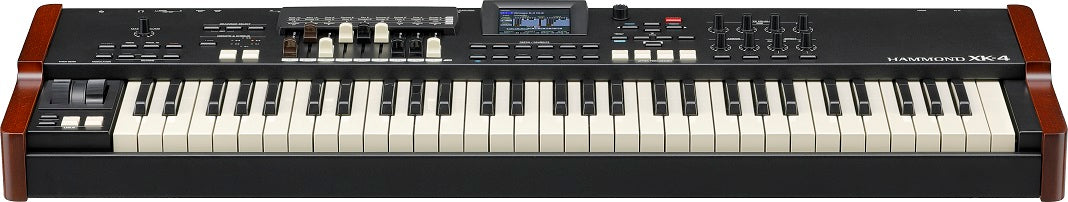

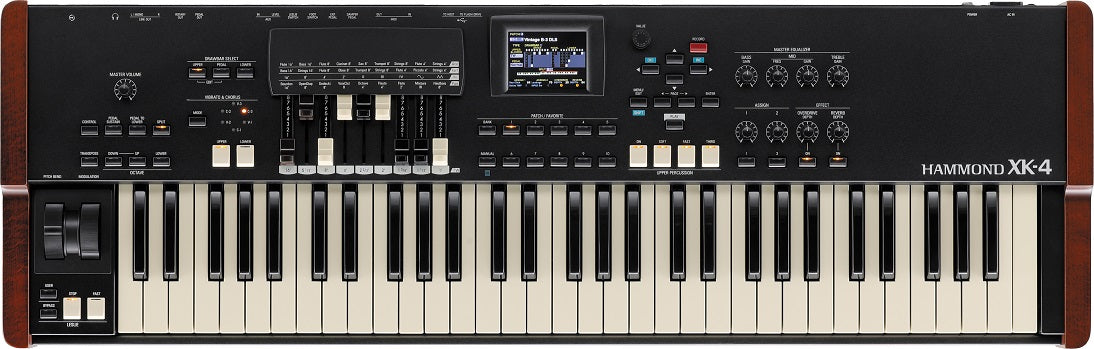

Hammond XK-4
- The legendary drawbar organ sound recreated in detail in the new MTW2 sound engine.
- User-friendly, intuitive interface with easy access to all functions.
- Color display that ensures clear performance and programming.

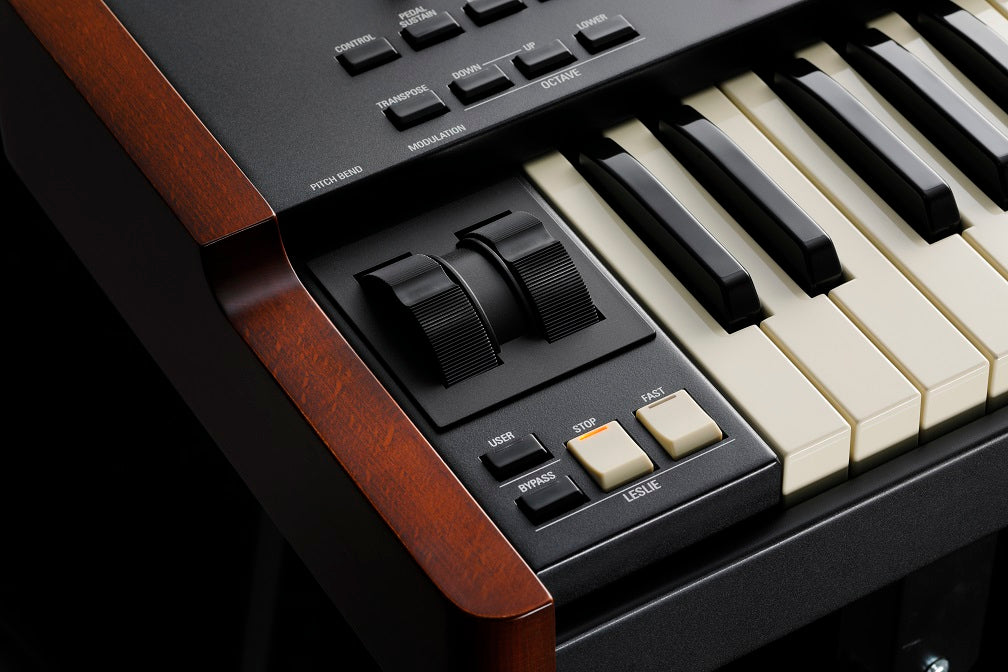

- Pitch bend and programmable modulation wheels.
- User-assignable buttons and switches to control internal functions and external devices.
- Master EQ and super-precise drawbar sounds.
- 9-level virtual multi-contact system gives you the real feel of a vintage Hammond 's multi-contact keyboards.
- Multi-contact feel is also present on the pedals (which must be purchased separately - XPK-130G/XPK-200G/XPK-200GL MIDI pedalboards)
- Built-in digital Leslie models the air pressure from Leslie rotors - a lifelike reproduction.
- New tube modeling system that reproduces "vaccum tube warmth".
- Unique system that emulates the matching transformer from vintage Hammond organs, giving a thickness and width to the sound.
- Packed with classical and Theater Pipe Organ sounds.
- In addition you get Italian, British and Japanese transistor combo organ models.
- Compact and easily transportable design.

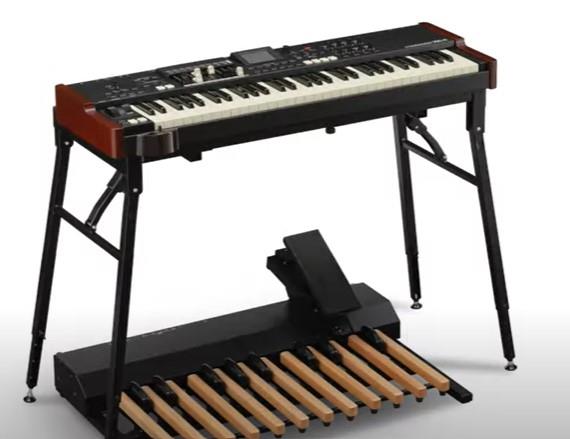

- Stand and pedals sold separately.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
SOUND ENGINE:
TW2 (Modelled Tone Wheel 2), Simultaneous Polyphony: 61 (Tone Wheel Organ)
KEYBOARD
61-key with velocity, semi-weighted, Square-front ("Waterfall"-style)
ORGAN SECTION
3 (Upper, Lower, Pedal)
[Drawbars] : 1 set of 9 rows
[Organ type] : Manual keyboard: 5 (TW, Vx, Farf, Ace, Pipe) Pedalboard: 3 (Normal, Muted, Pipe)
[Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic
EFFECTS:
Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer, Reverb

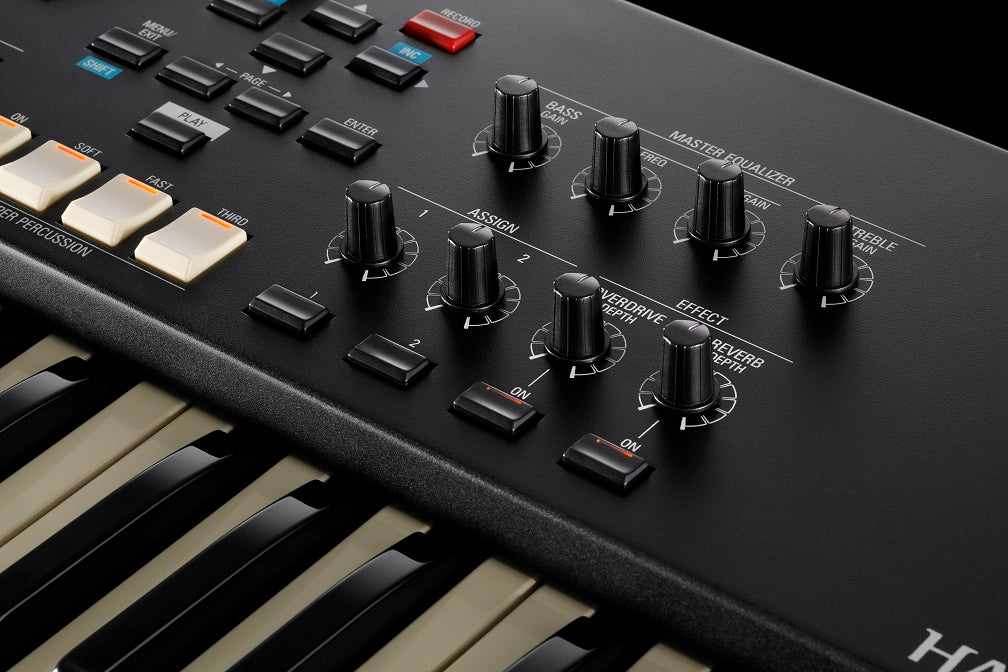

[Master] : Master Equalizer
KEY MAP [Internal zone] : Transpose, Octave, Split, Pedal To Lower, Pedal Sustain
[External Zones] : 3 Zones (assignable to each keyboard)
CONTROLLERS Pitch Bend wheel, Modulation wheel, Leslie (Bypass, Stop, Fast)
PRESET MEMORY [Favorites]: 10 banks x 10 numbers (Patches), 10 numbers (Pages)
[Patch] : Factory: 100, User: 100, Manual
[Custom Tone Wheel] : Factory: 4, User: 4
[Custom Pedal Registration] : Factory: 4, User: 4
[Custom Pipe] : Factory: 4, User: 4
[Custom Cabinet] : Factory: 8, User: 8
STORAGE: USB memory
DISPLAY: 320 x 240 pixel

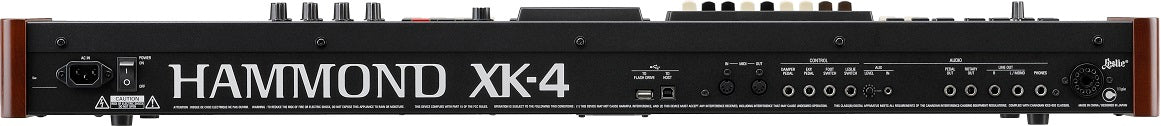

CONNECTIONS [MIDI] : IN, OUT
[USB] : To Host
[Audio] : Line Out L, R, Headphones Rotary Out, Pedal Out, Aux In (with Volume control)
[Leslie] : 11-pin, 1 or 3 channel compatible
[Others] : Leslie Switch, Foot Switch, Damper Pedal, Expression Pedal
RATED POWER CONSUMPTION 15W
DIMENSIONS 1004mm(W) x 322mm(D) x 109mm(H)
WEIGHT 9,4 kg
Carton Size: 1185(W) x 390(D) x 185(H) (mm)
- Weight of the package incl. XK-4: 13kg
ACCESSORY AC Cord
