Description
Description
- Compact portable active speaker with built-in 3-channel mixer
- 100 W Class-D amplifier
- 1.4" HF and 6.5" LF coaxial compression driver with FIR crossover filter
- 2 mic/line inputs, 1 stereo line input
- Built-in Bluetooth

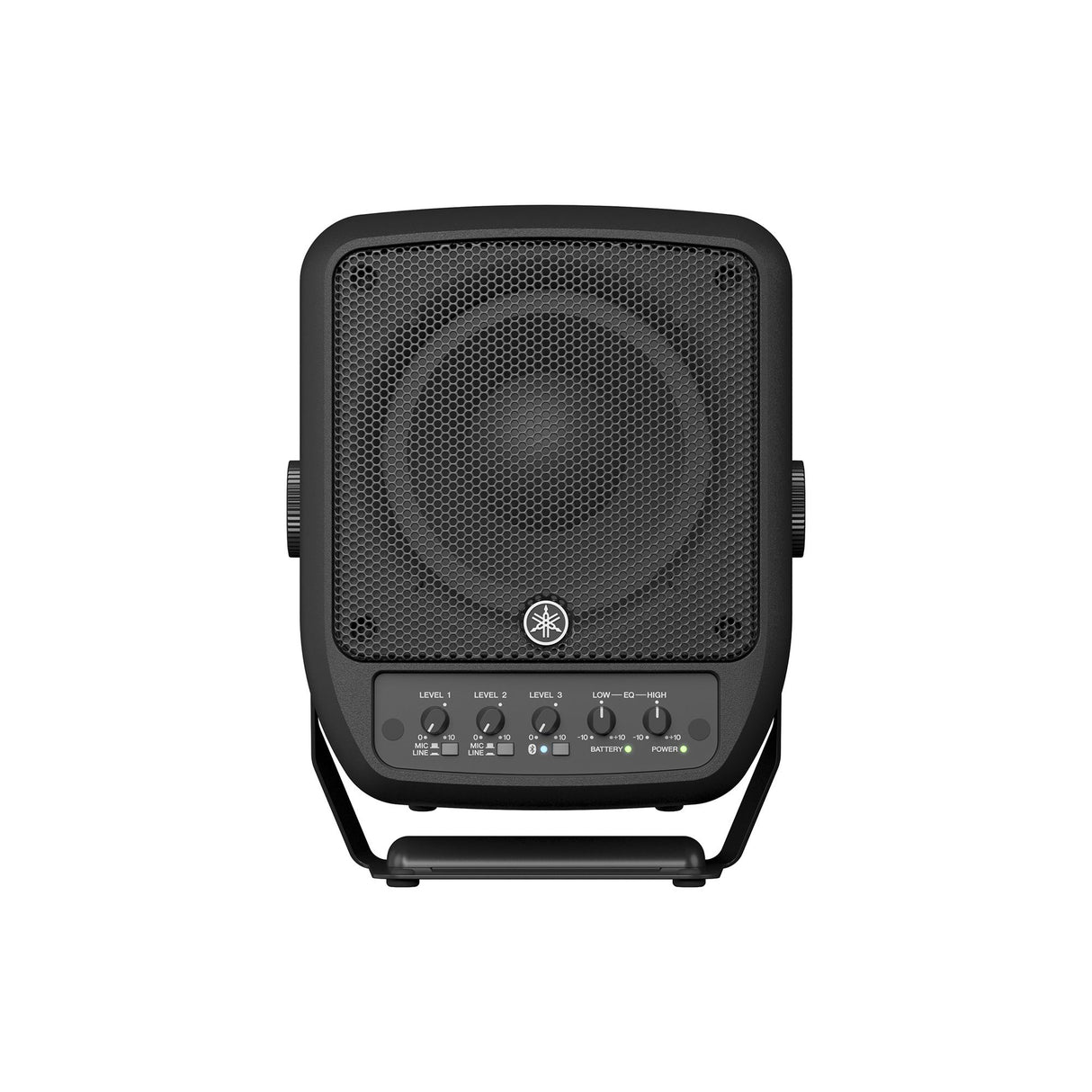

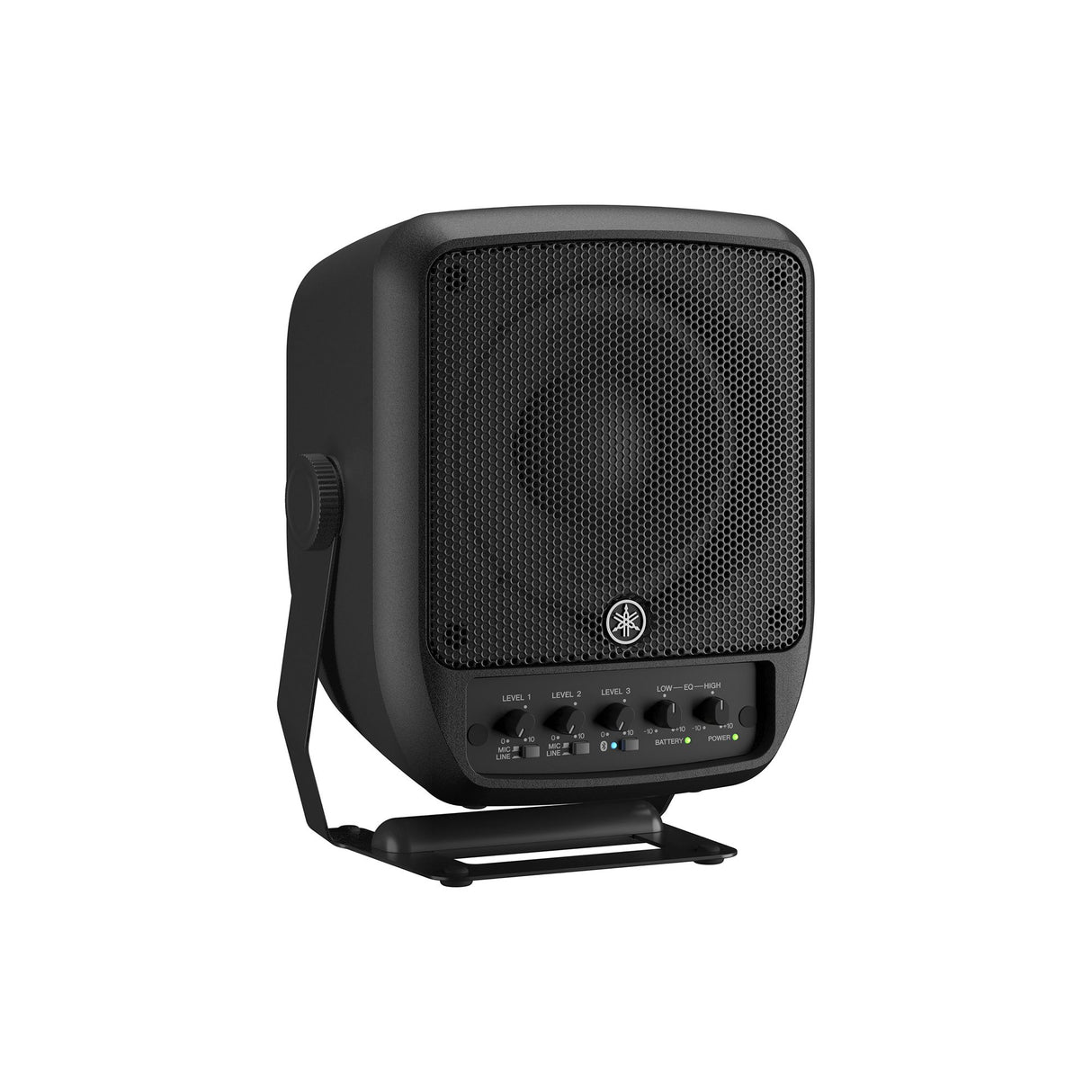

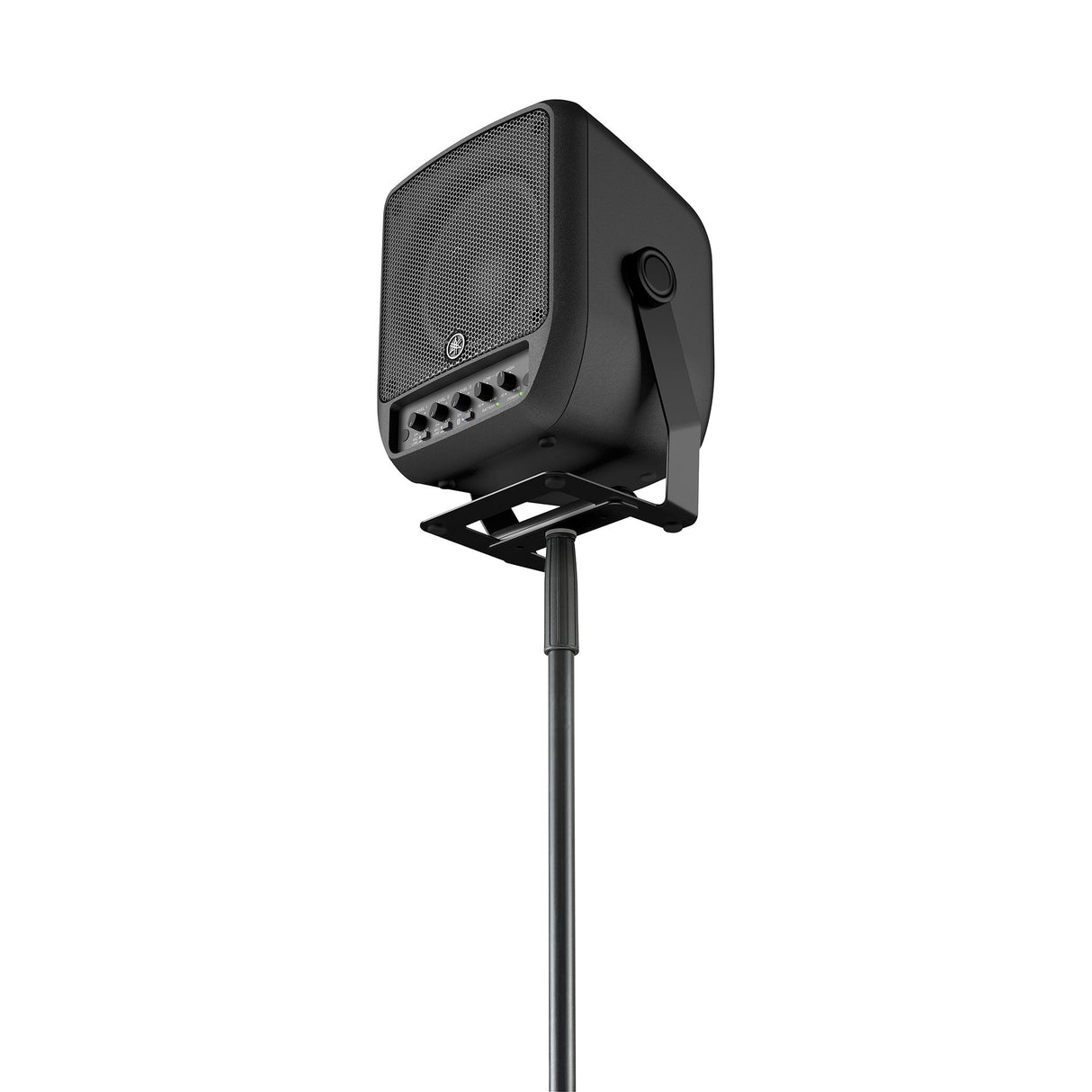

Yamaha Stagepas 100 Compact Speaker
- Portable active speaker in a compact size with built-in 3-channel mixer.
- 100 W Class-D amplifier with plenty of power.
- 1.4" HF and 6.5" LF coaxial compression driver with FIR crossover filter.
- 2 mic/line inputs, 1 stereo line input.
- 2-band master EQ.
- Channel 2 is Hi-Z compatible.
- Mix-out.

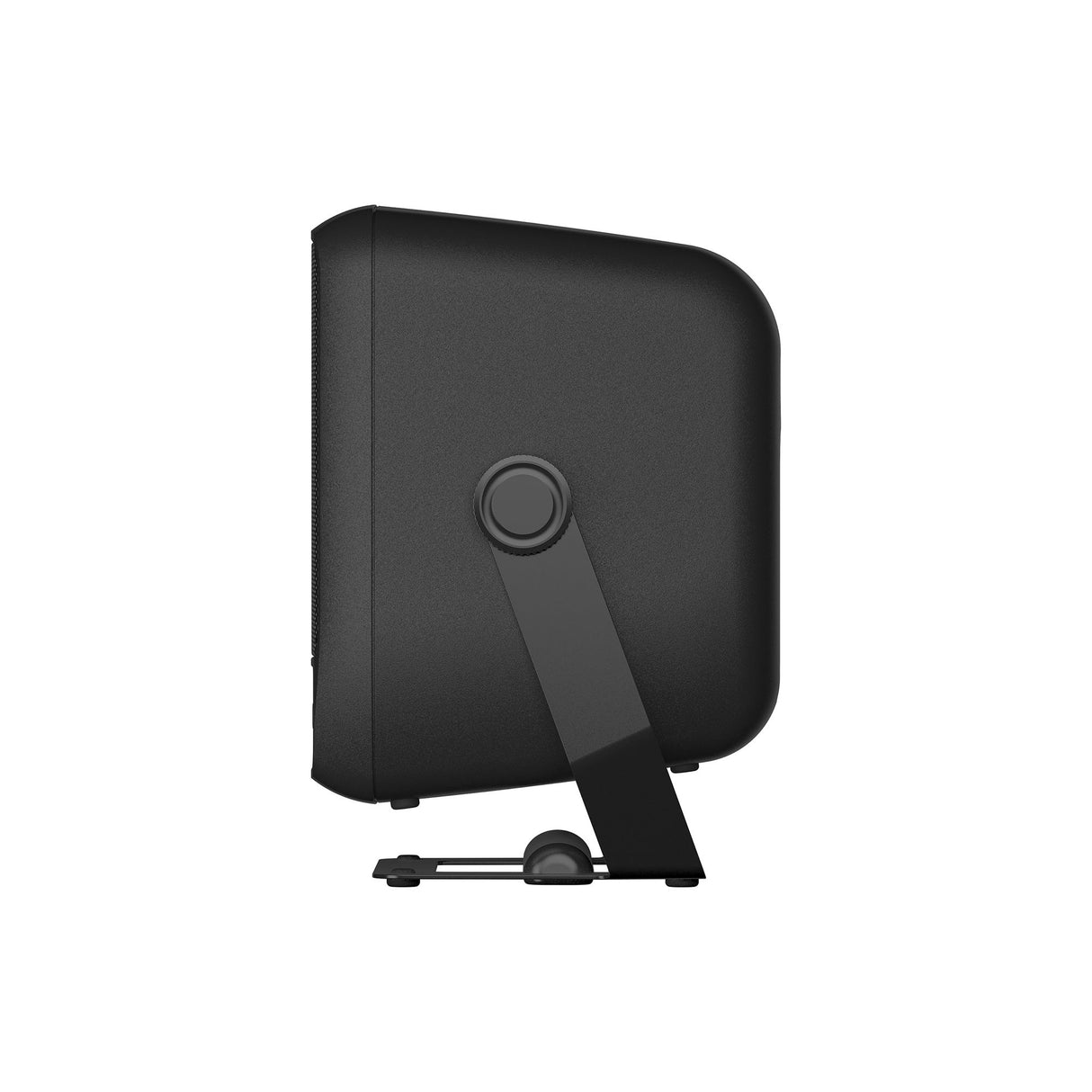

- Carrying handle also has stand function.
- Built-in Bluetooth so you can run with accompaniment.
- An ideal mini PA system for the musician on the go.

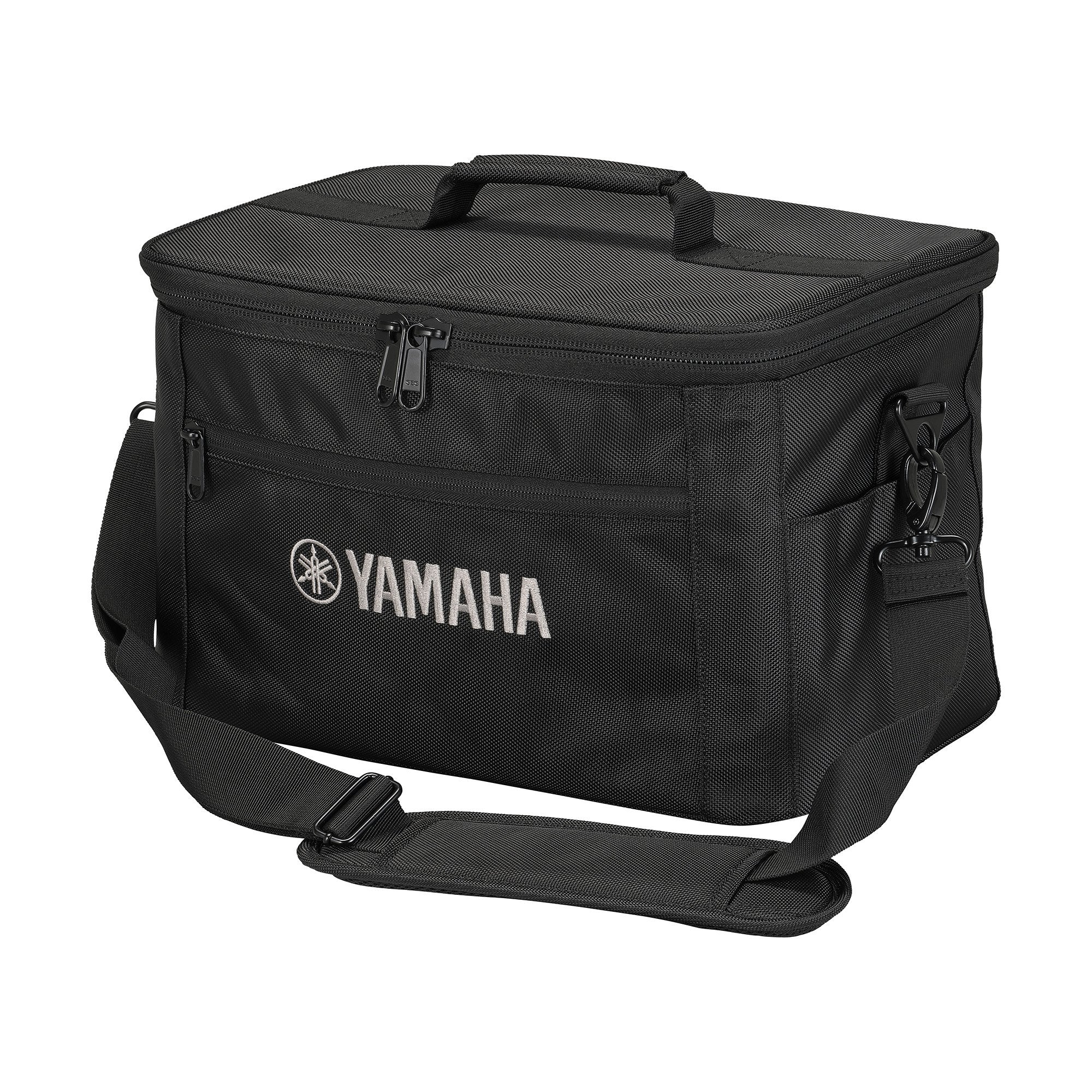

- Transport bag can be purchased.
- Also available in a battery-powered version - Yamaha Stagepas 100 Compact Battery Speaker.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications

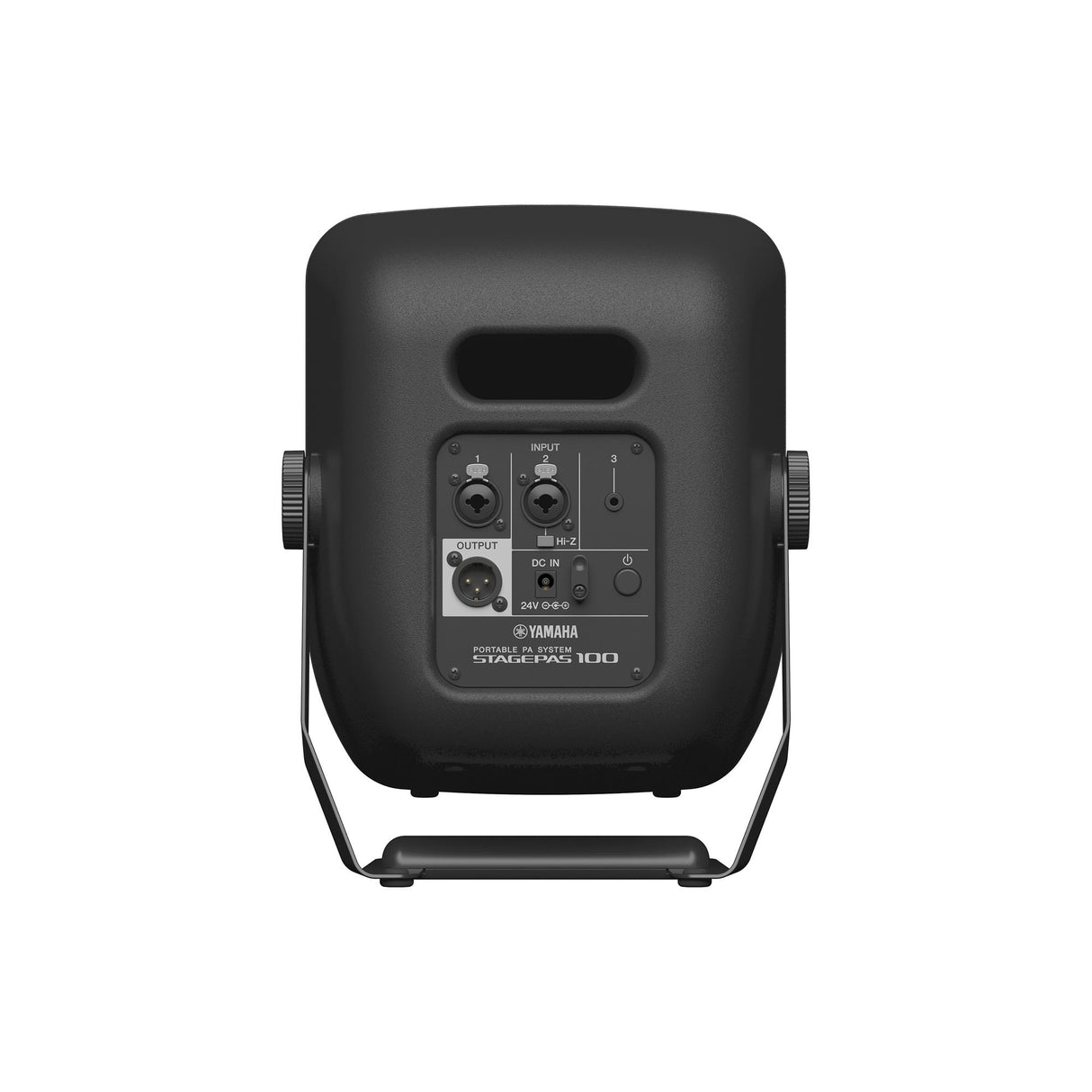

INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
OUTPUT: XLR3-32 (INPUT 1-3 mix)
Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1
Frequency range (-10dB) 70 Hz - 20 kHz
Coverage area H90ï¾ x V90ï¾
Crossover 1.8 kHz (FIR-X)
Maximum output level (1m; on axis) 120 dB SPL *1
LF 6.5" Cone, 1.7" voice coil
HF 1" throat compression driver, 1.4" voice coil
Power rating Amp 100 W (LF: 93 W, HF: 7 W)
Power consumption 10 W (Idle), 30 W (1/8 power)
Cabinet material Plastic (PP)
Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 12.3" x 8.5"), with handle
Weight 5.2 kg (11.5 lbs), without AC adaptor
Accessories Power cord x 1, AC adaptor (PA-500) x 1
