Description
Description
- SpeakON 4-pin standard chassis connector
- Solidly constructed in Neutrik's usual high quality

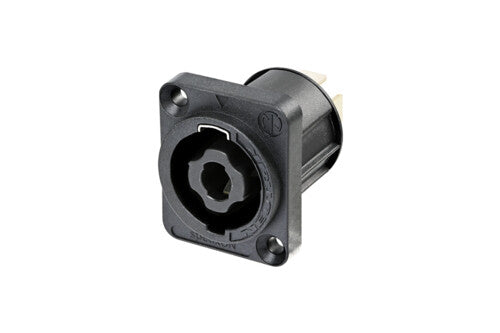

Neutrik NL4MPXX SpeakON Chassis Connector (4-pin)
- SpeakON 4-pin standard chassis connector fully compatible with the IEC 62368-1 device standard.
- For speakers, amplifiers.
- Black D-size flange, recessed mounting holes.
- Unique metal locking system that only allows a hole through when the speakon connector is fully locked.
- Solidly constructed in Neutrik's usual high quality.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Gender male
Electrical:
Contact resistance ⤠2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical:
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs (e.g. NLFASTON) Locking NLFASTON)
Locking device Quick Lock
Chassis shape D
Layout standard hole position, thru holes
Material
Contact plating Ag
Locking element Stainless Steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Environmental
Flammability UL94 V-0
Temperature range -30 °C to +80 °C
