Description
Description
- Multi-effects especially for vocals
- Compressor, eq, delay, reverb
- Lo-fi, distortion, radio etc.
- Automatic pitch correction
- Harmony, double effects, looper
- Connect to your computer/mobile via USB-C for recording and playback
- Powered by 4 AA batteries (included) or power supply (optional)
Boss VE-22 Vocal Performer
- Advanced multi-effect specifically designed for vocals.
- Many classic effects like compressor, eq, delay, reverb.
- Lo-fi, distortion, radio, ring mod and other special effects.
- With automatic pitch correction - adjustable from subtle to aggressive electronic sounds.
- Harmony and double effects.
- Easy to use and with clear LCD display.
- 50 presets and 99 memories.
- XLR input with phantom power and sensitivity control.
- Two xlr outputs with stereo, dual mono or wet/dry mix + dry only.

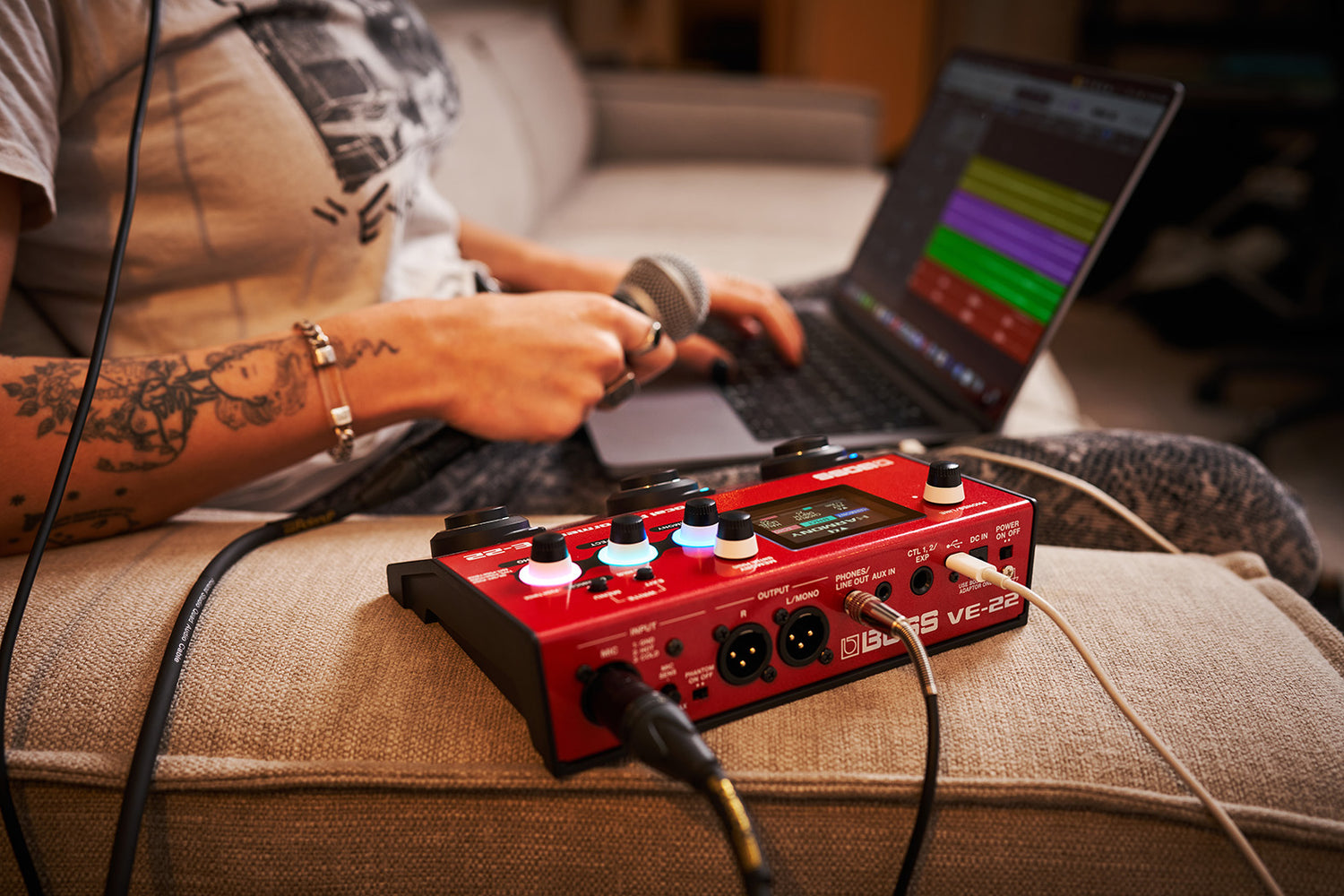

- Connect the VE-22 to your computer or mobile via USB-C for recording and playback.
- AUX input for external audio source.
- Built-in looper, jack for expression pedal.

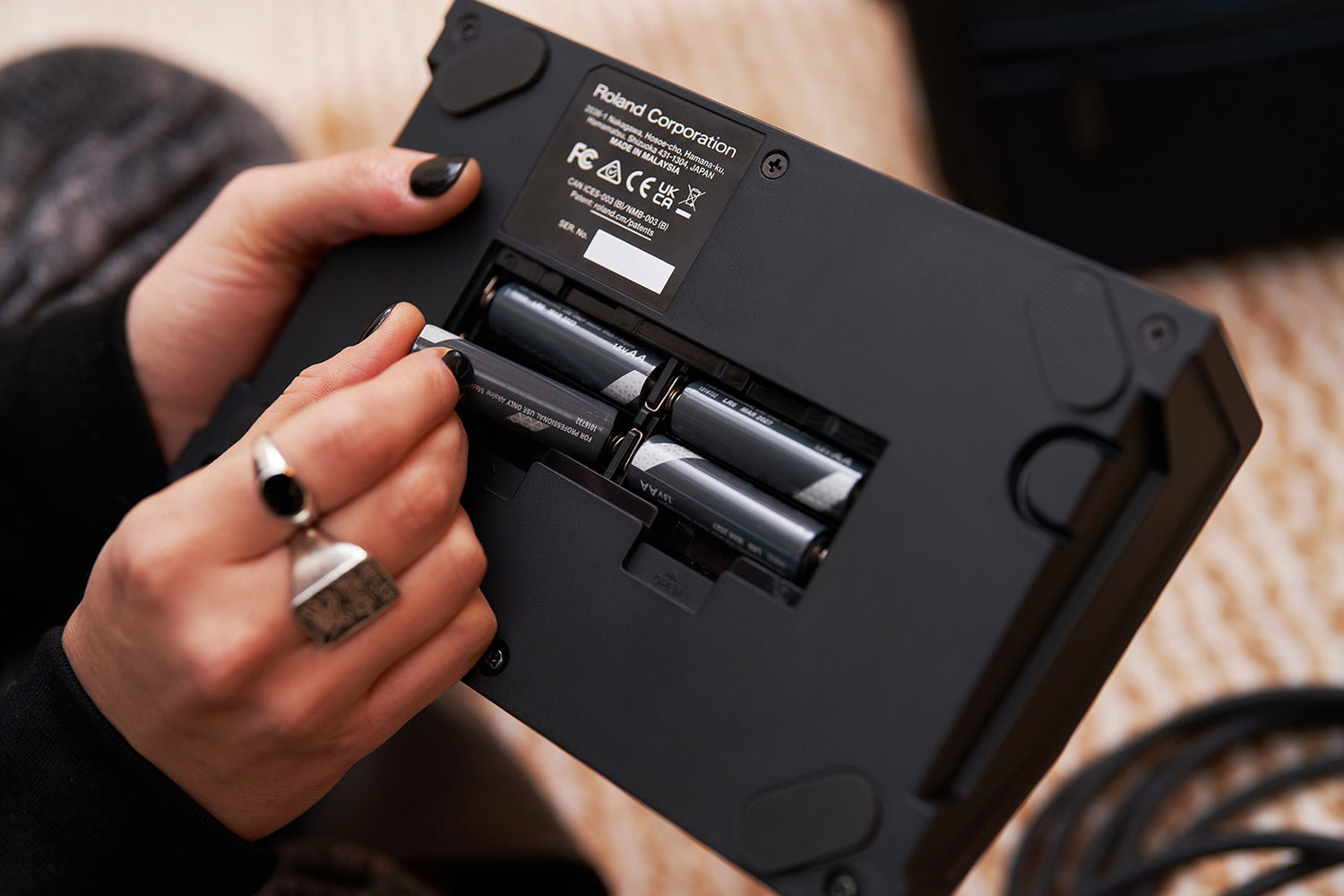

- Can run on 4 AA batteries (included) or power supply (optional).
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- Sample Rate 48 kHz
- AD Conversion 24 bits + AF method
- AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA Conversion 32 bits
- Processing 32-bit floating point
- Effects 39 types
- Memories 99 (User) + 50 (Preset)
- Phrase Loop 37 sec.
- Nominal Input Level INPUT: -40 dBu (Adjustable), AUX IN: -20 dBu
- Maximum Input Level INPUT: 0 dBu, AUX IN: 0 dBu
- Input Impedance INPUT: 4 k ohms, AUX IN: 27 k ohms
- Nominal Output Level OUTPUT L/MONO, R: -40 dBu, PHONES/LINE OUT: -10 dBu
- Output Impedance OUTPUT L/MONO, R: 600 ohms, PHONES/LINE OUT: 47 ohms
Recommended Load Impedance OUTPUT L/MONO, R: 600 ohms or greater
PHONES/LINE OUT: 47 ohms or greater

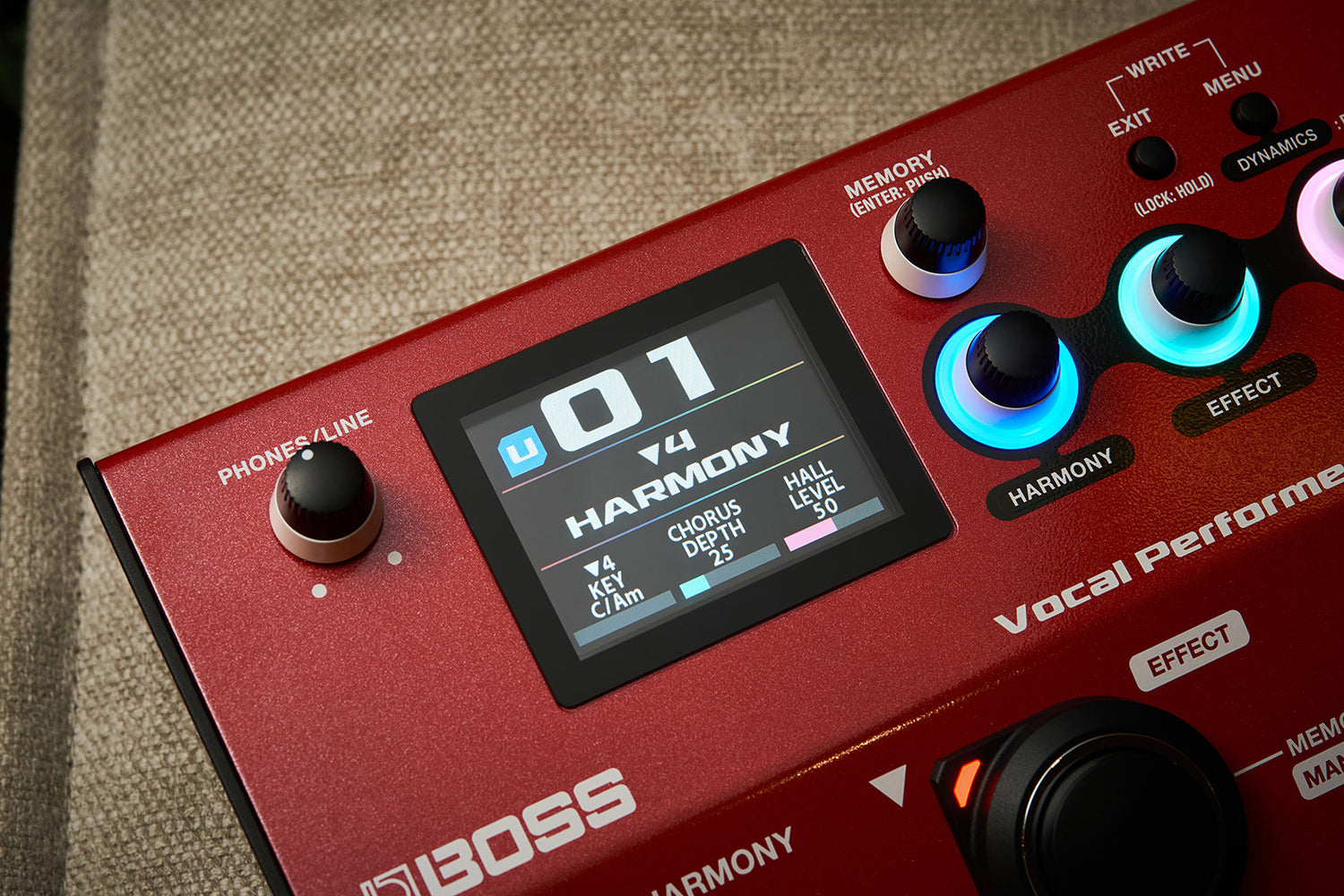

- Display Graphic color LCD 320 x 240 dots

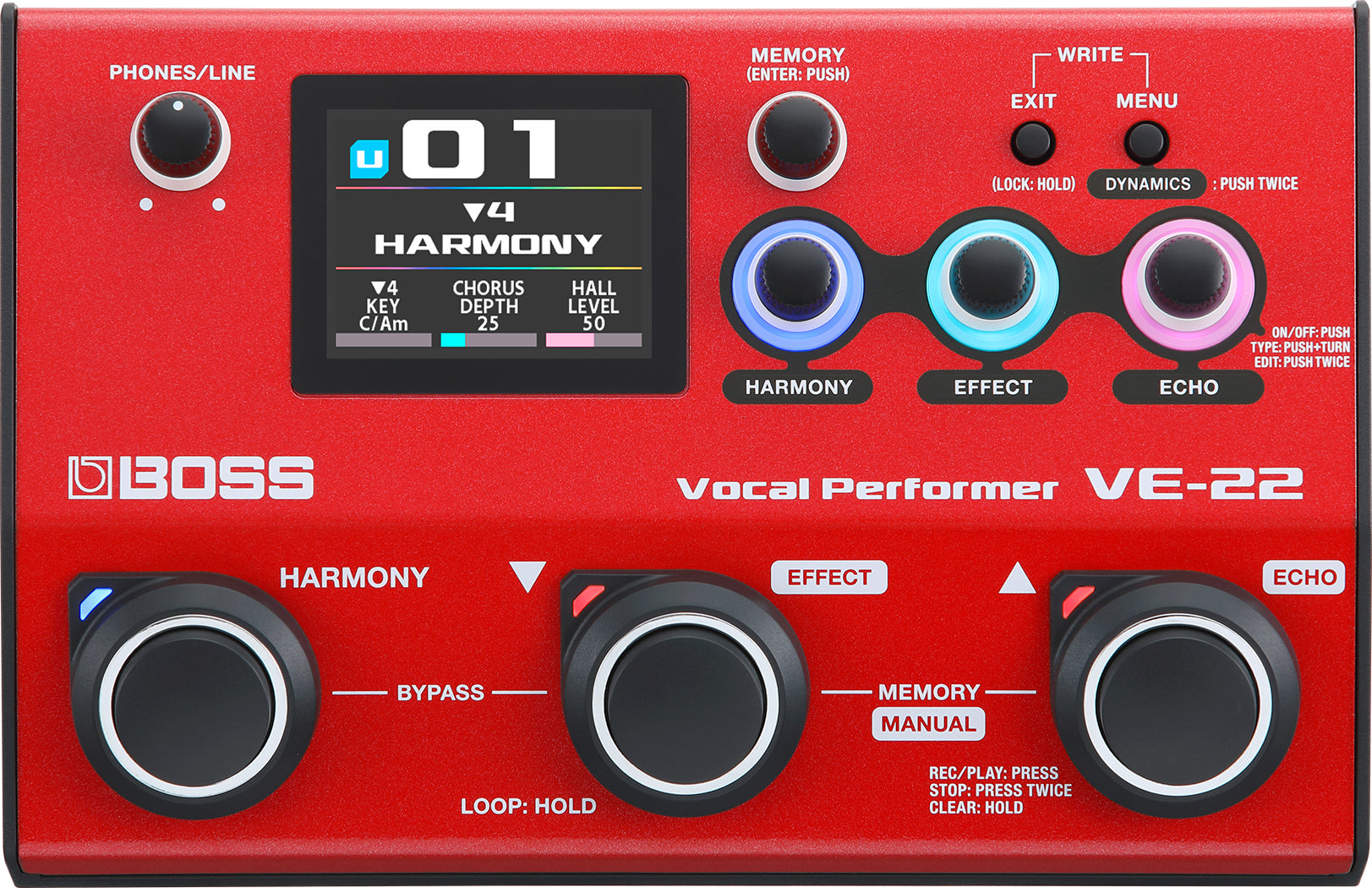

Controls:
- HARMONY switch
- DOWN switch
- UP switch
- MENU button
- EXIT button
- PHONES/LINE knob
- MEMORY knob
- HARMONY knob
- EFFECT knob
- ECHO knob
- MIC SENS knob
- PHANTOM switch
- POWER switch

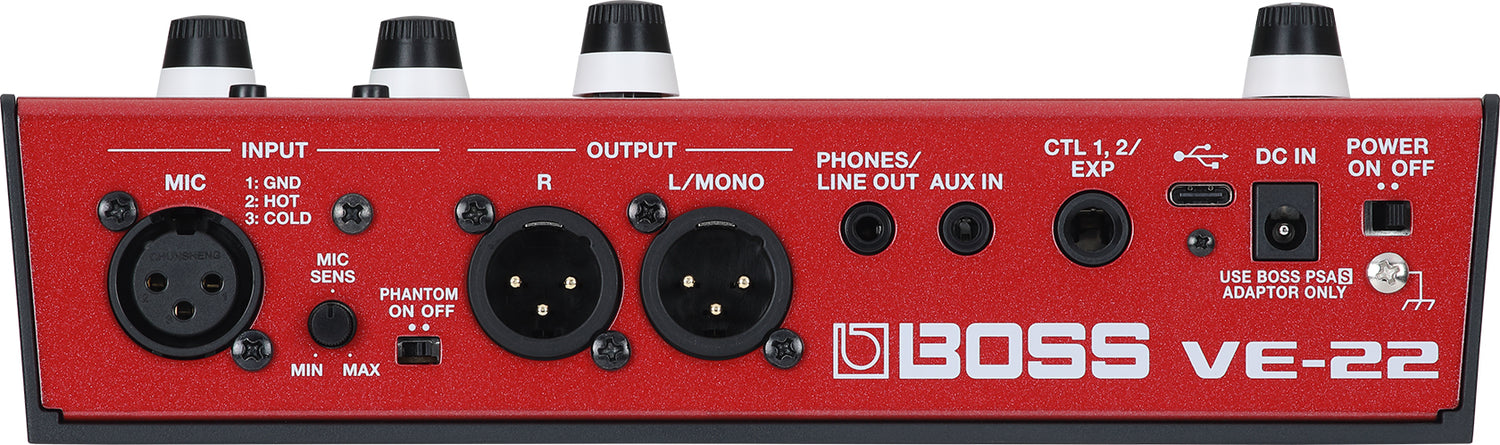

Connectors
- INPUT connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
- OUTPUT L/MONO, R connectors: XLR type
- PHONES/LINE OUT jack: Stereo miniature phone type
- AUX IN jack: Stereo miniature phone type
- CTL1,2 / EXP jack: 1/4-inch TRS phone type
- USB COMPUTER port: USB Type-C(R)
- DC IN jack
Power Supply
- Alkaline battery (AA, LR6) x 4 or
- AC adaptor (PSA-S series: sold separately)
Current Draw
- 260 mA (with phantom power)
- 180 mA (without phantom power)
Expected battery life under continuous use
- Alkaline battery: Approximately 6 hours (with phantom power)
- Alkaline battery: Approximately 9 hours (without phantom power)
- * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories
- STARTUP GUIDE
- Alkaline battery (AA, LR6) x 4
- Leaflet "USING THE UNIT SAFELY"
Options (sold separately)
- AC adaptor: PSA-S series
- Footswitch: FS-5U, FS-6, FS-7
- Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
- Carrying Bag: CB-VE22
- Width 218 mm / 8-5/8 inches
- Depth 143 mm / 5-11/16 inches
- Height 64 mm / 2-9/16 inches
- Weight (including battery 910 g / 2 lb 0.1 0z
Brand: Boss by Roland
SKU: ROL-VE-22
