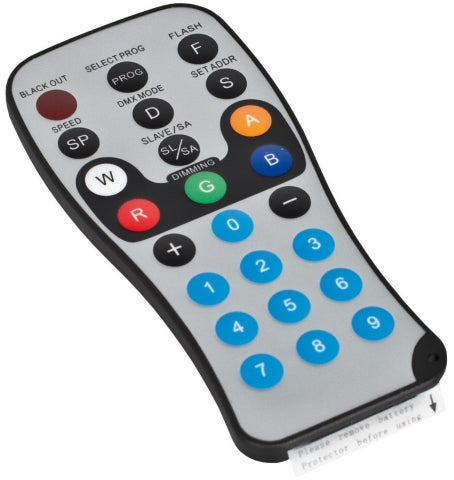

ADJ LED RC2 Remote Control

Wireless remote control for LED products.
Suitable for

• Flat PAR CWWW9
• Flat PAR CWWW18
• Flat PAR QA5
• Flat PAR QA5X
• Flat PAR QA5XS
• Flat PAR QA12
• Flat PAR QA12X
• Flat PAR QA12XS
• Flat PAR QWH5
• Flat PAR QWH5X
• Flat PAR QWH5XS
• Flat PAR QWh22
• Flat PAR QWh22X
• Flat PAR QWh22XS
• Mega QA PAR 38
• Mega TriPar Profile Plus
• Mega Par Profile Plus
• Mega 64 Profile Plus
• VBAR PAK
• VPAR PAK
• RGB 3C IR
• RGBW4C IR

ADJ LED RC2

• Blackout - Pressing this button will blackout the fixture.
• Auto run - This button will run an automatic program. You can control the speed of the Auto
  Run by pressing the SPEED button first and then pressing the ?+? and ?-? buttons.
• PROGRAM SELECTION - This button will let you access one of the seven static color selections.
  Pressing this button and then pressing the ?+? or ?-? to navigate through
  the seven programs.
• FLASH - This button will activate the strobe effect. You can control the flash rate by pressing the
  ?+? and ?-? buttons. Press this button again to exit strobe mode.
• SPEED - Press this button and use the ?+? & ?-? buttons to adjust the speed of the Auto run.
• DMX MODE - This button will let you select which DMX mode you want to use. Some fixtures will
  come with different DMX channel modes. This button will switch between the different
  modes. Please see your corresponding fixture in this user manual to find out
  about your DMX modes, values, and traits.
• SOUND ACTIVE - This button activates sound active mode. Sound active mode will not work for
  outdoor LED lights.
• SLAVE - This designates the fixture as a slave fixture in a master/slave configuration.
• SET ADDRESS - Press this button to set the DMX address. Press this button first, then press the
  numbers to set the address. Example: DMX Address 1 Press ?S001?
  DMX Address 245 Press ?S245?
• R G B A W- Press either one of these buttons, and then press the ?+? and ?-? to adjust the brighness.
  ?+? and ?-? - Use these buttons to adjust the flash rate, speed of the Auto Run, dimming, and program
  selection.


• Includes Red, Green, Blue, Amber and White LED control
• Wireless infrared remote control up to 15 ft/45M
• Black Out: Turns fixture On/Off
• Program Selection: Access units built-in programs
• Flash: Strobe effect mode
• Speed: Activates the speed control of programs
• DMX Mode Select
• Sound Active: Activates sound active mode
• Slave: Designates the fixture as a “slave” fixture in the Master/Slave configuration
• Set Address: Set DMX Address on a fixture
• RGBAW Buttons: Adjust RGBAW colors with the “+” and “-“ buttons
• + and – Buttons: Adjust flash rate speed, program speed, sound sensitivity and program selection
